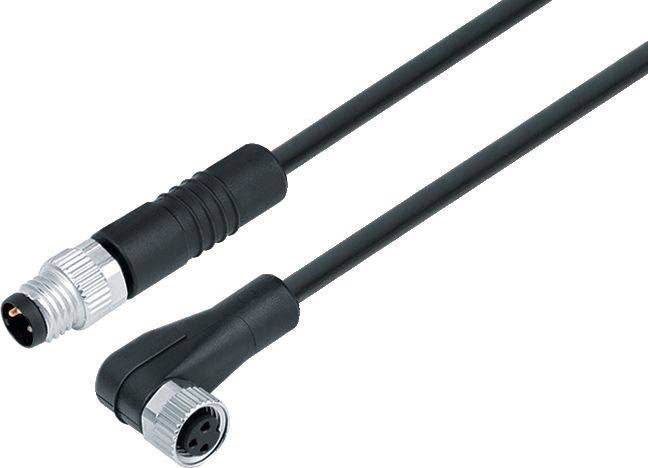

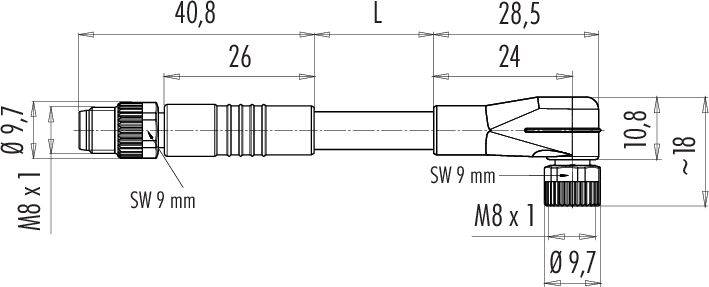

binder 77 3408 3405 50003-0100-20 Sensor/actuator connector (pre-fab) M8 Socket, right angle, Plug, straight 1 m No. of
Product type
Sensor/actuator connector (pre-fab)
Connector type
Socket, right angle
Plug, straight
Connection side A
M8
Connection side B
M8

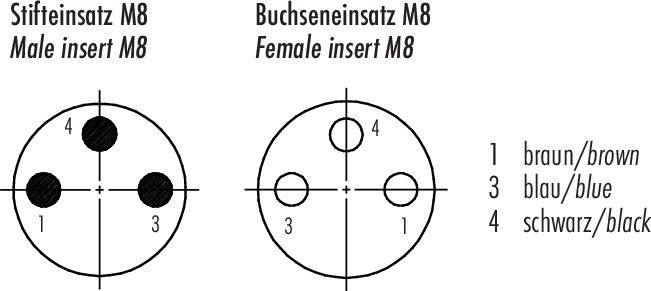

No. of pins
3
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
77 3408 3405 50003-0100 Series 718
- M8 connecting cable cable plug - angled socket
- Number of poles: 3
- unshielded
- Moulded on the cable
- IP67
- UL
- PUR black
- 3 x 0.34 mm²
Technical specifications
- EMC-suitability: Unshielded
- Constant resistance: 3 mΩ
- Insulation material group II.
- Overvoltage category II
- Pollution level 3
- Material contact body: PUR
- Material locking: Nickel-plated die-cast zinc
- Insulation: Halogen-free PP9Y
- Cable cross-section 3 x 0.34 mm²
- Bending radius for cable moving: ≥ 15 x Ø
- ≥ 7.5 x Ø flexible cable bend radius
- Halogen-free: Yes
- Mounting type: Cable mounting
- Type
77 3408 3405 50003-0100
- Product type
Sensor/actuator connector (pre-fab)
- Connector type
Socket, right angle
Plug, straight
- Connection side A
M8
- Connection side B
M8
- No. of pins
3
- Cable length
1 m
- Jacket material
PUR
- Nominal voltage
30 V
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Connector cross-section (max.)
0.34 mm²
- Cross-section (sensor/actuator wiring)
0.34 mm²
- Connection
Cable + connector
- Factory colour
Black
- Thread type connection side
M8
- Thread type (wiring and installation)
M8
- Contact material
CuZn
- Contact surface
Au (gold)
IP67
- Features
Halogen-free
- Min. temperature
-30 °C
- Max. temperature
80 °C
- Seal type
Screw-on
- Manufacturer part #
77 3408 3405 50003-0100-20
- Content
1 pc(s)
- Cable Ø
5.3 mm
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 3217042 binder 77 3408 3405 50003-0100-20 Sensor/actuator connector (pre-fab) M8 Socket, right angle, Plug, straight 1 m No. of
User & Safety Instructions
User & Safety Instructions 3217042 binder 77 3408 3405 50003-0100-20 Sensor/actuator connector (pre-fab) M8 Socket, right angle, Plug, straight 1 m No. of
Description
These connector systems offer the perfect solution for sensors and actuators in many industrial sectors. We offer connectors from IP40 to IP69K, many of them with UL, VDE and Ecolab approval, as well as FDA-compliant models. Users can order round connectors with 2 to 12 contacts and various connection options, including solder, crimp, dip solder, cable and stranded wire connections. Connectors with M5, M8 and M12 screw locking are available in straight and angled design as well as flange versions. Apart from Duo-plugs and double distributors a large selection of connecting cables is also available.
Properties:
• 2 to 12 pole
• IP40 to IP69K
• Screw lock
• Simple installation
• UL, VDE and Ecolab approval
• Connecting cables
• FDA compliant versions
This text is machine translated.
