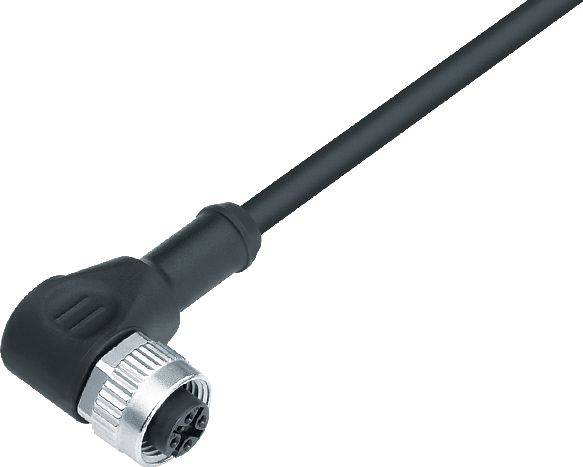

Image similar

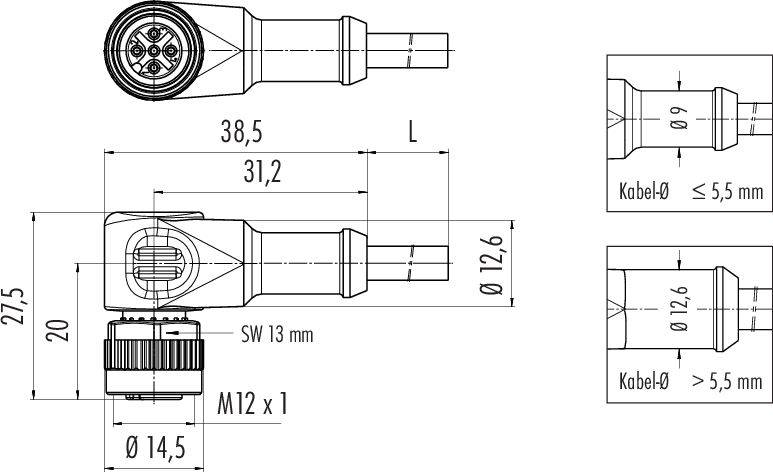

binder 77 3434 0000 50712-1000-20 Sensor/actuator connector (pre-fab) M12 Socket, right angle 10 m No. of pins (RJ): 12
Product type
Sensor/actuator connector (pre-fab)
Connector type
Socket, right angle
Connection side A
M12

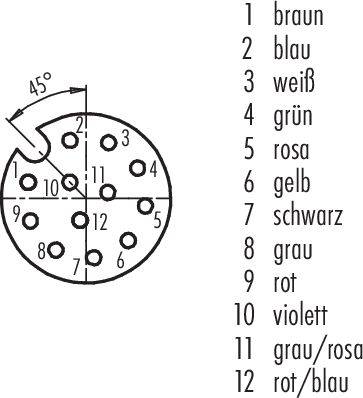

No. of pins
12
Cable length
10 m
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
77 3434 0000 50712-1000 Series 763
- M12-A angled socket
- Number of poles: 12
- unshielded
- Moulded on the cable
- IP69K
- UL listed
- PUR gray
- 12 x 0.25 mm²
Technical specifications
- EMC-suitability: Unshielded
- Insulation resistance: ≥ 10¹⁰ Ω
- Constant resistance: 3 mΩ
- Insulation material group II.
- Overvoltage category II
- Pollution level 3
- Material contact body: PUR
- Material locking: Nickel-plated die-cast zinc
- Insulation: Halogen-free PP9Y
- Cable cross-section 12 x 0.25 mm²
- Travel speed: ≤ 200 m/min (5 m horizontal distance)
- Bending radius for cable moving: ≥ 10 x Ø
- ≥ 5 x Ø flexible cable bend radius
- Halogen-free: Yes
- Mounting type: Cable mounting
- Type
77 3434 0000 50712-1000
- Product type
Sensor/actuator connector (pre-fab)
- Connector type
Socket, right angle
- Connection side A
M12
- No. of pins
12
- Cable length
10 m
- Jacket material
PUR
- Nominal voltage
30 V
- Nominal current
1.5 A
- Nominal current - rounded value
1.5 A
- Connector cross-section (max.)
0.25 mm²
- Cross-section (sensor/actuator wiring)
0.25 mm²
- Connection
Cable + connector
- Factory colour
Grey
- Thread type connection side
M12
- Thread type (wiring and installation)
M12
- Coding
A
- Contact material
CuSn
- Contact surface
Au (gold)
IP69K
- Features
Halogen-free
- Min. temperature
-50 °C
- Max. temperature
80 °C
- Seal type
Screw-on
- Manufacturer part #
77 3434 0000 50712-1000-20
- Content
1 pc(s)
- Cable Ø
6.5 mm
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 3217407 binder 77 3434 0000 50712-1000-20 Sensor/actuator connector (pre-fab) M12 Socket, right angle 10 m No. of pins (RJ): 12
User & Safety Instructions
User & Safety Instructions 3217407 binder 77 3434 0000 50712-1000-20 Sensor/actuator connector (pre-fab) M12 Socket, right angle 10 m No. of pins (RJ): 12
Description
These connector systems offer the perfect solution for sensors and actuators in many industrial sectors. We offer connectors from IP40 to IP69K, many of them with UL, VDE and Ecolab approval, as well as FDA-compliant models. Users can order round connectors with 2 to 12 contacts and various connection options, including solder, crimp, dip solder, cable and stranded wire connections. Connectors with M5, M8 and M12 screw locking are available in straight and angled design as well as flange versions. Apart from Duo-plugs and double distributors a large selection of connecting cables is also available.
Properties:
• 2 to 12 pole
• IP40 to IP69K
• Screw lock
• Simple installation
• UL, VDE and Ecolab approval
• Connecting cables
• FDA compliant versions
