1/3

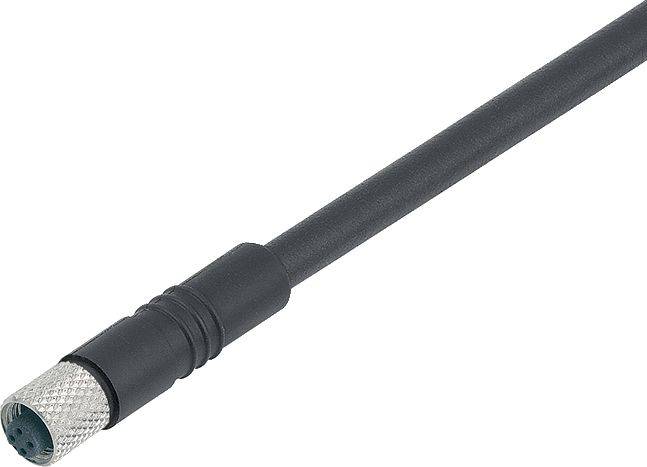

Image similar
binder 77 3450 0000 50004-0500-20 Sensor/actuator connector (pre-fab) M5 Socket, straight 5 m No. of pins (RJ): 4 1 pc(s
Product type
Sensor/actuator connector (pre-fab)
Connector type
Socket, straight
Connector standard
Sensor connector
Connection side A
M5
No. of pins
4
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
77 3450 0000 50004-0500 Series 707
- M5 cable socket
- Number of pins: 4
- unshielded
- Moulded on the cable
- IP67
- UL
- M5x0.5
- PUR black
- 4 x 0.25 mm²
Technical specifications
- EMC-suitability: Unshielded
- Insulation resistance: > 10⁸ Ω
- Constant resistance: 3 mΩ
- Insulating material group: I
- Overvoltage category II
- Pollution level 3
- Material contact body: PUR
- Material locking: CuZn (brass nickel-plated)
- Insulation PVC
- Cable cross-section 4 x 0.25 mm²
- Bending radius for cable moving: ≥ 10 x Ø
- ≥ 5 x Ø flexible cable bend radius
- Halogen-free: Yes
- Mounting type: Cable mounting
- Type
77 3450 0000 50004-0500
- Product type
Sensor/actuator connector (pre-fab)
- Connector type
Socket, straight
- Connector standard
Sensor connector
- Connection side A
M5
- No. of pins
4
- Cable length
5 m
- Jacket material
PUR
- Nominal voltage
60 V
- Nominal current
1 A
- Nominal current - rounded value
1 A
- Connector cross-section (max.)
0.25 mm²
- Cross-section (sensor/actuator wiring)
0.25 mm²
- Connection
Cable + connector
- Factory colour
Black
- Thread type connection side
M5
- Thread type (wiring and installation)
M5
- Contact material
CuSn
- Contact surface
Au (gold)
IP67
- Features
Halogen-free
- Min. temperature
-25 °C
- Max. temperature
80 °C
- Seal type
Screw-on
- Manufacturer part #
77 3450 0000 50004-0500-20
- Content
1 pc(s)
- Cable Ø
4.0 mm
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 3217516 binder 77 3450 0000 50004-0500-20 Sensor/actuator connector (pre-fab) M5 Socket, straight 5 m No. of pins (RJ): 4 1 pc(s
User & Safety Instructions
User & Safety Instructions 3217516 binder 77 3450 0000 50004-0500-20 Sensor/actuator connector (pre-fab) M5 Socket, straight 5 m No. of pins (RJ): 4 1 pc(s
Description
These connector systems offer the perfect solution for sensors and actuators in many industrial sectors. We offer connectors from IP40 to IP69K, many of them with UL, VDE and Ecolab approval, as well as FDA-compliant models. Users can order round connectors with 2 to 12 contacts and various connection options, including solder, crimp, dip solder, cable and stranded wire connections. Connectors with M5, M8 and M12 screw locking are available in straight and angled design as well as flange versions. Apart from Duo-plugs and double distributors a large selection of connecting cables is also available.
Properties:
• 2 to 12 pole
• IP40 to IP69K
• Screw lock
• Simple installation
• UL, VDE and Ecolab approval
• Connecting cables
• FDA compliant versions
