binder 77 3527 0000 20705-0500-20 Sensor/actuator connector (pre-fab) Plug, right angle 5 m No. of pins (RJ): 5 1 pc(s)
Product type
Sensor/actuator connector (pre-fab)
Connector type
Plug, right angle
Connection side A
M12
No. of pins
5
Cable length
5 m
Datasheet (PDF)
EAN:
Part number:
Item no:

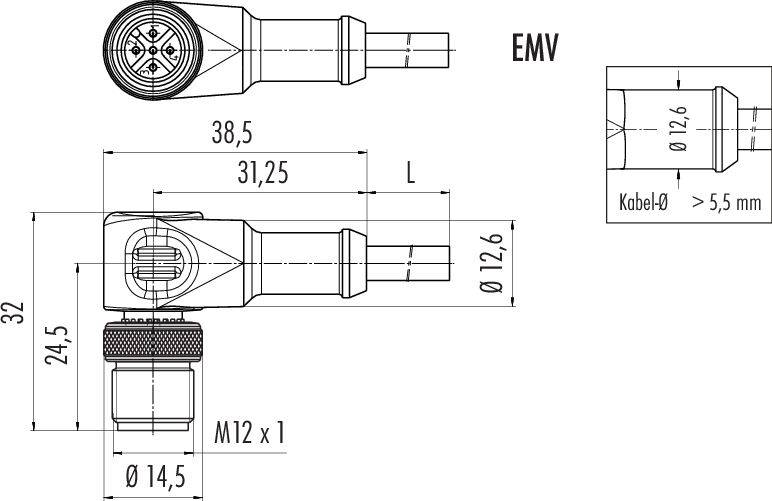

Highlights & Details
77 3527 0000 20705-0500 Series 763
- M12-A right-angle plug
- Number of pins: 5
- Shielded
- Moulded on the cable
- IP67
- UL listed
- PVC gray
- 5 x 0.25 mm²
Technical specifications
- EMC-suitability: Shielded
- Insulation resistance: ≥ 10¹⁰ Ω
- Constant resistance: 3 mΩ
- Insulation material group II.
- Overvoltage category II
- Pollution level 3
- Material contact body: PUR
- Material locking: CuZn (brass nickel-plated)
- Insulation PVC
- Cable cross-section 5 x 0.25 mm²
- Travel speed: ≤ 200 m/min (5 m horizontal distance)
- Bending radius for cable moving: ≥ 10 x Ø
- ≥ 5 x Ø flexible cable bend radius
- Halogen-free: No.
- Mounting type: Cable mounting
- Type
77 3527 0000 20705-0500
- Product type
Sensor/actuator connector (pre-fab)
- Connector type
Plug, right angle
- Connection side A
M12
- No. of pins
5
- Cable length
5 m
- Jacket material
PVC
- Nominal voltage
60 V
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Connector cross-section (max.)
0.25 mm²
- Connection
Cable + connector
- Factory colour
Grey
- Coding
A
- Contact material
CuZn
- Contact surface
Au (gold)
IP67
- Min. temperature
-40 °C
- Max. temperature
105 °C
- Seal type
Screw-on
- Manufacturer part #
77 3527 0000 20705-0500-20
- Content
1 pc(s)
- Cable Ø
5.7 mm
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 3217737 binder 77 3527 0000 20705-0500-20 Sensor/actuator connector (pre-fab) Plug, right angle 5 m No. of pins (RJ): 5 1 pc(s)
Description
These connector systems offer the perfect solution for sensors and actuators in many industrial sectors. We offer connectors from IP40 to IP69K, many of them with UL, VDE and Ecolab approval, as well as FDA-compliant models. Users can order round connectors with 2 to 12 contacts and various connection options, including solder, crimp, dip solder, cable and stranded wire connections. Connectors with M5, M8 and M12 screw locking are available in straight and angled design as well as flange versions. Apart from Duo-plugs and double distributors a large selection of connecting cables is also available.
Properties:
• 2 to 12 pole
• IP40 to IP69K
• Screw lock
• Simple installation
• UL, VDE and Ecolab approval
• Connecting cables
• FDA compliant versions
