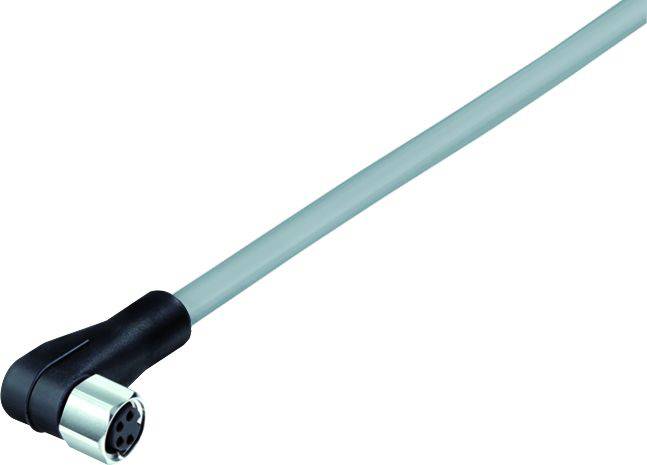

binder 77 3708 0000 20008-0500-20 Sensor/actuator connector (pre-fab) M8 Socket, right angle 5 m No. of pins (RJ): 8 1 p
Product type
Sensor/actuator connector (pre-fab)
Connector type
Socket, right angle
Connection side A
M8

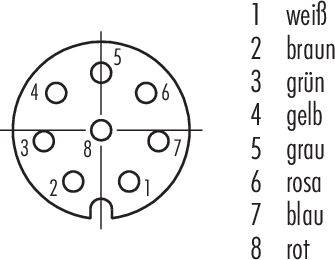

No. of pins
8
Cable length
5 m
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
77 3708 0000 20008-0500 Series 718
- M8 Angled socket
- Number of pins: 8
- unshielded
- Moulded on the cable
- IP67
- UL listed
- PVC gray
- 8 x 0.25 mm²
- Stainless steel
Technical specifications
- EMC-suitability: Unshielded
- Constant resistance: 3 mΩ
- Insulation material group II.
- Overvoltage category II
- Pollution level 3
- Material contact body: PUR
- Material locking: Stainless steel
- Insulation PVC
- Cable cross-section 8 x 0.25 mm²
- Travel speed: At 5 m horizontal path. -> 200 m/min.
- Bending radius for cable moving: ≥ 10 x Ø
- ≥ 5 x Ø flexible cable bend radius
- Halogen-free: No.
- Mounting type: Cable mounting
- Type
77 3708 0000 20008-0500
- Product type
Sensor/actuator connector (pre-fab)
- Connector type
Socket, right angle
- Connection side A
M8
- No. of pins
8
- Cable length
5 m
- Jacket material
PVC
- Nominal voltage
30 V
- Nominal current
1.5 A
- Nominal current - rounded value
1.5 A
- Connector cross-section (max.)
0.25 mm²
- Cross-section (sensor/actuator wiring)
0.25 mm²
- Connection
Cable + connector
- Factory colour
Grey
- Thread type connection side
M8
- Thread type (wiring and installation)
M8
- Contact material
CuSn
- Contact surface
Au (gold)
IP67
- Features
PVC
- Min. temperature
-40 °C
- Max. temperature
105 °C
- Seal type
Screw-on
- Manufacturer part #
77 3708 0000 20008-0500-20
- Content
1 pc(s)
- Cable Ø
6.0 mm
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 3217967 binder 77 3708 0000 20008-0500-20 Sensor/actuator connector (pre-fab) M8 Socket, right angle 5 m No. of pins (RJ): 8 1 p
User & Safety Instructions
User & Safety Instructions 3217967 binder 77 3708 0000 20008-0500-20 Sensor/actuator connector (pre-fab) M8 Socket, right angle 5 m No. of pins (RJ): 8 1 p
Description
These connector systems offer the perfect solution for sensors and actuators in many industrial sectors. We offer connectors from IP40 to IP69K, many of them with UL, VDE and Ecolab approval, as well as FDA-compliant models. Users can order round connectors with 2 to 12 contacts and various connection options, including solder, crimp, dip solder, cable and stranded wire connections. Connectors with M5, M8 and M12 screw locking are available in straight and angled design as well as flange versions. Apart from Duo-plugs and double distributors a large selection of connecting cables is also available.
