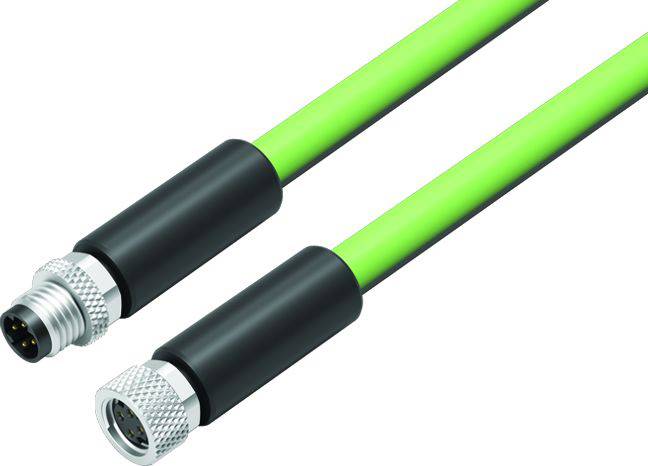

binder 77 5430 5429 50704-0100-20 Sensor/actuator connector (pre-fab) M8 Socket, straight, Plug, straight 1 m No. of pin
Product type
Sensor/actuator connector (pre-fab)
Connector type
Socket, straight
Plug, straight
Connection side A
M8
Connection side B
M8
No. of pins
4
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
77 5430 5429 50704-0100 Series 818
- M8-D connecting cable plug - cable socket
- Number of pins: 4
- Shielded
- Moulded on the cable
- IP67
- PUR green
- 4 x AWG22

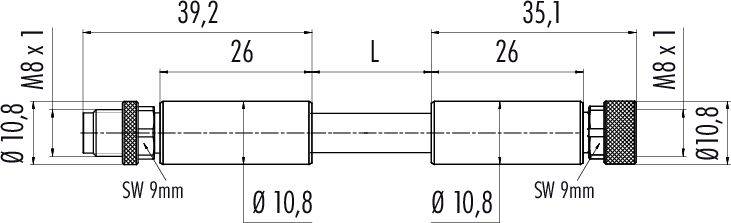

Technical specifications
- EMC-suitability: Shielded
- Insulation resistance: > 10⁸ Ω
- Constant resistance: 15 mΩ
- Insulating material group: I
- Overvoltage category II
- Pollution level 3
- Material contact body: PUR
- Material locking: CuZn (brass nickel-plated)
- Insulation: Polyolefin
- Cable cross-section 4 x AWG22
- Travel speed 200 m/min.
- Bending radius for cable moving: ≥ 15 x Ø
- ≥ 5 x Ø flexible cable bend radius
- Halogen-free: Yes
- Mounting type: Cable mounting
- Type
77 5430 5429 50704-0100
- Product type
Sensor/actuator connector (pre-fab)
- Connector type
Socket, straight
Plug, straight
- Connection side A
M8
- Connection side B
M8
- No. of pins
4
- Cable length
1 m
- Jacket material
PUR
- Nominal voltage
63 V DC
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Connector cross-section (max.)
0.34 mm²
- Connection
Cable + connector
- Factory colour
Green
- Thread type connection side
M8
- Thread type (wiring and installation)
M8
- Coding
D
- Contact material
CuZn
- Contact surface
Au (gold)
IP67
- Features
Halogen-free
Shielded
PUR jacket
- Min. temperature
-40 °C
- Max. temperature
80 °C
- Seal type
Screw-on
- Manufacturer part #
77 5430 5429 50704-0100-20
- Content
1 pc(s)
- Cable Ø
6.7 mm
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 3218268 binder 77 5430 5429 50704-0100-20 Sensor/actuator connector (pre-fab) M8 Socket, straight, Plug, straight 1 m No. of pin
User & Safety Instructions
User & Safety Instructions 3218268 binder 77 5430 5429 50704-0100-20 Sensor/actuator connector (pre-fab) M8 Socket, straight, Plug, straight 1 m No. of pin
Description
These connector systems offer the perfect solution for sensors and actuators in many industrial sectors. We offer connectors from IP40 to IP69K, many of them with UL, VDE and Ecolab approval, as well as FDA-compliant models. Users can order round connectors with 2 to 12 contacts and various connection options, including solder, crimp, dip solder, cable and stranded wire connections. Connectors with M5, M8 and M12 screw locking are available in straight and angled design as well as flange versions. Apart from Duo-plugs and double distributors a large selection of connecting cables is also available.
Properties:
• 2 to 12 pole
• IP40 to IP69K
• Screw lock
• Simple installation
• UL, VDE and Ecolab approval
• Connecting cables
• FDA compliant versions
