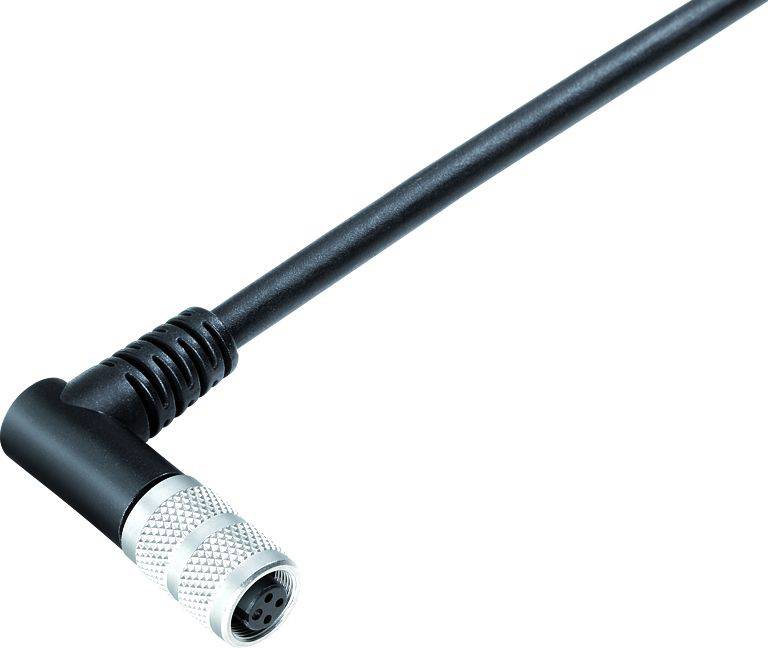

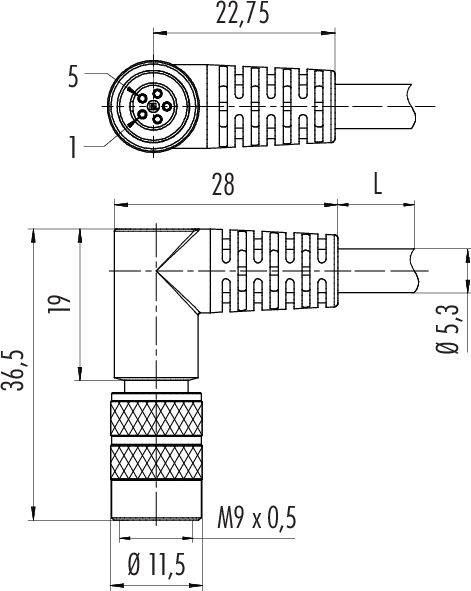

binder 79 1406 72 03-20 Bullet connector (pre-fab) Socket, right angle Total number of pins: 3 Series (round connectors)
Product type
Bullet connector (pre-fab)
Connector type
Socket, right angle
Total no. of pins
3
Connection
Cable + connector
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
79 1406 72 03 Series 702
- M9 IP67 angle socket
- Number of poles: 3
- Shielded
- Moulded on the cable
- IP67
- PUR black
- 5 x 0.25 mm²
Technical specifications
- EMC-suitability: Shielded
- Insulation resistance: ≥ 10¹⁰ Ω
- Constant resistance: 3 mΩ
- Insulation class III
- Overvoltage category II
- Pollution level 1
- Material contact body PBT (UL94 V-0)
- Material locking: CuZn (brass nickel-plated)
- Insulation wire PP
- Cable cross-section 5 x 0.25 mm²
- Travel speed: At 5 m horizontal path. -> 200 m/min.
- Bending radius for cable moving: ≥ 10 x Ø
- ≥ 5 x Ø flexible cable bend radius
- Halogen-free: Yes
- Mounting type: Cable mounting
- Type
79 1406 72 03
- Product type
Bullet connector (pre-fab)
- Connector type
Socket, right angle
- Total no. of pins
3
- Connection
Cable + connector
- Factory colour
Black
- Content
1 pc(s)
- Max. temperature
90 °C
- Nominal current
4 A
- Min. temperature
-50 °C
- Nominal current - rounded value
4 A
- Seal
screws
- Nominal voltage
125 V
- Contact material
CuSn
- Case material
PUR
AWG 24
- Manufacturer part #
79 1406 72 03-20
- Number of pins
3
- max. cross section
0.25 mm²
- Cross-section range
0.25 mm² (max)
- RoHS-compliant
Yes
IP67
- Series
702
Documents & Downloads
Datasheet
Datasheet 3215438 binder 79 1406 72 03-20 Bullet connector (pre-fab) Socket, right angle Total number of pins: 3 Series (round connectors)
User & Safety Instructions
User & Safety Instructions 3215438 binder 79 1406 72 03-20 Bullet connector (pre-fab) Socket, right angle Total number of pins: 3 Series (round connectors)
Description
Our sub-miniature round connectors have been developed for a wide range of applications where size and signal integrity play an important role. We offer models with snap, bayonet and push-pull locking as well as M9 screw locking in two different versions, either with protection class IP40 or with IP67. Connectors are available with two to eight contacts, straight or angled, and flange connectors. The different models have an immersion soldering or solder connection and are available with molded cables in different lengths. We use high-quality materials for the manufacture of our round plug connectors. The housings and contact bodies are made of PUR or PVC, the contacts are of gold-plated bronze or gold-plated brass. Seven different series are available, which convince with the following advantages:
• Selection of the lock
• Protection class IP40 or IP67
• 2 to 8 pole
• Straight and angled versions
• Up to 1,000 mating cycles
