binder 86 0536 1000 00404-20 Sensor/actuator connector M12 Socket, straight, Sleeve socket No. of pins (RJ): 4 1 pc(s)
Product type
Sensor/actuator connector
Connector type
Socket, straight
Sleeve socket
Connection side A
M12
No. of pins
4
Nominal voltage
50 V AC
60 V DC
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

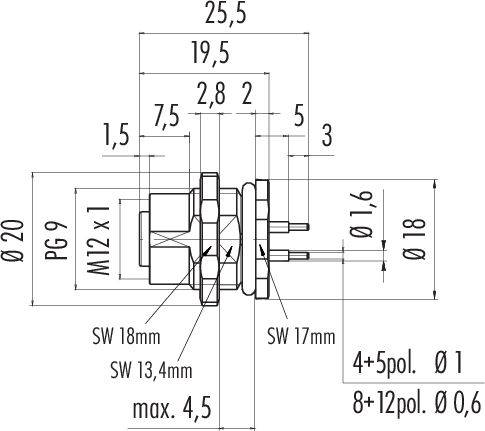

86 0536 1000 00404 Series 876
- M12-D flange socket
- Number of pins: 4
- unshielded
- immersion soldering
- IP67
- UL
- PG9
- screw-in from the front
Our service for you
Technical specifications
- EMC-suitability: Unshielded
- Insulation resistance: > 10¹⁰ Ω
- Constant resistance: 15 mΩ
- Insulation material group II.
- Overvoltage category II
- Pollution level 3
- Material of contact body PA (UL94 V-0)
- Material locking: CuZn (brass nickel-plated)
- Mounting type: Housing assembly
- Type
86 0536 1000 00404
- Product type
Sensor/actuator connector
- Connector type
Socket, straight
Sleeve socket
- Connection side A
M12
- No. of pins
4
- Nominal voltage
50 V AC
60 V DC
- Nominal current
0.5 A
- Nominal current - rounded value
500 mA
- Connector cross-section (max.)
0.25 mm²
- Connection
Soldering
- Thread type connection side
M12
- Thread type (wiring and installation)
PG9
- Coding
D
- Contact material
CuZn
- Contact surface
Au (gold)
- Sensor/actuator connectivity fittings
Rear panel fitting
IP67
- Features
D-coded
- Seal type
Screw-on
- Manufacturer part #
86 0536 1000 00404-20
- Content
1 pc(s)
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 3218406 binder 86 0536 1000 00404-20 Sensor/actuator connector M12 Socket, straight, Sleeve socket No. of pins (RJ): 4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3218406 binder 86 0536 1000 00404-20 Sensor/actuator connector M12 Socket, straight, Sleeve socket No. of pins (RJ): 4 1 pc(s)
Description
Binder offers 7 different round connectors for signal and data transmission in modern, automated factories. These are mainly M8, M12, M16 round connectors, which can be configured by the customer according to the respective application area. Our latest shielded, X-coded M12 connector can handle data transfer rates up to an impressive 10 Gbps.
Properties:
• 6 product series
• Various locking systems, including M8, M12 and M16
• Coding, including M12 - B, -D and -X
• Protection class of IP20 to IP69K
• 2 to 8 contacts
• Shielded and shielded
• PUR and PVC cable
• Cable lengths from 0.5 m to 10 m.
