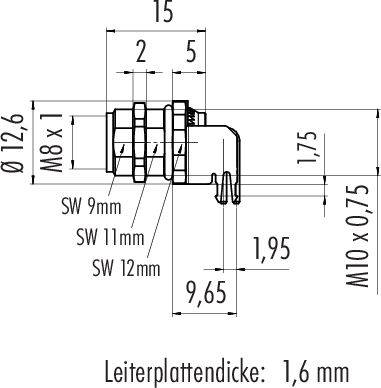

Image similar
binder 86 6618 1121 00008-20 Sensor/actuator connector M8 Socket, right angle, Sleeve socket No. of pins (RJ): 8 1 pc(s)
Product type
Sensor/actuator connector
Connector type
Socket, right angle
Sleeve socket
Connector standard
Sensor connector
Connection side A
M8
No. of pins
8
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
86 6618 1121 00008 Series 718
- M8 flange socket
- angled
- Number of pins: 8
- shieldable
- immersion soldering
- IP67
- M10x0.75
- screw-in from the front
Our service for you
Technical specifications
- EMC-suitability: Shielded
- Constant resistance: 3 mΩ
- Insulation material group II.
- Overvoltage category II
- Pollution level 3
- Material of contact body: PA
- Mounting type: Housing assembly
- Type
86 6618 1121 00008
- Product type
Sensor/actuator connector
- Connector type
Socket, right angle
Sleeve socket
- Connector standard
Sensor connector
- Connection side A
M8
- No. of pins
8
- Nominal voltage
30 V
- Nominal current
1.5 A
- Nominal current - rounded value
1.5 A
- Connection
Soldering
- Thread type connection side
M8
- Thread type (wiring and installation)
M10 x 0.75
- Contact material
CuSn
- Contact surface
Au (gold)
- Sensor/actuator connectivity fittings
Rear panel fitting
IP67
- Features
Shielded
- Seal type
Screw-on
- Manufacturer part #
86 6618 1121 00008-20
- Content
1 pc(s)
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 3218498 binder 86 6618 1121 00008-20 Sensor/actuator connector M8 Socket, right angle, Sleeve socket No. of pins (RJ): 8 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3218498 binder 86 6618 1121 00008-20 Sensor/actuator connector M8 Socket, right angle, Sleeve socket No. of pins (RJ): 8 1 pc(s)
Description
These connector systems offer the perfect solution for sensors and actuators in many industrial sectors. We offer connectors from IP40 to IP69K, many of them with UL, VDE and Ecolab approval, as well as FDA-compliant models. Users can order round connectors with 2 to 12 contacts and various connection options, including solder, crimp, dip solder, cable and stranded wire connections. Connectors with M5, M8 and M12 screw locking are available in straight and angled design as well as flange versions. Apart from Duo-plugs and double distributors a large selection of connecting cables is also available.
Properties:
• 2 to 12 pole
• IP40 to IP69K
• Screw lock
• Simple installation
• UL, VDE and Ecolab approval
• Connecting cables
• FDA compliant versions
This text is machine translated.
Properties:
• 2 to 12 pole
• IP40 to IP69K
• Screw lock
• Simple installation
• UL, VDE and Ecolab approval
• Connecting cables
• FDA compliant versions
This text is machine translated.
