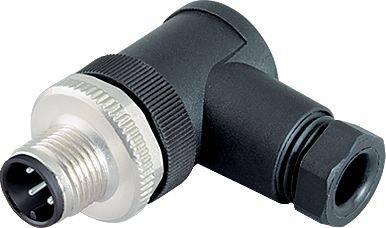

Image similar
binder 99 0537 52 05-20 Sensor/actuator connector M12 Plug, right angle No. of pins (RJ): 5 1 pc(s)
Product type
Sensor/actuator connector
Connector type
Plug, right angle
Connection side A
M12
No. of pins
5
Nominal voltage
60 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
99 0537 52 05 Series 713
- M12-A right-angle plug
- Number of pins: 5
- 6.0 - 8.0 mm
- unshielded
- Cage clamps
- IP67
Technical specifications
- EMC-suitability: Unshielded
- Insulation resistance: > 10⁸ Ω
- Constant resistance: 3 mΩ
- Insulation class III
- Overvoltage category II
- Pollution level 3
- Material of contact body: PA
- Material locking: Nickel-plated die-cast zinc
- Cable diameter 6.0 - 8.0 mm
- Mounting type: Cable mounting
- Type
99 0537 52 05
- Product type
Sensor/actuator connector
- Connector type
Plug, right angle
- Connection side A
M12
- No. of pins
5
- Nominal voltage
60 V
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Connector cross-section (max.)
0.50 mm²
- Connection
Pull spring
- Thread type connection side
M12
- Thread type (wiring and installation)
M12
- Coding
A
- Contact material
CuSn
- Contact surface
Au (gold)
IP67
- Seal type
Screw-on
- Manufacturer part #
99 0537 52 05-20
- Content
1 pc(s)
- Cable Ø (max.)
8 mm
- Cable Ø up to
6 mm
- Cable Ø range
6 - 8 mm
Documents & Downloads
Datasheet
Datasheet 3218638 binder 99 0537 52 05-20 Sensor/actuator connector M12 Plug, right angle No. of pins (RJ): 5 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3218638 binder 99 0537 52 05-20 Sensor/actuator connector M12 Plug, right angle No. of pins (RJ): 5 1 pc(s)
Description
These connector systems offer the perfect solution for sensors and actuators in many industrial sectors. We offer connectors from IP40 to IP69K, many of them with UL, VDE and Ecolab approval, as well as FDA-compliant models. Users can order round connectors with 2 to 12 contacts and various connection options, including solder, crimp, dip solder, cable and stranded wire connections. Connectors with M5, M8 and M12 screw locking are available in straight and angled design as well as flange versions. Apart from Duo-plugs and double distributors a large selection of connecting cables is also available.
Properties:
• 2 to 12 pole
• IP40 to IP69K
• Screw lock
• Simple installation
• UL, VDE and Ecolab approval
• Connecting cables
• FDA compliant versions
