Name: Blickle 935485 LRA-VSTH 35K-RA-GS10 Equipment swivel wheel Wheel diameter: 35 mm Load capacity (max.): 80 kg 1 pc(s)
Brand: Blickle
SKU: 3057650
Availability: InStock

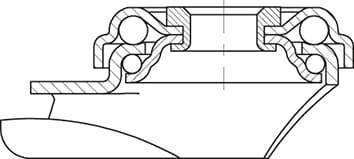

Cross-sectional drawing of a ball bearing, showing bearing balls and housing with schematic representation of the internal structure.

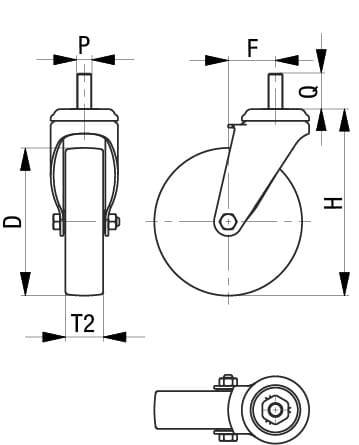

Technical drawing of a steering castor wheel with details of dimensions: diameter, width, height, and mounting options.

1/3

Datasheet (PDF)

Fast track dispatch on Thu 15 Oct

32 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 19.99 / piece)

€ 19.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Load capacity at 3 km/h: 80 kg
Material wheel body: Steel
Material: Polyurethane lining
Colour: Running surface: Light brown
Colour wheel body: Silver
Temperature resistance up to 70 °C
Temperature resistance min -20 oC
Coating hardness 92 Shore A
Without a trace: Yes
Anti-static: No.
Stainless steel: No.
Heat resistant: No.
Autoclave-compatible: No.
Resistant to hydrolysis: No.
Fastening method: Threaded pin
Related Steering Wheel: LRA-VSTH 35K-GS10
Associated wheel: VSTH 35/6K

Product type: Equipment swivel wheel

Wheel Ø: 35 mm

Load capacity (max.): 80 kg

Total height: 50 mm

Size: 43 mm

Wheel width: 27 mm

Bearing type: Ball bearing

Material: Polyurethane

Factory colour: Light brown

Content: 1 pc(s)

Weight: 0.248 kg

Documents & Downloads

Datasheet

Datasheet 3057650 Blickle 935485 LRA-VSTH 35K-RA-GS10 Equipment swivel wheel Wheel diameter: 35 mm Load capacity (max.): 80 kg 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3057650 Blickle 935485 LRA-VSTH 35K-RA-GS10 Equipment swivel wheel Wheel diameter: 35 mm Load capacity (max.): 80 kg 1 pc(s)

Description

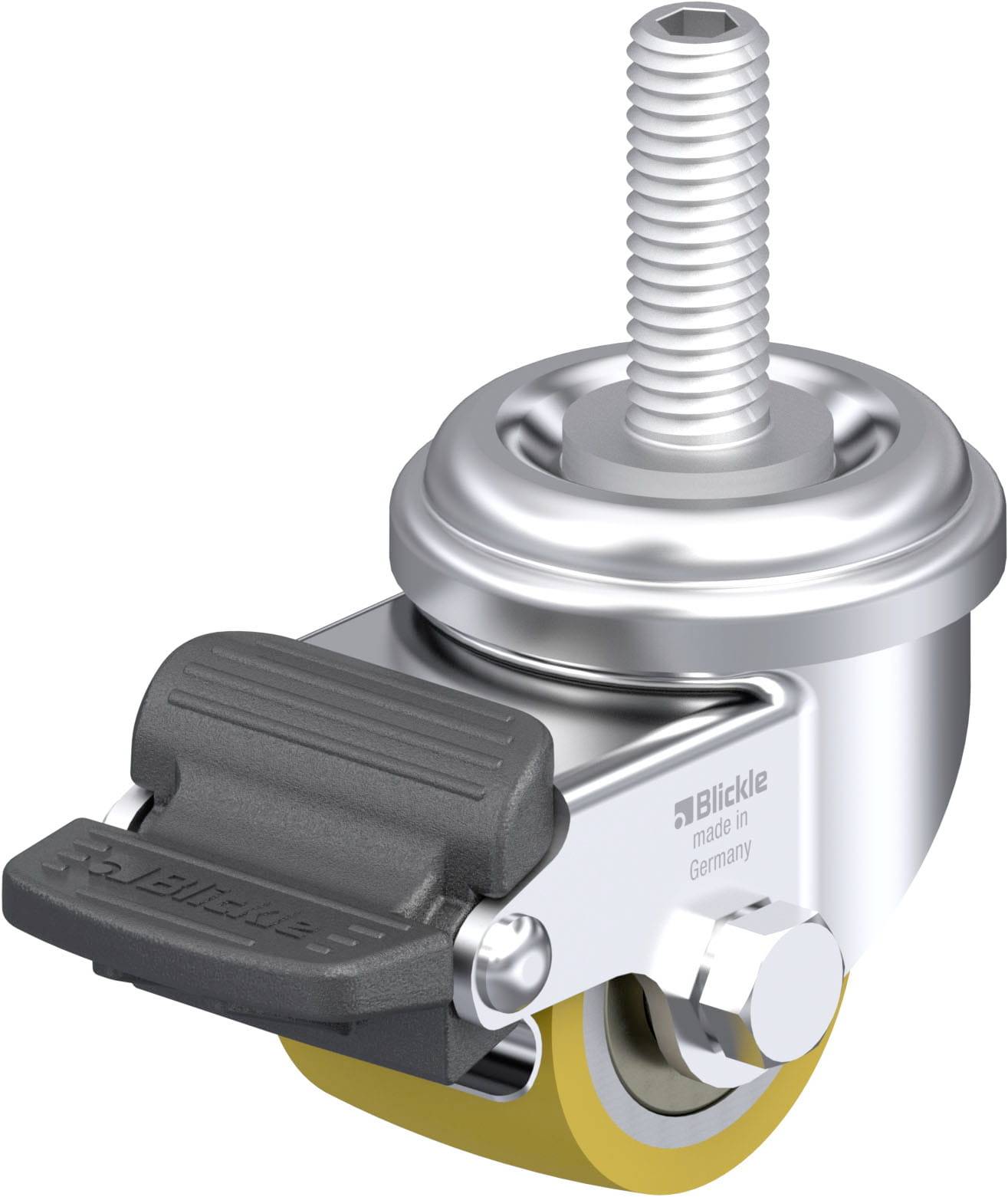

Apparate-steering wheel with reverse lock, with threaded pin, with 'Radstop' stopper,
Heavy-duty wheel with polyurethane tread Blickle Extrathane®, with steel wheel body

Casing: Series LRA

• Sheet steel, galvanized, blue passivated, Cr6-free
• Double ball bearing in rotating assembly
• Minimum rotating assembly play, smooth running, long service life thanks to the special dynamic Blickle riveting

Wheel: Series VSTH

• Coating: High-quality polyurethane elastomer Blickle Extrathane®, hardness 92 shore A, light brown color, trackless, contact-free
• Wheel body: Steel

Other properties:

• High chemical resistance to many aggressive media
• Temperature resistance: -20 °C to +70 ° C, short term to +90 °C, reduced load capacity above +40 °C.
