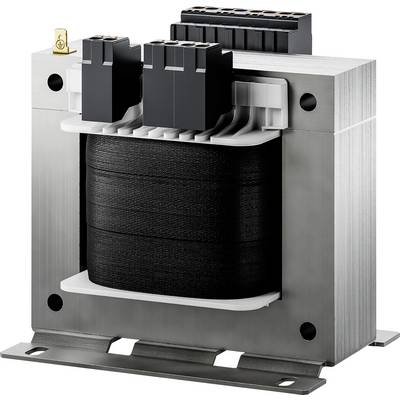

Buy BLOCK USTE 400/2x115 Control transformer, Isolation transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 44

BLOCK USTE 400/2x115 Control transformer, Isolation transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 44-0

Datasheet (PDF)

10 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 113.44 / piece)

€

Only 10 Piece(s) available

Report legal concerns

Highlights & Details

Control, security, isolation transformer series USTE

1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC
2 x 115 V AC, 230 V AC
400 VA

Technical specifications

Product type: Control transformer

Output voltage: 115 V AC
230 V AC

No. of outputs: 2 x

No. of inputs: 1 x

: 400 VA

Input voltage: 208 V AC
230 V AC
380 V AC
400 V AC
415 V AC
440 V AC
460 V AC
480 V AC
500 V AC
525 V AC
550 V AC
575 V AC
600 V AC
Show more

Standards: VDE 0570 Part 2-2, DIN EN 61558-2-2, EN 61558-2-2, IEC EN 61558-2-2, UL 5085-1/2, CSA 22.2 No.66

Connection: Push-in connector

Width: 120 mm

Height: 121 mm

Length: 104 mm

Dim: (L x W x H) 104 x 120 x 121 mm

Output voltage (number x voltage): 2 x 115 V AC, 230 V AC

Design type: Open

Input voltage (number x voltage): 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC

Weight: 5.30 kg

Content: 1 pc(s)

Insulation class: VDE = B, UL = class 130

Mounting type: L-piece

Test mark: cULus Listed

RoHS-compliant: Yes

Protection class: I

Type: USTE 400/2x115

Max. ambient temperature: +40 °C

Efficiency: 92 %

Variants(All information is without VAT, plus shipping costs)

Power

Output voltage

BLOCK USTE 400/2x115 Control transformer, Isolation transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC 2 x 115 V AC, 230 V AC 400 VA

Item no:1390958

This article

400 VA

115 V AC

BLOCK USTE 100/2x115 Control transformer, Isolation transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC 2 x 115 V AC, 230 V AC 100 VA

Item no:1390950

100 VA

115 V AC

BLOCK USTE 100/2x12 Control transformer, Safety transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC 2 x 12 V AC, 24 V AC 100 VA

Item no:1390951

100 VA

12 V AC

BLOCK USTE 1000/2x115 Control transformer, Isolation transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC 2 x 115 V AC, 230 V AC 1000 VA

Item no:1390952

1000 VA

115 V AC

BLOCK USTE 1600/2x115 Control transformer, Isolation transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC 2 x 115 V AC, 230 V AC 1600 VA

Item no:1390953

1600 VA

115 V AC

BLOCK USTE 250/2x115 Control transformer, Isolation transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC 2 x 115 V AC, 230 V AC 250 VA

Item no:1390954

250 VA

115 V AC

BLOCK USTE 250/2x12 Control transformer, Safety transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC 2 x 12 V AC, 24 V AC 250 VA

Item no:1390955

250 VA

12 V AC

BLOCK USTE 2500/2x115 Control transformer, Isolation transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC 2 x 115 V AC, 230 V AC 2500 VA

Item no:1390956

2500 VA

115 V AC

BLOCK USTE 3200/2x115 Control transformer, Isolation transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC 2 x 115 V AC, 230 V AC 3200 VA

Item no:1390957

3200 VA

115 V AC

BLOCK USTE 400/2x12 Control transformer, Safety transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC 2 x 12 V AC, 24 V AC 400 VA

Item no:1390959

400 VA

12 V AC

Documents & Downloads

Datasheet

Datasheet 1390958 BLOCK USTE 400/2x115 Control transformer, Isolation transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 44

User & Safety Instructions

User & Safety Instructions 1390958 BLOCK USTE 400/2x115 Control transformer, Isolation transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 44

Description

Control transformers of the series UST serve for universal voltage adjustment and safe galvanic isolation of the primary circuit from the secondary circuit. The unique Block IMPEX vacuum impregnation method protects well against external influences while reducing noise. The installation is done quickly and easily by means of innovative push-in-clamp technology.
