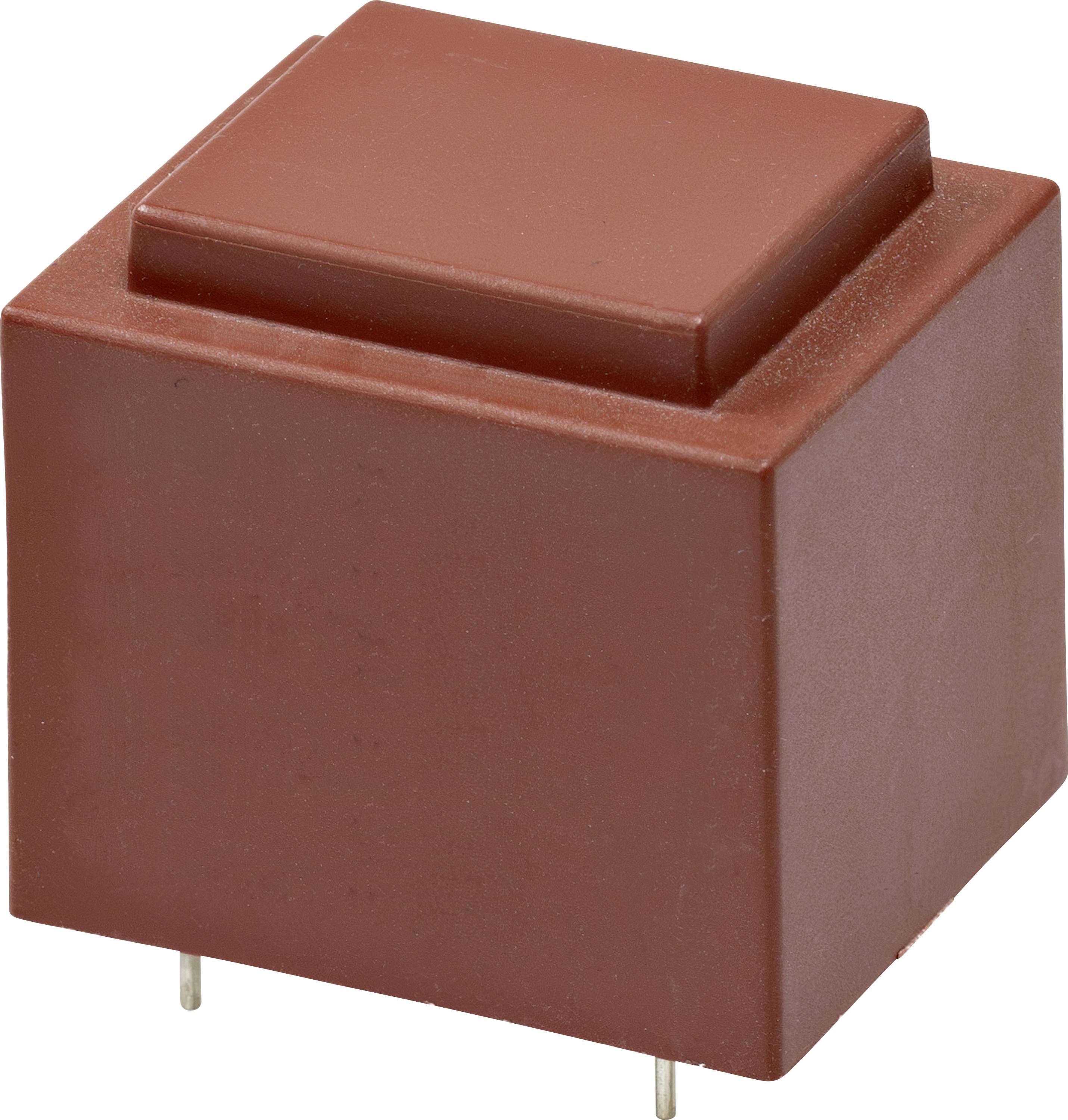

BLOCK VB 2,0/1/6 PCB mount transformer 1 x 230 V 1 x 6 V AC 2 VA 333 mA
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.92
3
6% = € 0.61
€ 10.31
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.92 / piece)
€ 10.92
plus VAT.
Highlights & Details
BLOCK VB 2,0/1/6 PCB mount transformer 1 x 230 V 1 x 6 V AC 2 VA 333 mA
- Minimum size in case of high power
- Short-circuit resistant
Technical specifications
- Output voltage
6 V AC
- Output voltage (number x voltage)
1 x 6 V AC
- Output current
333 mA
- No. of inputs
1 x
- No. of outputs
1 x
- Input voltage
230 V
- Input voltage (number x voltage)
1 x 230 V
2 VA
- Height
26.8 mm
- Type
VB 2,0/1/6
- Content
1 pc(s)
- Test mark
C-UL-US, ENEC 10 (VDE)
- Connection
Soldering
2 VA
- Output voltage
6 V/
- Insulation class
VDE=B, UL=105
- Frequency
50 - 60 Hz
- Efficiency
52 %
- RoHS-compliant
Yes
- Max. ambient temperature
+70 °C
- Test voltage
5000 V
- Weight
0.10 kg
- Product type
PCB mount transformer
Documents & Downloads
Datasheet
Datasheet 710600 BLOCK VB 2,0/1/6 PCB mount transformer 1 x 230 V 1 x 6 V AC 2 VA 333 mA
User & Safety Instructions
User & Safety Instructions 710600 BLOCK VB 2,0/1/6 PCB mount transformer 1 x 230 V 1 x 6 V AC 2 VA 333 mA
Conformity certificate
Conformity certificate 710600 BLOCK VB 2,0/1/6 PCB mount transformer 1 x 230 V 1 x 6 V AC 2 VA 333 mA
Description
VB Single Voltage Primary Terminal assignment
: Pen 1 – 2 Secondary Terminal assignment: pen 4 - 3
: Pen 1 – 2 Secondary Terminal assignment: pen 4 - 3
Hints
Dimensional drawing see technical data sheet.
