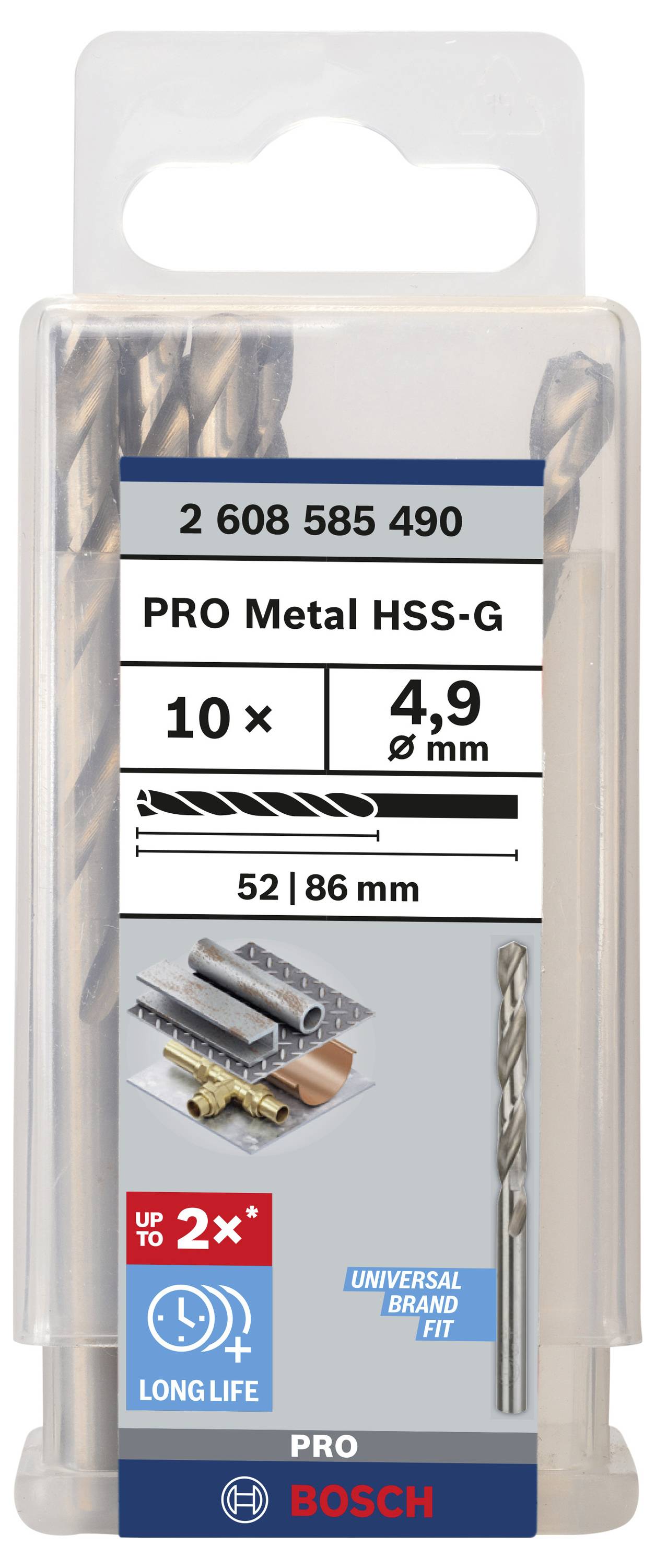

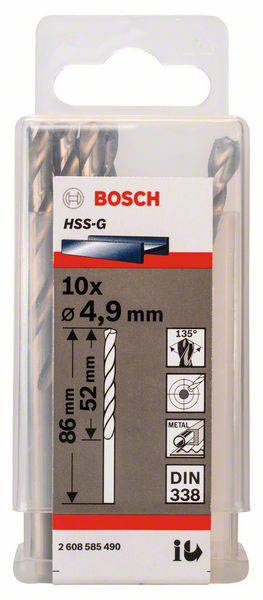

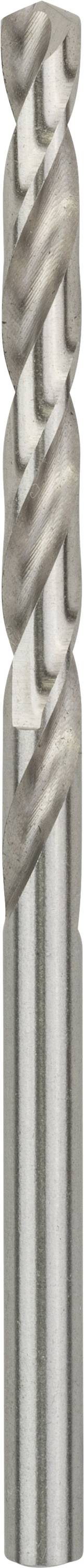

Bosch Accessories 2608585490 2608585490 HSS Metal twist drill bit 4.9 mm Total length 86 mm cut DIN 338 Cylinder shank 1

EAN:
Part number:
Item no:
1/5
Product type
Metal twist drill bit
Drill hole Ø
4.9 mm
Content
10 pc(s)
Material
HSS
Material suitability
Metal
Plastic
Non-ferrous metal
Unavailable

Sales and shipping:
Conrad ElectronicTerms & Conditions

Technical specifications

Product type

Metal twist drill bit

DIN standard

DIN 338

Drill hole Ø

4.9 mm

Content

10 pc(s)

Material

HSS

Material properties

cut

Material suitability

Metal

Plastic

Non-ferrous metal

Tensile strength (max.)

900 N/mm²

Tool holder

Cylinder shank

Shank Ø

4.9 mm

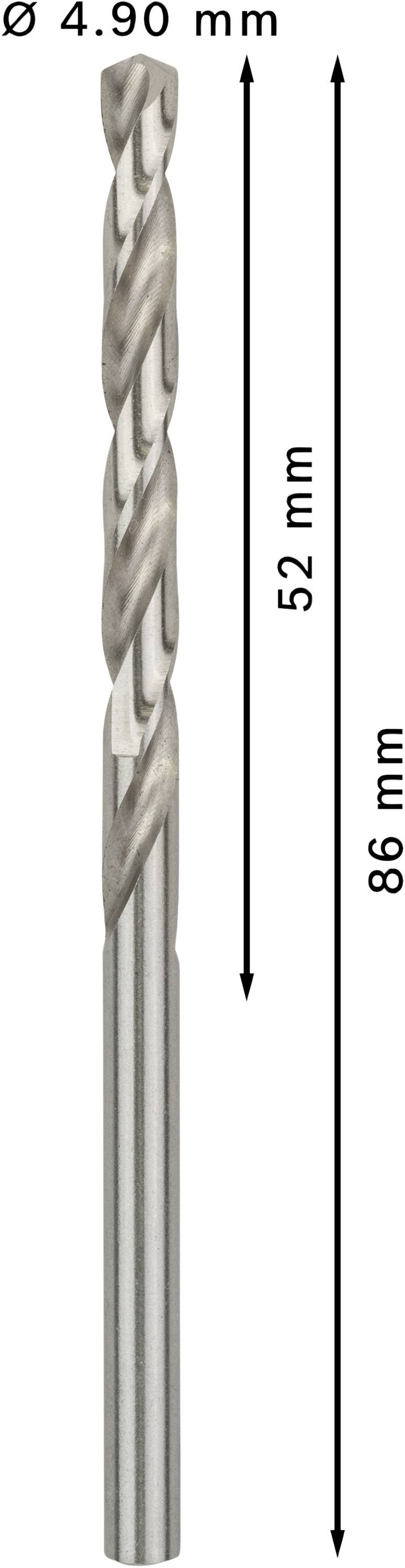

Working length

52 mm

Total length

86 mm

Length

86 mm

UKCA

not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 494353 Bosch Accessories 2608585490 2608585490 HSS Metal twist drill bit 4.9 mm Total length 86 mm cut DIN 338 Cylinder shank 1

Description

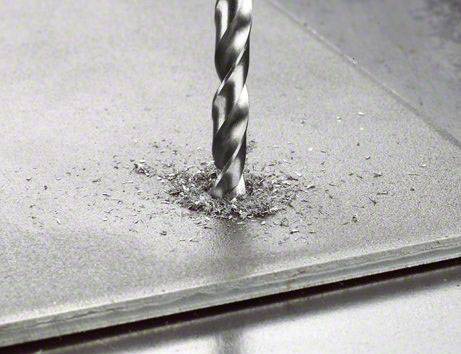

Suitable for alloyed and unalloyed steel up to a tensile strength of 900 N/mm², cast steel, gray cast iron, sintered iron, malleable cast iron, non-ferrous metals, hard plastics. Precision-ground HSS-G Steel drill bits allows up to 40% faster drilling progress, or up to 50% lower feed force than standard ground HSS drill bits with cone shaped section. Self-centering cross-grinding drill bit, makes the vorkornen or pre-drilling up to 10 mm diameter is unnecessary. The HSS-G-drill bits are available in two qualities. The Topline drill bits for the highest requirements and the standard drill bits for professional use. 10-pack. 85 x 52 x 86 mm

Hints

This text is machine translated.
