Bosch Accessories 2608588090 2608588090 HSS-Co Metal twist drill bit 3.6 mm Total length 70 mm DIN 338 Cylinder shank 10

1/5
Product type
Metal twist drill bit
Drill hole Ø
3.6 mm
Content
10 pc(s)
Material
HSS-Co
Material suitability
Metal
EAN:
Part number:
Item no:
Unavailable

Sales and shipping:
Conrad ElectronicTerms & Conditions

Technical specifications

Product type

Metal twist drill bit

DIN standard

DIN 338

Drill hole Ø

3.6 mm

Drill hole Ø tolerance limit

h 8

Tip angle

135°

Content

10 pc(s)

Material

HSS-Co

Material suitability

Metal

Tool holder

Cylinder shank

Shank Ø

3.6 mm

Working length

39 mm

Total length

70 mm

Drill features

Spiral groove

Length

70 mm

UKCA

not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1645261 Bosch Accessories 2608588090 2608588090 HSS-Co Metal twist drill bit 3.6 mm Total length 70 mm DIN 338 Cylinder shank 10

Description

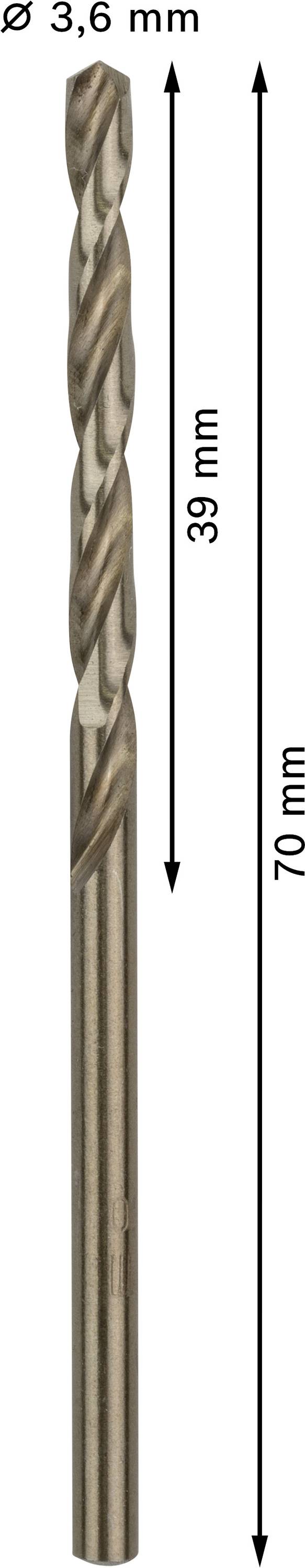

Metal drill bit HSS-Co, DIN 338, drill tip 135 degrees, D-tip. Diameter: 3.6 mm, working length: 39 mm, overall length: 70 mm. Contents of the sales packaging: 10 pieces. Twist drill bit of alloy, high-speed steel according to DIN 338, cobalt content 5 percent. Right cutting twist drill bit type N, drilling point 135 degrees, cross-grinding according to DIN 1412 C, diameter tolerance h8. From the full ground drill bit with excellent surface quality according to special factory standard. Shanks matches drilling diameter. Drill Color: Bronze. Two-flute cutter, cylindrical, two spiralig. Suitable for alloyed and unalloyed steel up to a tensile strength of 1000 N/mm², stainless steel V2A/V4A, gray cast iron, cast steel, acid and heat-resistant steels. Precision drill bits with a strong heat resistance and wear resistance. For use in drill stand or pillar drills. For professional use Note: use when working with HSS-Co metal drill bits the universal cutting oil 2 607 001 409.
