Bosch Professional GRL 650 CHVG 360-degree laser

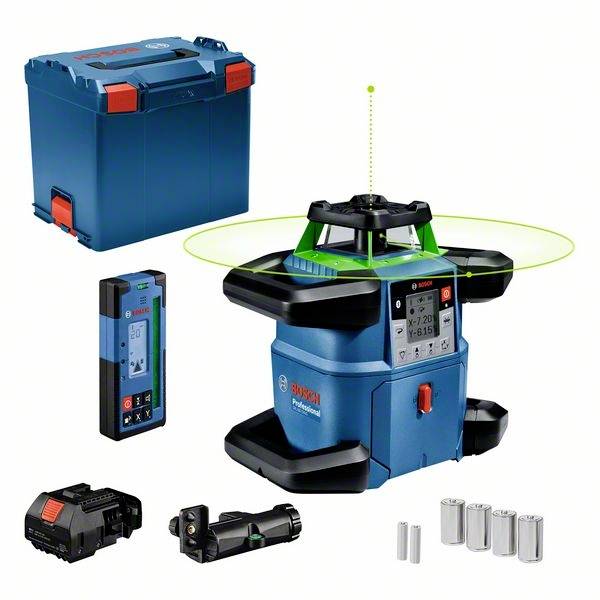

Images of Bosch tools: Rotary laser with digital receiver, charger, rechargeable batteries and carry case.

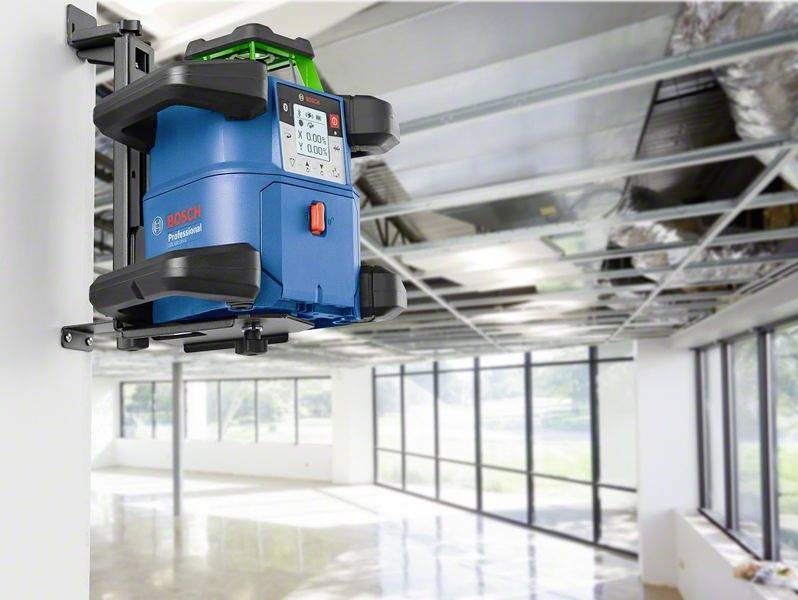

A blue construction laser level is mounted on a metal frame in an unfinished room. Daylight is streaming through the windows.

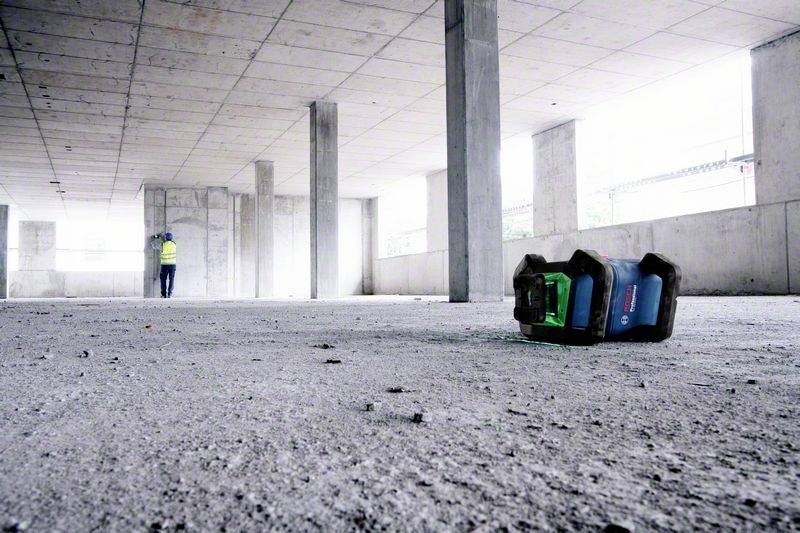

A construction worker in a high-visibility vest stands in an unfinished concrete building. A laser levelling device lies on the ground in the foreground.

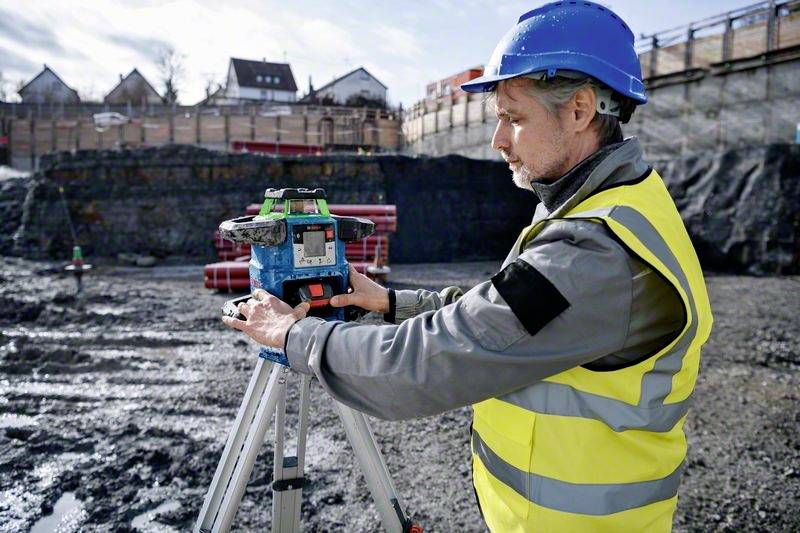

Worker in construction clothing uses a surveying instrument on a building site to measure ground irregularities. Houses in the background.

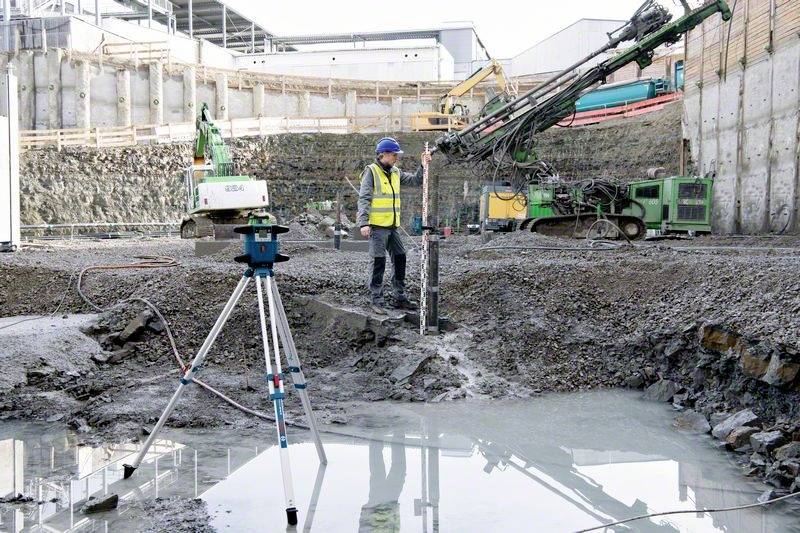

On a construction site, a construction worker wearing protective clothing is carrying out surveying work. Construction vehicles can be seen in the background.

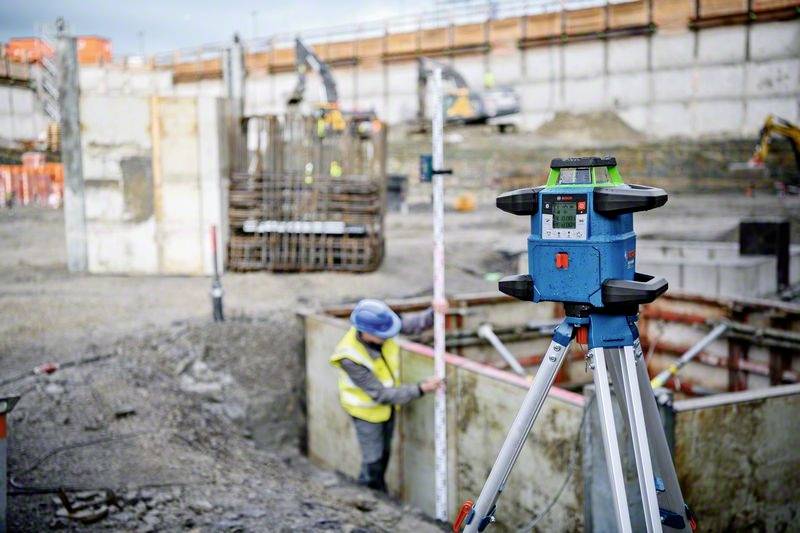

Construction workers on a building site are using a level for precise measurements. In the background, scaffolding and building materials are visible.

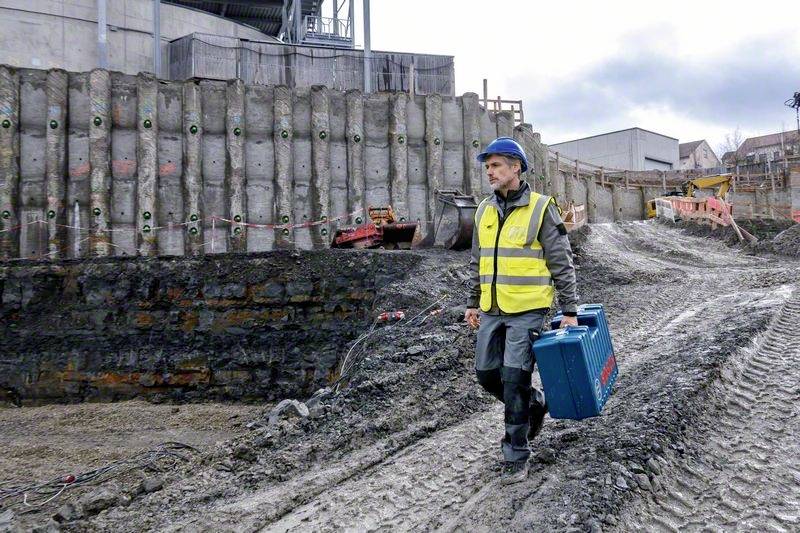

A construction worker in safety gear and a hard hat carries a blue toolbox across a muddy building site with concrete walls.

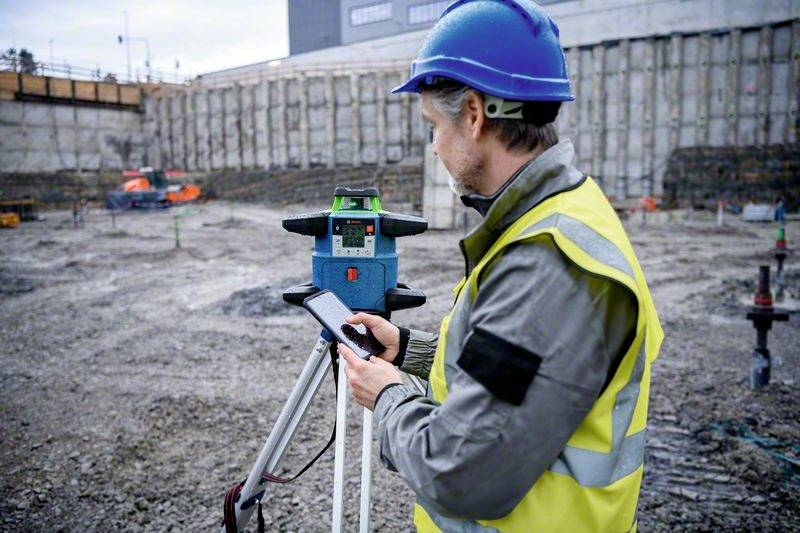

A construction worker wearing a hard hat and high-visibility vest operates a surveying instrument on a building site. Construction work is in progress in the background.

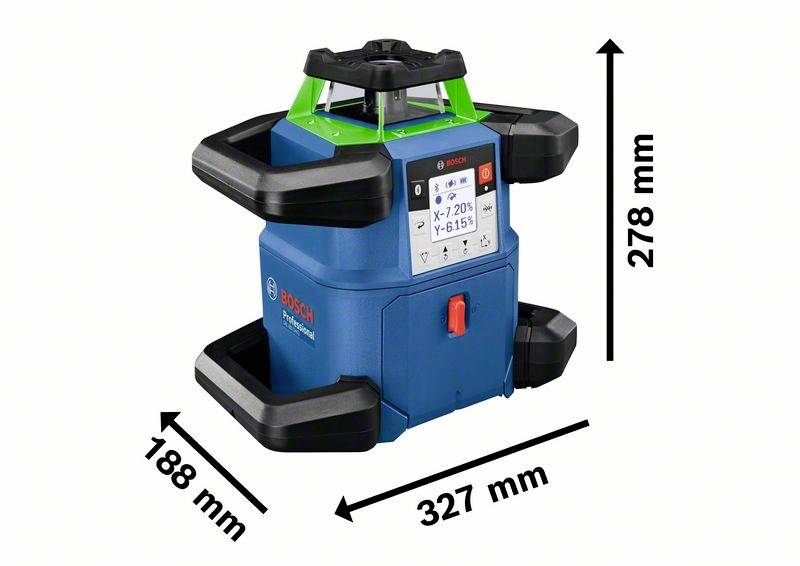

A blue Bosch rotary laser with rubberised handles and a digital display. Dimensions: 327 mm width, 188 mm depth, 278 mm height.
1/9
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

Drill.machine GRL 650 CHVG

  • Advanced green laser technology provides better visibilityThe ready-to-use design withstands falls of up to 2 m from the stand and offers protection against dust and water according to IP68Quick completion of the work thanks to connectivity via the Leveling Remote APP

Technical specifications

  • Laser diode 1 mW, 500 – 540 nmOperating temperature -10 to + 50 °C.Storage temperature -20 to 50 °C.Levelling accuracy: ± 1.5 mm at 30 m* horizontal (* plus operational deviation), ± 3.0 mm at 30 m* vertical (* plus operational deviation)Self-leveling range ±8.5% (±5°)Rotation speed: 150/300/600 min−1Power supply 18V Li-ion rechargeable battery, 4 x D batteriesOperating time 50 h, 60 hTripod socket 2 x 5 / 8"Projection: 1 x 360° lineCompatible laser receiver LR 65 G
Product type

360-degree laser

Laser category

2

Length

278 mm

Width

327 mm

Height

188 mm

Dim

(L x W x H) 278 x 327 x 188 mm

Weight

4.6 kg

Manufacturer's standards (no certificate)

Type

GRL 650 CHVG

IP68

Type

GRL 650 CHVG

Max. reading range

650 m

UKCA

not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2751803 Bosch Professional GRL 650 CHVG 360-degree laser

Warranty Terms

Warranty Terms 2751803 Bosch Professional GRL 650 CHVG 360-degree laser

Description

The robust rotation laser GRL 650 CHVG Professional with Bluetooth® connectivity sets new standards for precision and efficiency when leveling on the construction site. Green laser technology provides better visibility in different light conditions. The heavy-duty rotating laser is suitable for use under rough construction conditions and bad weather, withstands crashes to 2 m with tripod and meets the IP68 requirements for protection against dust and water. The use of the Leveling Remote APP for the settings overview and remote control saves time and allows full concentration on the work.The versatile GRL 650 CHVG Professional is particularly suitable for leveling and sheet work outdoors as well as for the installation of walls, ceilings and air-conditioning in the interior.A long life for greater convenience by choosing between two options: Bosch 18 V Li-ion battery or alkaline batteries (D cells). Optimal comfort thanks to high-tech equipment such as display, double tilt function, inclination storage and high-quality receiver (LR 65 G Professional).

This text is machine translated.

Scope of delivery

  • Drill.machine GRL 650 CHVGLaser receiver LR 65 G Professional 0 601 069 T00RB 60 Professional receiver holderRechargeable battery adapter BA 1 professional4 x battery LR20 1.5V (D)2 x 1.5 V LR6 battery (AA)L-BOXX 374 1 600 A01 2G3
