Name: Bourns 3224W-1-203E Cermet trimmer Sealed linear 0.25 W 20 kΩ 4320 ° 4320 ° 1 pc(s) Piece
Brand: Bourns
SKU: 2996138
Availability: InStock

'Brown SMD resistor with marking B 105, 3224W, 102 T'

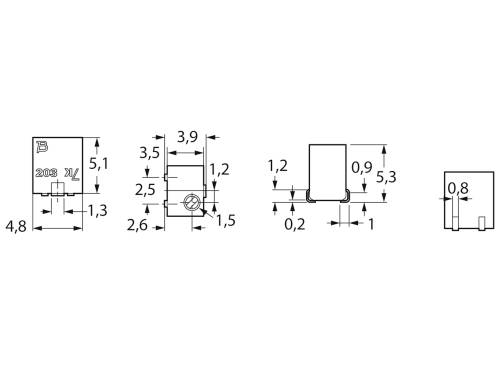

Diagram of an electronic component with dimensions in millimetres. Front, side, and bottom views. Height 4.8 mm, width 4.8 mm.

1/2

Packaging type

Piece

Product type

Cermet trimmer

Resistance

20 kΩ

Resistance characteristic

linear

Power rating

0.25 W

Datasheet (PDF)

Fast track dispatch on Thu 15 Oct

6 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 2.25 / piece)

€ 2.25

incl. VAT

Only 6 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Cermet trimmer, 12 speed, 20 kΩ, 0.25 W, SMD, top, 3224W-1-203

Our service for you

Technical specifications

Packaging type: Piece

Product type: Cermet trimmer

Potentiometer features: Sealed

Resistance: 20 kΩ

Resistance characteristic: linear

Power rating: 0.25 W

Electrical angle: 4320°

Mechanical angle: 4320°

Connection: SMT

Type: SMD

Operation type: top

Min. temperature: -65 °C

Max. temperature: 150 °C

Temperature coefficient: 100 ppm/K

Tolerance ±: 10 %

Width: 3.5 mm

Height: 5.3 mm

CS: 2.5 mm

Dim: (L x W x H) 4.8 x 3.5 x 5.3 mm

Content: 1 pc(s)

Type: 3224W-1-203E

RoHS-compliant: Yes

Length: 4.8 mm

No. of rotations: 12

Documents & Downloads

Datasheet

Datasheet 2996138 Bourns 3224W-1-203E Cermet trimmer Sealed linear 0.25 W 20 kΩ 4320 ° 4320 ° 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 2996138 Bourns 3224W-1-203E Cermet trimmer Sealed linear 0.25 W 20 kΩ 4320 ° 4320 ° 1 pc(s) Piece

Description

SMD cermet trim potentiometer, 3224W-1-203E, Bourns SMD cermet trim potentiometer, 20 kΩ, 0.25 W features * Mounting 4 mm square / multiturn cermet / industry / sealed * sealed to resist processing of circuit board wash * pick-and-place centering, with flush adjustment
