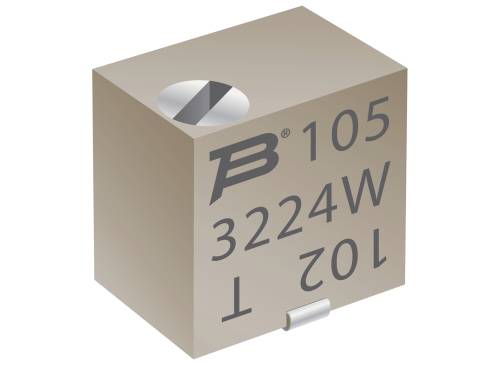

Bourns 3224W-1-503E Cermet trimmer Sealed linear 0.25 W 50 kΩ 4320 ° 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cermet trimmer
Resistance
50 kΩ
Resistance characteristic
linear
Power rating
0.25 W
Connection
SMT
Datasheet (PDF)
Number
Total (€ 3.875 / piece)
€ 3.88
incl. VAT
14-day return policy included
Technical specifications
- Product type
Cermet trimmer
- Potentiometer features
Sealed
- Resistance
50 kΩ
- Resistance characteristic
linear
- Power rating
0.25 W
- Electrical angle
4320°
- Connection
SMT
- Type
SMD
- Operation type
top
- Min. temperature
-65 °C
- Max. temperature
150 °C
- Temperature coefficient
100 ppm/K
- Tolerance ±
10 %
- Width
3.5 mm
- Height
5.3 mm
- CS
2.5 mm
- Dim

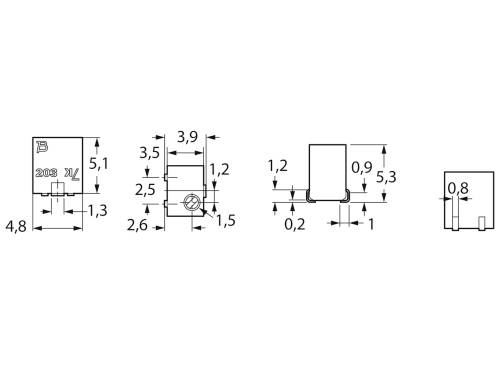

(L x W x H) 4.8 x 3.5 x 5.3 mm
- Content
1 pc(s)
- Type
3224W-1-503E
- RoHS-compliant
Yes
- Length
4.8 mm
- No. of rotations
12
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2996141 Bourns 3224W-1-503E Cermet trimmer Sealed linear 0.25 W 50 kΩ 4320 ° 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2996141 Bourns 3224W-1-503E Cermet trimmer Sealed linear 0.25 W 50 kΩ 4320 ° 1 pc(s)
Description
SMD cermet trim potentiometer, 3224W-1-503E, Bourns SMD cermet trim potentiometer, 50 kΩ, 0.25 W features * Mounting 4 mm square / multiturn cermet / industry / sealed * sealed to resist processing of circuit board wash * pick-and-place centering, with flush adjustment
This text is machine translated.
This text is machine translated.
