Buy Bourns 3266W-1-101LF Cermet trimmer 12-pos linear 0.25 W 100 Ω 4320 ° 1 pc(s) #####Tape and Reel

Blue trimmer potentiometer with three pins and an adjustable screw mechanism for fine-tuning resistance values.

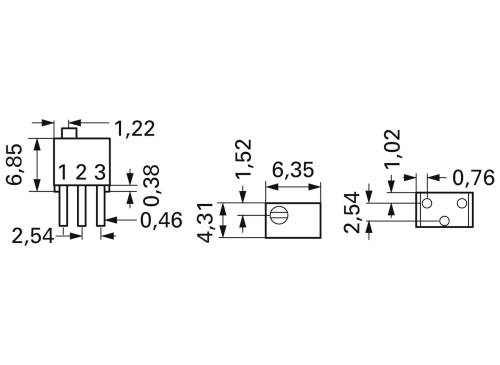

Electronic component in side and front view: Dimensions in millimetres, pins numbered from 1 to 3, with multiple height specifications.

1/2

Our service for you

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

49 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 3.045 / piece)

€ 3.05

plus VAT.

Report legal concerns

Technical specifications

Packaging type: #####Tape and Reel

Potentiometer features: 12-pos

Resistance: 100 Ω

Resistance characteristic: linear

Power rating: 0.25 W

Electrical angle: 4320°

Connection: Solder pins

Type: THT

Operation type: top

Min. temperature: -55 °C

Max. temperature: 125 °C

Temperature coefficient: 100 ppm/K

Tolerance ±: 10 %

Width: 4.5 mm

Height: 7.24 mm

CS: 2.54 mm

Dim: (L x W x H) 6.71 x 4.5 x 7.24 mm

Content: 1 pc(s)

Type: 3266W-1-101LF

RoHS-compliant: Yes

Length: 6.71 mm

No. of rotations: 12

Product type: Cermet trimmer

Documents & Downloads

Datasheet

Datasheet 2996147 Bourns 3266W-1-101LF Cermet trimmer 12-pos linear 0.25 W 100 Ω 4320 ° 1 pc(s) #####Tape and Reel

User & Safety Instructions

User & Safety Instructions 2996147 Bourns 3266W-1-101LF Cermet trimmer 12-pos linear 0.25 W 100 Ω 4320 ° 1 pc(s) #####Tape and Reel

Description

Cermet trimmer, 3266W-1-101LF, Bourns cermet trimmer, 100 Ω, 0.25 W features * multiturn / cermet / industry / sealed * standoff enable thorough PCB wash * tape and coil packaging available

This text is machine translated.
