Bourns 3269W-1-502LF Cermet trimmer linear 0.25 W 5 kΩ 4320 ° 4320 ° 1 pc(s) Tape
EAN:
Part number:
Item no:
Packaging type
Tape
Product type
Cermet trimmer
Resistance
5 kΩ
Resistance characteristic
linear
Power rating
0.25 W
Datasheet (PDF)
Number
Total (€ 3.24 / piece)
€ 3.24
incl. VAT
14-day return policy included
Highlights & Details
Cermet trimmer, 12 speed, 5 kΩ, 0.25 W, SMD, top, 3269W-1-502L
Our service for you
Technical specifications
- Packaging type
Tape
- Product type
Cermet trimmer
- Resistance
5 kΩ
- Resistance characteristic
linear
- Power rating
0.25 W
- Electrical angle
4320°
- Mechanical angle
4320°
- Connection
SMT
- Type
SMD
- Operation type
top
- Min. temperature
-65 °C
- Max. temperature
150 °C
- Temperature coefficient
100 ppm/K
- Tolerance ±
10 %
- Width
4.32 mm
- Height
7.44 mm
- CS
2.54 mm
- Dim

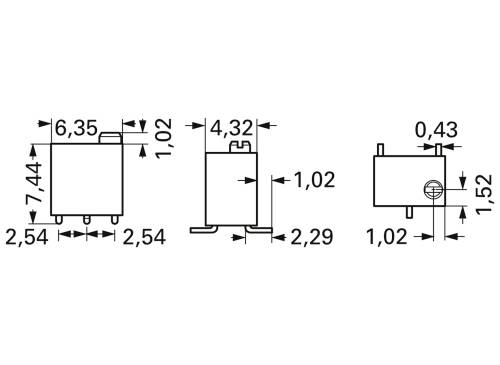

(L x W x H) 6.35 x 4.32 x 7.44 mm
- Content
1 pc(s)
- Type
3269W-1-502LF
- RoHS-compliant
Yes
- Length
6.35 mm
- No. of rotations
12
Documents & Downloads
Datasheet
Datasheet 2996173 Bourns 3269W-1-502LF Cermet trimmer linear 0.25 W 5 kΩ 4320 ° 4320 ° 1 pc(s) Tape
User & Safety Instructions
User & Safety Instructions 2996173 Bourns 3269W-1-502LF Cermet trimmer linear 0.25 W 5 kΩ 4320 ° 4320 ° 1 pc(s) Tape
Description

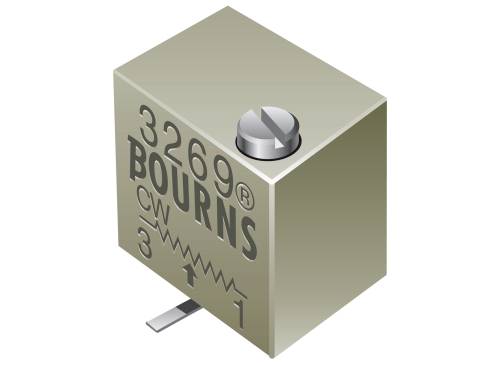

SMD cermet trim potentiometer, 3269W-1-502LF, Bourns SMD cermet trim potentiometer, 5 kΩ, 0.25 W features * Stable, unlimited resolution cermet element * Vertical and horizontal adjustment options * Optional packaging on embossed band
