Name: Bourns 3296P-1-502LF Cermet trimmer 25-pos linear 0.5 W 5 kΩ 9 ° 9 ° 1 pc(s) Piece
Brand: Bourns
SKU: 2996178
Availability: InStock

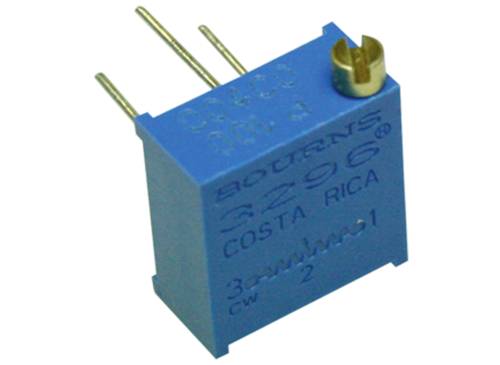

A blue trim potentiometer with three pins. Inscription: 'Bourns 3296 Costa Rica'. Used for adjusting electrical resistances.

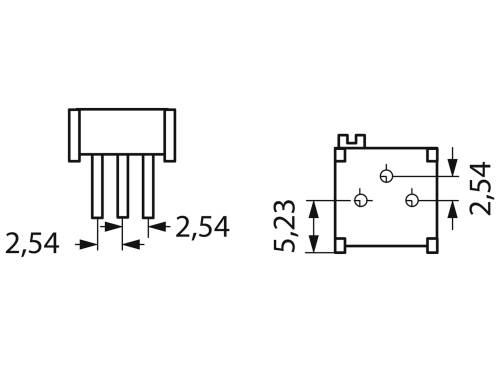

Dimensional drawing of a 4-pole connector. Left: Side view with 2.54 mm pin spacing. Right: Top view with 5.23 mm housing dimension.

1/2

Packaging type

Piece

Product type

Cermet trimmer

Resistance

5 kΩ

Resistance characteristic

linear

Power rating

0.5 W

Datasheet (PDF)

Fast track dispatch on Tue 27 Oct

1 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 2.861 / piece)

€ 2.86

incl. VAT

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Cermet trimmer, 25 speed, 5 kΩ, 0.5 W, THT, side, 3296P-1-5

Our service for you

Technical specifications

Packaging type: Piece

Product type: Cermet trimmer

Potentiometer features: 25-pos

Resistance: 5 kΩ

Resistance characteristic: linear

Power rating: 0.5 W

Cut-off voltage: 300 V

Electrical angle: 9°

Mechanical angle: 9°

Connection: Solder pins

Type: THT

Operation type: side

Min. temperature: -55 °C

Max. temperature: 125 °C

Temperature coefficient: 100 ppm/K

Tolerance ±: 10 %

Width: 4.83 mm

Height: 10.03 mm

CS: 2.54 mm

Dim: (L x W x H) 9.53 x 4.83 x 10.03 mm

Content: 1 pc(s)

Type: 3296P-1-502LF

RoHS-compliant: Yes

Length: 9.53 mm

No. of rotations: 25

Documents & Downloads

Datasheet

Datasheet 2996178 Bourns 3296P-1-502LF Cermet trimmer 25-pos linear 0.5 W 5 kΩ 9 ° 9 ° 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 2996178 Bourns 3296P-1-502LF Cermet trimmer 25-pos linear 0.5 W 5 kΩ 9 ° 9 ° 1 pc(s) Piece

Description

Cermet trimmer type Bourns 3296. For 25 revolutions; Load capacity: 0.5 W at +70 °C (0 at +125 °C); Operating voltage: Max. 300 V, temperature range: 55 to +150 °C, tolerance: ±10 %, temperature coefficient: ±100. Lying with lateral setting and offset contact arrangement type 3296P. Type 5K0
