Bourns 3296W-1-100LF Cermet trimmer 25-pos 0.5 W 10 Ω 9 ° 1 pc(s)
Product type
Cermet trimmer
Resistance
10 Ω
Power rating
0.5 W
Connection
Solder pins
Operation type
top
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 1.63 / piece)
€ 1.63
incl. VAT
14-day return policy included
Highlights & Details
Cermet trimmer, 25 speed, 10 Ω, 0.5 W, THT, top, 3296W-1-100LF
Our service for you
Technical specifications
- Product type
Cermet trimmer
- Potentiometer features
25-pos
- Resistance
10 Ω
- Power rating
0.5 W
- Cut-off voltage
300 V
- Electrical angle
9°
- Connection
Solder pins
- Type
THT
- Operation type
top
- Min. temperature
-55 °C
- Max. temperature
125 °C
- Temperature coefficient
100 ppm/K
- Tolerance ±
10 %

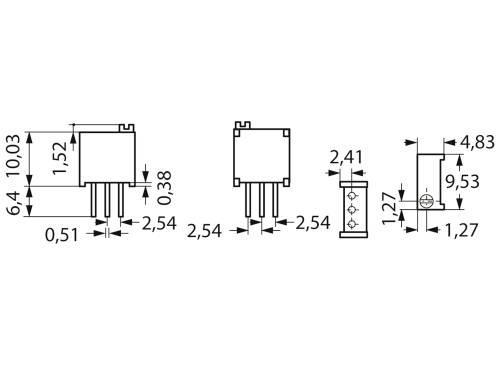

- Width
4.83 mm
- Height
10.03 mm
- CS
2.54 mm
- Dim
(L x W x H) 9.53 x 4.83 x 10.03 mm
- Content
1 pc(s)
- Type
3296W-1-100LF
- RoHS-compliant
Yes
- Length
9.53 mm
- No. of rotations
25
Documents & Downloads
Datasheet
Datasheet 2996180 Bourns 3296W-1-100LF Cermet trimmer 25-pos 0.5 W 10 Ω 9 ° 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2996180 Bourns 3296W-1-100LF Cermet trimmer 25-pos 0.5 W 10 Ω 9 ° 1 pc(s)
Description
Cermet trimmer type Bourns 3296. For 25 revolutions; Load capacity: 0.5 W at +70 °C (0 at +125 °C); Operating voltage: Max. 300 V, temperature range: 55 to +150 °C, tolerance: ±10 %, temperature coefficient: ±100. Standing with adjustment from above and contact arrangement in a series of type 3296W. Type 10R
This text is machine translated.
This text is machine translated.
