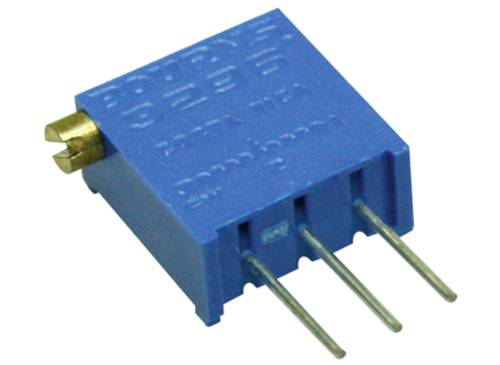

Bourns 3296X-1-503LF Cermet trimmer 25-pos linear 0.5 W 50 kΩ 9 ° 9 ° 1 pc(s) Piece
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1.16 / piece)
€ 1.16
plus VAT.
Technical specifications
- Packaging type
Piece
- Potentiometer features
25-pos
- Resistance
50 kΩ
- Resistance characteristic
linear
- Power rating
0.5 W
- Cut-off voltage
300 V
- Electrical angle
9°
- Mechanical angle
9°
- Connection
Solder pins
- Type
THT
- Operation type
side
- Min. temperature
-55 °C
- Max. temperature
125 °C
- Temperature coefficient
100 ppm/K
- Tolerance ±
10 %
- Width
4.83 mm
- Height
10.03 mm
- CS
2.54 mm
- Dim
(L x W x H) 9.53 x 4.83 x 10.03 mm
- Content
1 pc(s)
- Type
3296X-1-503LF
- RoHS-compliant
Yes
- Length
9.53 mm
- No. of rotations
25
- Product type
Cermet trimmer
Documents & Downloads
Datasheet
Datasheet 2996205 Bourns 3296X-1-503LF Cermet trimmer 25-pos linear 0.5 W 50 kΩ 9 ° 9 ° 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2996205 Bourns 3296X-1-503LF Cermet trimmer 25-pos linear 0.5 W 50 kΩ 9 ° 9 ° 1 pc(s) Piece
Description
Cermet trimmer type Bourns 3296. For 25 revolutions; Load capacity: 0.5 W at +70 °C (0 at +125 °C); Operating voltage: Max. 300 V, temperature range: 55 to +150 °C, tolerance: ±10 %, temperature coefficient: ±100. Standing with lateral adjustment and contact arrangement in a series of type 3296X. Type 50K
