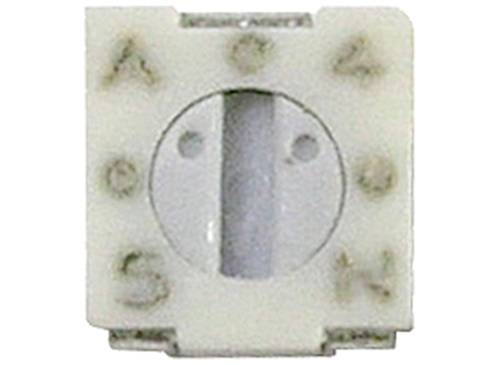

Bourns 3313J-1-203E Cermet trimmer 1-pos 0.12500 W 20 kΩ 220 ° 250 ° 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cermet trimmer
Resistance
20 kΩ
Power rating
0.12500 W
Mechanical angle
250 °
Connection
SMT
Datasheet (PDF)
Number
Total (€ 2.851 / piece)
€ 2.85
incl. VAT
Only 1 Piece(s) available
Highlights & Details
Cermet trimmer, 20 kΩ, 0,125 W, SMD, top, 3313J-1-203E
Our service for you
Technical specifications
- Product type
Cermet trimmer
- Potentiometer features
1-pos
- Resistance
20 kΩ
- Power rating
0.12500 W
- Cut-off voltage
200 V
- Electrical angle
220°
- Mechanical angle
250°
- Connection
SMT
- Type
SMD
- Operation type
top
- Min. temperature
-55 °C
- Max. temperature
125 °C
- Temperature coefficient
100 ppm/K
- Tolerance ±
20 %

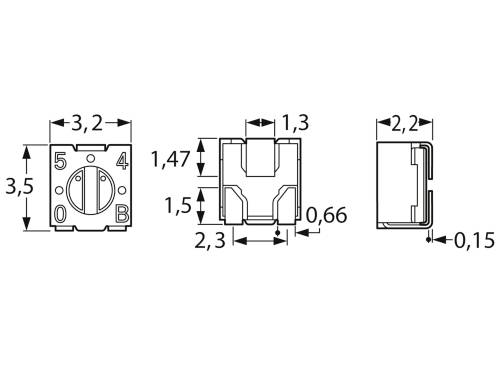

- Width
3.2 mm
- Height
2.2 mm
- CS
2.3 mm
- Dim
(L x W x H) 3.5 x 3.2 x 2.2 mm
- Content
1 pc(s)
- Type
3313J-1-203E
- RoHS-compliant
Yes
- Length
3.5 mm
- No. of rotations
1
Documents & Downloads
Datasheet
Datasheet 2996250 Bourns 3313J-1-203E Cermet trimmer 1-pos 0.12500 W 20 kΩ 220 ° 250 ° 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2996250 Bourns 3313J-1-203E Cermet trimmer 1-pos 0.12500 W 20 kΩ 220 ° 250 ° 1 pc(s)
Description
SMD cermet trimmer type Bourns 3313. For 1 rotation (electrical/mechanical 220°/250°); load capacity at +70 °C: 0.125 W (0 at +125 °C), operating voltage: Max. 200 V, operating temperature range: –55 to +125 °C, tolerance: ±20 %, temperature coefficient:±100 ( ±150 at 100 Ohm). Type 20K
