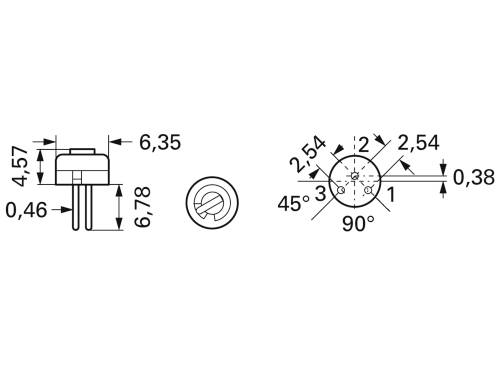

Stroke drawing/circuit diagram
Stroke drawing/circuit diagram
Bourns 3329H-1-503LF Cermet trimmer linear 0.5 W 50 kΩ 240 ° 260 ° 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.934
10
7% = € 0.15
€ 1.789
25
10% = € 0.20
€ 1.731
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.934 / piece)
€ 1.93
plus VAT.
Technical specifications
- Resistance
50 kΩ
- Resistance characteristic
linear
- Power rating
0.5 W
- Electrical angle
240°
- Mechanical angle
260°
- Connection
Solder pins
- Type
THT
- Operation type
top
- Min. temperature
-55 °C
- Max. temperature
150 °C
- Temperature coefficient
100 ppm/K
- Tolerance ±
10 %
- Height
4.57 mm
- CS
2.54 mm
- Content
1 pc(s)
- Type
3329H-1-503LF
- RoHS-compliant
Yes
- No. of rotations
1
- UKCA
yes
- Product type
Cermet trimmer
Documents & Downloads
Datasheet
Datasheet 2996274 Bourns 3329H-1-503LF Cermet trimmer linear 0.5 W 50 kΩ 240 ° 260 ° 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2996274 Bourns 3329H-1-503LF Cermet trimmer linear 0.5 W 50 kΩ 240 ° 260 ° 1 pc(s)
Description
Cermet trimmer, 3329H-1-503LF, Bourns cermet trimmer, 50 kΩ, 0.5 W features * 1/4" round / single-turn / cermet industry / sealed * tape and coil packaging available
