Name: Bourns 3386H-1-103LF Cermet trimmer linear 0.5 W 10 kΩ 280 ° 310 ° 1 pc(s)
Brand: Bourns
SKU: 2996285
Availability: InStock

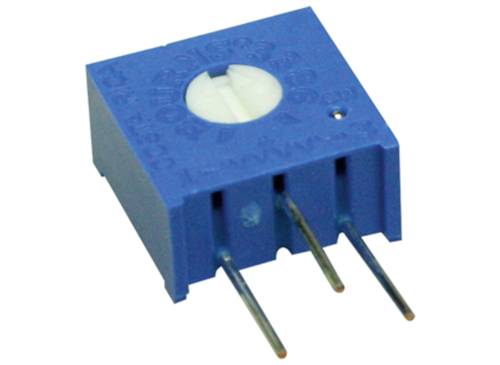

A blue, rectangular electrical trimmer with three metal pins, used for adjusting electronic circuits.

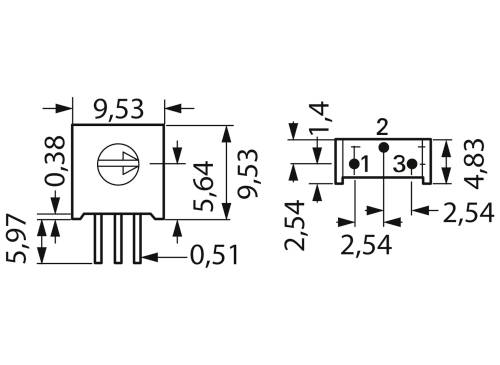

Technical drawing of an electronic component with dimensions: width 9.53 mm, height 5.64 mm. Includes pin and hole spacings.

1/2

Product type

Cermet trimmer

Resistance

10 kΩ

Resistance characteristic

linear

Power rating

0.5 W

Mechanical angle

310 °

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 28 Oct

1 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1.11 / piece)

€ 1.11

incl. VAT

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Product type: Cermet trimmer

Resistance: 10 kΩ

Resistance characteristic: linear

Power rating: 0.5 W

Electrical angle: 280°

Mechanical angle: 310°

Connection: Solder pins

Type: THT

Operation type: side

Min. temperature: -55 °C

Max. temperature: 125 °C

Temperature coefficient: 100 ppm/K

Tolerance ±: 10 %

Width: 4.83 mm

Height: 9.53 mm

CS: 2.54 mm

Dim: (L x W x H) 9.53 x 4.83 x 9.53 mm

Content: 1 pc(s)

Type: 3386H-1-103LF

RoHS-compliant: Yes

Length: 9.53 mm

No. of rotations: 1

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2996285 Bourns 3386H-1-103LF Cermet trimmer linear 0.5 W 10 kΩ 280 ° 310 ° 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2996285 Bourns 3386H-1-103LF Cermet trimmer linear 0.5 W 10 kΩ 280 ° 310 ° 1 pc(s)

Description

Cermet trimmer type Bourns 3386. For 1 rotation; design: Sealed, depending on version lying or standing, activation from top or side, rotation (electrical): 280°, load capacity: 0.5 W at +85 °C (0 at +125 °C), operating voltage: Max. 300 V, temperature range: –55 to +125 °C, tolerance: ±10 %, temperature coefficient: ±100. Vertical with lateral setting and offset contact arrangement 1-2-3 type 3386H. Type 10K

This text is machine translated.
