Name: Bourns 3386P-1-103LF TRIMMER 10Kohm 3386P-1-103LF BOURNS orizzontaleSpecifiche: Cermet trimmer linear 0.5 W 10 kΩ 280 °
Brand: Bourns
SKU: 2996287
Availability: InStock

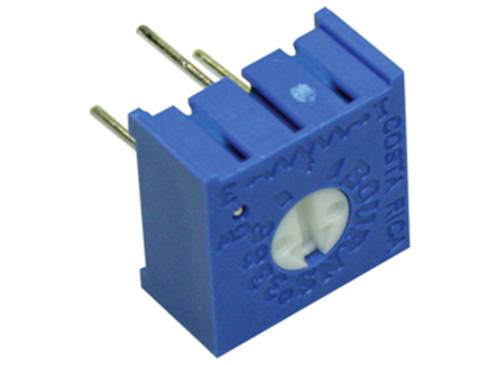

Blue electronic potentiometer with three metal pins and a white adjustable rotary knob. Background is white.

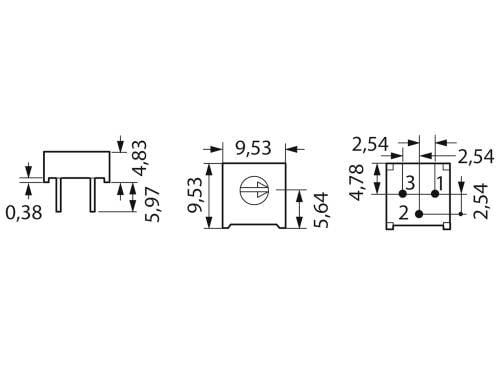

Technical drawing of a rectangular component with dimensions: height 5.97 mm, width 9.53 mm, various hole spacings indicated.

1/2

Product type

Cermet trimmer

Resistance

10 kΩ

Resistance characteristic

linear

Power rating

0.5 W

Mechanical angle

310 °

Datasheet (PDF)

Fast track dispatch on Fri 16 Oct

28 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 2.754 / piece)

€ 2.75

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: Cermet trimmer

Resistance: 10 kΩ

Resistance characteristic: linear

Power rating: 0.5 W

Electrical angle: 280°

Mechanical angle: 310°

Connection: Solder pins

Type: THT

Operation type: top

Min. temperature: -55 °C

Max. temperature: 125 °C

Temperature coefficient: 100 ppm/K

Tolerance ±: 10 %

Width: 4.83 mm

Height: 9.53 mm

CS: 5.08 mm
2.54 mm

Dim: (L x W x H) 9.53 x 4.83 x 9.53 mm

Content: 1 pc(s)

Type: TRIMMER 10Kohm 3386P-1-103LF BOURNS orizzontale
Specifiche:

RoHS-compliant: Yes

Length: 9.53 mm

No. of rotations: 1

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2996287 Bourns 3386P-1-103LF TRIMMER 10Kohm 3386P-1-103LF BOURNS orizzontaleSpecifiche: Cermet trimmer linear 0.5 W 10 kΩ 280 °

User & Safety Instructions

User & Safety Instructions 2996287 Bourns 3386P-1-103LF TRIMMER 10Kohm 3386P-1-103LF BOURNS orizzontaleSpecifiche: Cermet trimmer linear 0.5 W 10 kΩ 280 °

Description

Cermet trimmer type Bourns 3386. For 1 rotation; design: Sealed, depending on version lying or standing, activation from top or side, rotation (electrical): 280°, load capacity: 0.5 W at +85 °C (0 at +125 °C), operating voltage: Max. 300 V, temperature range: –55 to +125 °C, tolerance: ±10 %, temperature coefficient: ±100. Lying with adjustment from above and offset contact arrangement type 3386P. Type 10K
