Name: Boxexpert Alster 10010081 Casing 100 x 100 x 81 Aluminium Silver-grey 1 pc(s) Piece
Brand: Boxexpert
SKU: 3404607

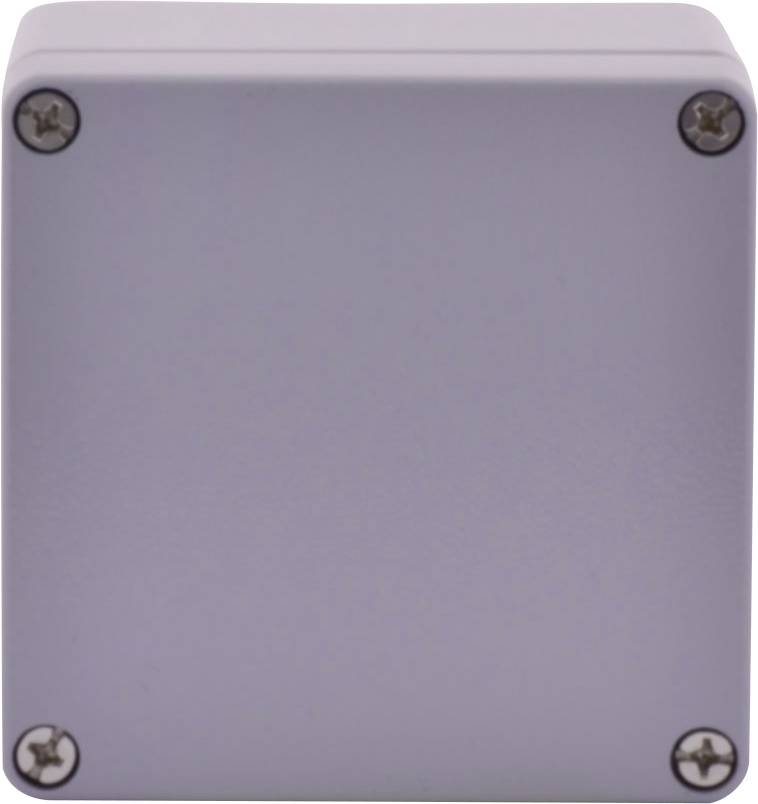

A grey, square box with four visible screws at the corners. Suitable for electrical installations or housing mountings.

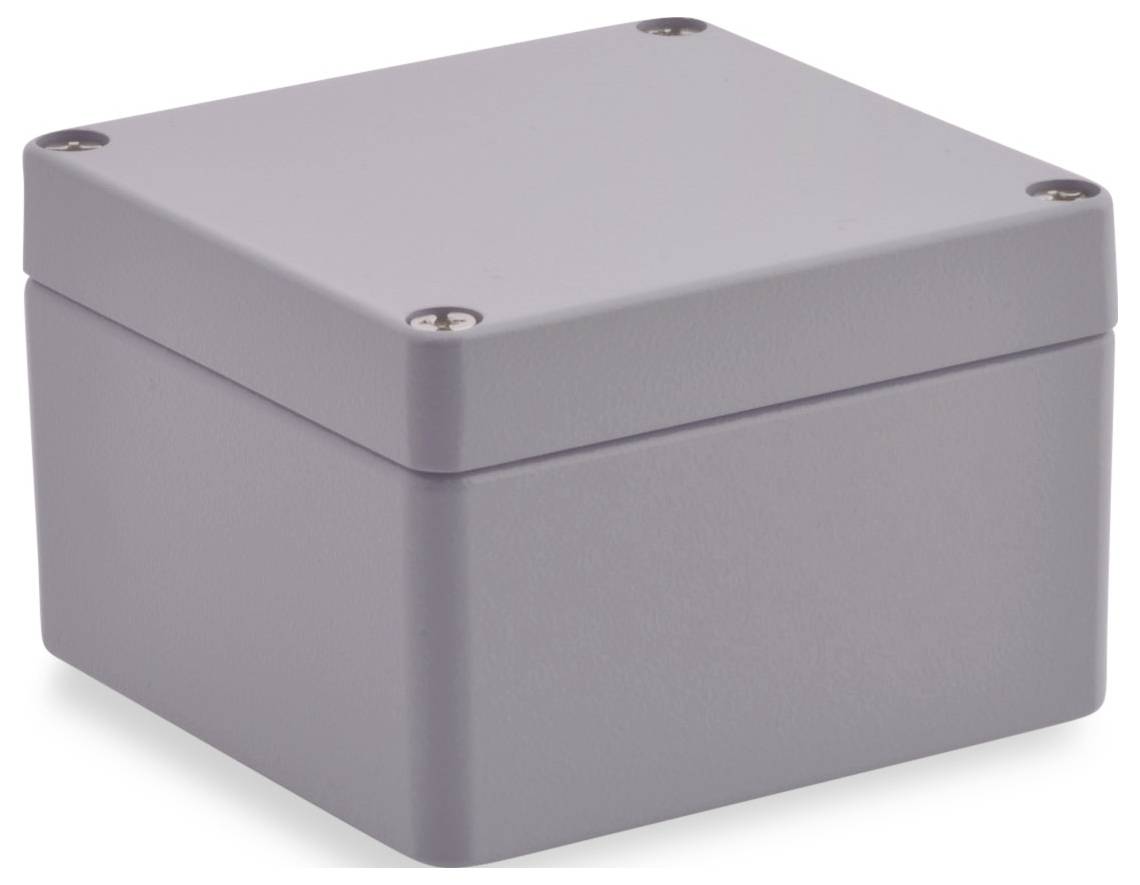

Grey plastic casing with rounded edges and four screws at the corners.

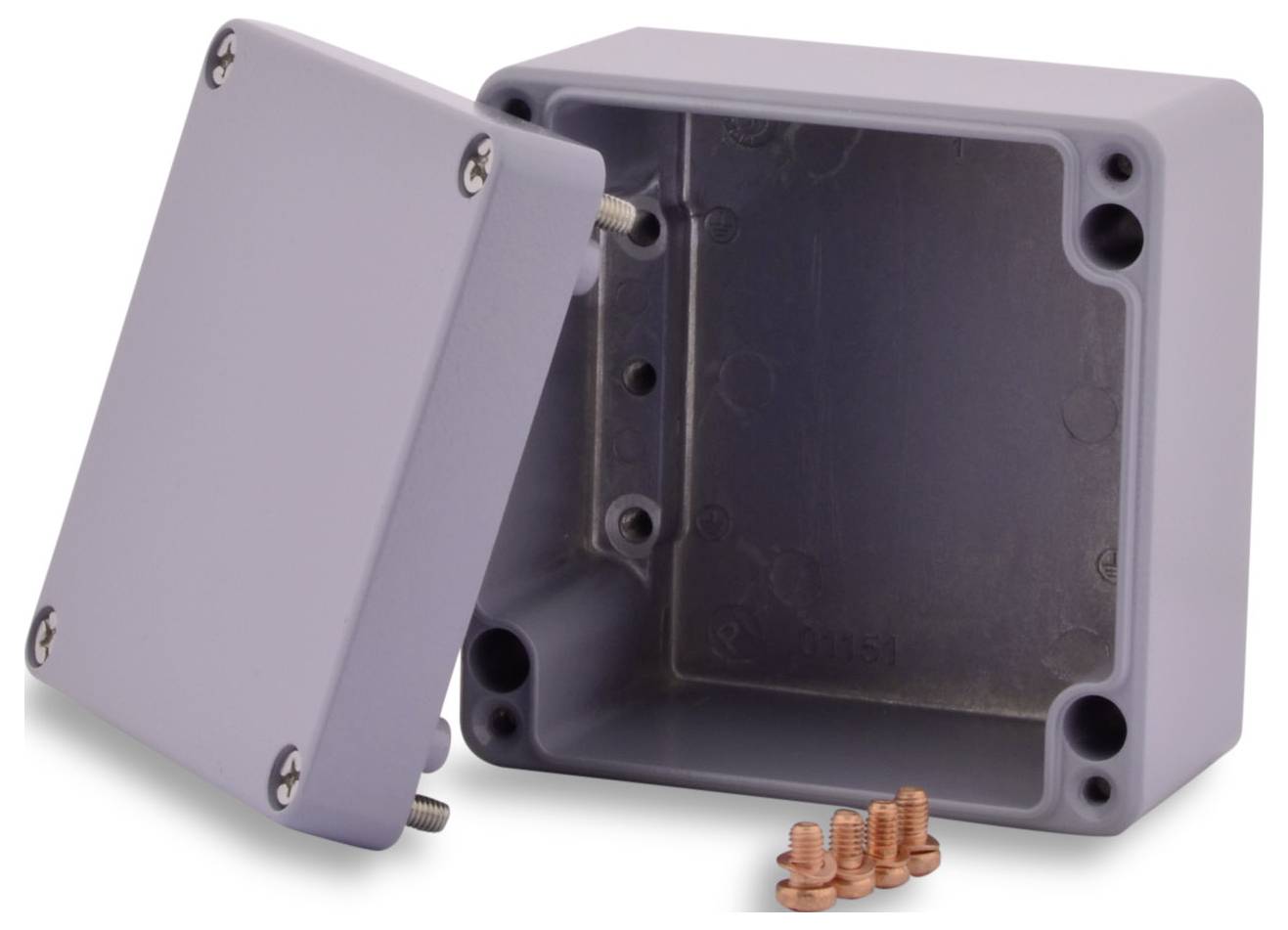

Grey, square plastic casing, opened, revealing interior and six copper screws lying in front of it.

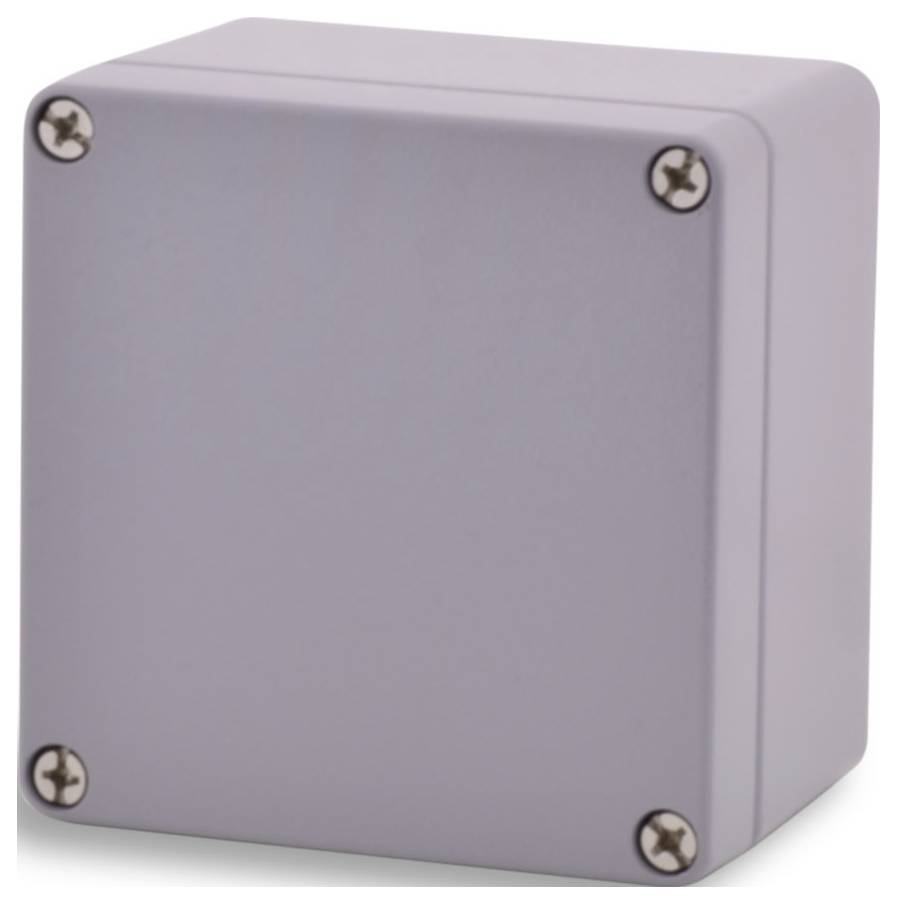

A rectangular grey enclosure with four screws at the corners.

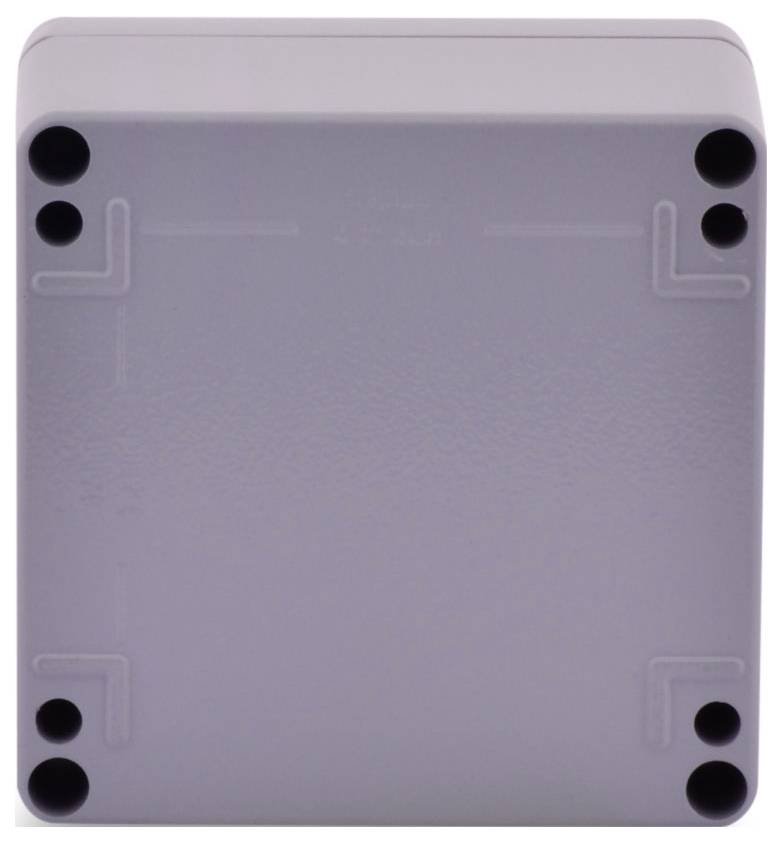

A square, grey plastic box with rounded corners and eight black screw holes, likely suitable for wall mounting.

1/5

Packaging type

Piece

Product type

Casing

Material

Aluminium

IP rating

IP66

Width

100 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Colour RAL 7001
Coating: No.
Material: Cover / door: Aluminium
Material: Lower part: Aluminium
Sealing material: Polyurethane foam
Resistance: Alkaline, oils, salts, etc.
Cover - transparent: No.
Inner dimensions (mm): 88 x 88 x 74
UL approval: No.
Impact strength: IK09

Packaging type: Piece

Product type: Casing

Features: with mount plate

Material: Aluminium

: IP66

Factory colour: Silver-grey

Length: 100 mm

Width: 100 mm

Height: 81 mm

Weight: 0.58 kg

Content: 1 pc(s)

Type: Alster 10010081

Dim: (L x W x H) 100 x 100 x 81 mm

RoHS-compliant: Yes

Manufacturer part #: BXPBAL10010081-A01

Halogen-free: Yes

Max. ambient temperature: 100 °C

Min. ambient temperature: -40 °C

Documents & Downloads

Datasheet

Datasheet 3404607 Boxexpert Alster 10010081 Casing 100 x 100 x 81 Aluminium Silver-grey 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 3404607 Boxexpert Alster 10010081 Casing 100 x 100 x 81 Aluminium Silver-grey 1 pc(s) Piece

Description

The aluminum housing of the Alster series of BOXEXPERT have been designed for industrial use. They have space for terminals, PCBs, relay modules and other electrical components. Internal thread holes make it easy to mount mounting rails and mounting plates. A powder coating protects the housing against corrosion and makes it especially resistant. The PU seal provides protection class IP 66 and makes it Ideal for outdoor use. In addition, the housing is resistant to alcohol, petrol and mineral oils. The cover is secured using rust-free, captive screws.
