Name: Boxexpert Alster 12212091 Casing 120 x 122 x 91 Aluminium Silver-grey 1 pc(s) Piece
Brand: Boxexpert
SKU: 3404615

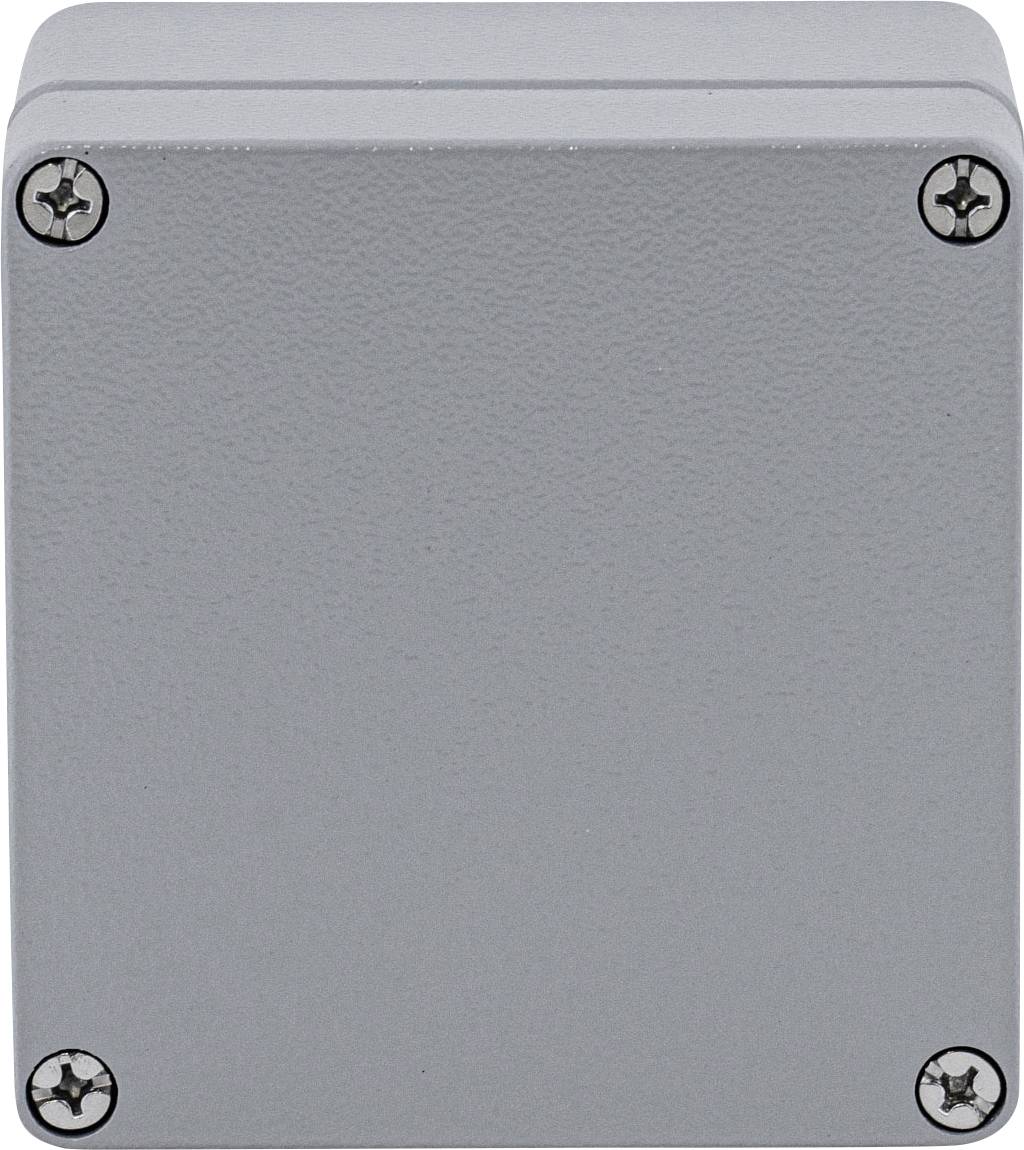

Grey, square casing with four visible screws in the corners.

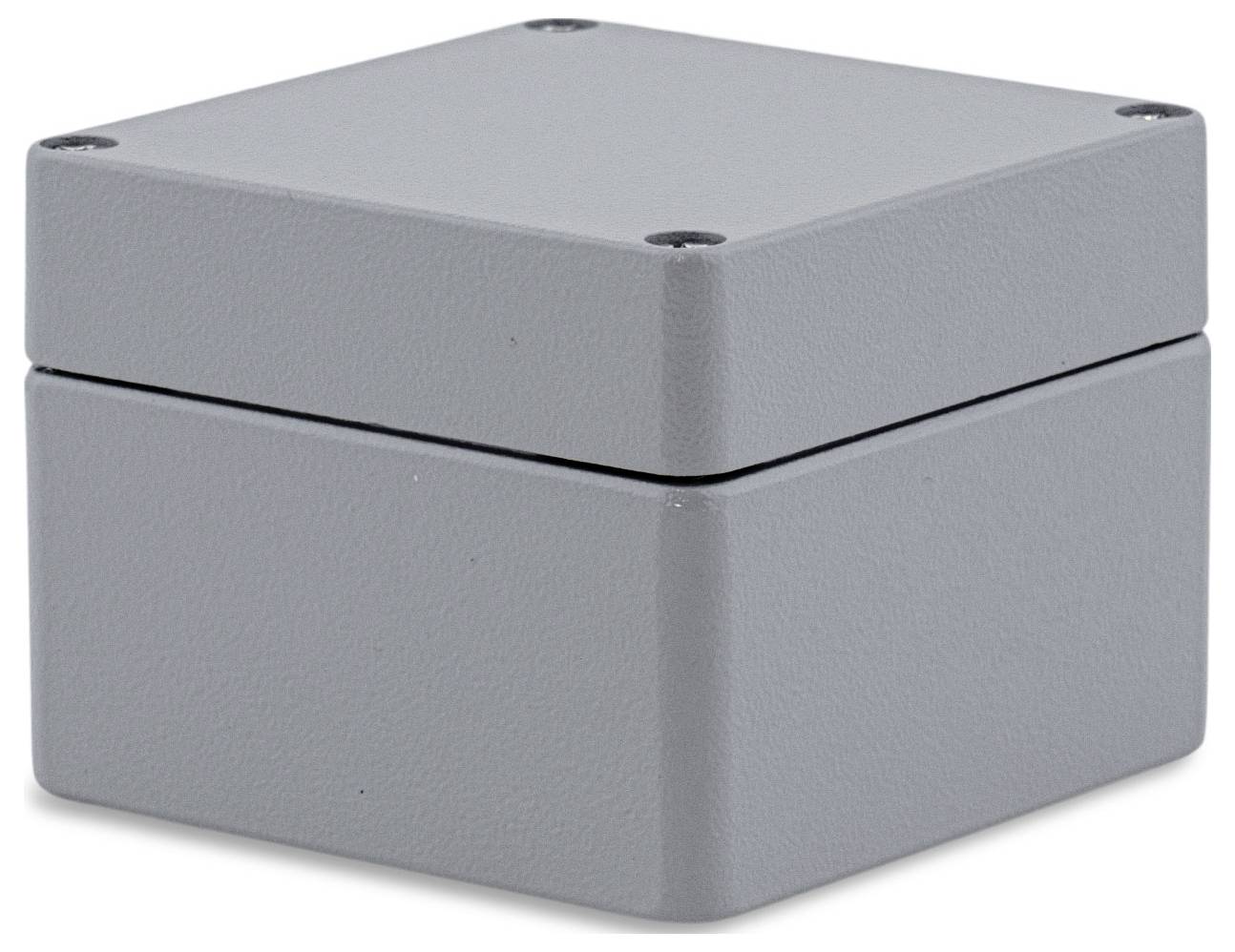

Grey, square metal enclosure with rounded corners and screws at each corner of the lid, suitable for electrical applications.

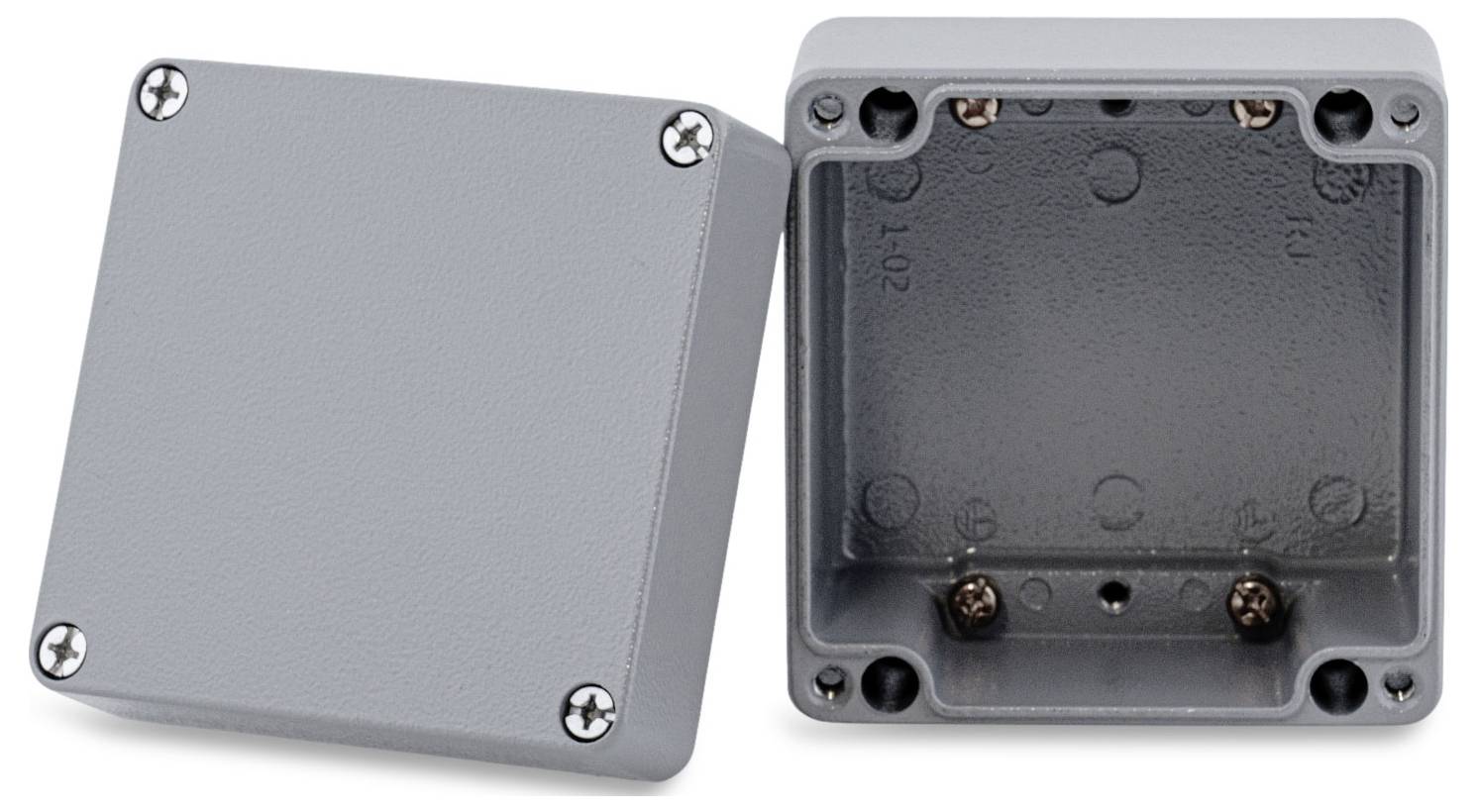

Metal enclosure with removed lid, screw holes for mounting are visible. Square shape, in grey colour.

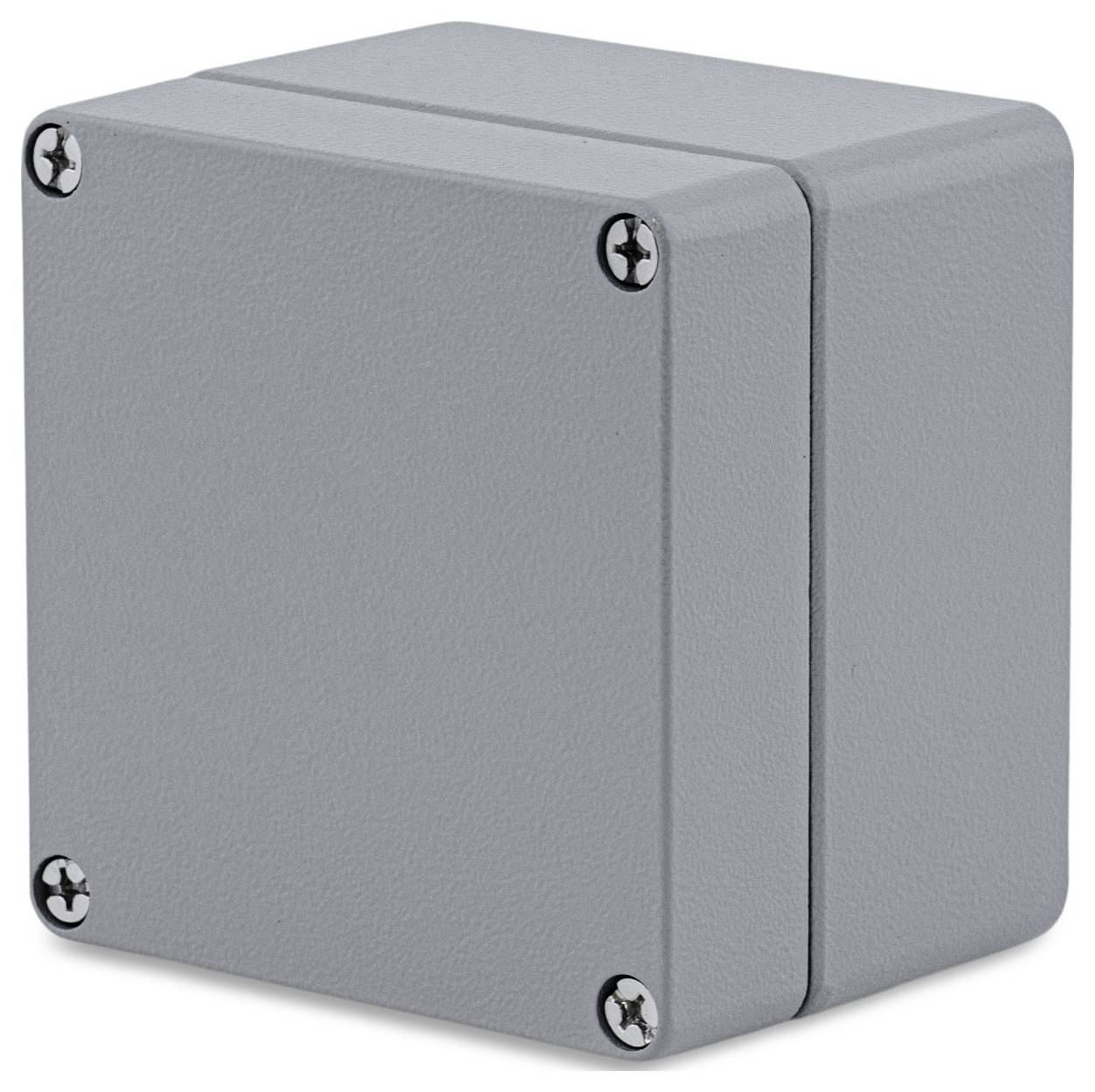

Grey square enclosure with rounded corners and four visible screws at the corners, designed for indoor use.

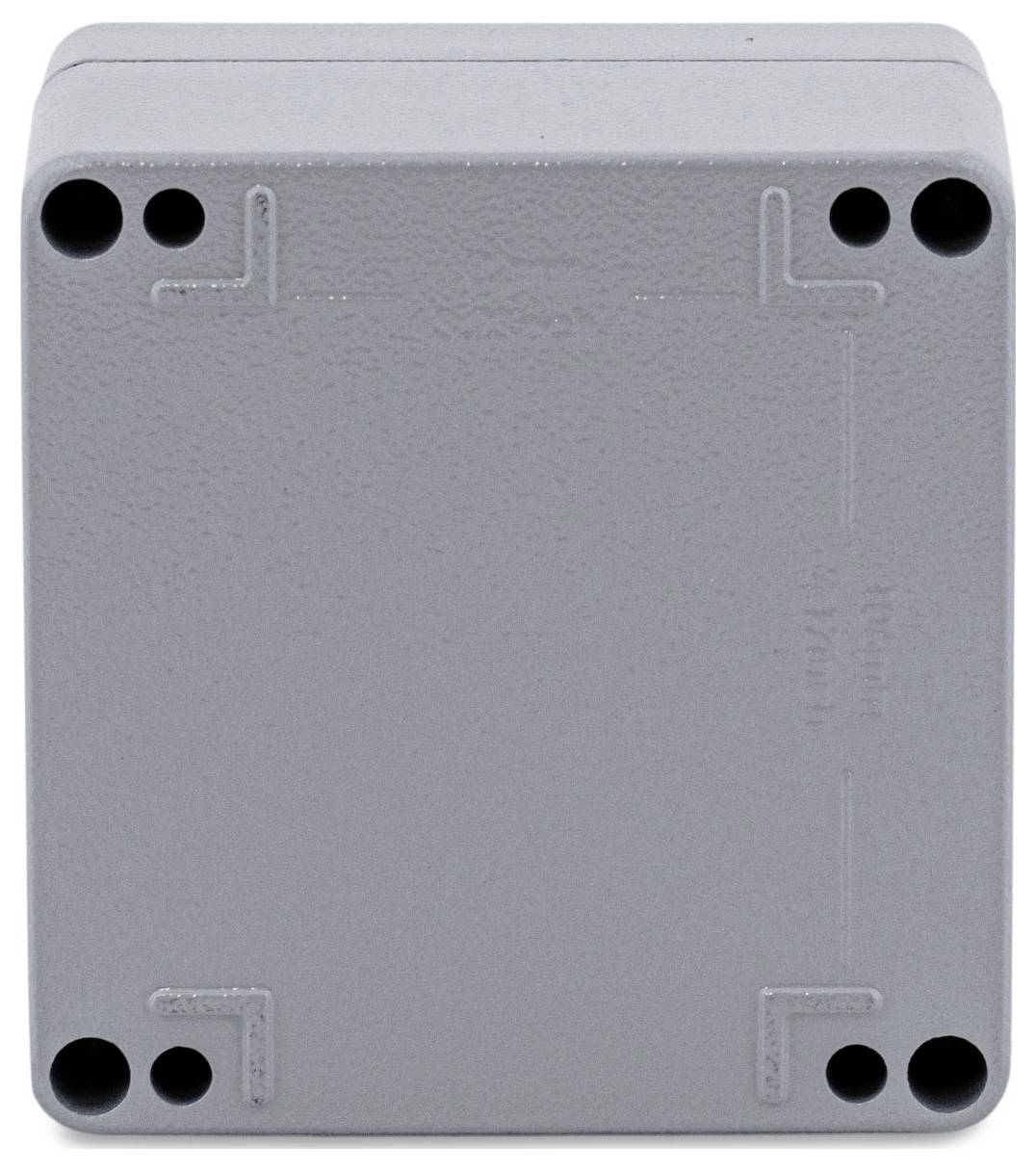

Grey, rectangular, sealed metal enclosure with rounded corners and screw holes at the corners.

1/5

Packaging type

Piece

Product type

Casing

Material

Aluminium

IP rating

IP66

Width

122 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Colour RAL 7001
Coating: No.
Material: Cover / door: Aluminium
Material: Lower part: Aluminium
Sealing material: Polyurethane foam
Resistance: Alkaline, oils, salts, etc.
Cover - transparent: No.
Inner dimensions (mm): 108 x 106 x 82
UL approval: No.
Impact strength: IK09

Packaging type: Piece

Product type: Casing

Features: anti-corrosive

Material: Aluminium

: IP66

Factory colour: Silver-grey

Length: 120 mm

Width: 122 mm

Height: 91 mm

Dimensions: 108 x 106 x 82 mm

Weight: 1 kg

Content: 1 pc(s)

Type: Alster 12212091

Dim: (L x W x H) 120 x 122 x 91 mm

RoHS-compliant: Yes

Manufacturer part #: BXPBAL12212091-A01

Halogen-free: Yes

Max. ambient temperature: 100 °C

Min. ambient temperature: -40 °C

Documents & Downloads

Datasheet

Datasheet 3404615 Boxexpert Alster 12212091 Casing 120 x 122 x 91 Aluminium Silver-grey 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 3404615 Boxexpert Alster 12212091 Casing 120 x 122 x 91 Aluminium Silver-grey 1 pc(s) Piece

Description

The Alster series of BOXEXPERT has been developed for industrial applications and offers robust aluminum casing for electrical and electromechanical components. Threaded holes in the interior facilitate the assembly of mounting rails and mounting plates. A powder coating reliably protects against corrosion, while the PU seal provides protection class IP 66 and makes the housing weatherproof. It is resistant against alcohol, petrol and mineral oils. Non-detachable stainless steel screws reliably secure the lid.
