Name: Boxexpert Alster 1506434 Casing 64 x 150 x 34 x 34 Aluminium Silver-grey 1 pc(s) Piece
Brand: Boxexpert
SKU: 3404809

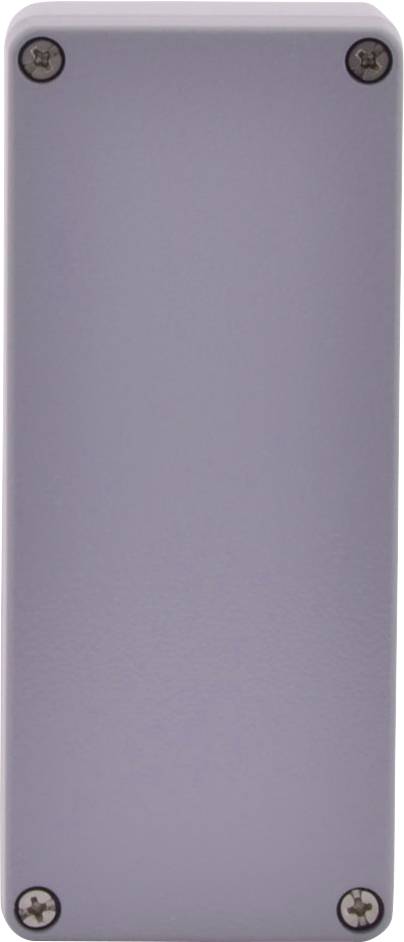

A rectangular grey metal enclosure with rounded corners and four visible screws at the corners of the front face.

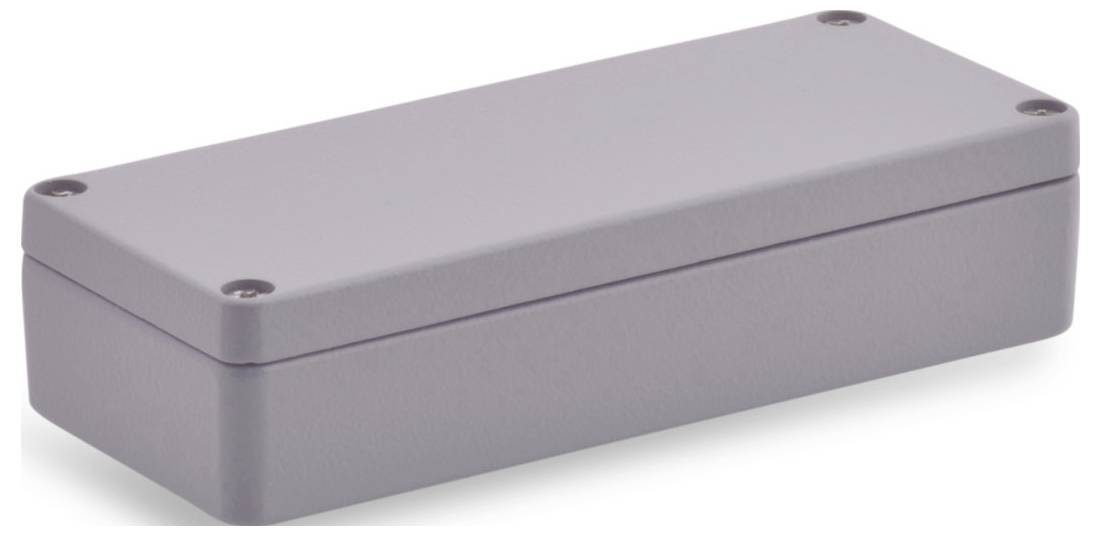

Grey rectangular plastic case with rounded corners, for electrical or electronic components.

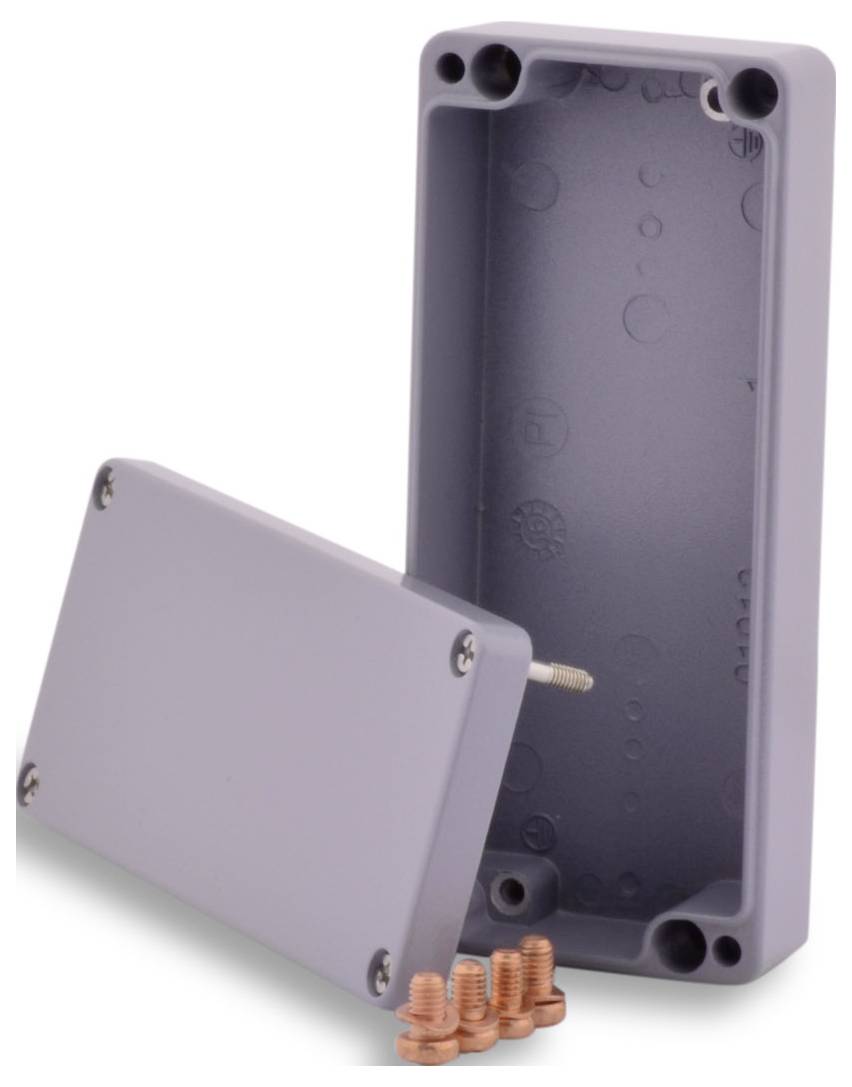

Grey rectangular plastic housing, open with cover removed, shows interior side with screw holes and accompanying screws.

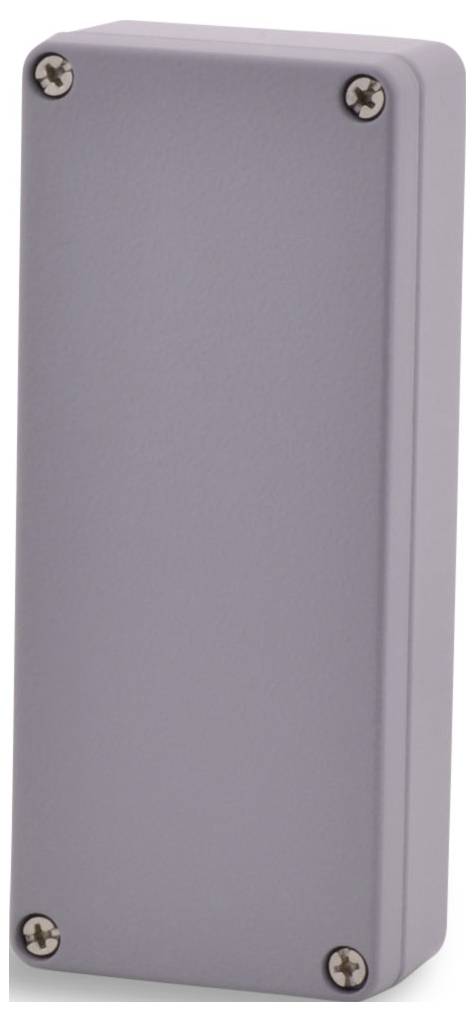

Grey rectangular electronics enclosure with four screws at the corners, commonly used for technical applications or device protection.

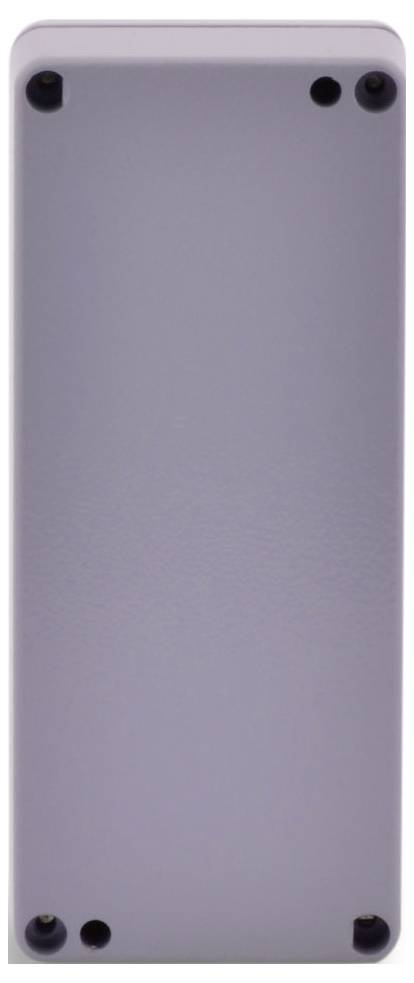

Grey rectangular enclosure with five small screws at the corners and edges.

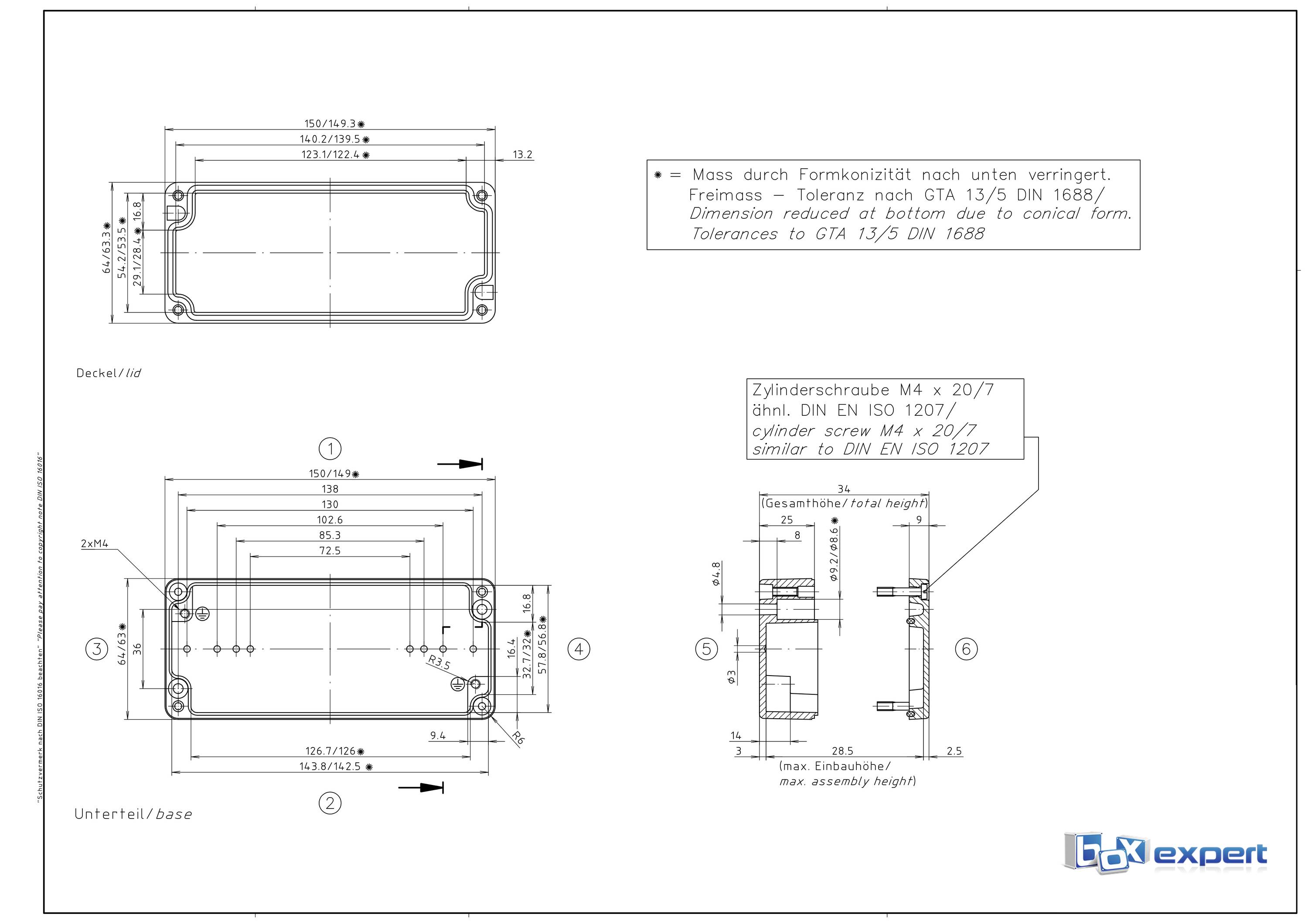

Technical drawing of an enclosure with dimensions, tolerances, and mounting screw details. Top view and side view presented.

1/6

Packaging type

Piece

Product type

Casing

Material

Aluminium

IP rating

IP66

Width

150 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Colour RAL 7001
Coating: No.
Material: Cover / door: Aluminium
Material: Lower part: Aluminium
Sealing material: Polyurethane foam
Resistance: Alkaline, oils, salts, etc.
Cover - transparent: No.
Inner dimensions (mm): 143.8 x 57.8 x 28.5
UL approval: No.
Impact strength: IK09

Packaging type: Piece

Product type: Casing

Features: with hole

Material: Aluminium

: IP66

Factory colour: Silver-grey

Length: 64 mm

Width: 150 mm

Height: 34 mm

Dimensions: 64 x 150 x 34 mm

Weight: 0.274 kg

Content: 1 pc(s)

Type: Alster 1506434

Dim: (L x W x H) 64 x 150 x 34 mm

RoHS-compliant: Yes

Manufacturer part #: BXPBAL1506434-A01

Depth: 34 mm

Halogen-free: Yes

Max. ambient temperature: 100 °C

Min. ambient temperature: -40 °C

Documents & Downloads

Datasheet

Datasheet 3404809 Boxexpert Alster 1506434 Casing 64 x 150 x 34 x 34 Aluminium Silver-grey 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 3404809 Boxexpert Alster 1506434 Casing 64 x 150 x 34 x 34 Aluminium Silver-grey 1 pc(s) Piece

Description

BOXEXPERT's Alster series offers an extremely robust aluminum casing, which has been designed especially for industrial requirements. It enables the problem-free integration of electrical and electromechanical components like terminals, sensors, boards and relay modules. Thanks to the thread holes in the interior, mounting plates and mounting rails can be simply attached. The powder coating effectively protects against corrosion, and the PU seal guarantees the protection class IP 66, WAS ES Ideal for outdoor use. It is also resistant to alcohol, gasoline and mineral oils. Non-detachable stainless steel screws secure the housing cover.
