Name: Boxexpert Alster 180180100 Casing 180 x 180 x 100 x 100 Aluminium Silver-grey 1 pc(s) Piece
Brand: Boxexpert
SKU: 3404617

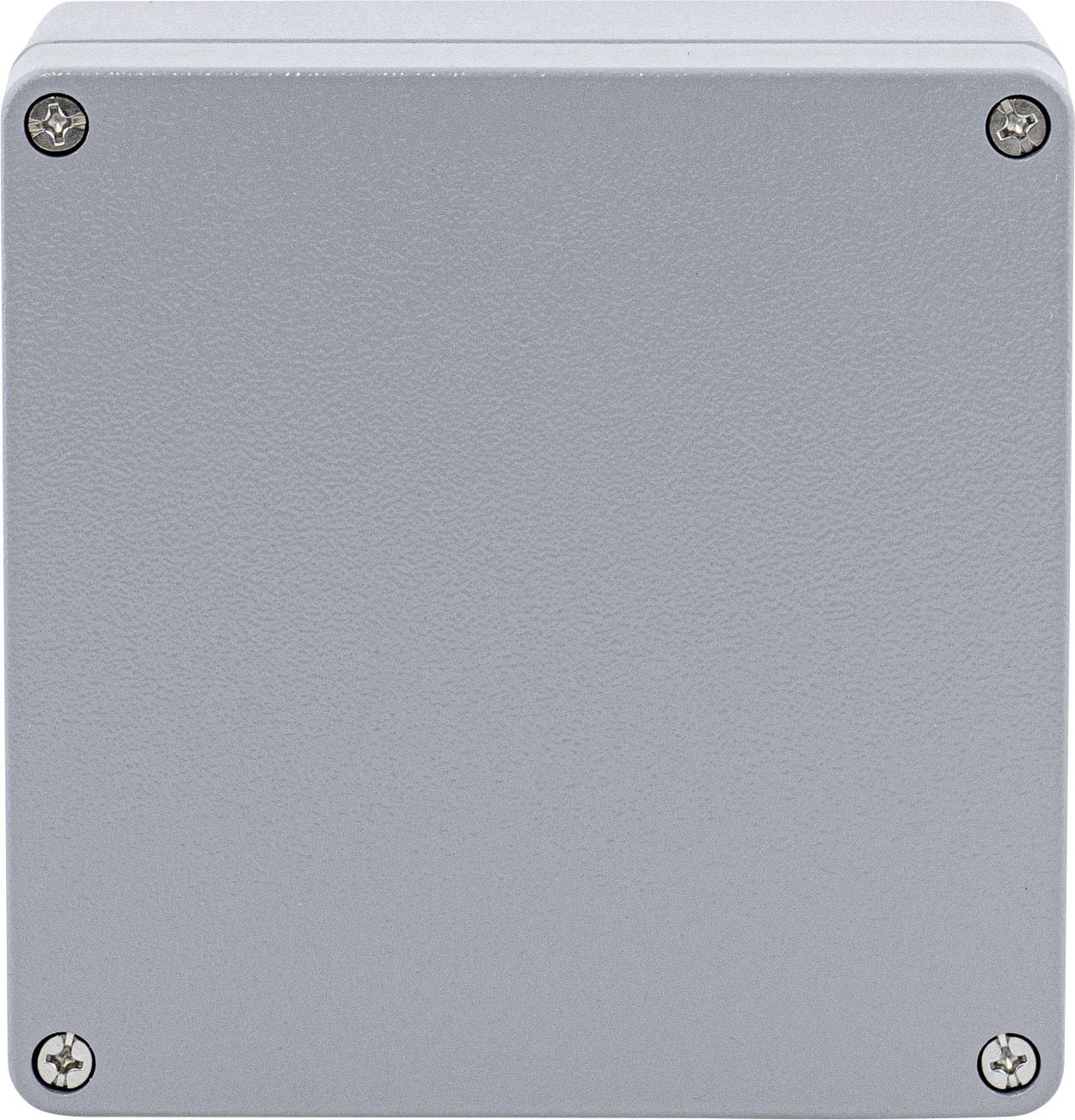

A grey, square metal enclosure with visible screws at the corners.

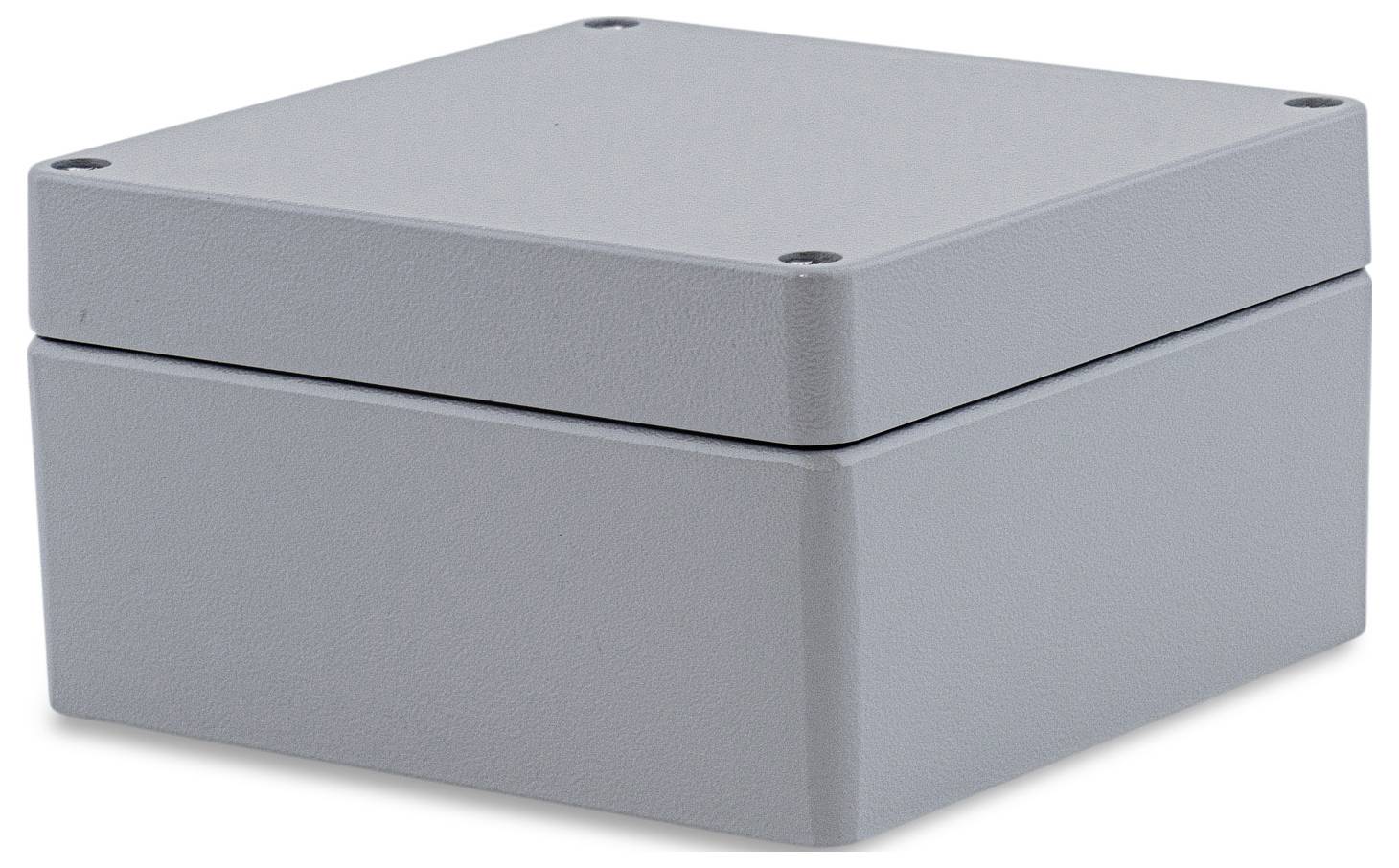

Grey, square enclosure with a removable lid, often used for electrical wiring or as a protective housing.

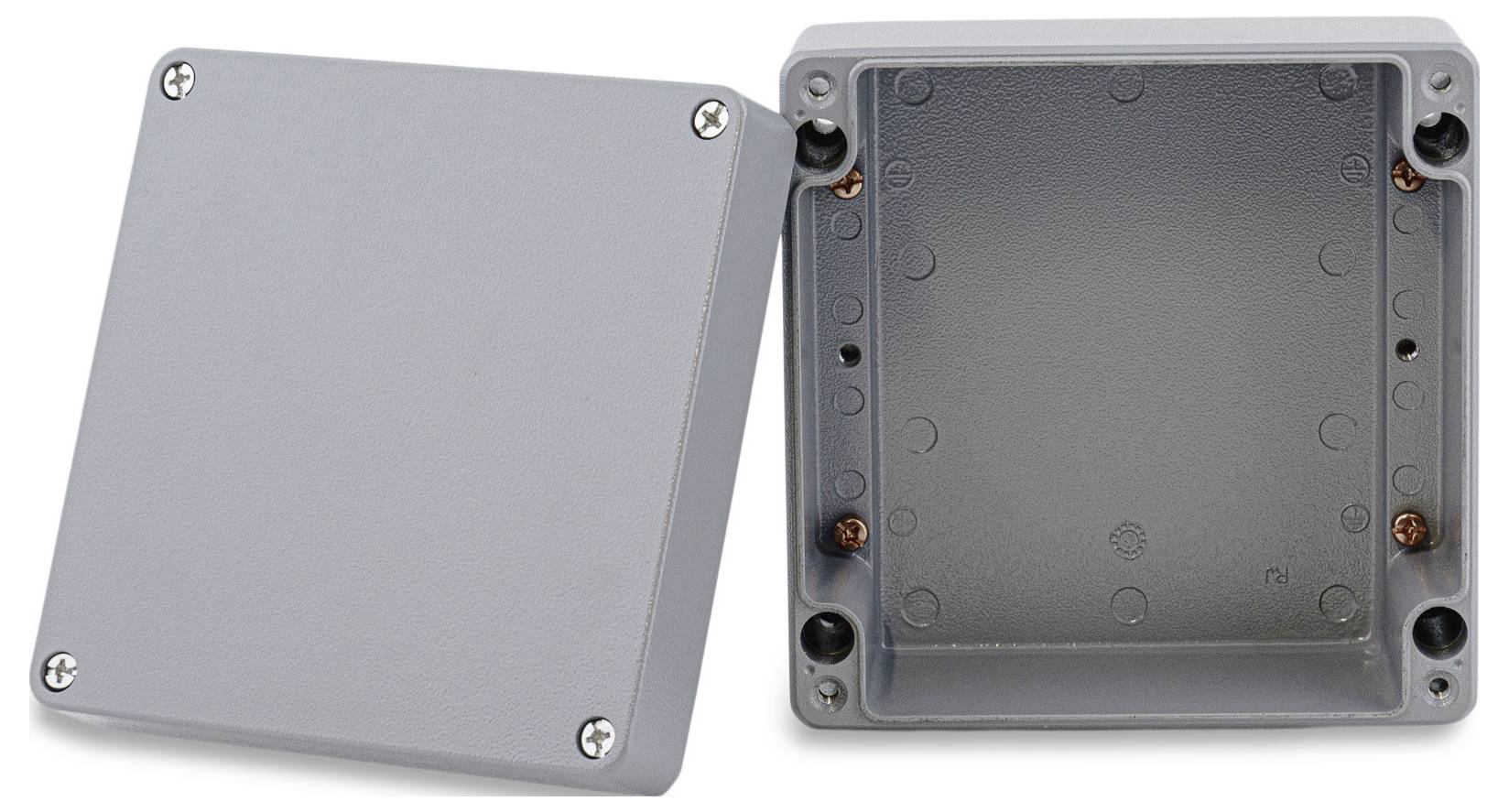

Grey plastic enclosure with removable lid, showing interior with screw holes and mounting points. Suitable for electronic components.

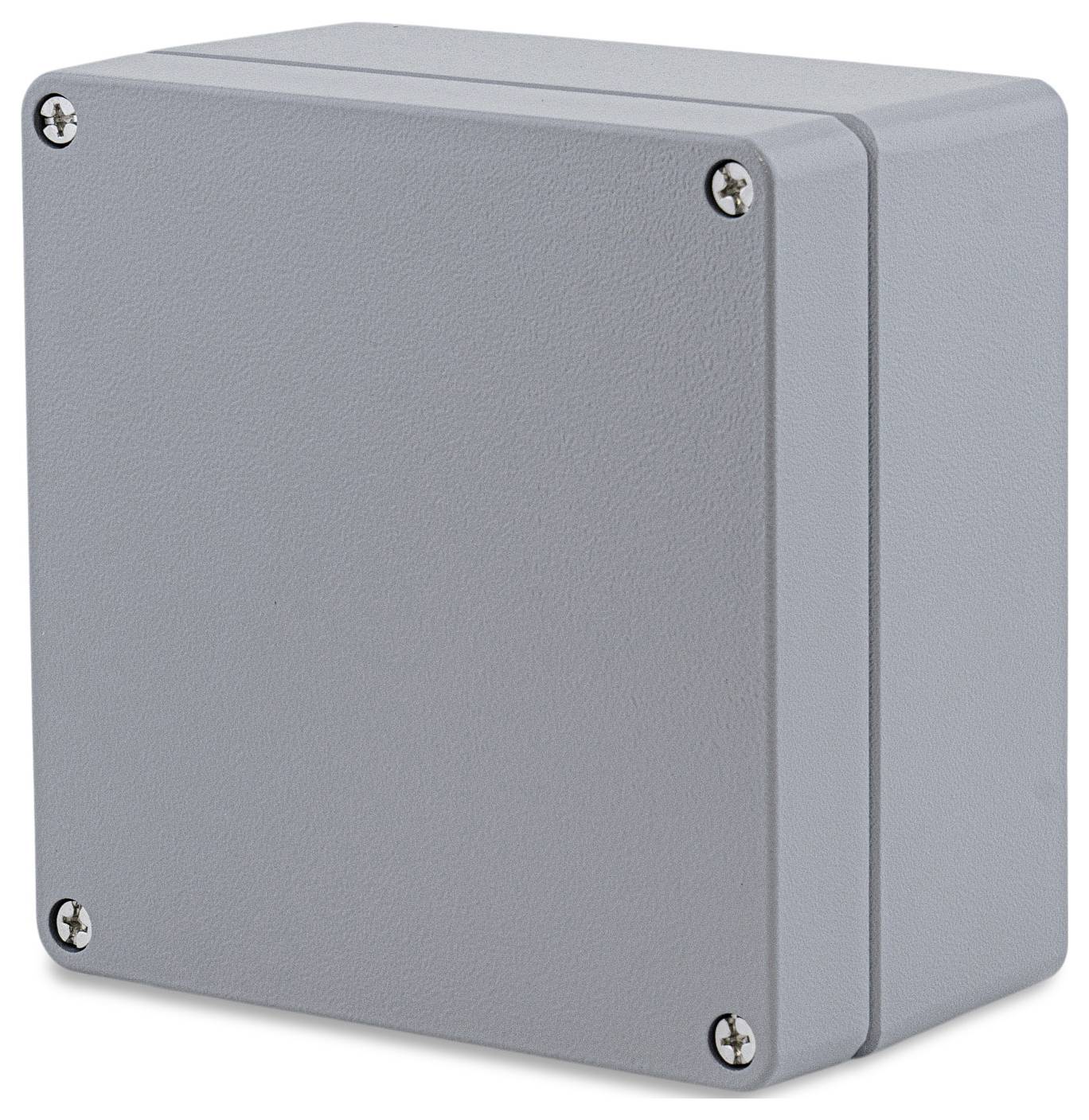

Grey, rectangular metal enclosure with rounded corners, secured by four screws at each corner of the front panel.

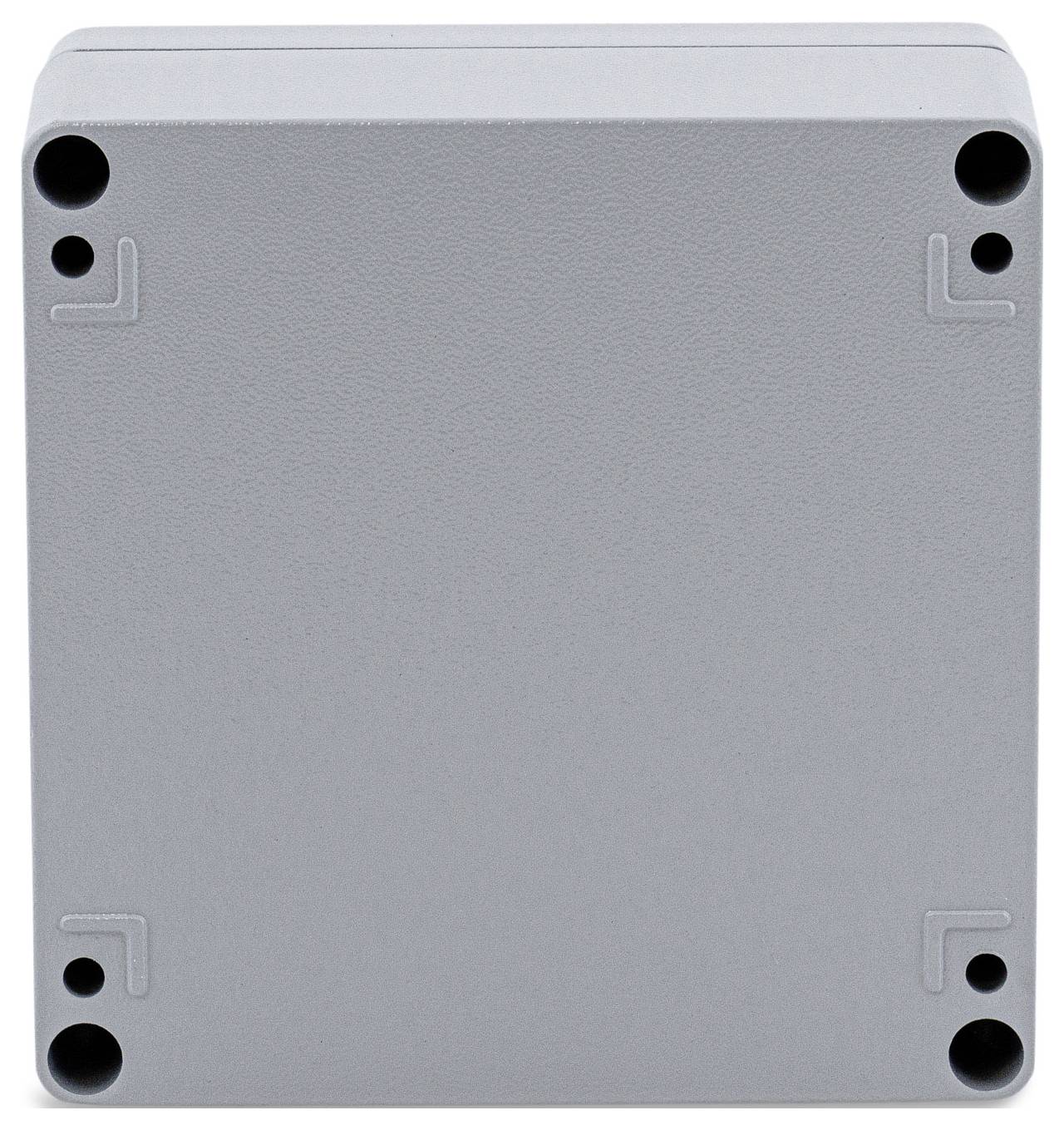

Grey, square plastic electronics enclosure with rounded corners and four mounting points at the corners.

1/5

Packaging type

Piece

Product type

Casing

Material

Aluminium

IP rating

IP66

Width

180 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Colour RAL 7001
Coating: No.
Material: Cover / door: Aluminium
Material: Lower part: Aluminium
Sealing material: Polyurethane foam
Resistance: Alkaline, oils, salts, etc.
Cover - transparent: No.
Inner dimensions (mm): 166 x 166 x 92
UL approval: No.
Impact strength: IK09

Packaging type: Piece

Product type: Casing

Features: with mount plate

Material: Aluminium

: IP66

Factory colour: Silver-grey

Length: 180 mm

Width: 180 mm

Height: 100 mm

Dimensions: 180 x 180 x 100 mm

Weight: 2.048 kg

Content: 1 pc(s)

Type: Alster 180180100

Dim: (L x W x H) 180 x 180 x 100 mm

RoHS-compliant: Yes

Manufacturer part #: BXPBAL180180100-A01

Depth: 100 mm

Halogen-free: Yes

Max. ambient temperature: 100 °C

Min. ambient temperature: -40 °C

Documents & Downloads

Datasheet

Datasheet 3404617 Boxexpert Alster 180180100 Casing 180 x 180 x 100 x 100 Aluminium Silver-grey 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 3404617 Boxexpert Alster 180180100 Casing 180 x 180 x 100 x 100 Aluminium Silver-grey 1 pc(s) Piece

Description

BOXEXPERT's Alster series offers extremely robust aluminum casing, which is specially developed for industrial use. They are perfectly suited to small electrical components such as terminals, relays and circuit boards. Pre-fabricated threaded holes in the interior facilitate the mounting of mounting rails and mounting plates. A powder coating protects the housing against corrosion, while the PU seal with protection class IP 66 ES qualifies for outdoor use. It is also resistant to alcohol, gasoline and mineral oils. The cover is secured using captive screws of stainless steel.

This text is machine translated.
