Name: Boxexpert Alster 20014091 Casing 140 x 200 x 91 Aluminium Silver-grey 1 pc(s) Piece
Brand: Boxexpert
SKU: 3404616

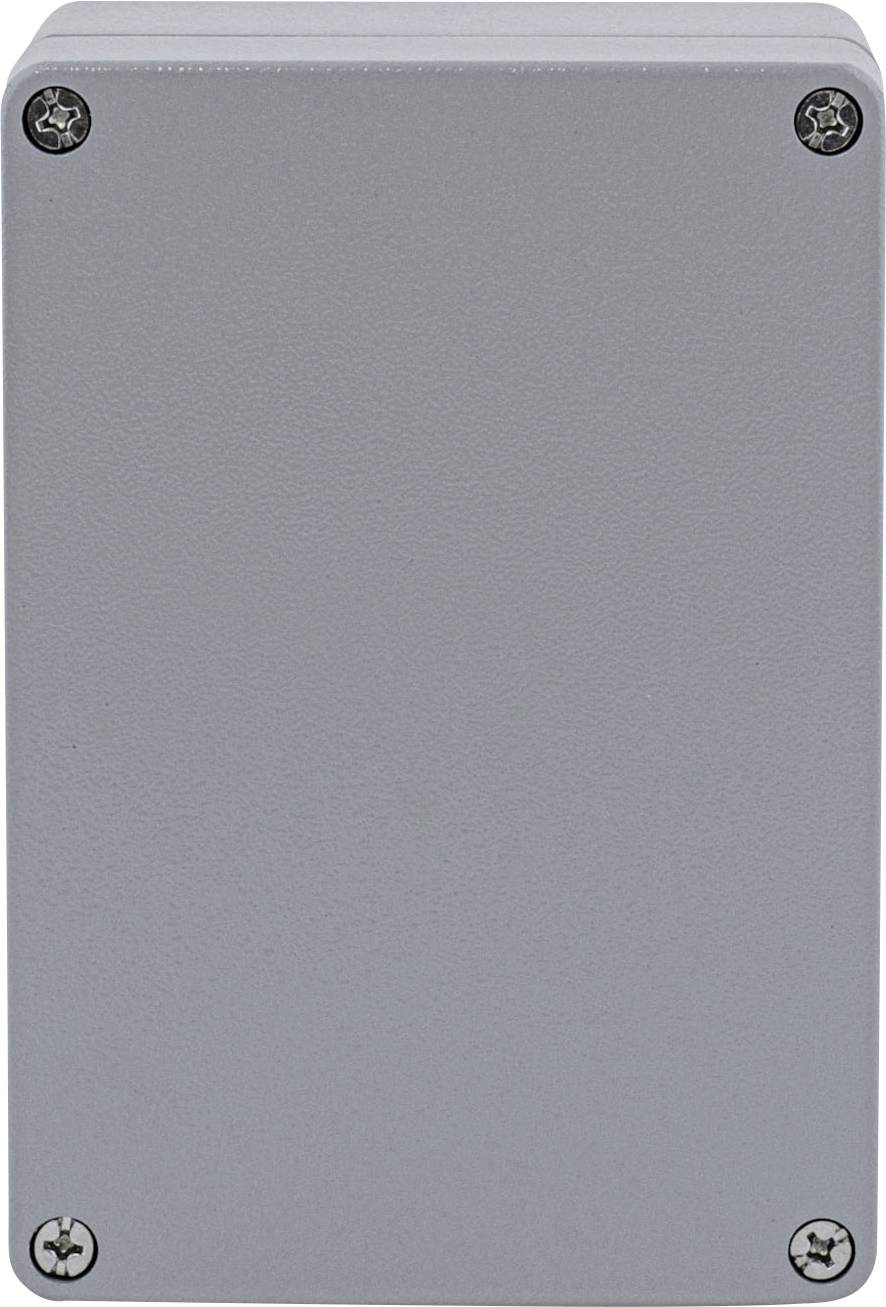

Grey rectangular enclosure with four screws in the corners.

A grey rectangular metal box with rounded corners, viewed from above.

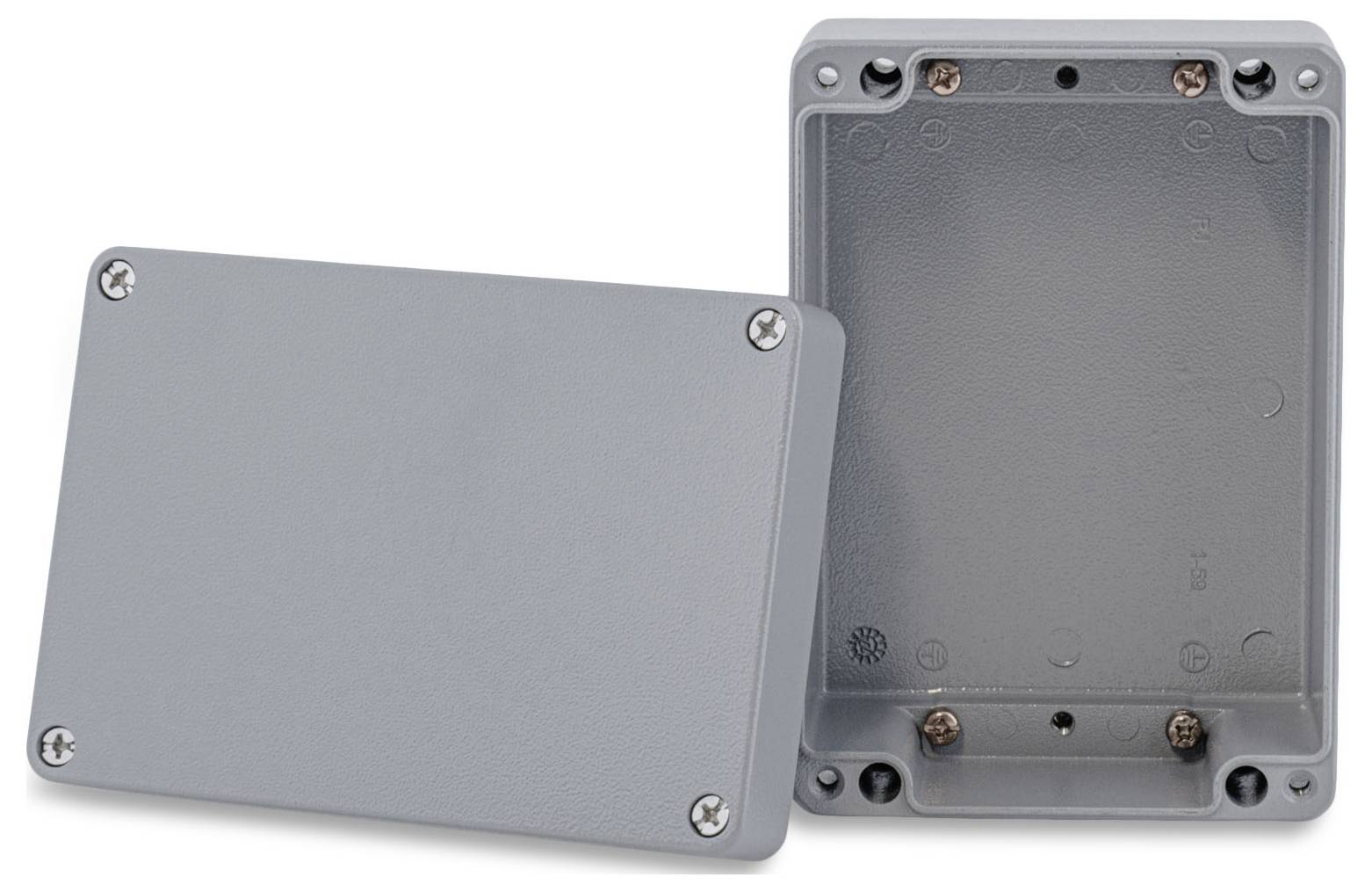

Two grey, rectangular plastic enclosures, one lying flat, the other standing open behind it. They are intended for electronic components.

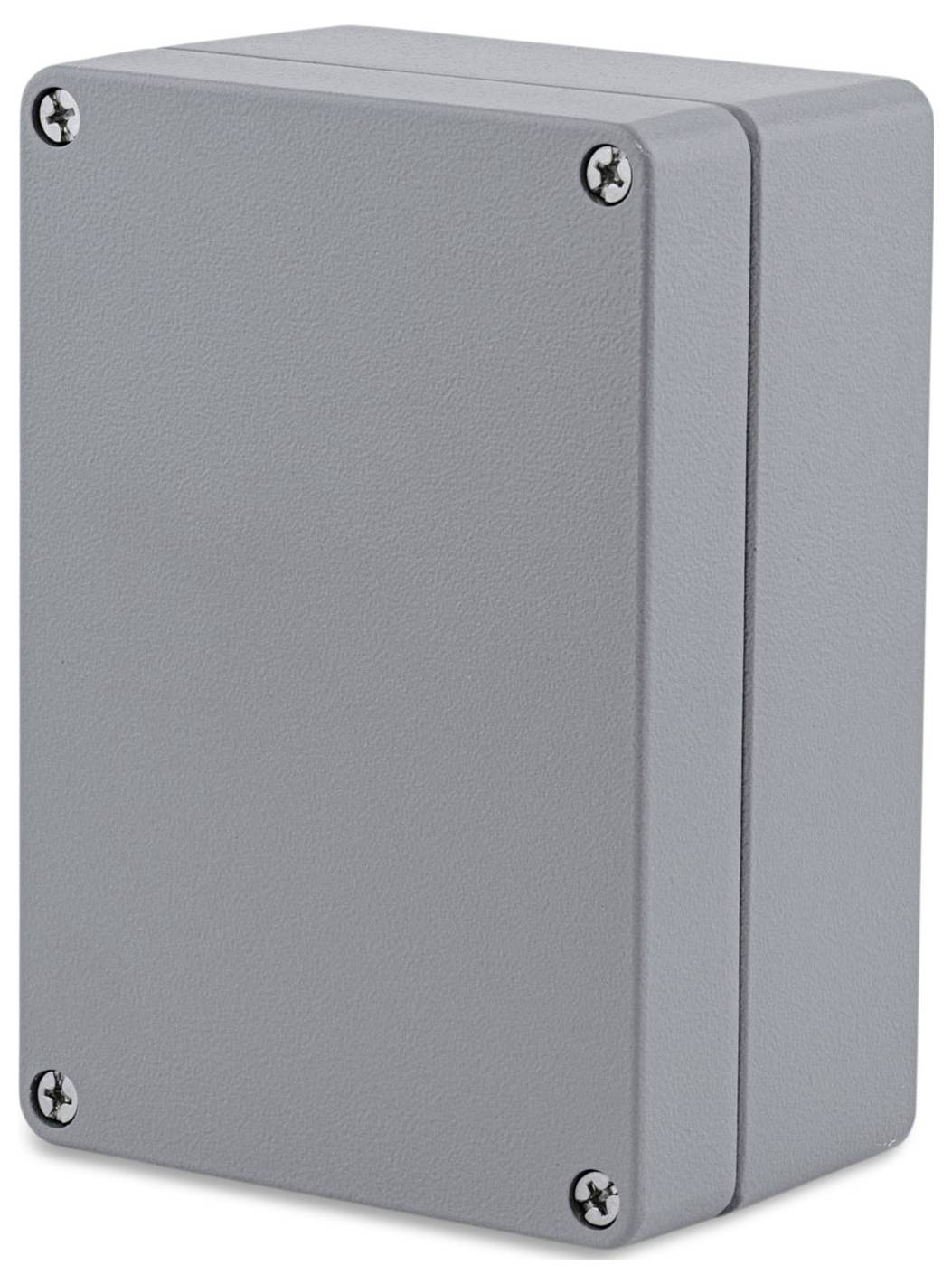

Grey rectangular box with screws at the corners, typically an enclosure for electrical or technical use.

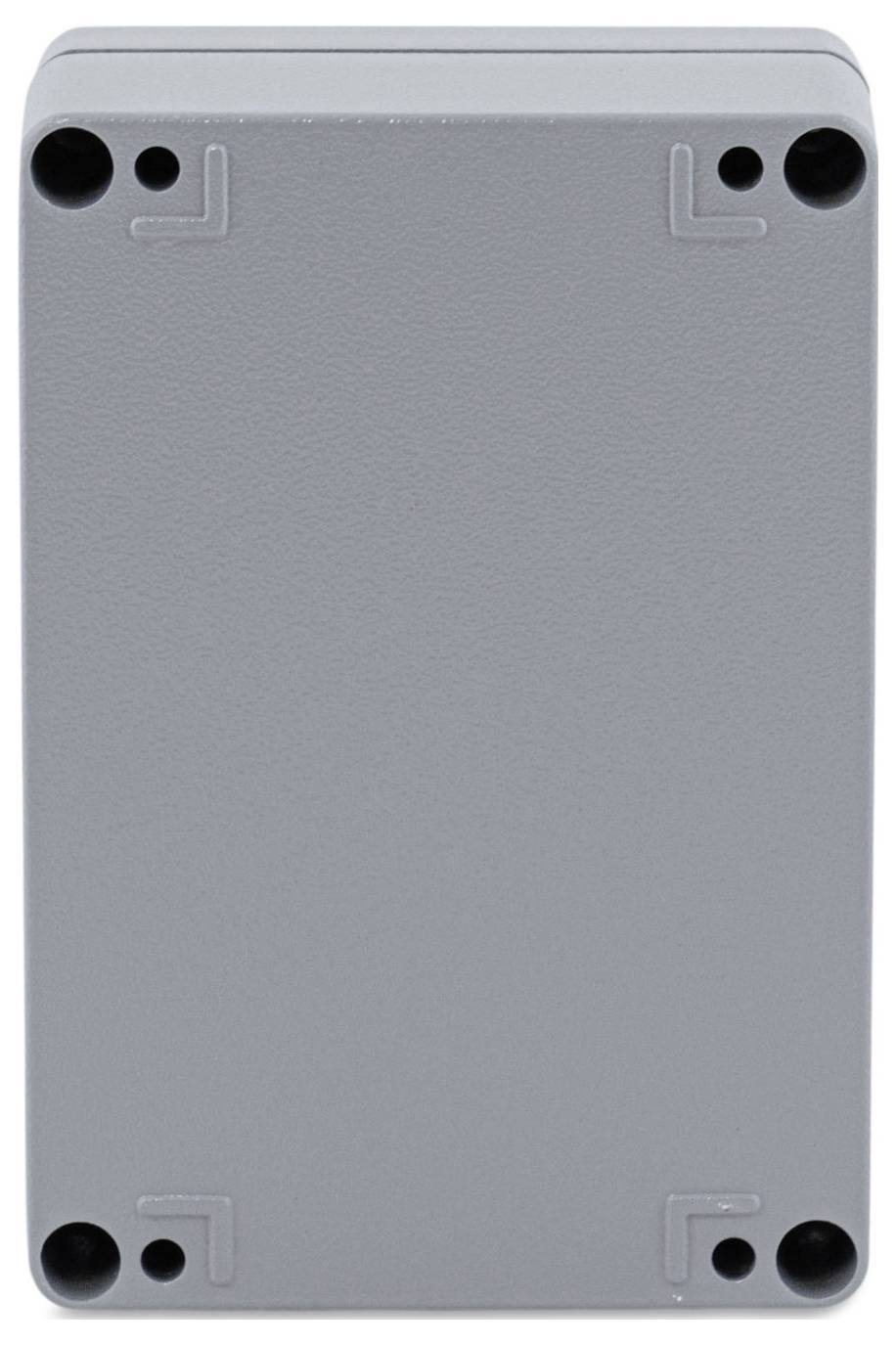

Rectangular grey enclosure with round drill holes at all four corners.

1/5

Packaging type

Piece

Product type

Casing

Material

Aluminium

IP rating

IP66

Width

200 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Colour RAL 7001
Coating: No.
Material: Cover / door: Aluminium
Material: Lower part: Aluminium
Sealing material: Polyurethane foam
Resistance: Alkaline, oils, salts, etc.
Cover - transparent: No.
Inner dimensions (mm): 186 x 126 x 82
UL approval: No.
Impact strength: IK09

Packaging type: Piece

Product type: Casing

Features: shockproof

Material: Aluminium

: IP66

Factory colour: Silver-grey

Length: 140 mm

Width: 200 mm

Height: 91 mm

Dimensions: 140 x 200 x 91 mm

Weight: 1.58 kg

Content: 1 pc(s)

Type: Alster 20014091

Dim: (L x W x H) 140 x 200 x 91 mm

RoHS-compliant: Yes

Manufacturer part #: BXPBAL20014091-A01

Halogen-free: Yes

Max. ambient temperature: 100 °C

Min. ambient temperature: -40 °C

Documents & Downloads

Datasheet

Datasheet 3404616 Boxexpert Alster 20014091 Casing 140 x 200 x 91 Aluminium Silver-grey 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 3404616 Boxexpert Alster 20014091 Casing 140 x 200 x 91 Aluminium Silver-grey 1 pc(s) Piece

Description

The BOXEXPERT Alster series comprises compact and extremely robust aluminum casing for industrial applications. They are ideal for electrical and electromechanical components like terminals, relays and boards. Thanks to the threaded holes in the interior of the casing the installation of mounting plates and mounting rails is simple. The powder coating protects against corrosion, while the PU-sealing with IP 66 provides for a high weather resistance. The housing can withstand alcohol, petrol and mineral oils. The cover is fixed with non-detachable stainless steel screws.
