Name: Boxexpert Alster 22012081 Casing 120 x 220 x 81 Aluminium Silver-grey 1 pc(s)
Brand: Boxexpert
SKU: 3404614

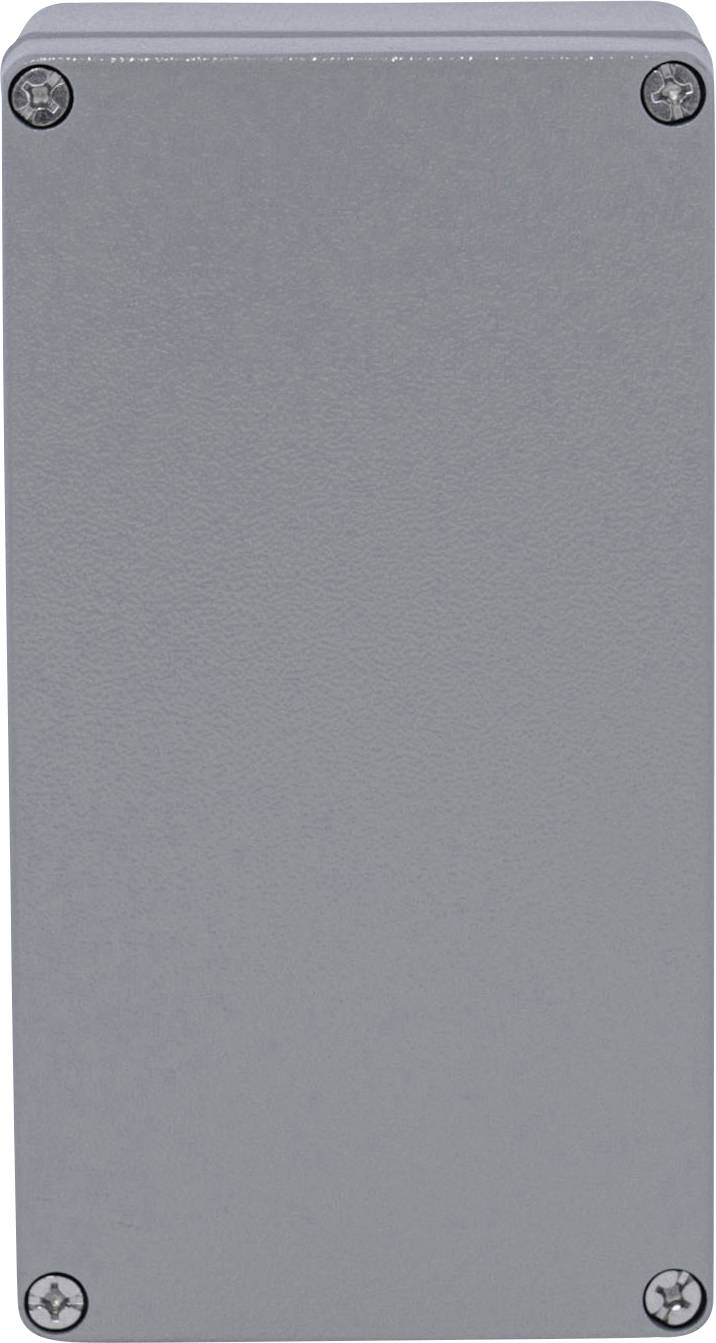

A rectangular, grey metal enclosure with four visible screws at the corners, likely for protecting electronic components.

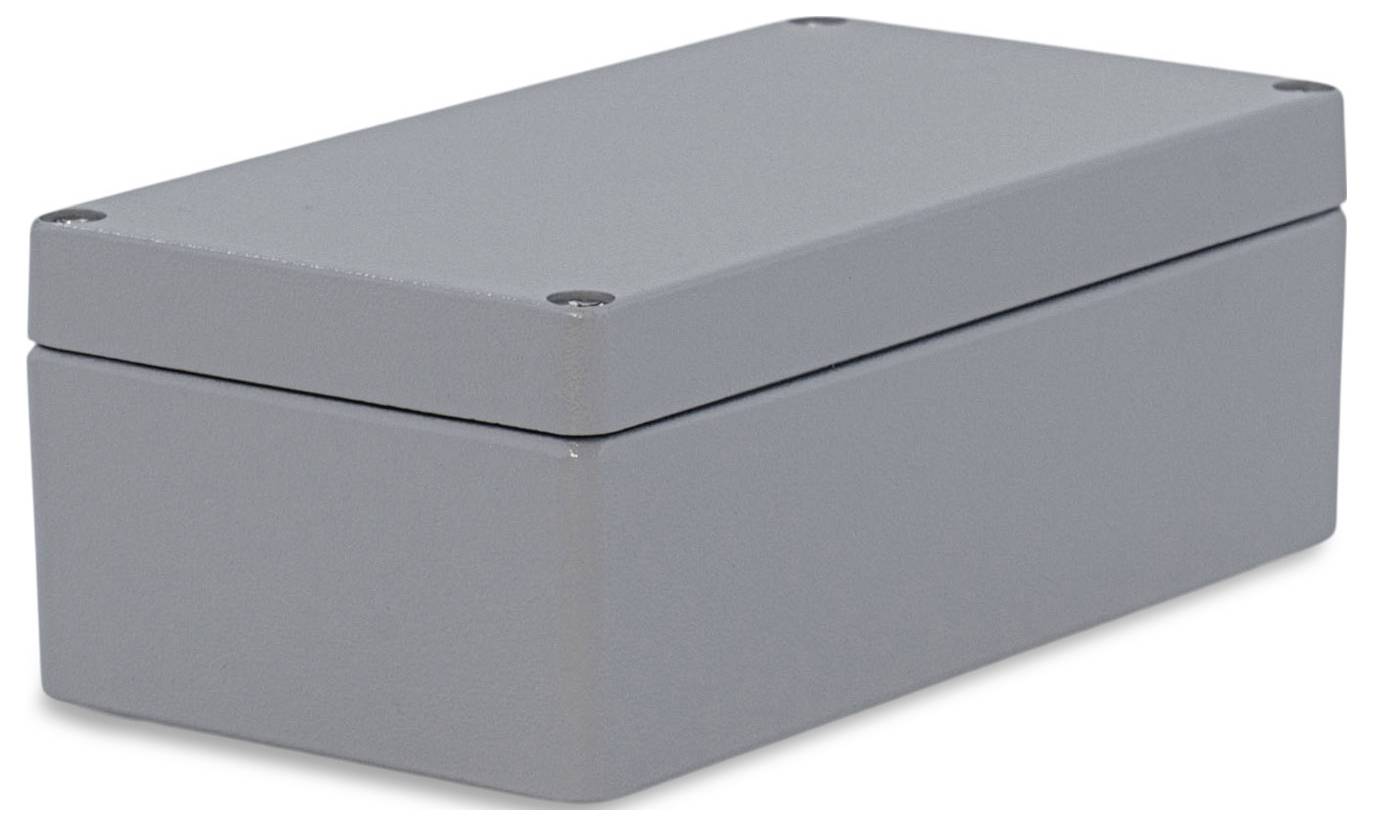

Grey powder-coated metal enclosure with removable lid, suitable for protecting electronic components in industrial applications.

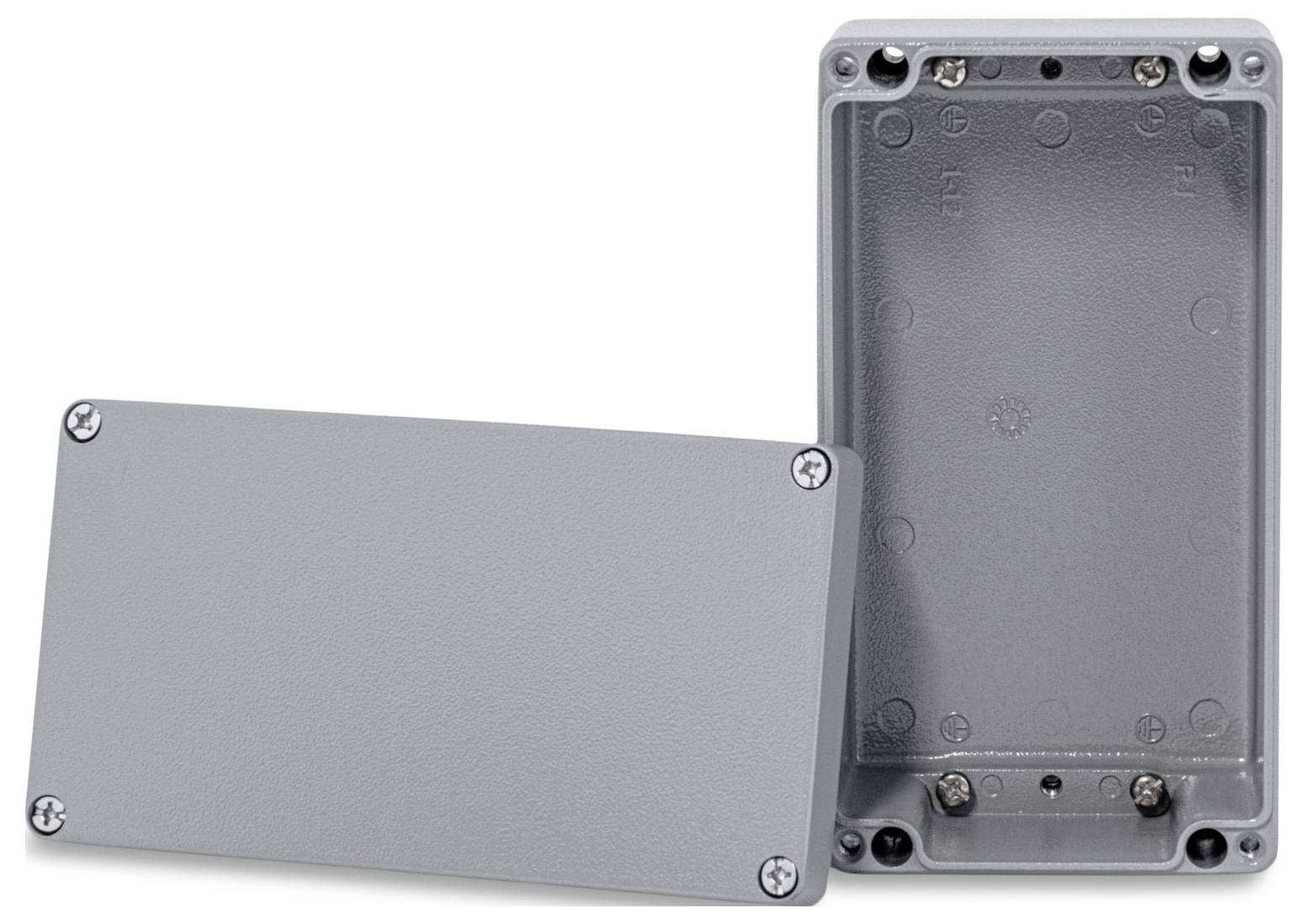

Grey rectangular plastic enclosure, one open, showing screw holes and gasket. Suitable for protecting electronic components.

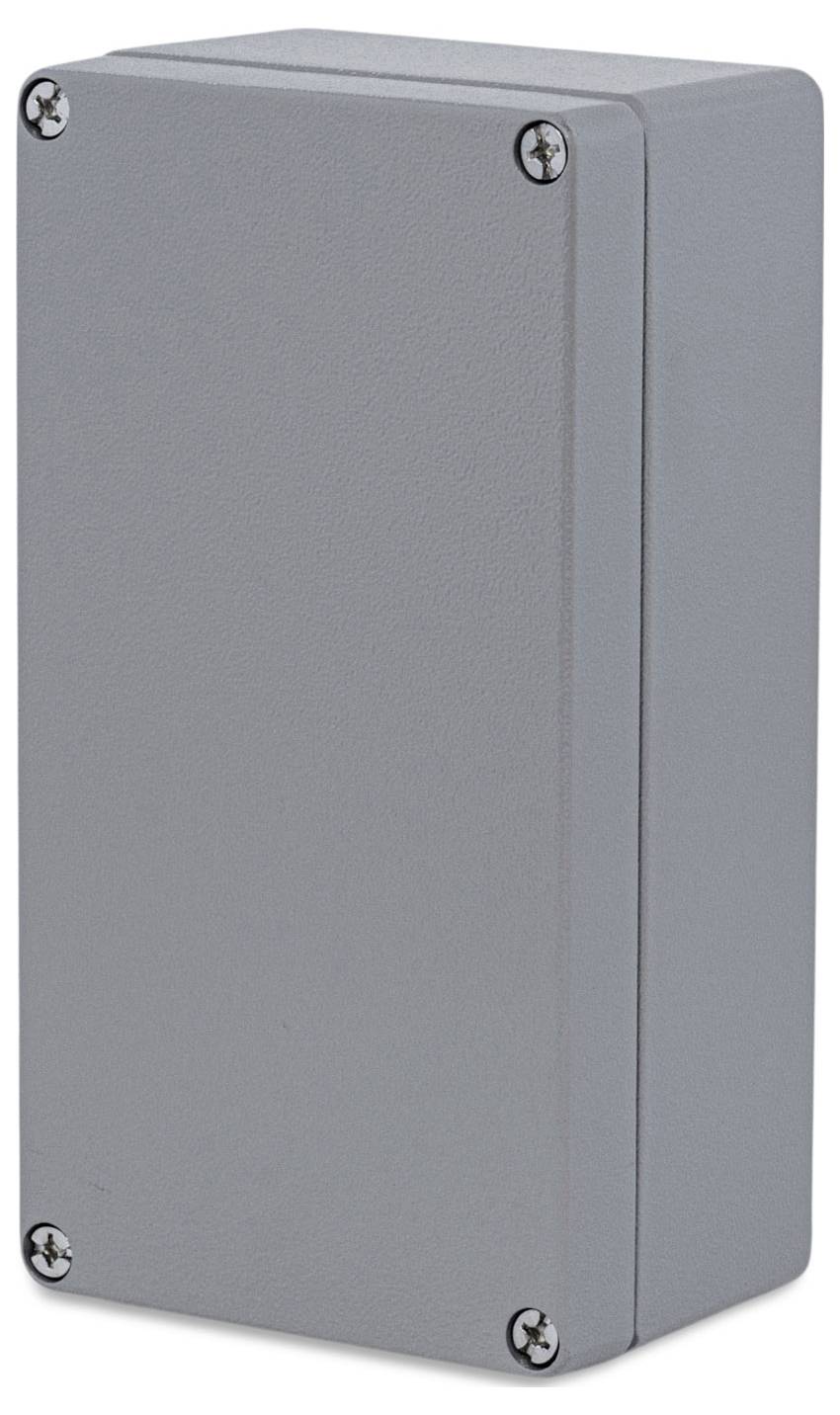

A grey, rectangular metal box with four screws in the corners, most likely an electrical enclosure.

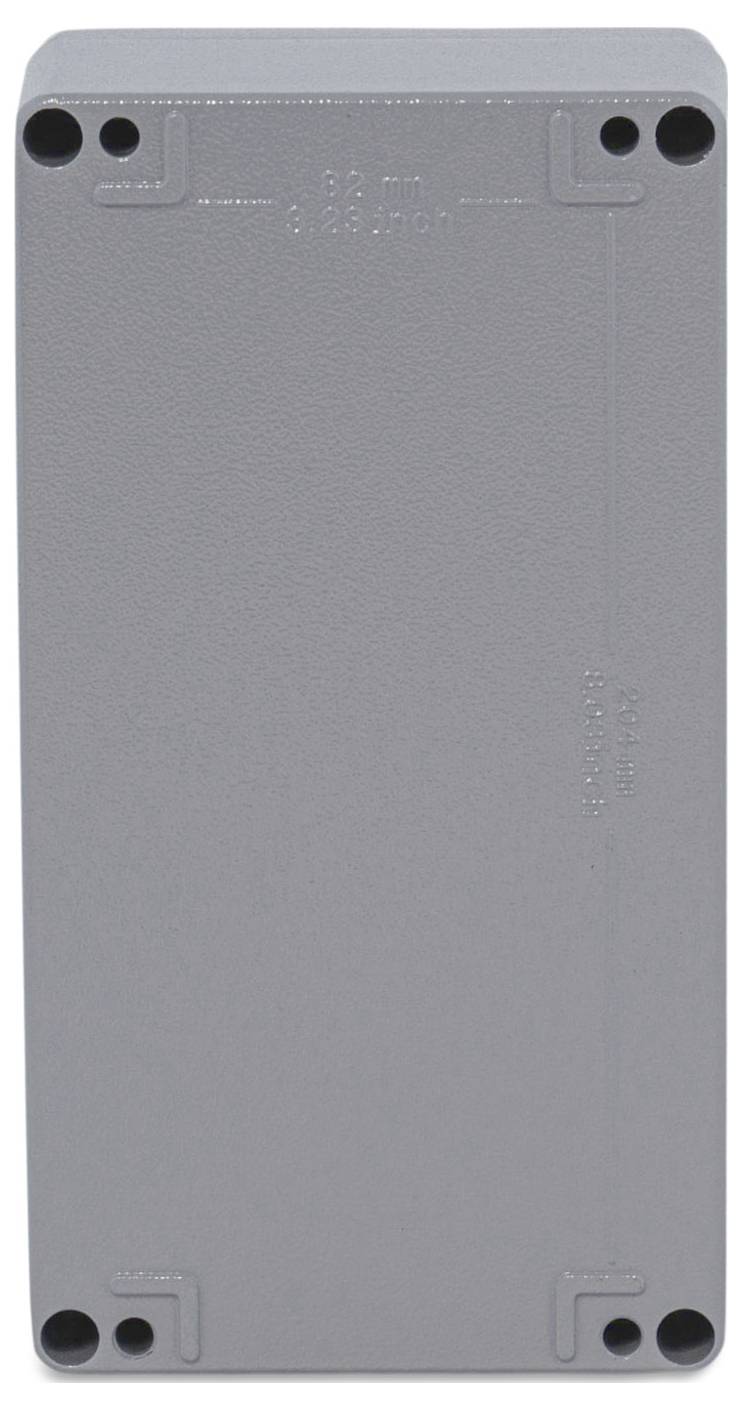

Grey rectangular plastic enclosure, sealed with four screws at the corners. Suitable for electronic components.

1/5

Product type

Casing

Material

Aluminium

IP rating

IP66

Width

220 mm

Height

81 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Colour RAL 7001
Coating: No.
Material: Cover / door: Aluminium
Material: Lower part: Aluminium
Sealing material: Polyurethane foam
Resistance: Alkaline, oils, salts, etc.
Cover - transparent: No.
Inner dimensions (mm): 211 x 111 x 72
UL approval: No.
Impact strength: IK09

Product type: Casing

Material: Aluminium

: IP66

Factory colour: Silver-grey

Length: 120 mm

Width: 220 mm

Height: 81 mm

Weight: 1.496 kg

Content: 1 pc(s)

Type: Alster 22012081

Dim: (L x W x H) 120 x 220 x 81 mm

RoHS-compliant: Yes

Manufacturer part #: BXPBAL22012081-A01

Halogen-free: Yes

Max. ambient temperature: 100 °C

Min. ambient temperature: -40 °C

Documents & Downloads

Datasheet

Datasheet 3404614 Boxexpert Alster 22012081 Casing 120 x 220 x 81 Aluminium Silver-grey 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3404614 Boxexpert Alster 22012081 Casing 120 x 220 x 81 Aluminium Silver-grey 1 pc(s)

Description

The Alster series of BOXEXPERT consists of highly stable aluminum casing for industrial applications. They are ideal for accommodating electrical and electromechanical components such as clamps, relays and PCBs. Thanks to the thread borings in the inside the mounting plates and mounting rails can be fixed without any problem. A powder coating offers corrosion protection, while the PU-sealing with IP 66 provides for a high resistance. The housing is resistant to alcohol, petrol and mineral oils. The cover is secured using captive screws of stainless steel.

This text is machine translated.
