Name: Boxexpert Alster 230200111 Casing 200 x 230 x 111 x 111 Aluminium Silver-grey 1 pc(s) Piece
Brand: Boxexpert
SKU: 3404612

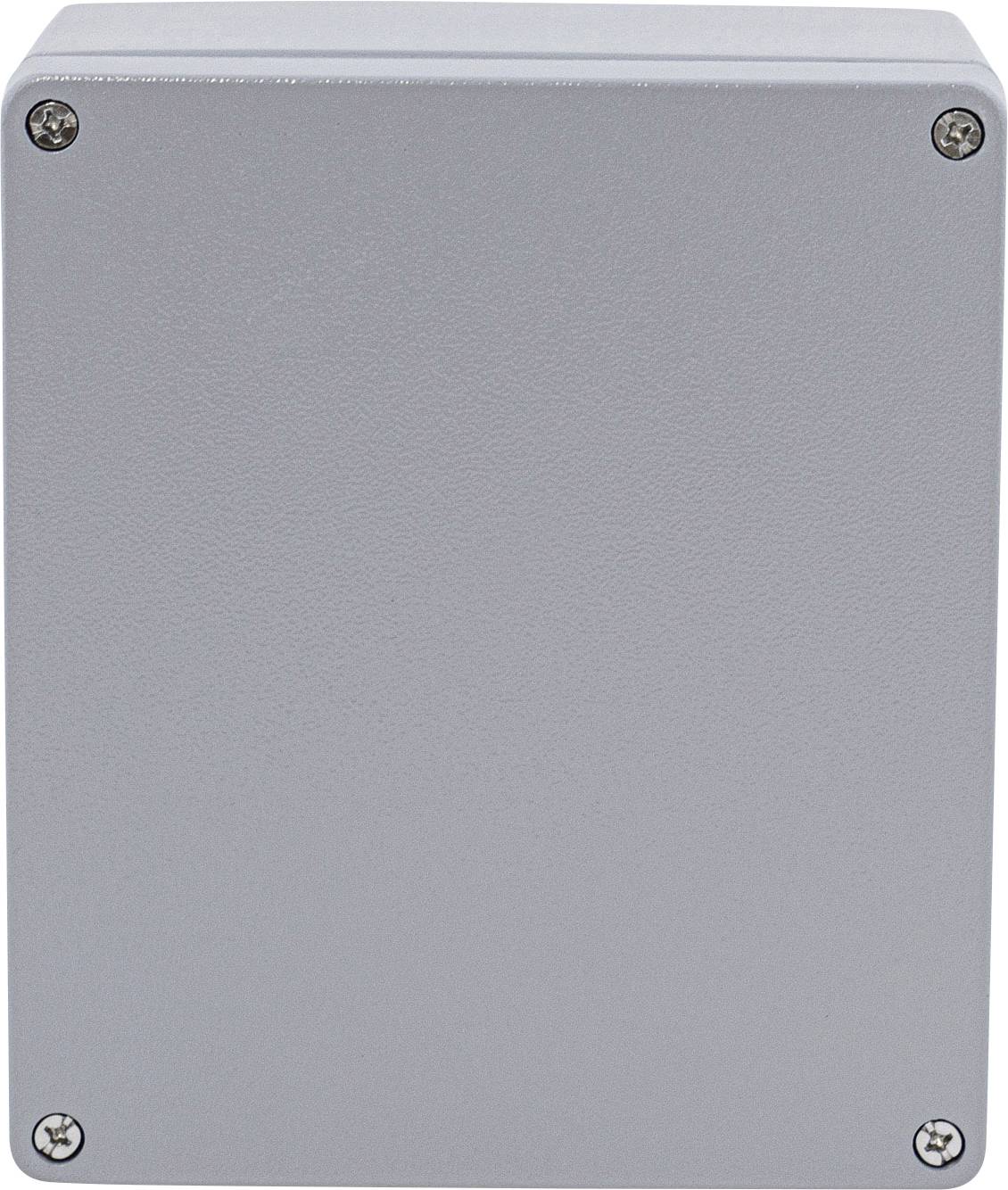

Grey rectangular metal box with four visible screws at the corners, possibly an enclosure for electronic components.

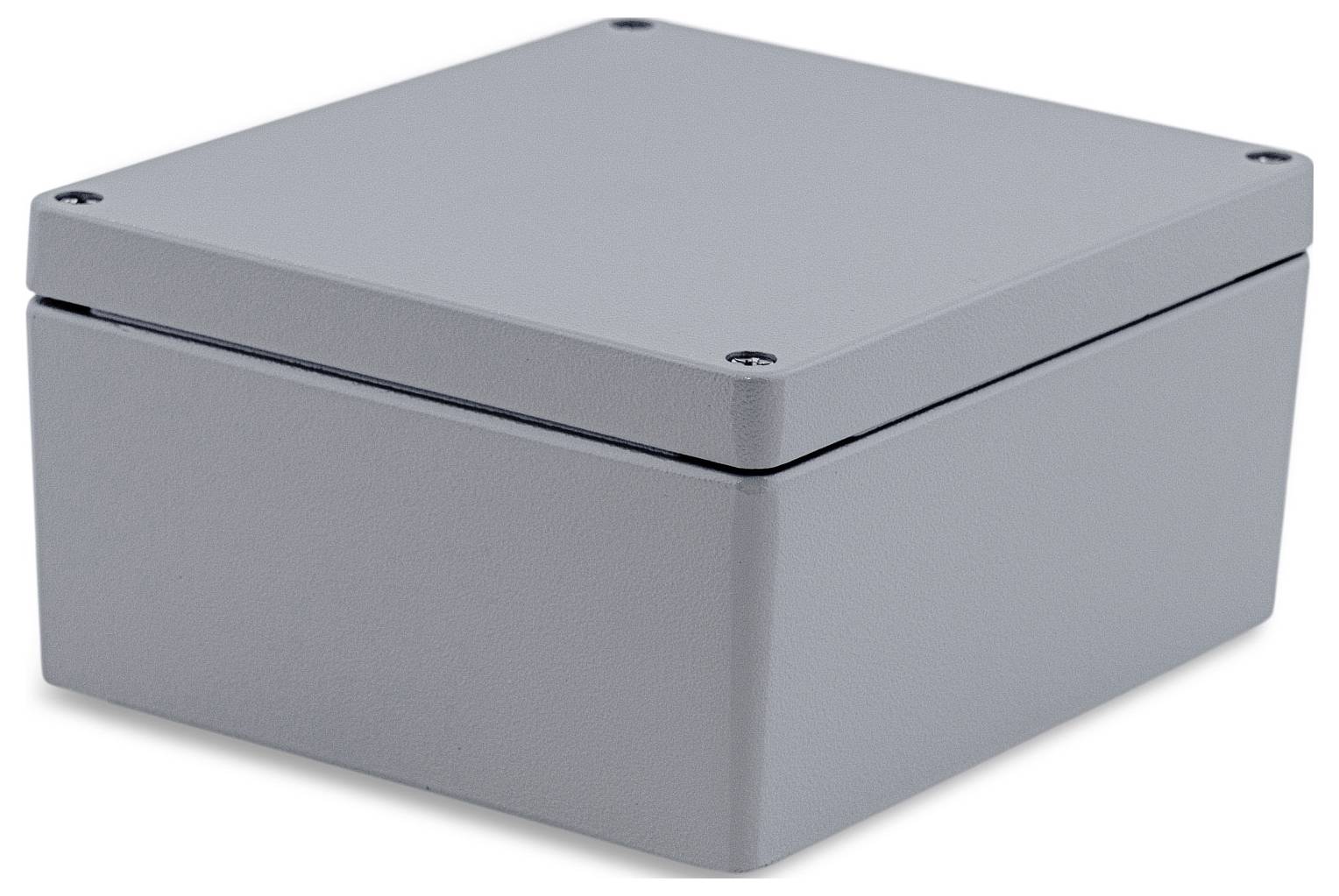

Grey, rectangular, closed metal enclosure, likely for electronic components or as a protective cover.<br><br>(Note: This appears to already be in quite clear and standard language, so the translation is very close to the original German text.)

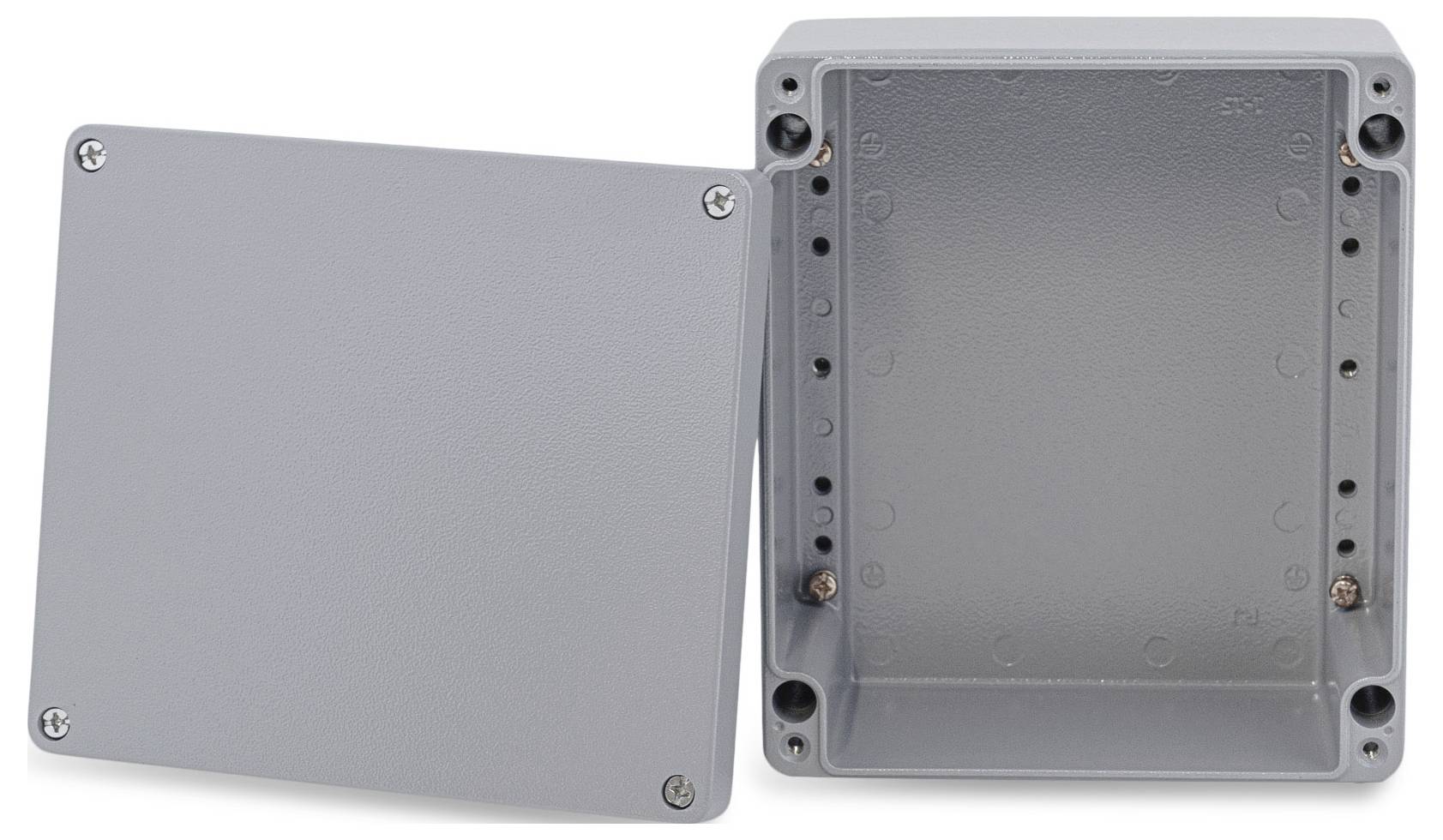

Grey, square plastic box with lid removed, showing interior with screw holes, used for electrical installations.

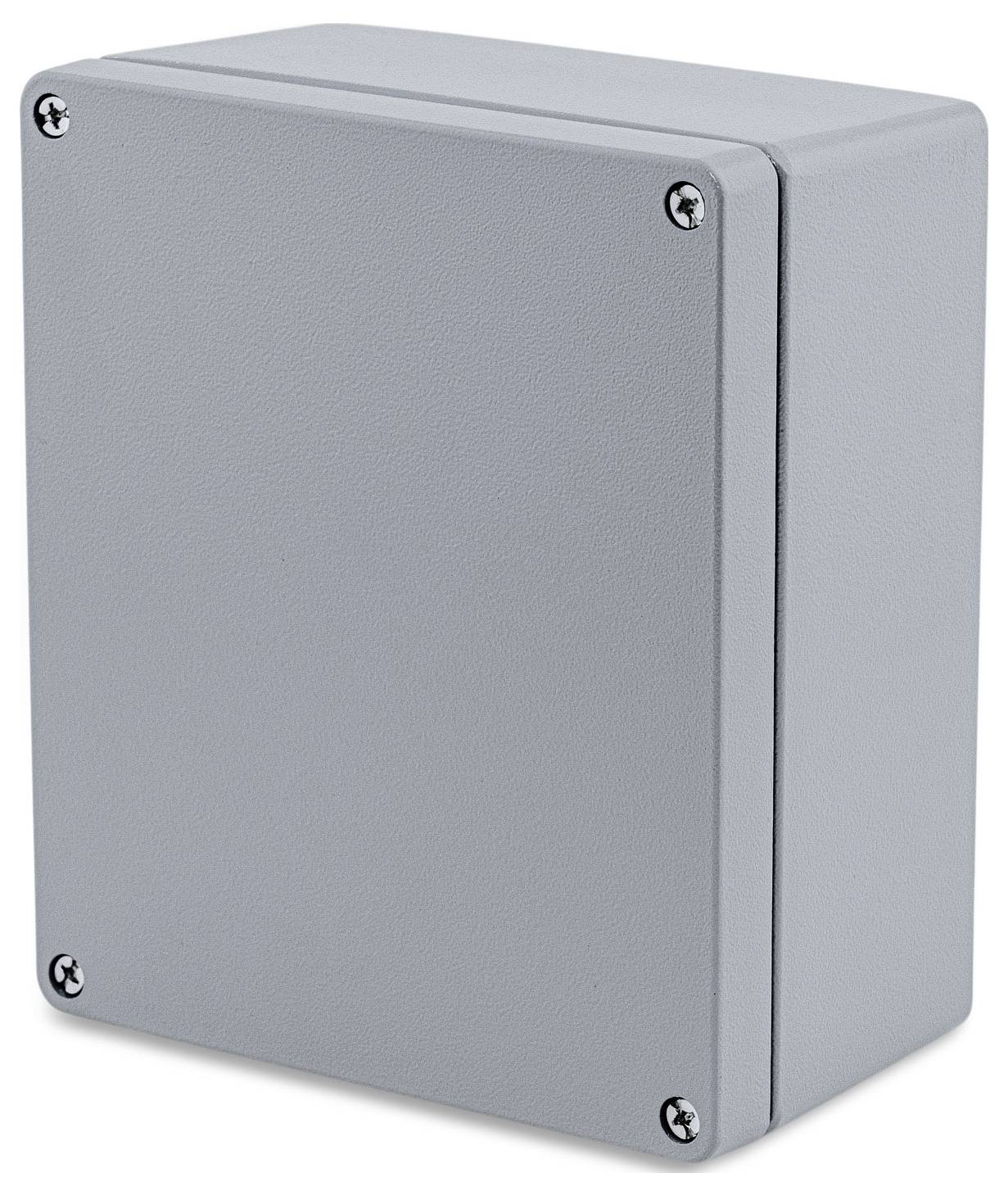

Rectangular, grey enclosure with four screws at the corners. It appears to be housing an electrical or technical device.

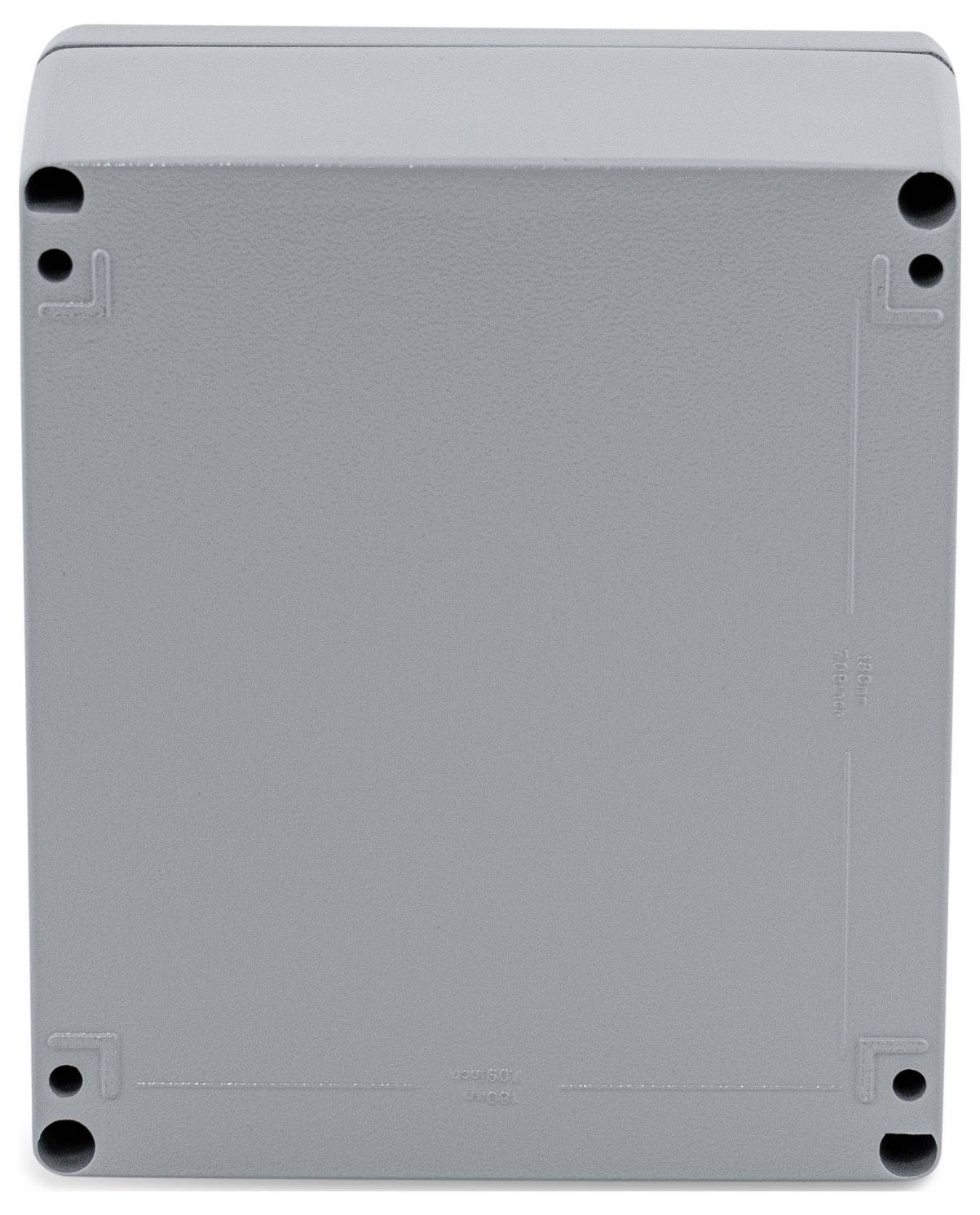

Grey, rectangular enclosure with four mounting holes at the corners. This is a waterproof electronic housing designed for outdoor use.

1/5

Packaging type

Piece

Product type

Casing

Material

Aluminium

IP rating

IP66

Width

230 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Colour RAL 7001
Coating: No.
Material: Cover / door: Aluminium
Material: Lower part: Aluminium
Sealing material: Polyurethane foam
Resistance: Alkaline, oils, salts, etc.
Cover - transparent: No.
Inner dimensions (mm): 217 x 187 x 102
UL approval: No.
Impact strength: IK09

Packaging type: Piece

Product type: Casing

Features: waterproof

Material: Aluminium

: IP66

Factory colour: Silver-grey

Length: 200 mm

Width: 230 mm

Height: 111 mm

Dimensions: 200 x 230 x 111 mm

Weight: 2.63 kg

Content: 1 pc(s)

Type: Alster 230200111

Dim: (L x W x H) 200 x 230 x 111 mm

RoHS-compliant: Yes

Manufacturer part #: BXPBAL230200111-A01

Depth: 111 mm

Halogen-free: Yes

Max. ambient temperature: 100 °C

Min. ambient temperature: -40 °C

Documents & Downloads

Datasheet

Datasheet 3404612 Boxexpert Alster 230200111 Casing 200 x 230 x 111 x 111 Aluminium Silver-grey 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 3404612 Boxexpert Alster 230200111 Casing 200 x 230 x 111 x 111 Aluminium Silver-grey 1 pc(s) Piece

Description

The aluminum housing of the Alster series of BOXEXPERT have been specially designed for industrial applications. They provide protection for terminals, PCBs, relay modules and other electronic components. Pre-fabricated threaded holes make the mounting plates and mounting rails easier. The robust powder coating prevents corrosion, while the PU-sealing with IP 66-protection guarantees a high weather resistance. The housing can withstand alcohol, petrol and mineral oils. The housing cover is secured with captive screws of stainless steel.

This text is machine translated.
