Name: Boxexpert Alster 230200180 Casing 200 x 230 x 180 x 180 Aluminium Silver-grey 1 pc(s) Piece
Brand: Boxexpert
SKU: 3404619

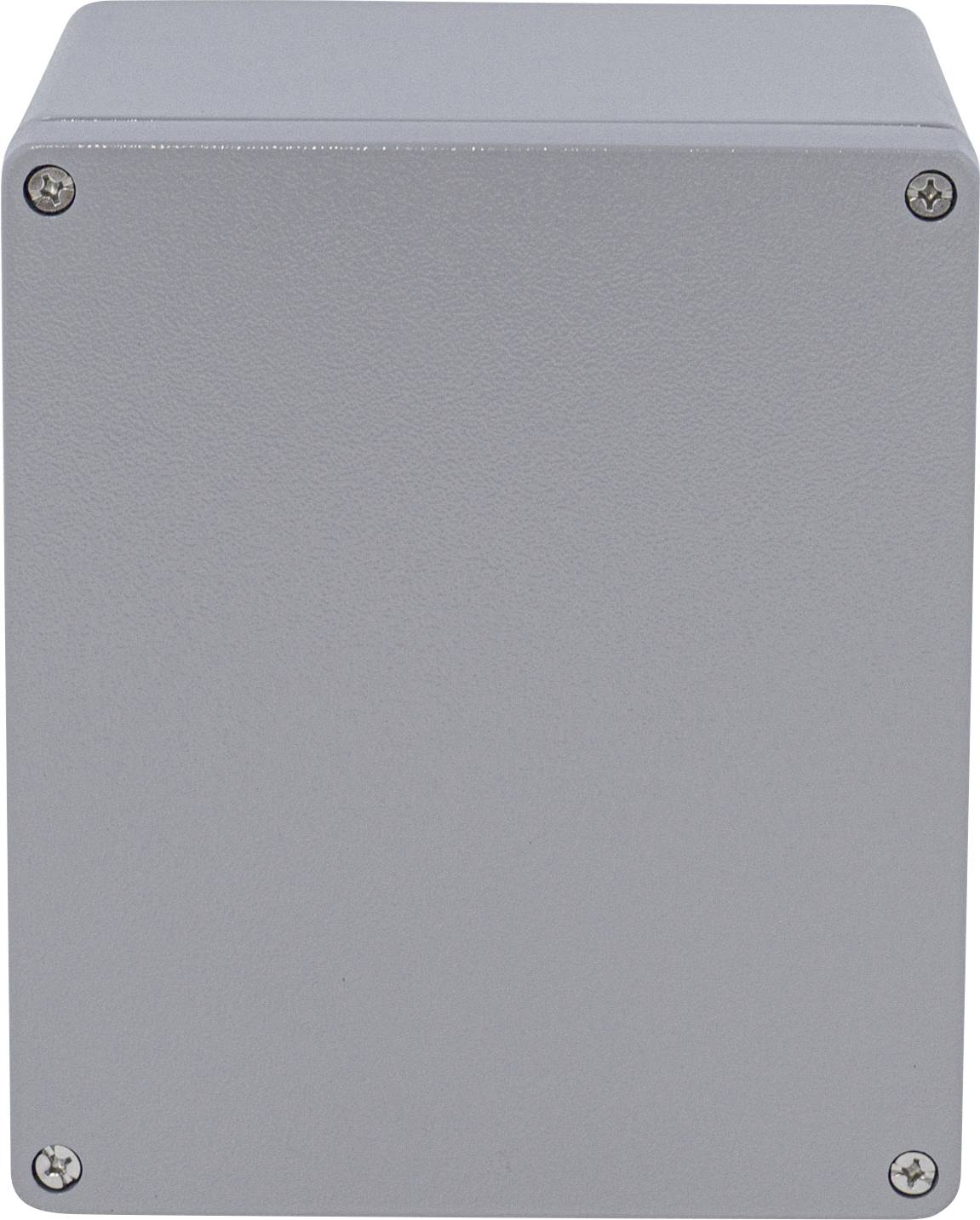

Grey rectangular box with four visible screws at the corners, possibly an electrical or technical enclosure.

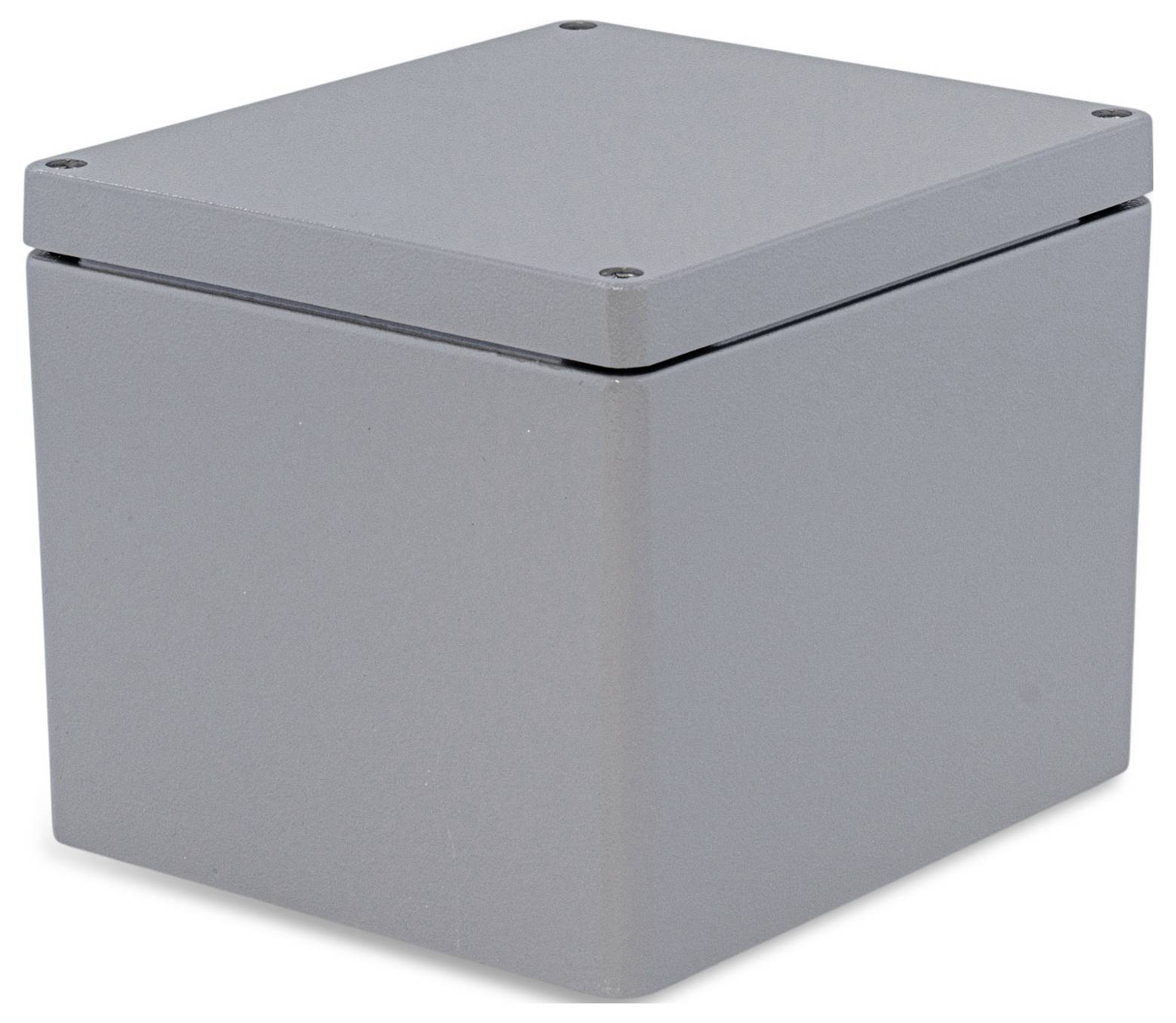

Grey, enclosed metal box with screws at each corner of the lid.

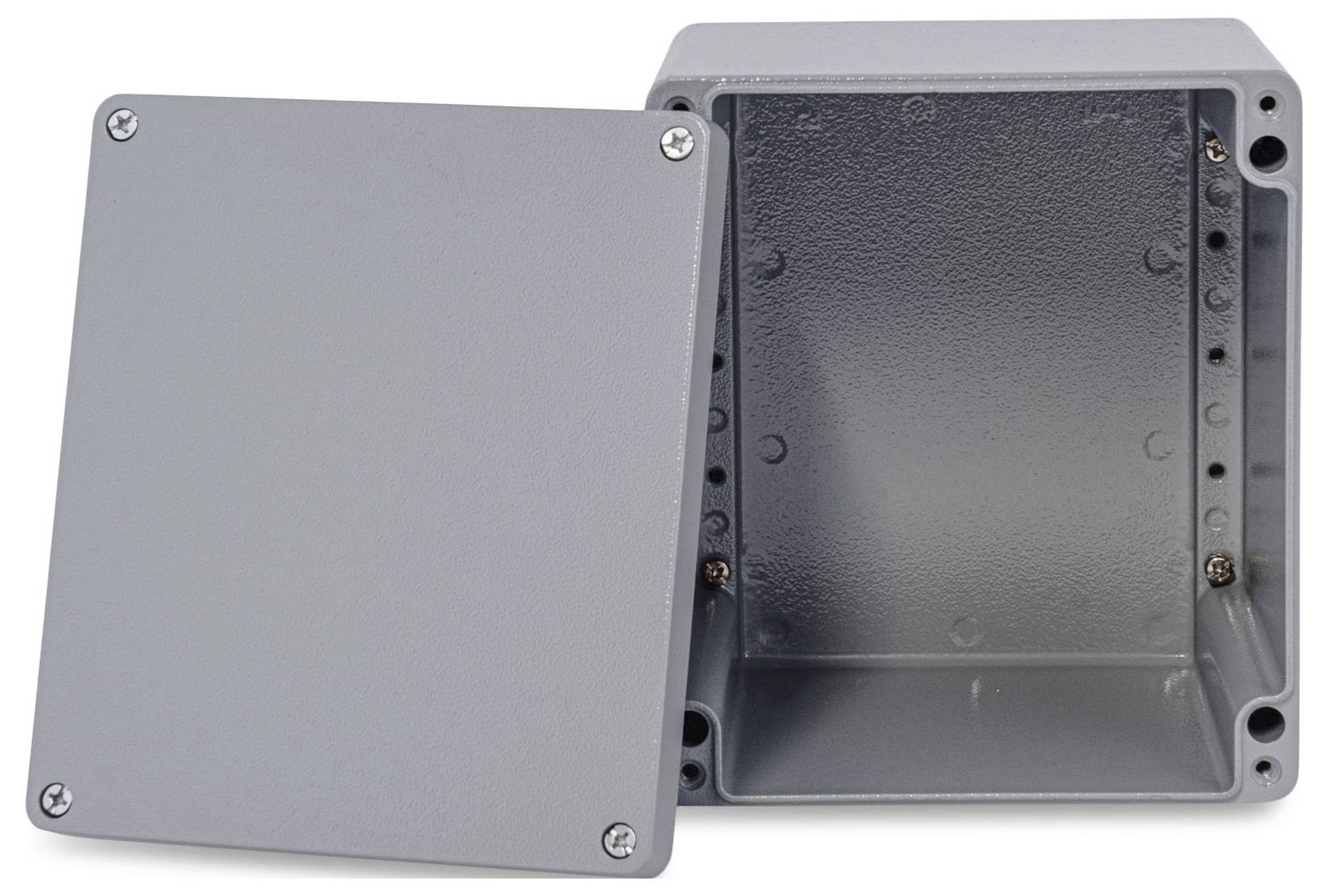

Grey, square casing with a removed cover plate secured by four screws at the corners. Manufactured from smooth material.

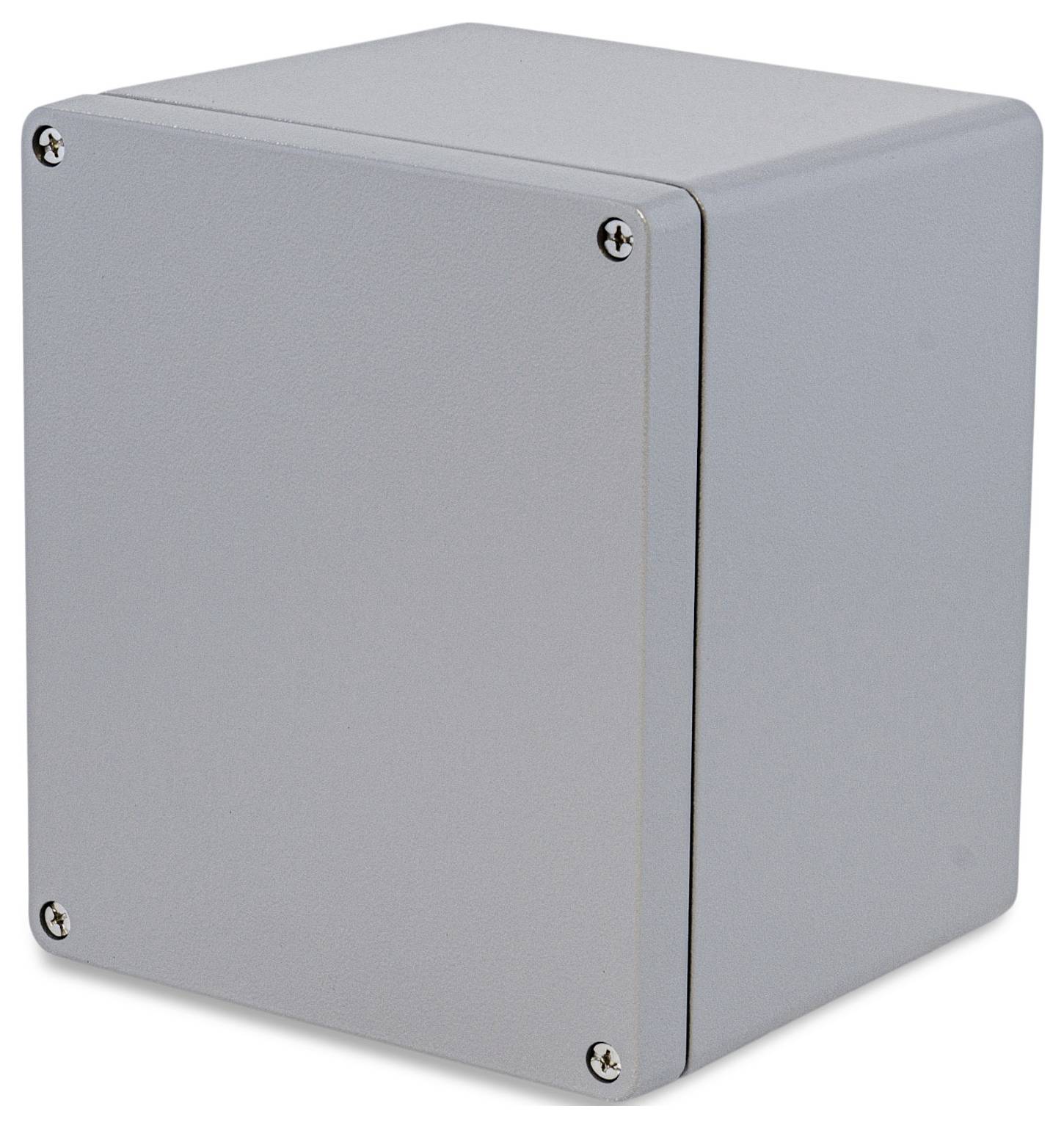

A rectangular grey metal box with screws at the corners, likely used as an enclosure for technical equipment or a protective cover.

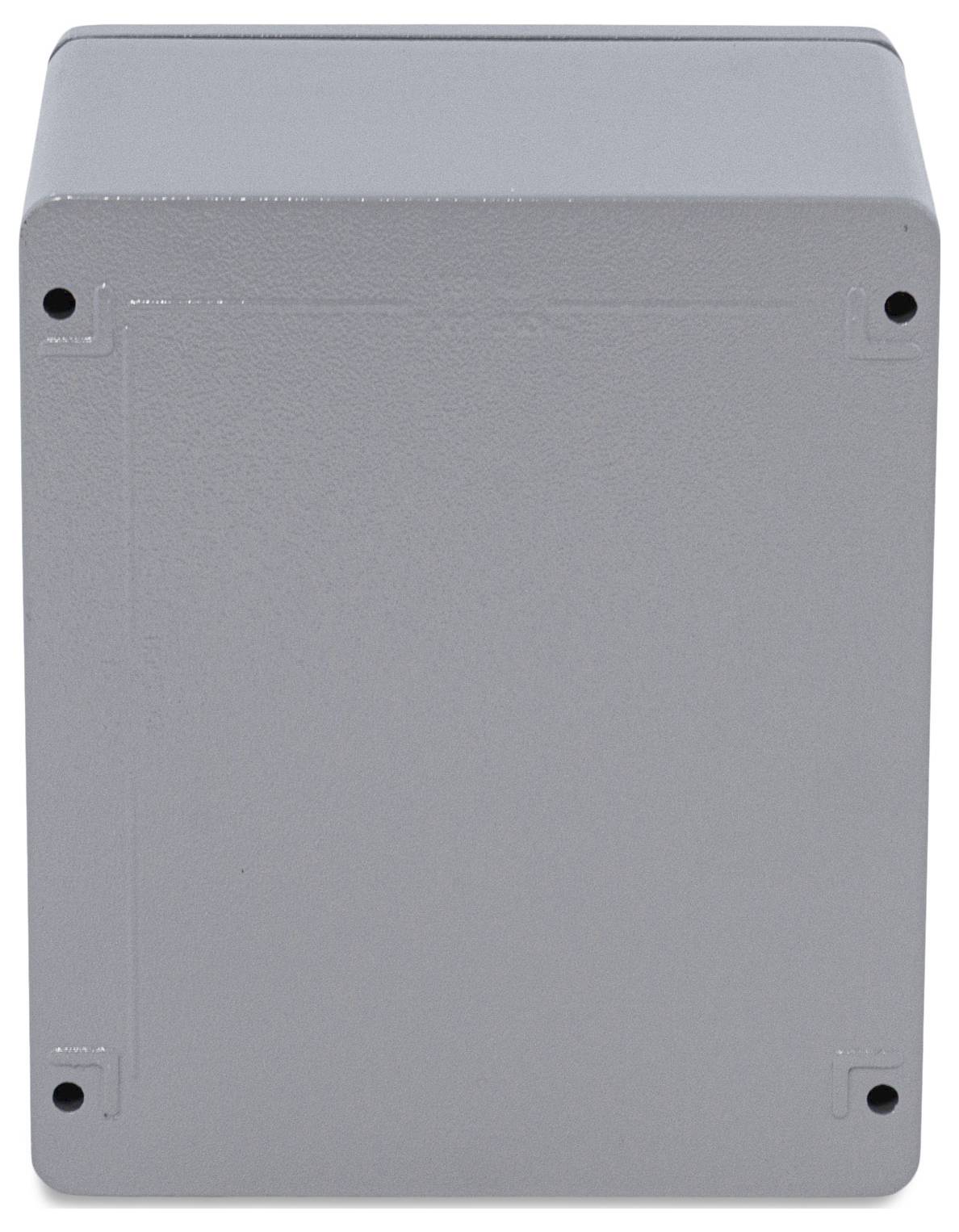

Rectangular grey enclosure with rounded corners, four screw holes at the corners, likely a protective housing.

1/5

Packaging type

Piece

Product type

Casing

Material

Aluminium

IP rating

IP66

Width

230 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Colour RAL 7001
Coating: No.
Material: Cover / door: Aluminium
Material: Lower part: Aluminium
Sealing material: Polyurethane foam
Resistance: Alkaline, oils, salts, etc.
Cover - transparent: No.
Inner dimensions (mm): 217 x 187 x 170
UL approval: No.
Impact strength: IK09

Packaging type: Piece

Product type: Casing

Features: anti-corrosive

Material: Aluminium

: IP66

Factory colour: Silver-grey

Length: 200 mm

Width: 230 mm

Height: 180 mm

Weight: 1.58 kg

Content: 1 pc(s)

Type: Alster 230200180

Dim: (L x W x H) 200 x 230 x 180 mm

RoHS-compliant: Yes

Manufacturer part #: BXPBAL230200180-A01

Depth: 180 mm

Halogen-free: Yes

Max. ambient temperature: 100 °C

Min. ambient temperature: -40 °C

Documents & Downloads

Datasheet

Datasheet 3404619 Boxexpert Alster 230200180 Casing 200 x 230 x 180 x 180 Aluminium Silver-grey 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 3404619 Boxexpert Alster 230200180 Casing 200 x 230 x 180 x 180 Aluminium Silver-grey 1 pc(s) Piece

Description

The aluminum housing of the Alster series of BOXEXPERT were developed for industrial applications. They offer a robust solution for electrical and electromechanical components such as terminals, relays and PCBs. Built-in threaded holes enable easy attachment of mounting rails and mounting plates. The powder coating provides corrosion protection, while the PU seal qualifies the housing with IP 66 for outdoor use. It is also resistant to alcohol, petrol and mineral oils. The cover is secured using captive screws.
