Name: Boxexpert Alster 280230110 Casing 230 x 280 x 110 Aluminium Silver-grey 1 pc(s) Piece
Brand: Boxexpert
SKU: 3404610

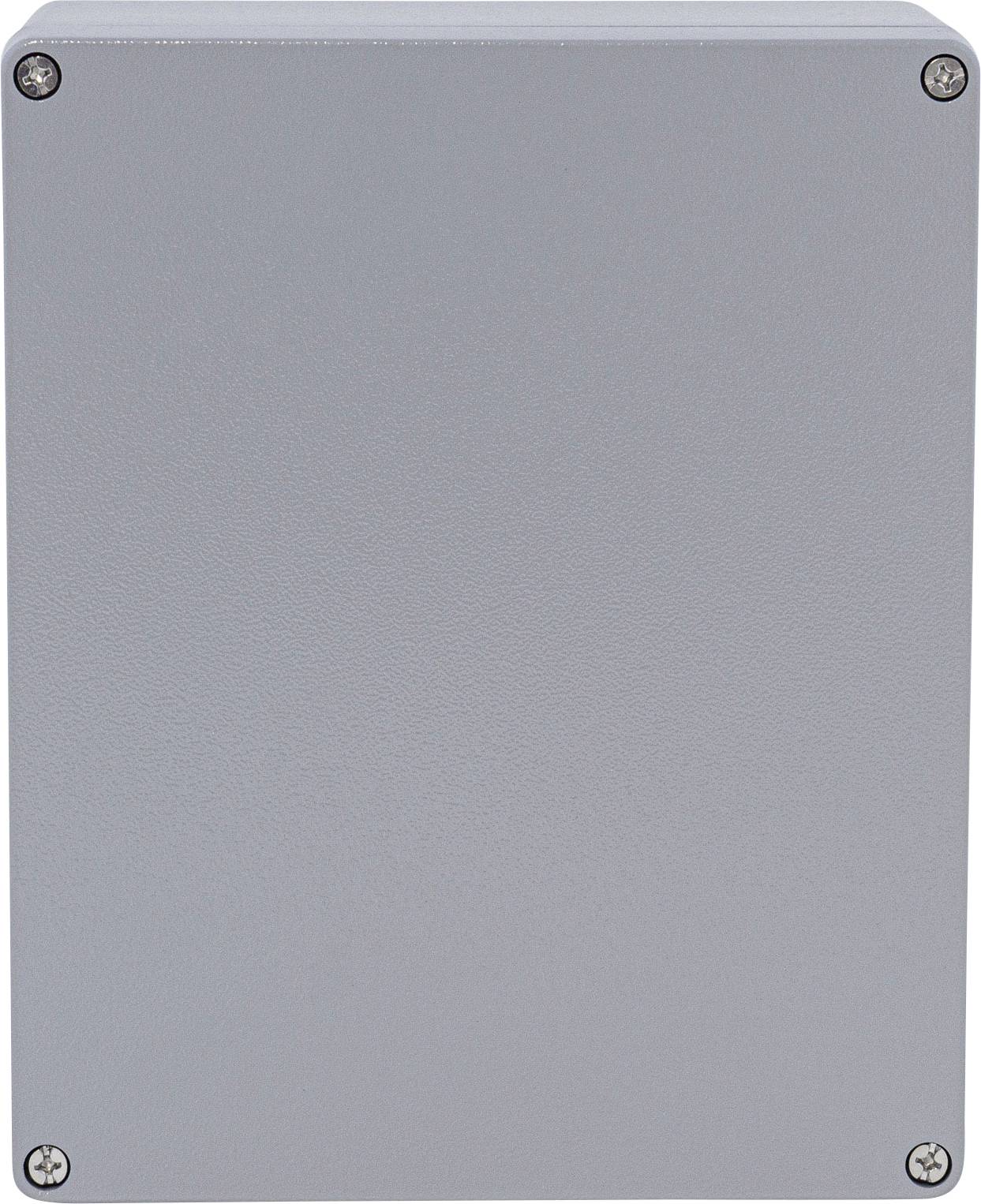

A rectangular, grey metal enclosure with four visible screws at each corner, likely intended for electrical components.

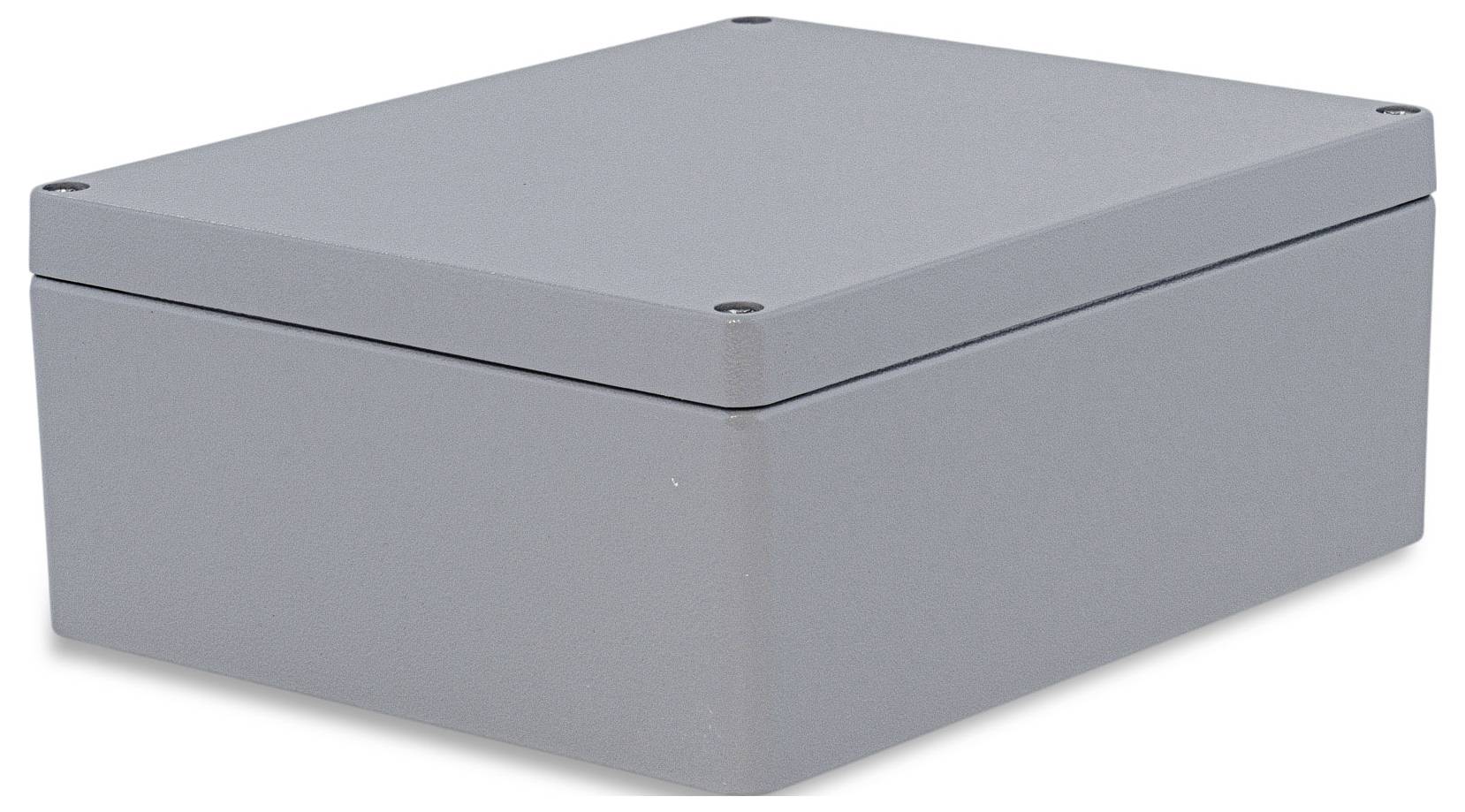

Grey rectangular enclosure with screws at the corners; used for housing electrical components or cable routing.

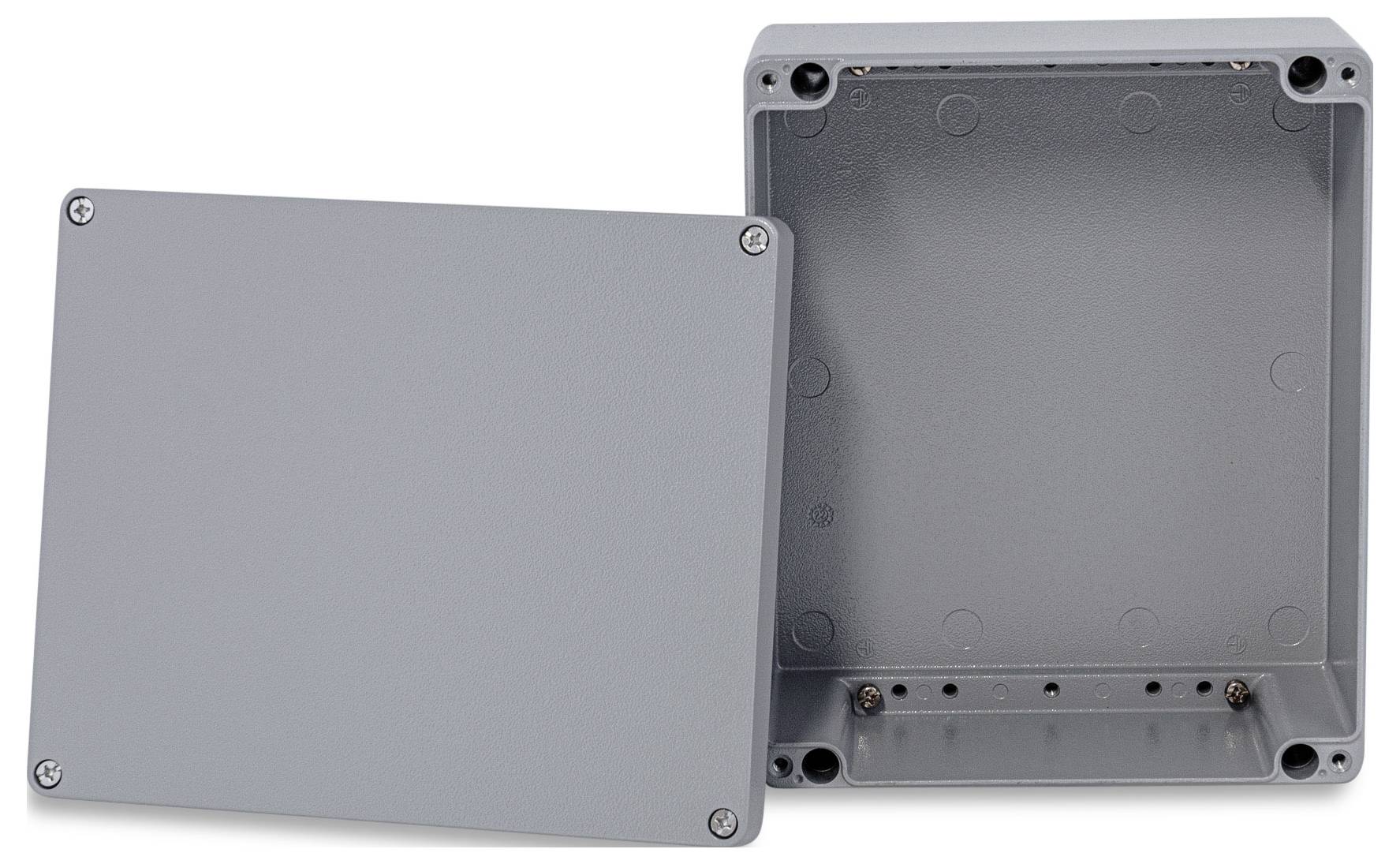

Grey rectangular metal enclosure, one half with an open front. Four screws at the corners, suitable for protecting electronic components.

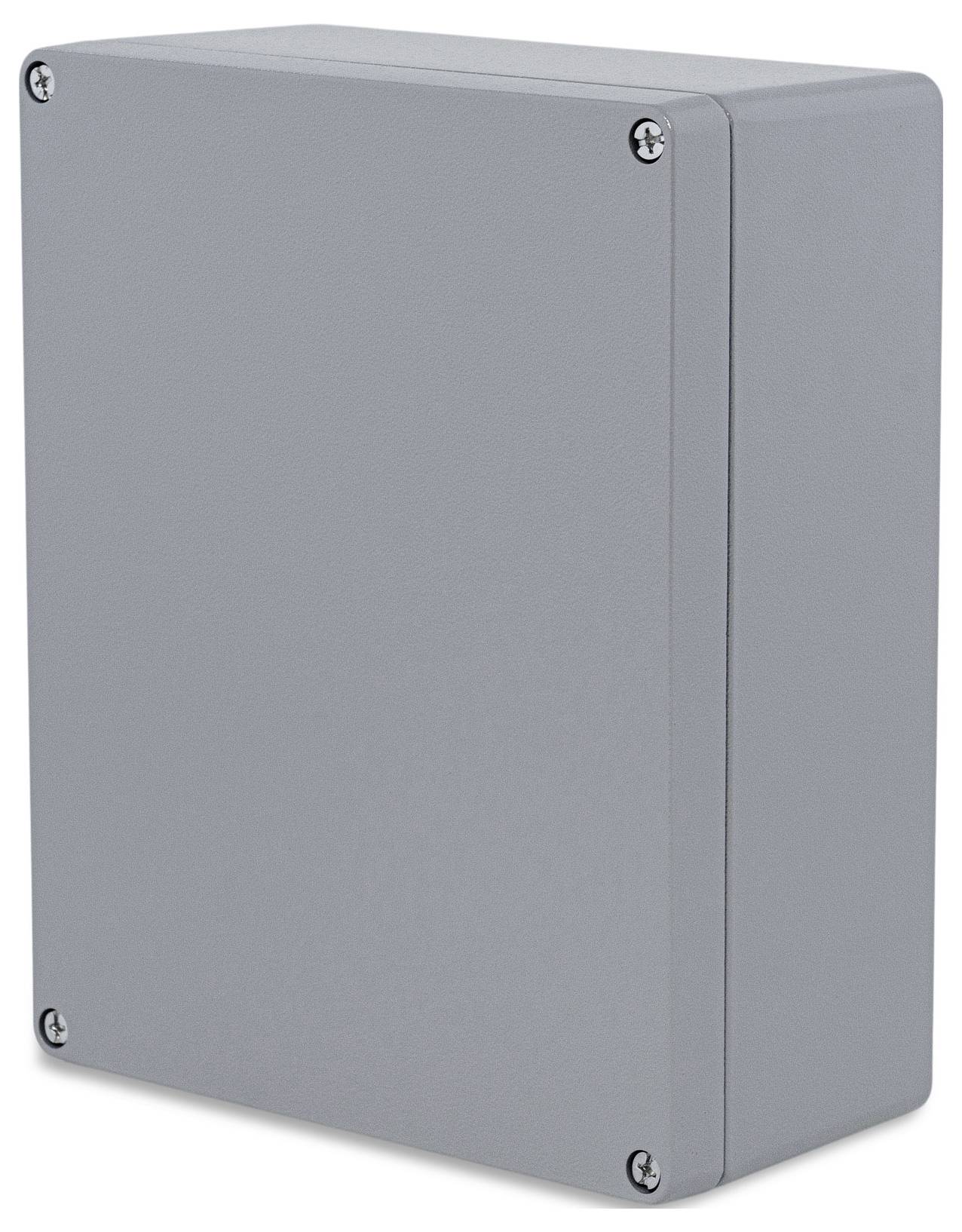

Silver, rectangular box with four visible screws at the corners. It is an electrical enclosure.

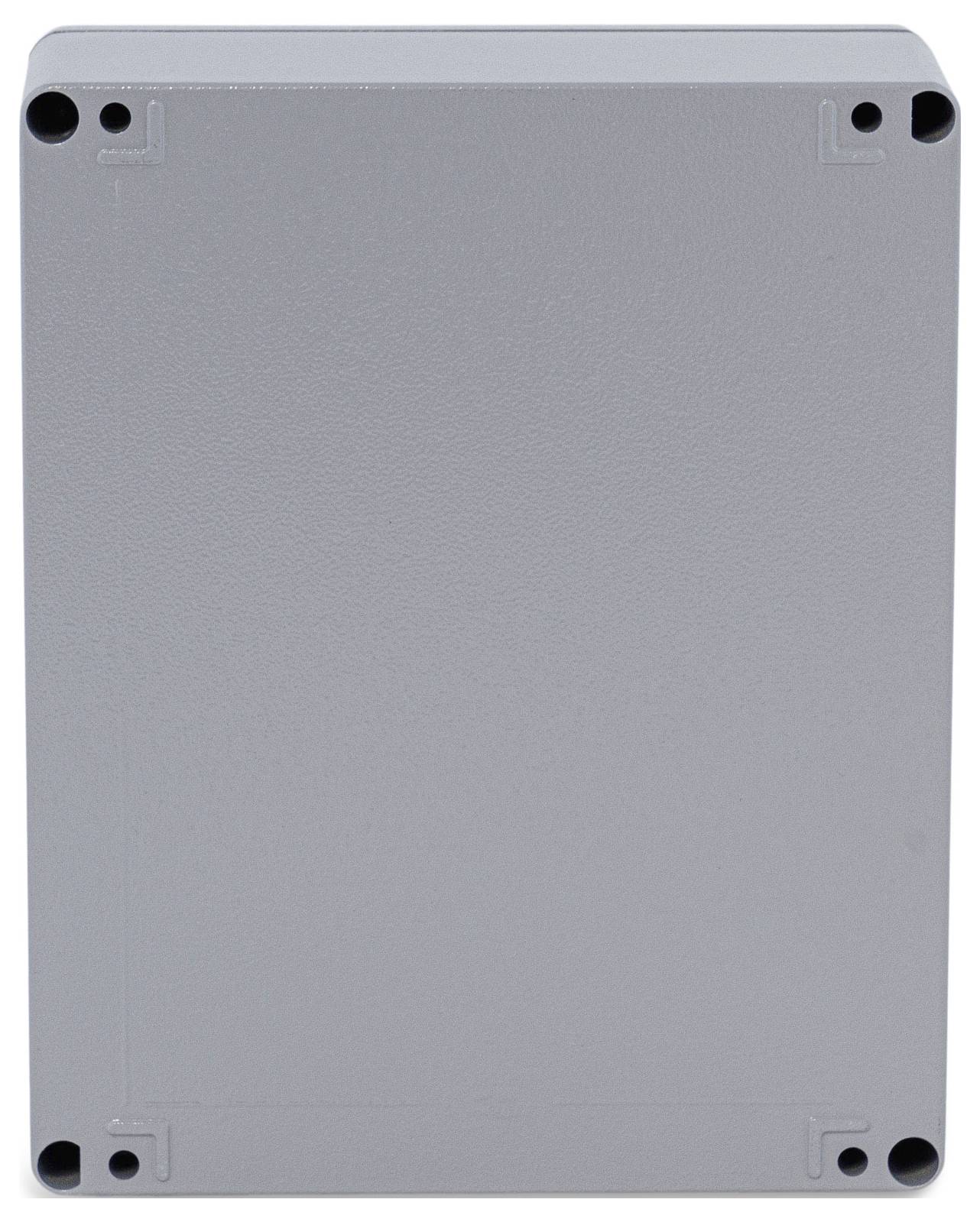

Rectangular grey metal enclosure with rounded corners and four mounting screws at the corners.

1/5

Packaging type

Piece

Product type

Casing

Material

Aluminium

IP rating

IP66

Width

280 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Colour RAL 7001
Coating: No.
Material: Cover / door: Aluminium
Material: Lower part: Aluminium
Sealing material: Polyurethane foam
Resistance: Alkaline, oils, salts, etc.
Cover - transparent: No.
Inner dimensions (mm): 266 x 216 x 102
UL approval: No.
Impact strength: IK09

Packaging type: Piece

Product type: Casing

Features: waterproof

Material: Aluminium

: IP66

Factory colour: Silver-grey

Length: 230 mm

Width: 280 mm

Height: 110 mm

Weight: 1.3 kg

Content: 1 pc(s)

Type: Alster 280230110

Dim: (L x W x H) 230 x 280 x 110 mm

RoHS-compliant: Yes

Manufacturer part #: BXPBAL280230110-A01

Halogen-free: Yes

Max. ambient temperature: 100 °C

Min. ambient temperature: -40 °C

Documents & Downloads

Datasheet

Datasheet 3404610 Boxexpert Alster 280230110 Casing 230 x 280 x 110 Aluminium Silver-grey 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 3404610 Boxexpert Alster 280230110 Casing 230 x 280 x 110 Aluminium Silver-grey 1 pc(s) Piece

Description

The Alster series from BOXEXPERT offers extremely durable aluminum casing for industrial applications. They are Ideal for installing terminals, relays, PCBs and other electrical components. The built-in threaded holes make it easy to mount components, mounting rails and mounting plates. The powder coating effectively protects the housing against corrosion, while the PU seal with protection class IP 66 ES is optimized for outdoor use. It is also resistant to alcohol, petrol and mineral oils. The cover is secured using captive stainless steel screws.

This text is machine translated.
