Name: Boxexpert Alster 330230111 Casing 230 x 330 x 110 Aluminium Silver-grey 1 pc(s) Piece
Brand: Boxexpert
SKU: 3404611

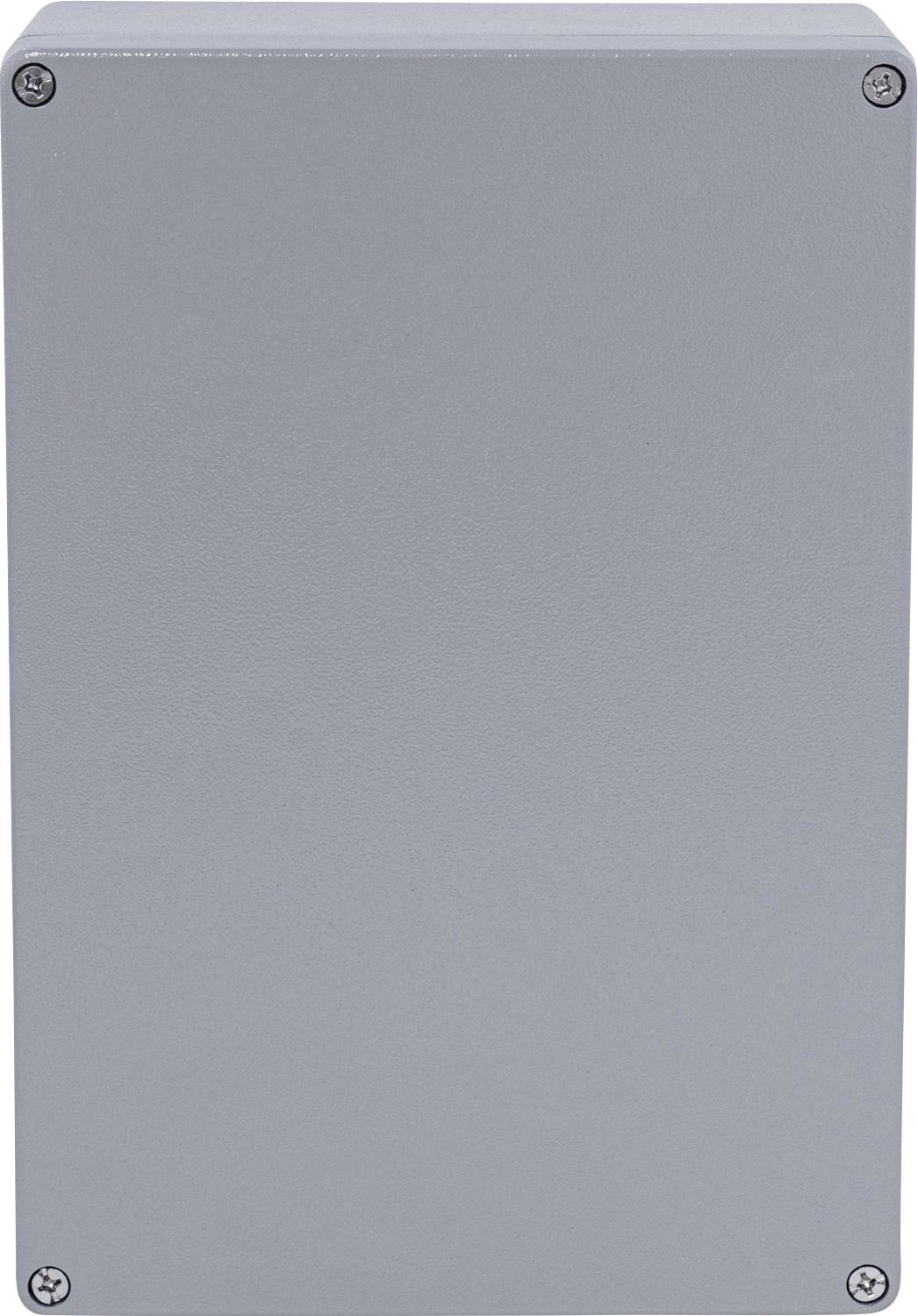

Grey rectangular enclosure with a slightly textured surface and screws in the corners.

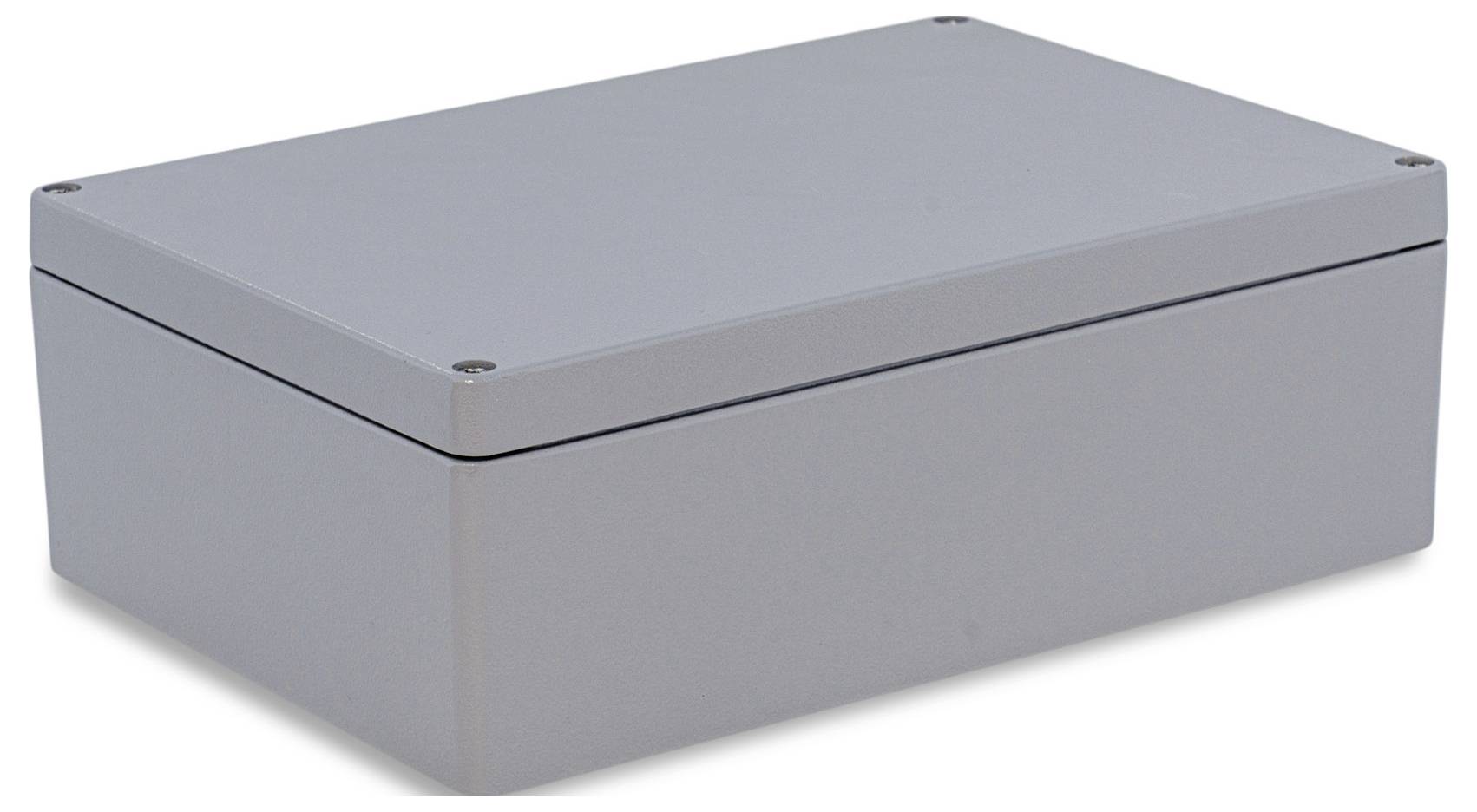

A rectangular, grey metal enclosure that is closed and serves to protect electronic components.

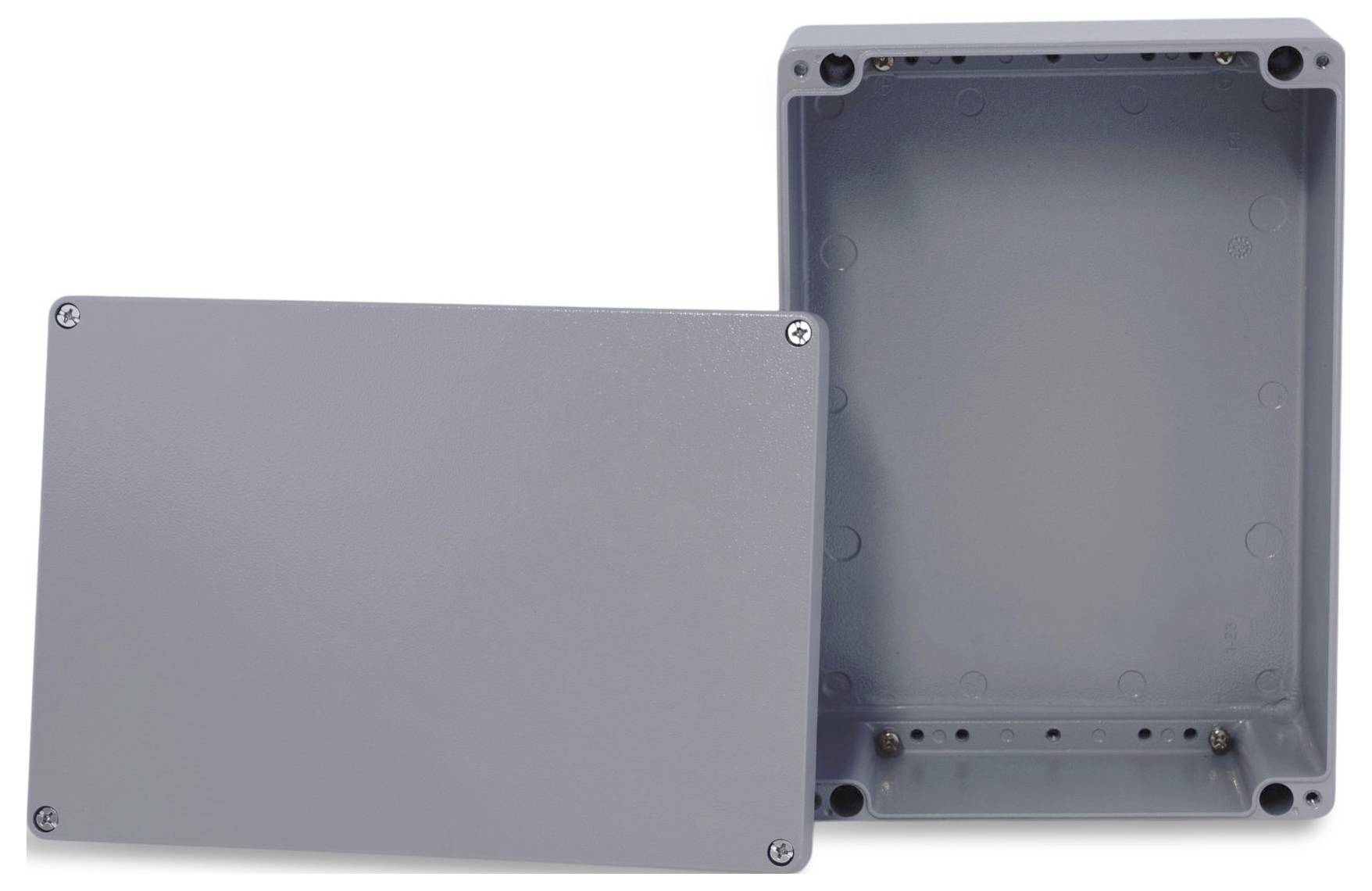

Two grey, rectangular plastic enclosures, one open and one closed, with screw holes at the corners.

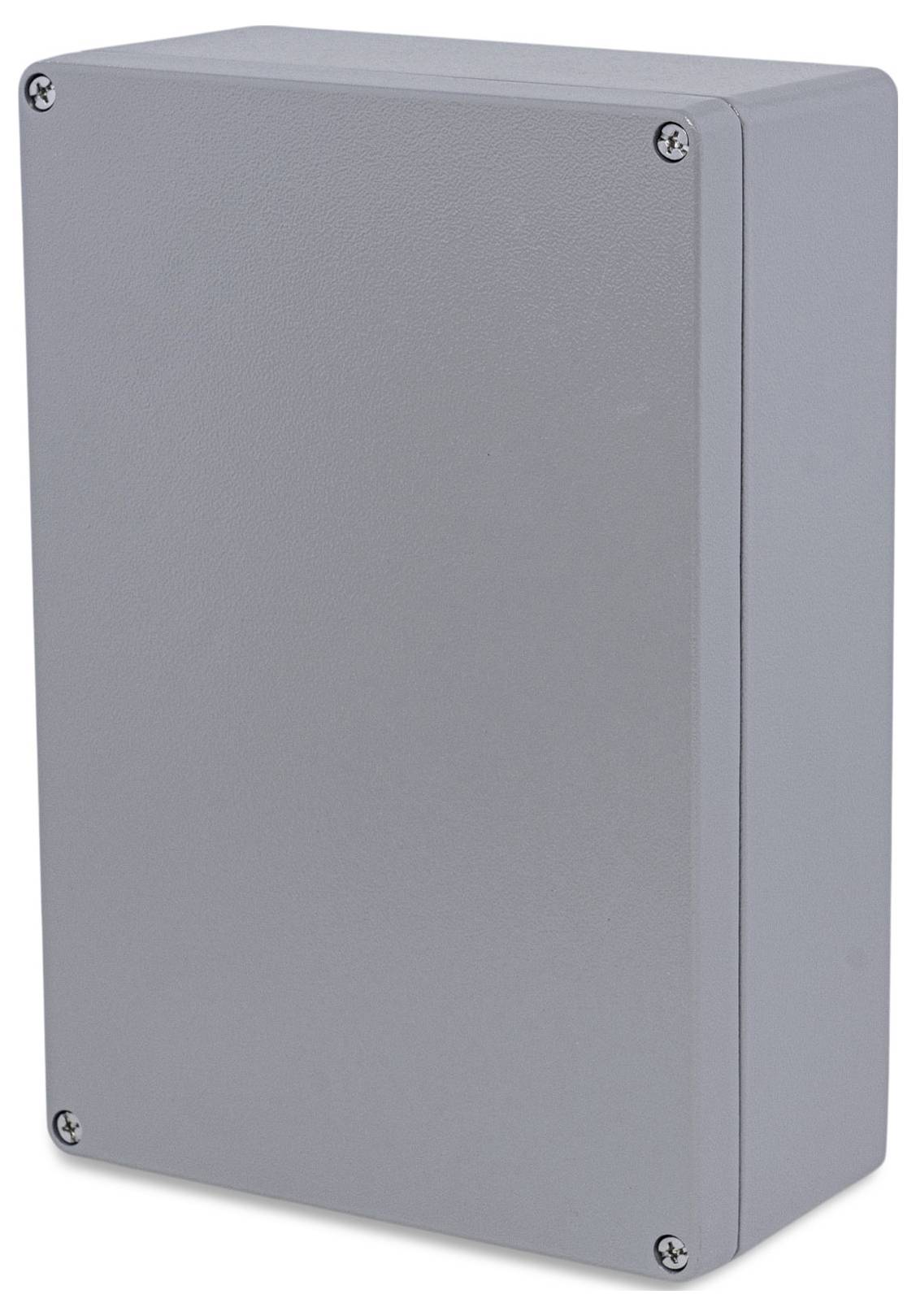

Grey rectangular enclosure with rounded corners and four screws in the corners, suitable for protecting electronic devices.

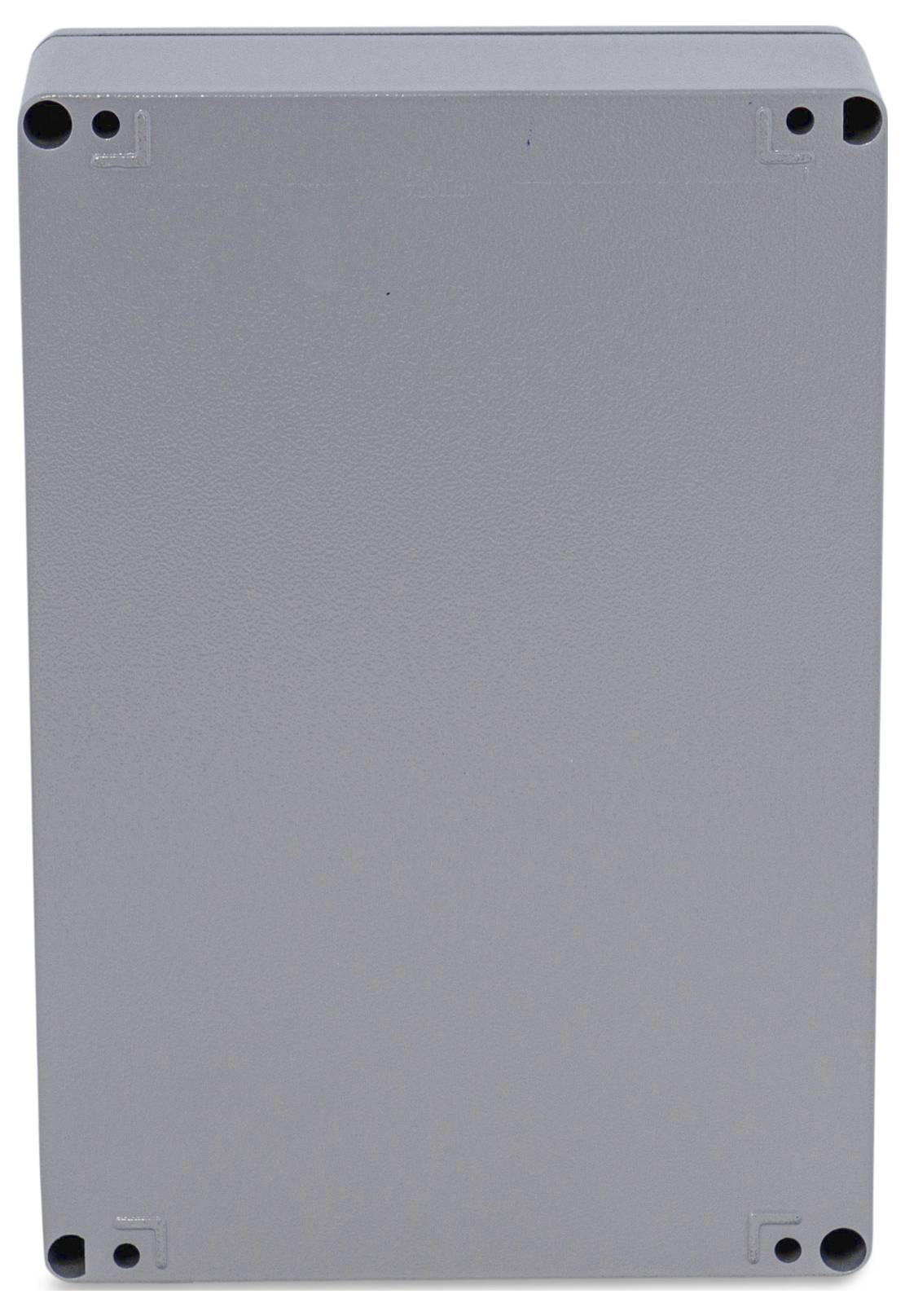

Grey rectangular box with rounded corners. Screw holes at each corner.

1/5

Packaging type

Piece

Product type

Casing

Material

Aluminium

IP rating

IP66

Width

330 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Colour RAL 7001
Coating: No.
Material: Cover / door: Aluminium
Material: Lower part: Aluminium
Sealing material: Polyurethane foam
Resistance: Alkaline, oils, salts, etc.
Cover - transparent: No.
Inner dimensions (mm): 315 x 215 x 102
UL approval: No.
Impact strength: IK09

Packaging type: Piece

Product type: Casing

Features: anti-corrosive

Material: Aluminium

: IP66

Factory colour: Silver-grey

Length: 230 mm

Width: 330 mm

Height: 110 mm

Dimensions: 315 x 215 x 102 mm

Weight: 1.3 kg

Content: 1 pc(s)

Type: Alster 330230111

Dim: (L x W x H) 230 x 330 x 110 mm

RoHS-compliant: Yes

Manufacturer part #: BXPBAL330230111-A01

Halogen-free: Yes

Max. ambient temperature: 100 °C

Min. ambient temperature: -40 °C

Documents & Downloads

Datasheet

Datasheet 3404611 Boxexpert Alster 330230111 Casing 230 x 330 x 110 Aluminium Silver-grey 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 3404611 Boxexpert Alster 330230111 Casing 230 x 330 x 110 Aluminium Silver-grey 1 pc(s) Piece

Description

The Alster series of BOXEXPERT offers long-lasting aluminum casing, which were developed for industrial applications. They are ideal for accommodating electrical and electromechanical components such as relays, clamps and PCBs. Threaded holes in the interior enable an easy installation of mounting plates and mounting rails. The powder coating protects the housing against corrosion, while the PU seal with protection class IP 66 makes it weather-proof. It also resists alcohol, gasoline and mineral oils. The cover is fixed with captive screws of stainless steel.

This text is machine translated.
