Name: Boxexpert Alster 330230180 Casing 230 x 330 x 180 Aluminium Silver-grey 1 pc(s) Piece
Brand: Boxexpert
SKU: 3404613

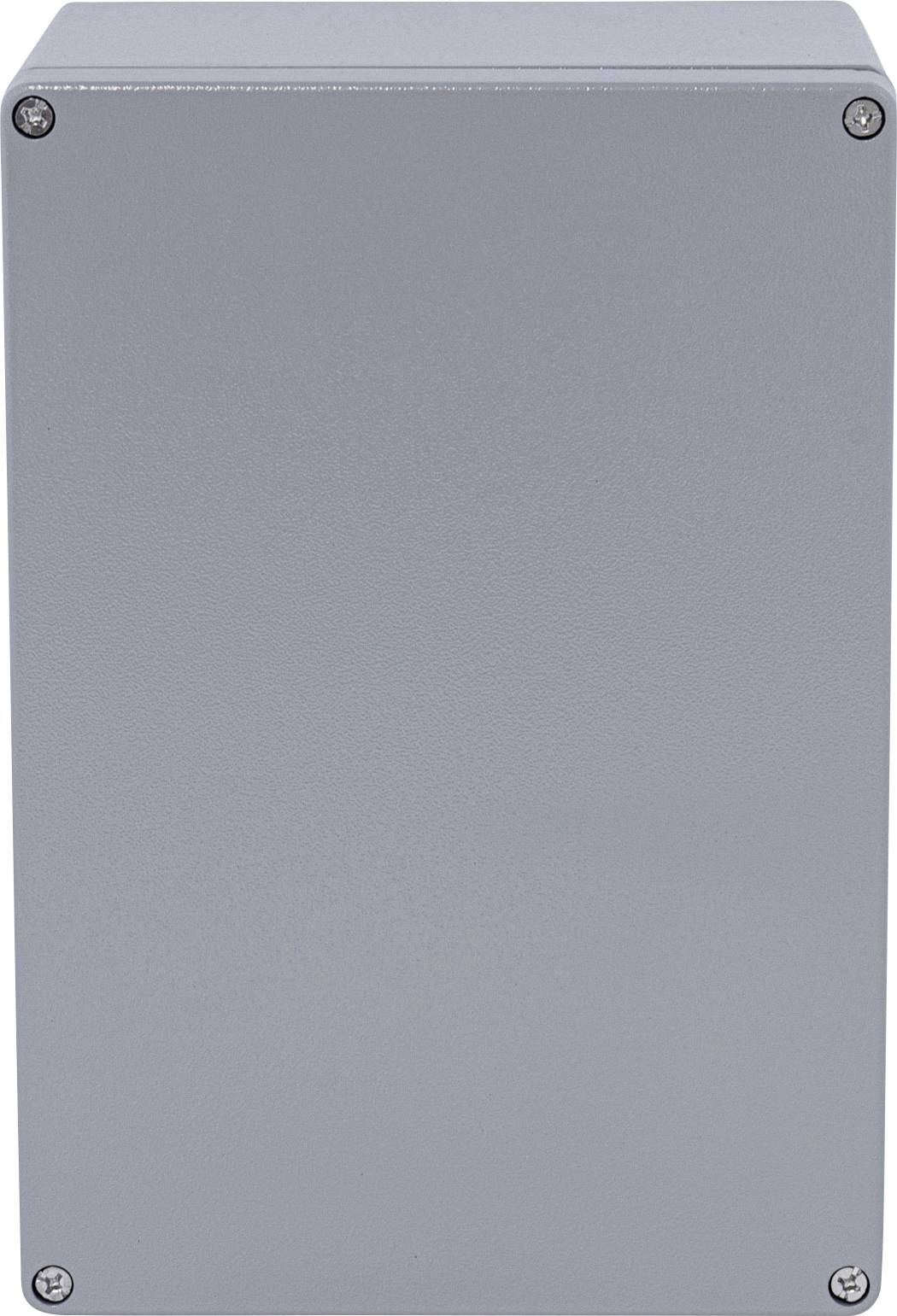

A rectangular, grey metal box with screws at the corners.

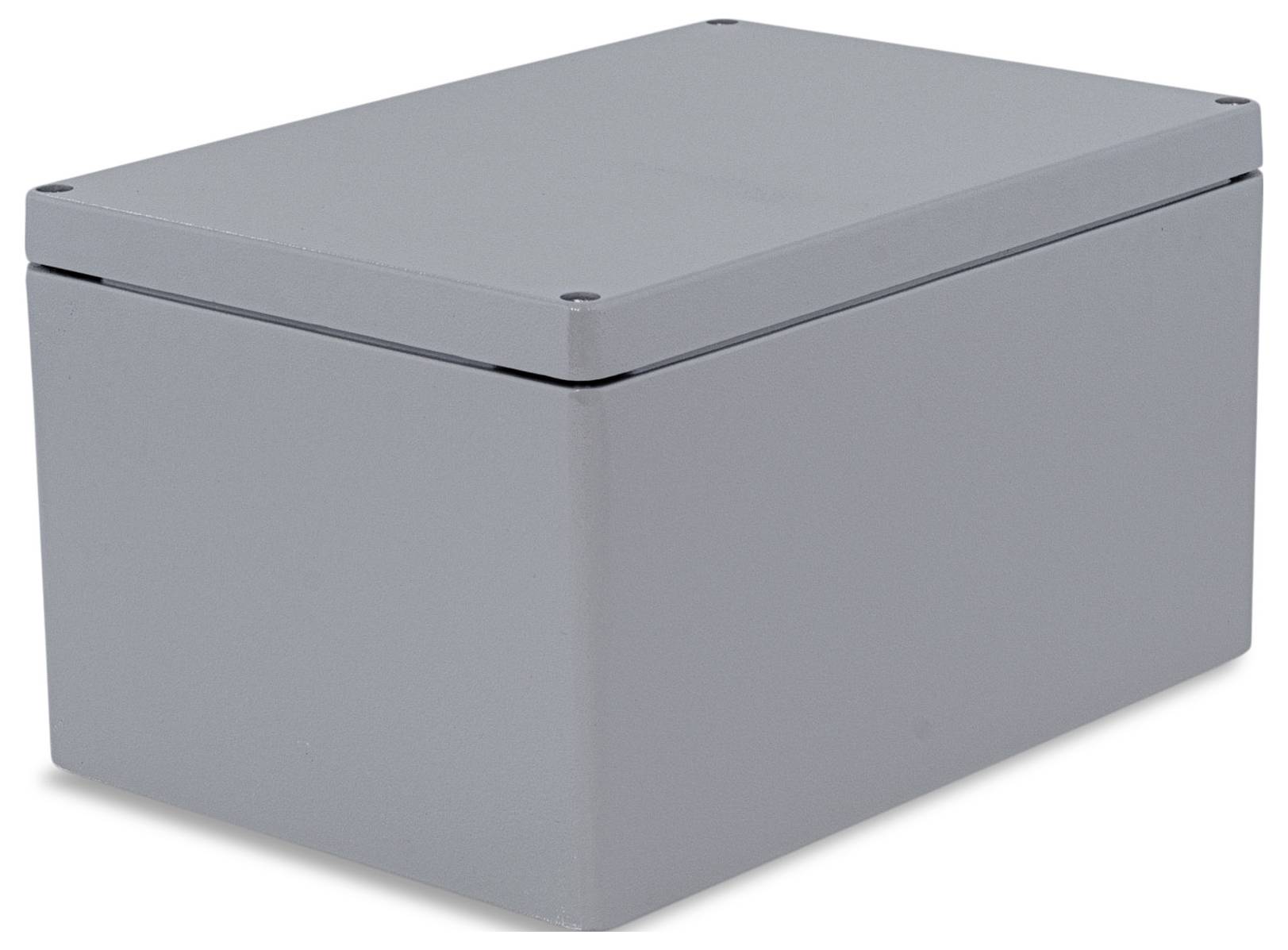

Grey, rectangular metal enclosure with a smooth surface, suitable for use as a protective housing in technical applications.

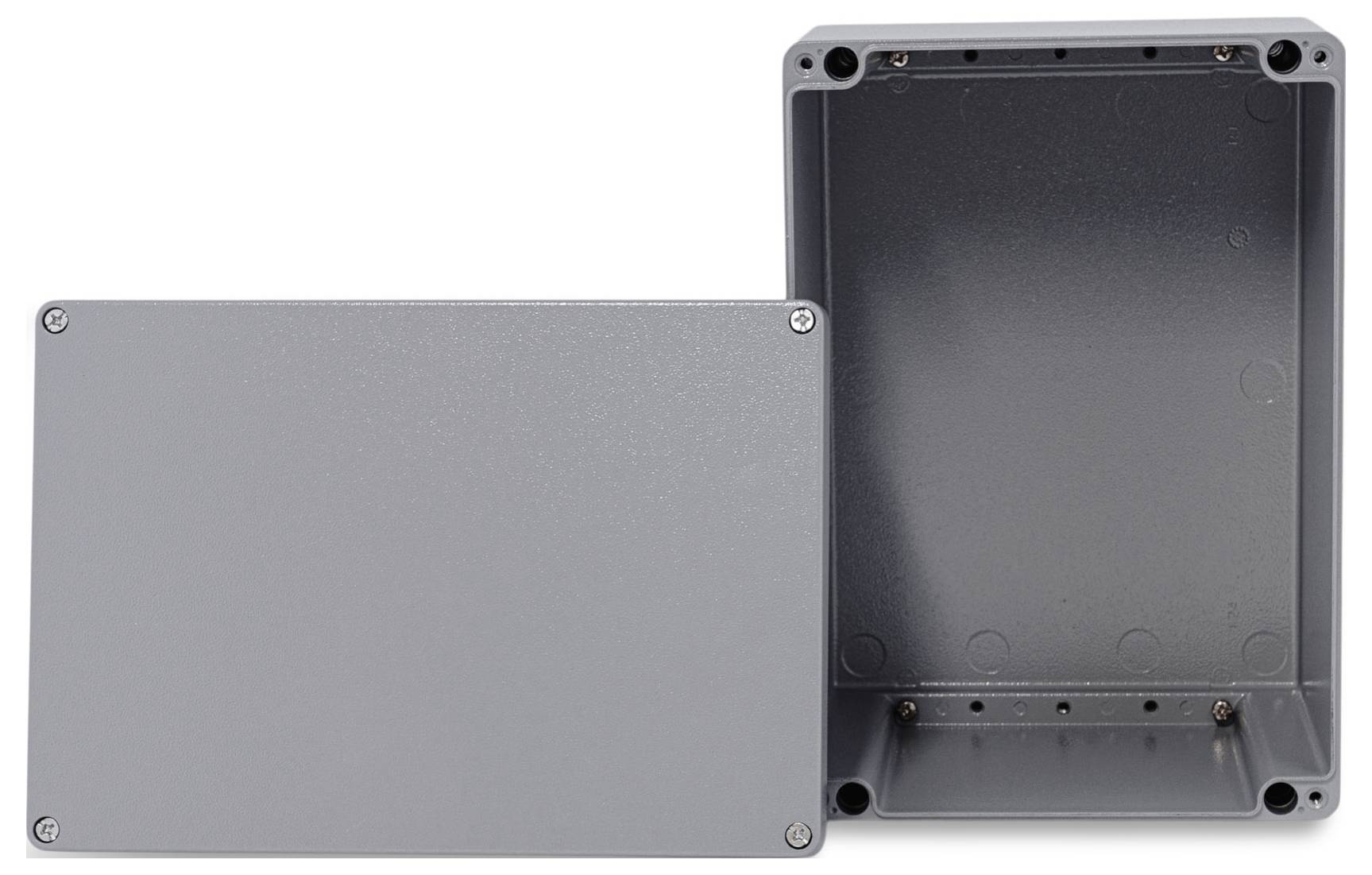

Grey housing, opened. Lid on the left, interior with screw holes visible on the right. Suitable for electronics projects.

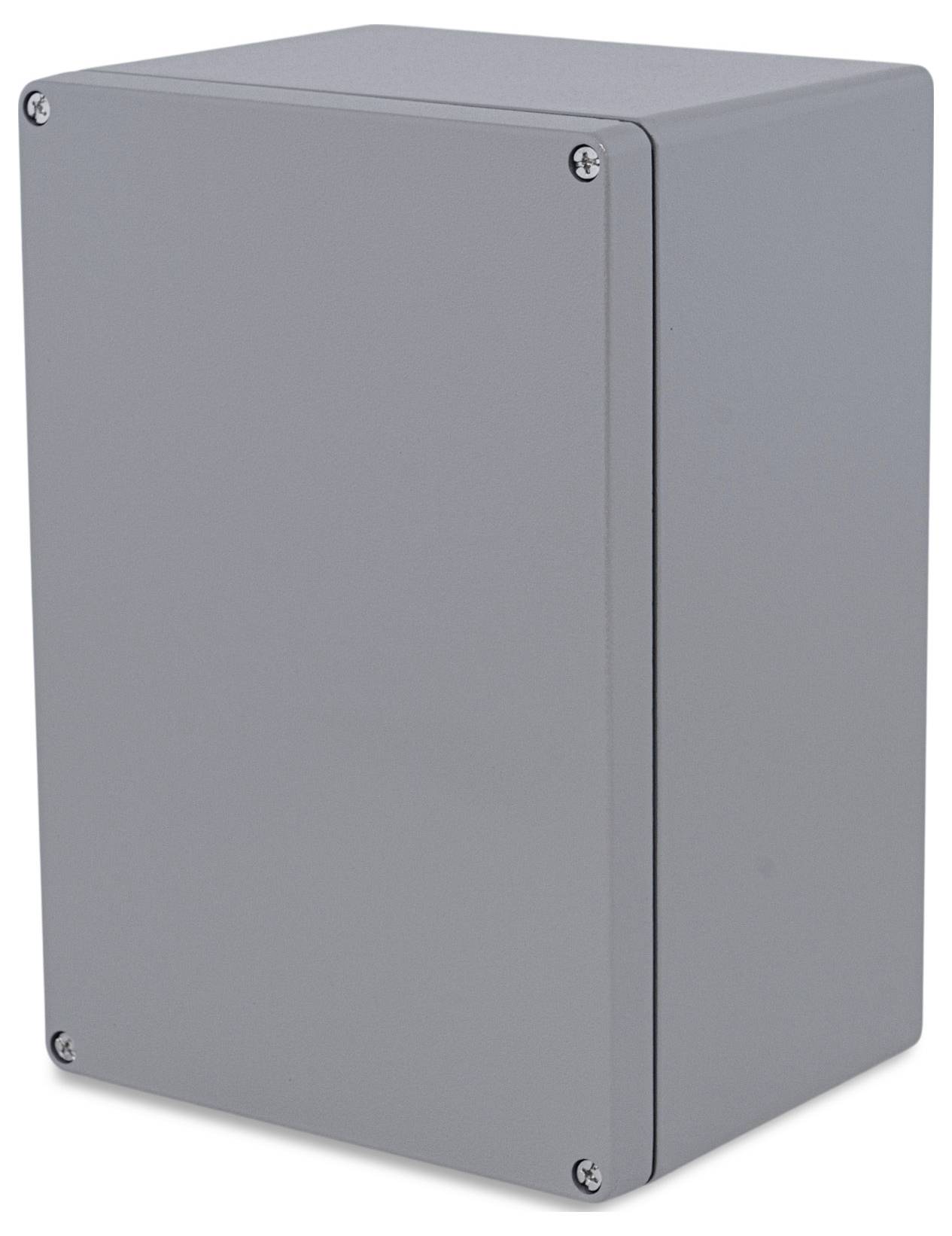

Grey, rectangular electrical box with screws at the corners.

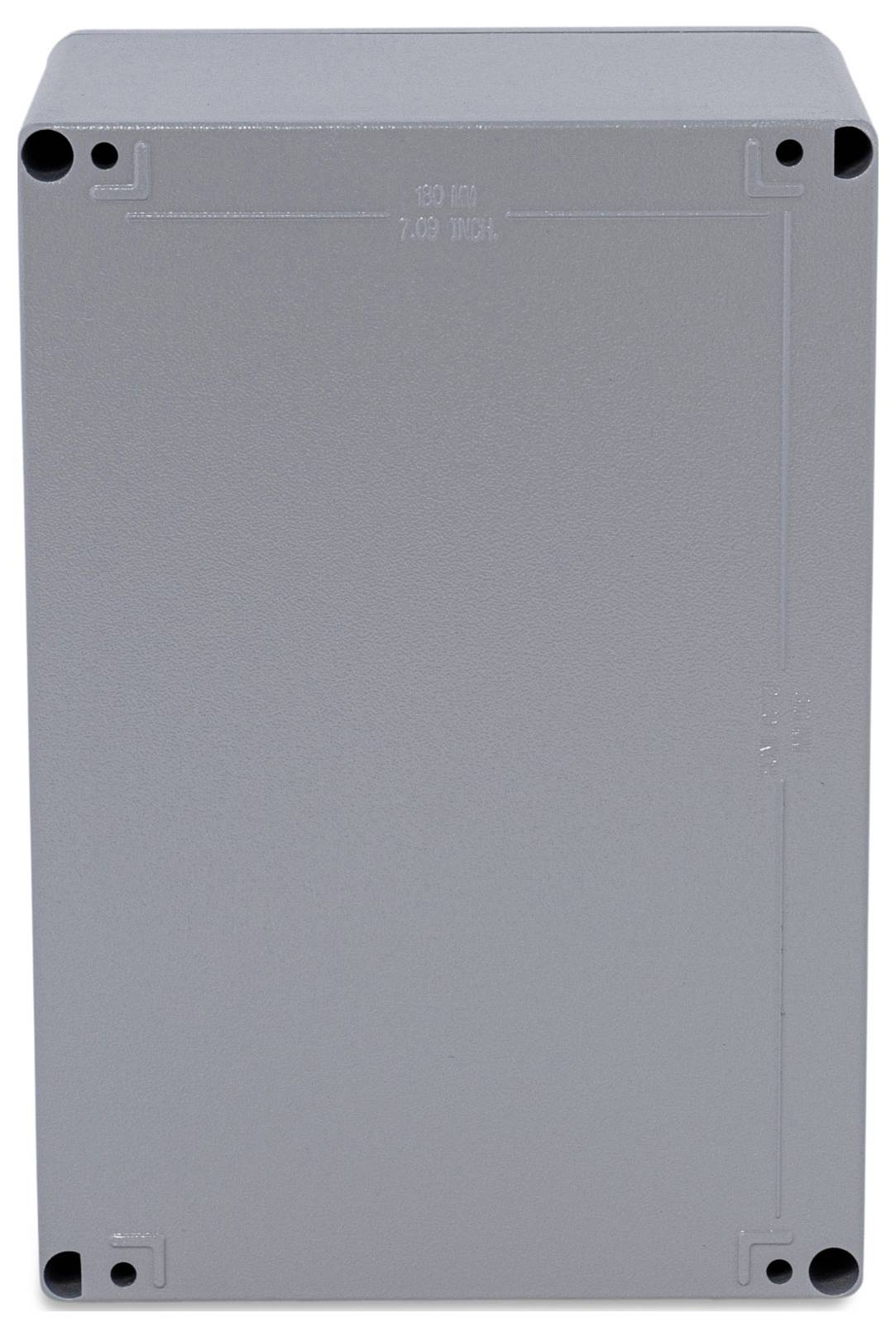

Grey rectangular metallic box, possibly an electrical enclosure, with rounded corners and screw holes at the corners.

1/5

Packaging type

Piece

Product type

Casing

Material

Aluminium

IP rating

IP66

Width

330 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Colour RAL 7001
Coating: No.
Material: Cover / door: Aluminium
Material: Lower part: Aluminium
Sealing material: Polyurethane foam
Resistance: Alkaline, oils, salts, etc.
Cover - transparent: No.
Inner dimensions (mm): 315 x 215 x 170
UL approval: No.
Impact strength: IK09

Packaging type: Piece

Product type: Casing

Features: waterproof

Material: Aluminium

: IP66

Factory colour: Silver-grey

Length: 230 mm

Width: 330 mm

Height: 180 mm

Weight: 1.58 kg

Content: 1 pc(s)

Type: Alster 330230180

Dim: (L x W x H) 230 x 330 x 180 mm

RoHS-compliant: Yes

Manufacturer part #: BXPBAL330230180-A01

Halogen-free: Yes

Max. ambient temperature: 100 °C

Min. ambient temperature: -40 °C

Documents & Downloads

Datasheet

Datasheet 3404613 Boxexpert Alster 330230180 Casing 230 x 330 x 180 Aluminium Silver-grey 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 3404613 Boxexpert Alster 330230180 Casing 230 x 330 x 180 Aluminium Silver-grey 1 pc(s) Piece

Description

The Alster series from BOXEXPERT is characterized by its robust and compact design. The aluminum housing was developed especially for industrial applications and offers space for small electrical components like terminals, boards and relays. Built-in threaded holes enable easy assembly of components, mounting rails and mounting plates. The resistant powder coating protects against corrosion, while the PU seal with protection class IP 66 makes the housing suitable for outdoor use. Alcohol, petrol and mineral oils cannot harm it. The cover is fixed with rust-free, captive screws.

This text is machine translated.
