Name: Boxexpert Alster 586434 Casing 58 x 64 x 34 Aluminium Silver-grey 1 pc(s) Piece
Brand: Boxexpert
SKU: 3404810

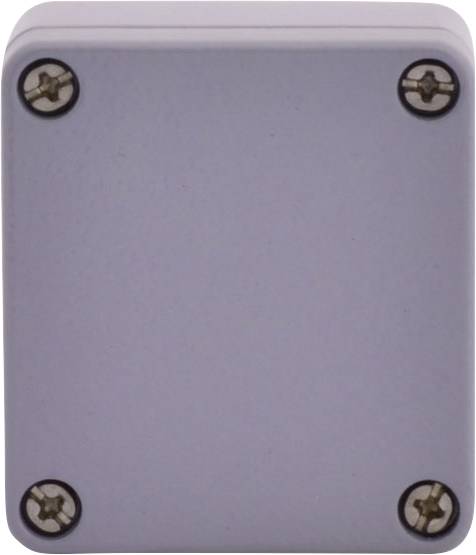

Grey rectangular metal enclosure with four screws at the corners.

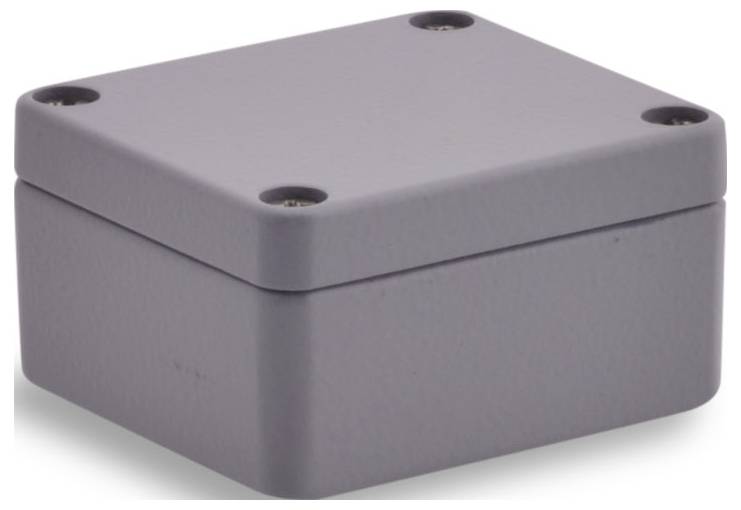

Grey, square casing with rounded corners, four screws in the corners.

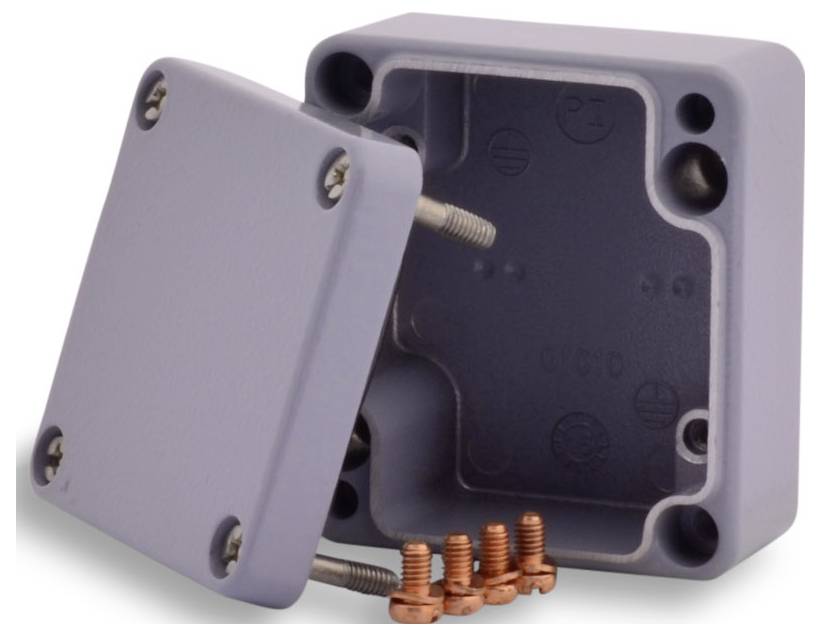

Grey, rectangular plastic casing with lid removed, revealing interior and mounting screws.

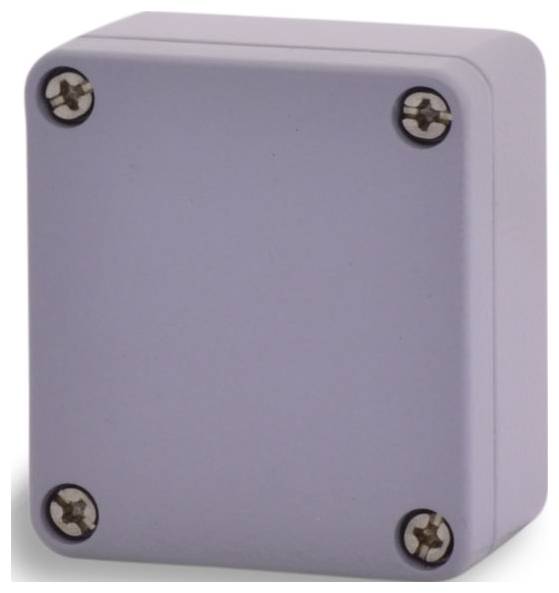

A rectangular grey plastic box with rounded edges, secured by four screws at each corner.

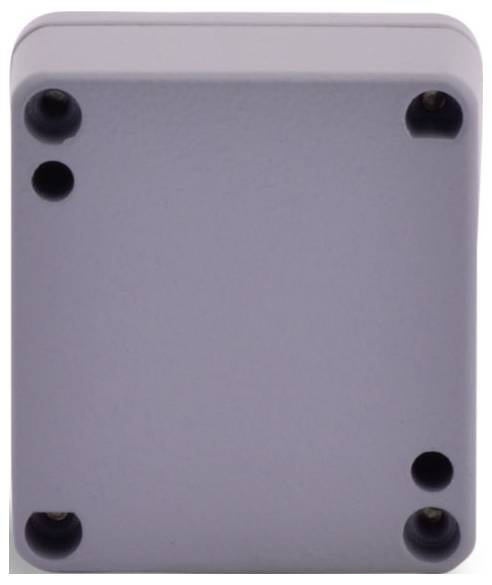

Grey rectangular enclosure with four screw holes, one at each corner. Suitable for housing electronic components.

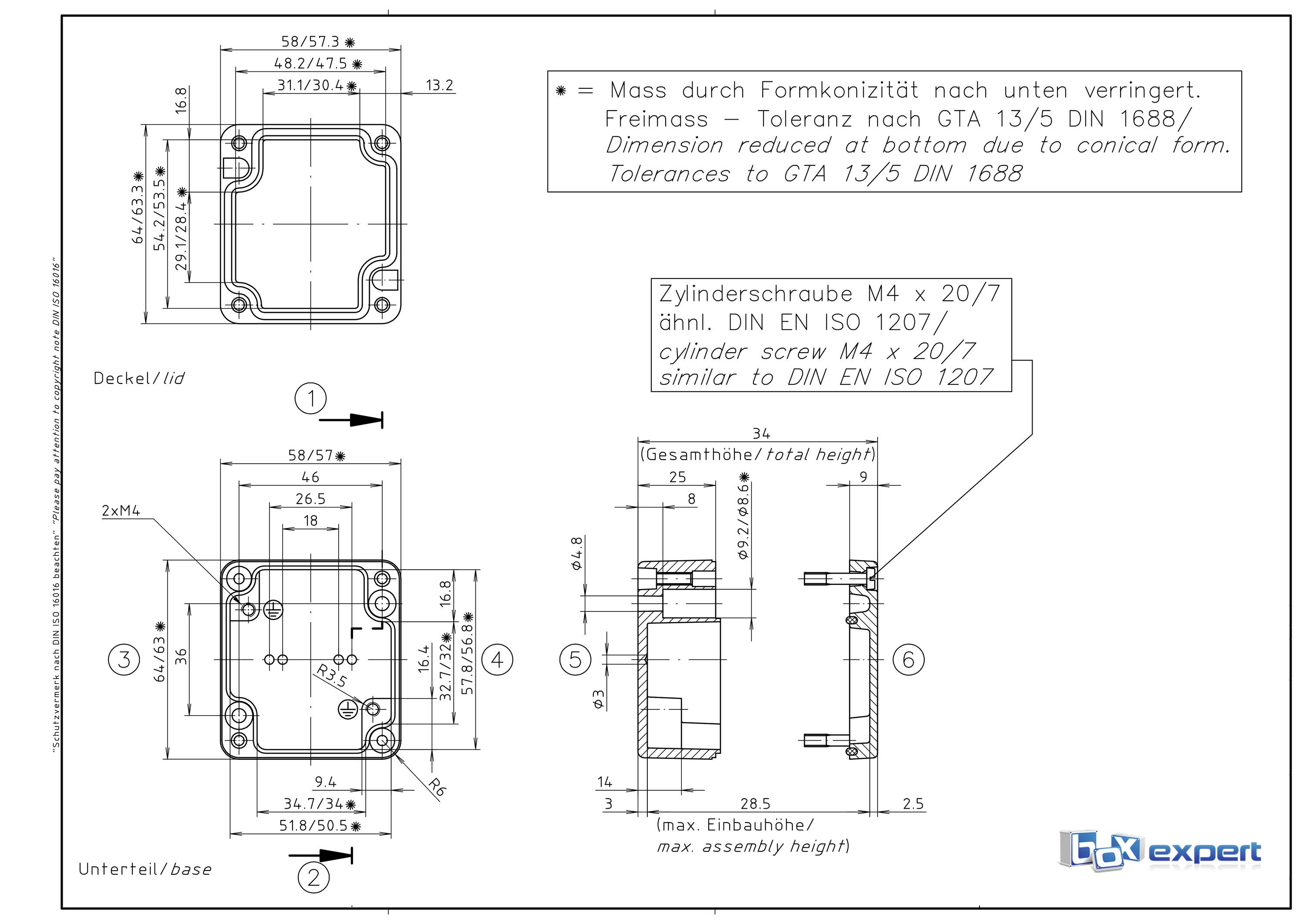

Boxexpert Alster 586434 Casing 58 x 64 x 34 Aluminium Silver-grey 1 pc(s) Piece-5

1/6

Packaging type

Piece

Product type

Casing

Material

Aluminium

IP rating

IP66

Width

64 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Colour RAL 7001
Coating: No.
Material: Cover / door: Aluminium
Material: Lower part: Aluminium
Sealing material: Polyurethane foam
Resistance: Alkaline, oils, salts, etc.
Cover - transparent: No.
Inner dimensions (mm): 57.8 x 51.8 x 28.5
UL approval: No.
Impact strength: IK09

Packaging type: Piece

Product type: Casing

Features: anti-corrosive

Material: Aluminium

: IP66

Factory colour: Silver-grey

Length: 58 mm

Width: 64 mm

Height: 34 mm

Dimensions: 57.8 x 51.8 x 28.5 mm

Weight: 0.14 kg

Content: 1 pc(s)

Type: Alster 586434

Dim: (L x W x H) 58 x 64 x 34 mm

RoHS-compliant: Yes

Manufacturer part #: BXPBAL586434-A01

Halogen-free: Yes

Max. ambient temperature: 100 °C

Min. ambient temperature: -40 °C

Documents & Downloads

Datasheet

Datasheet 3404810 Boxexpert Alster 586434 Casing 58 x 64 x 34 Aluminium Silver-grey 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 3404810 Boxexpert Alster 586434 Casing 58 x 64 x 34 Aluminium Silver-grey 1 pc(s) Piece

Description

With the Alster series BOXEXPERT presents an extremely robust aluminum casing for industrial applications. It is ideal for accommodating small electrical and electromechanical components such as relays, PCBs, buttons and terminals. Internal threaded holes make it easy to mount components and install mounting rails and mounting plates. A resistant powder coating protects against corrosion, while the PU-sealing ensures protection class IP 66. The housing is resistant to alcohol, gasoline and mineral oils, and the lid is fixed with captive stainless steel screws.

This text is machine translated.
