Name: Boxexpert Alster 600310180 Casing 310 x 600 x 180 x 180 Aluminium Silver-grey 1 pc(s) Piece
Brand: Boxexpert
SKU: 3404623

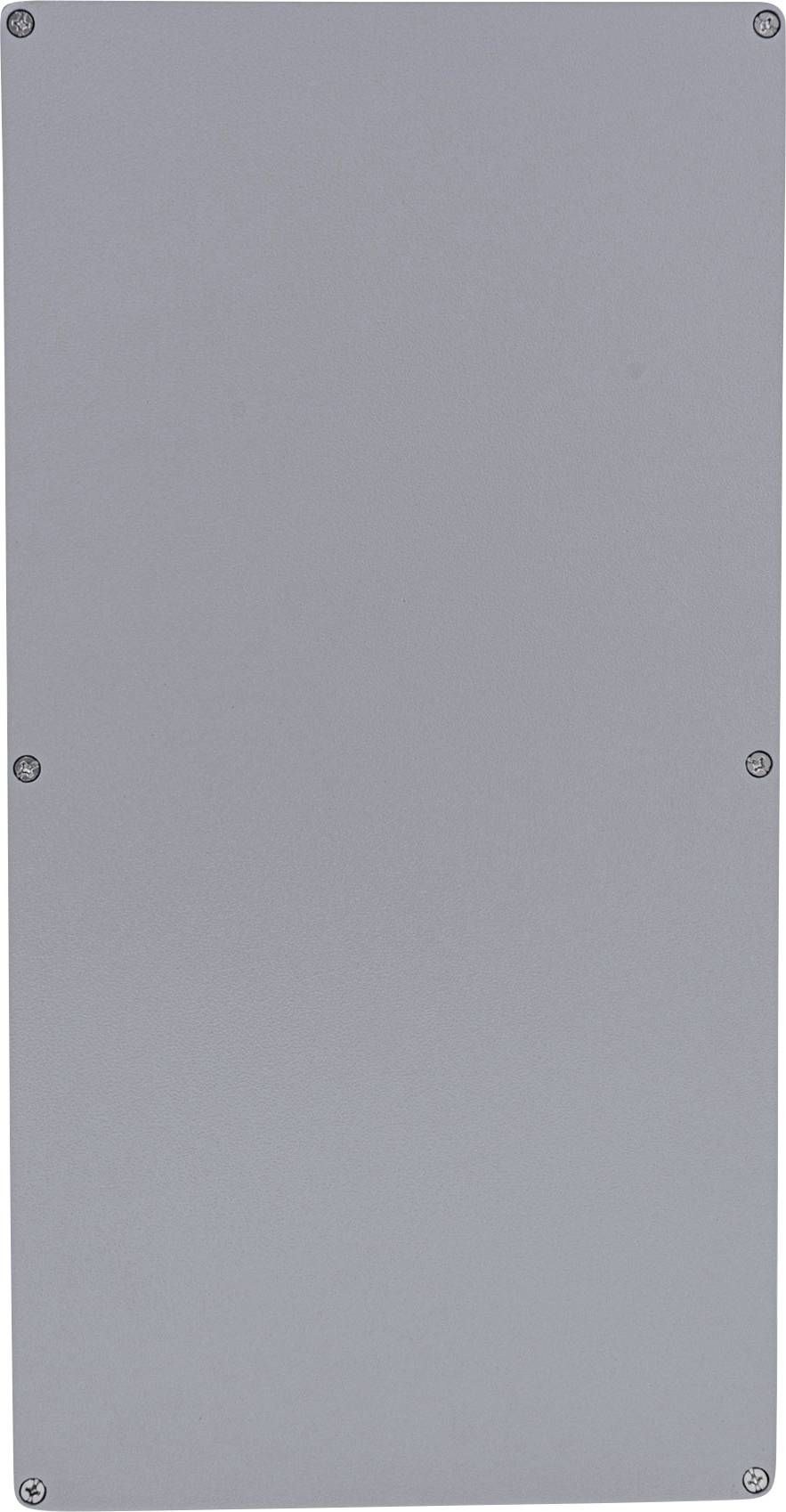

Metal plate secured with six screws. Surface smooth and grey.

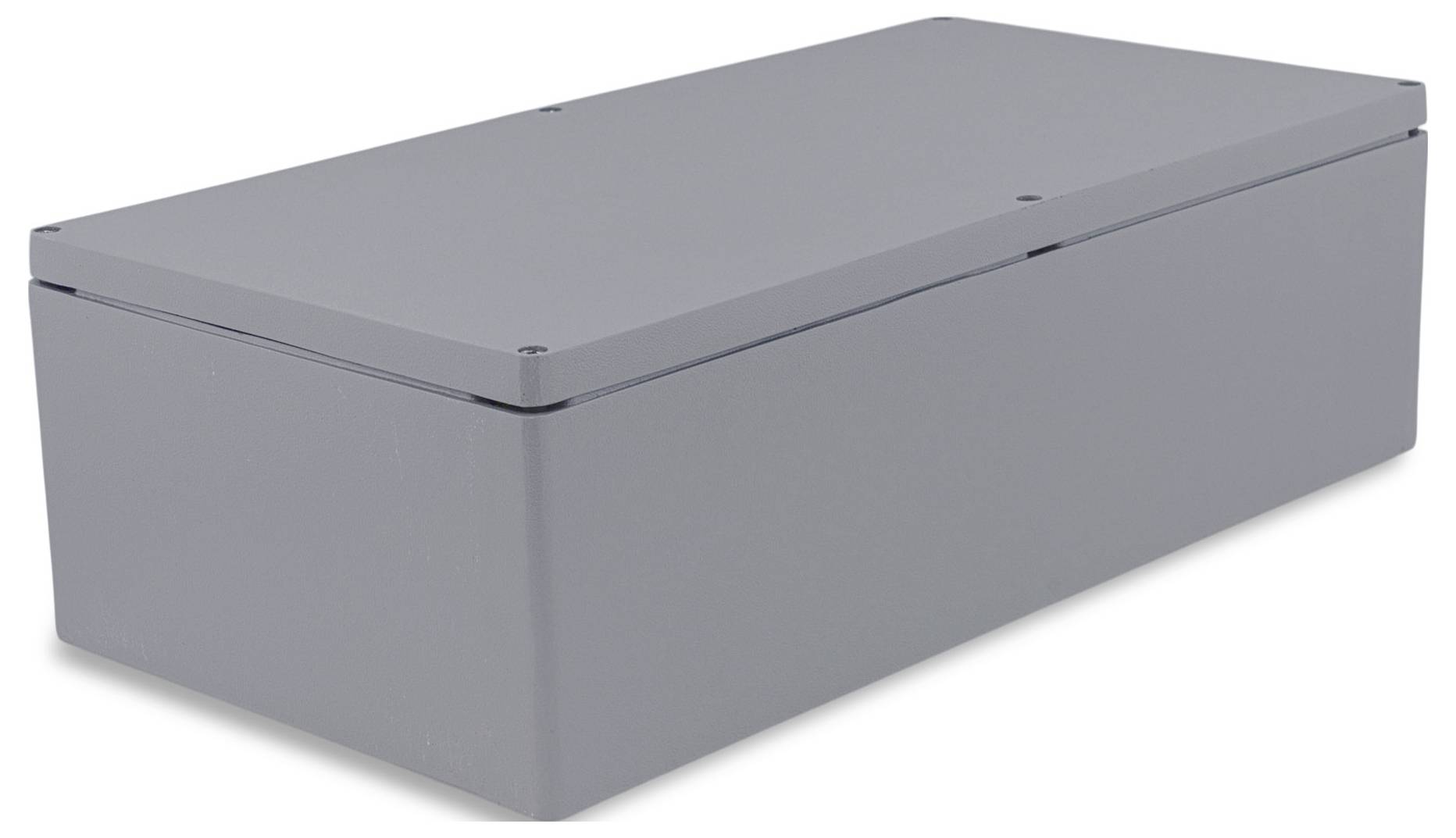

Grey, rectangular enclosure with a removable lid, suitable for secure storage and cable management of electrical components.

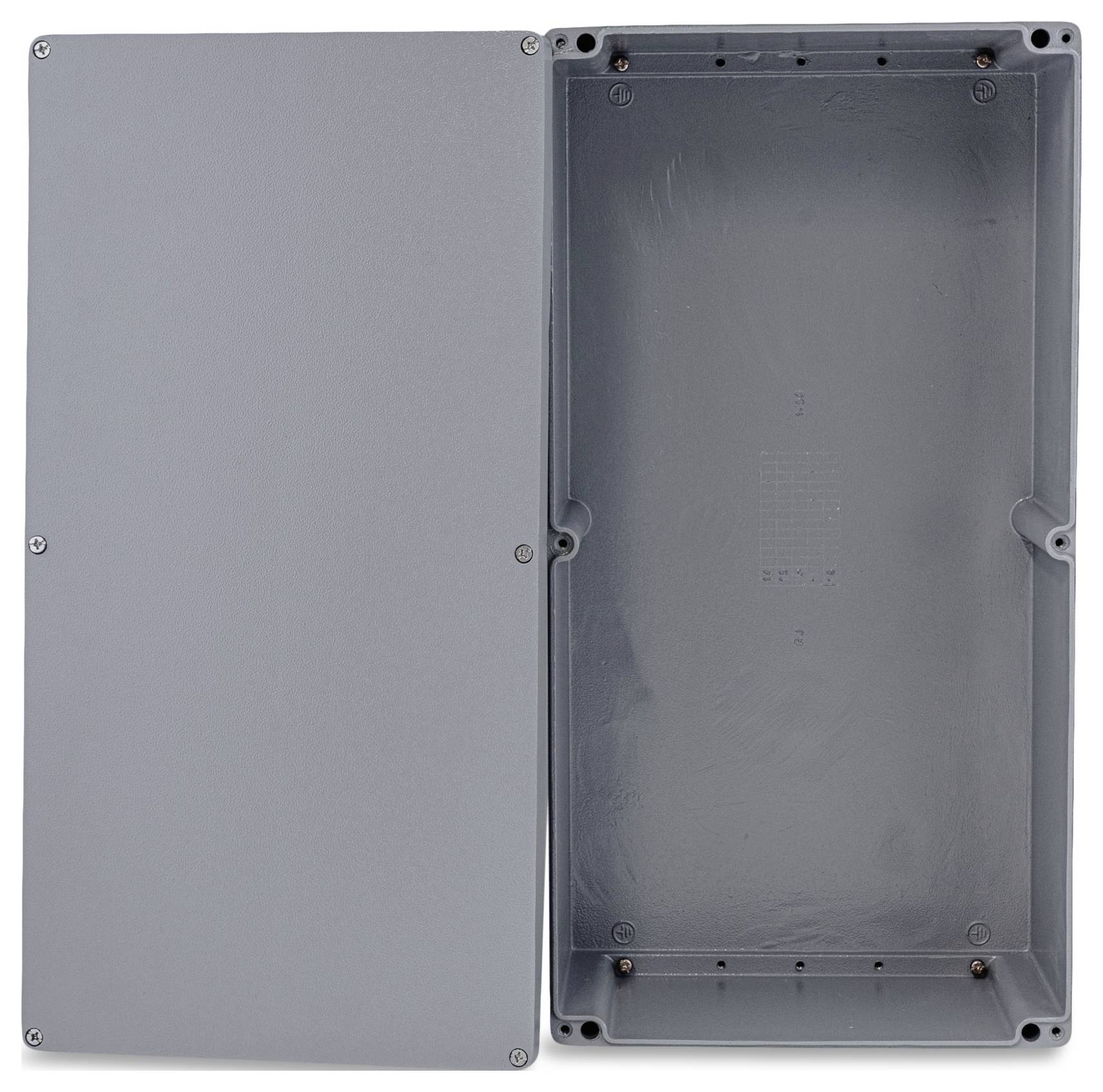

Grey, rectangular plastic box with lid removed, six screw holes visible.

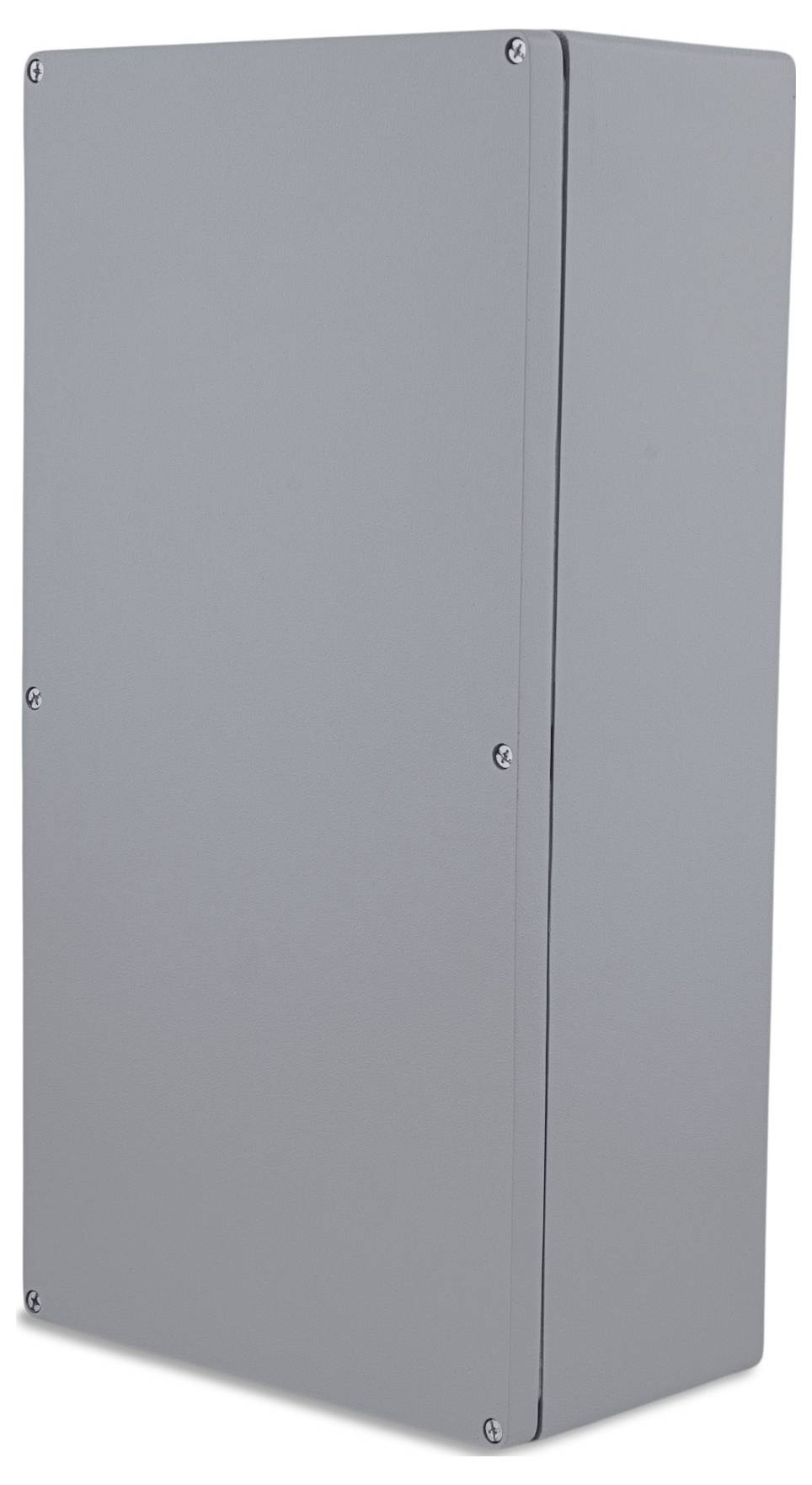

Grey rectangular metal cabinet with screws along the edges. The cabinet has a minimalist design without visible handles or labels.

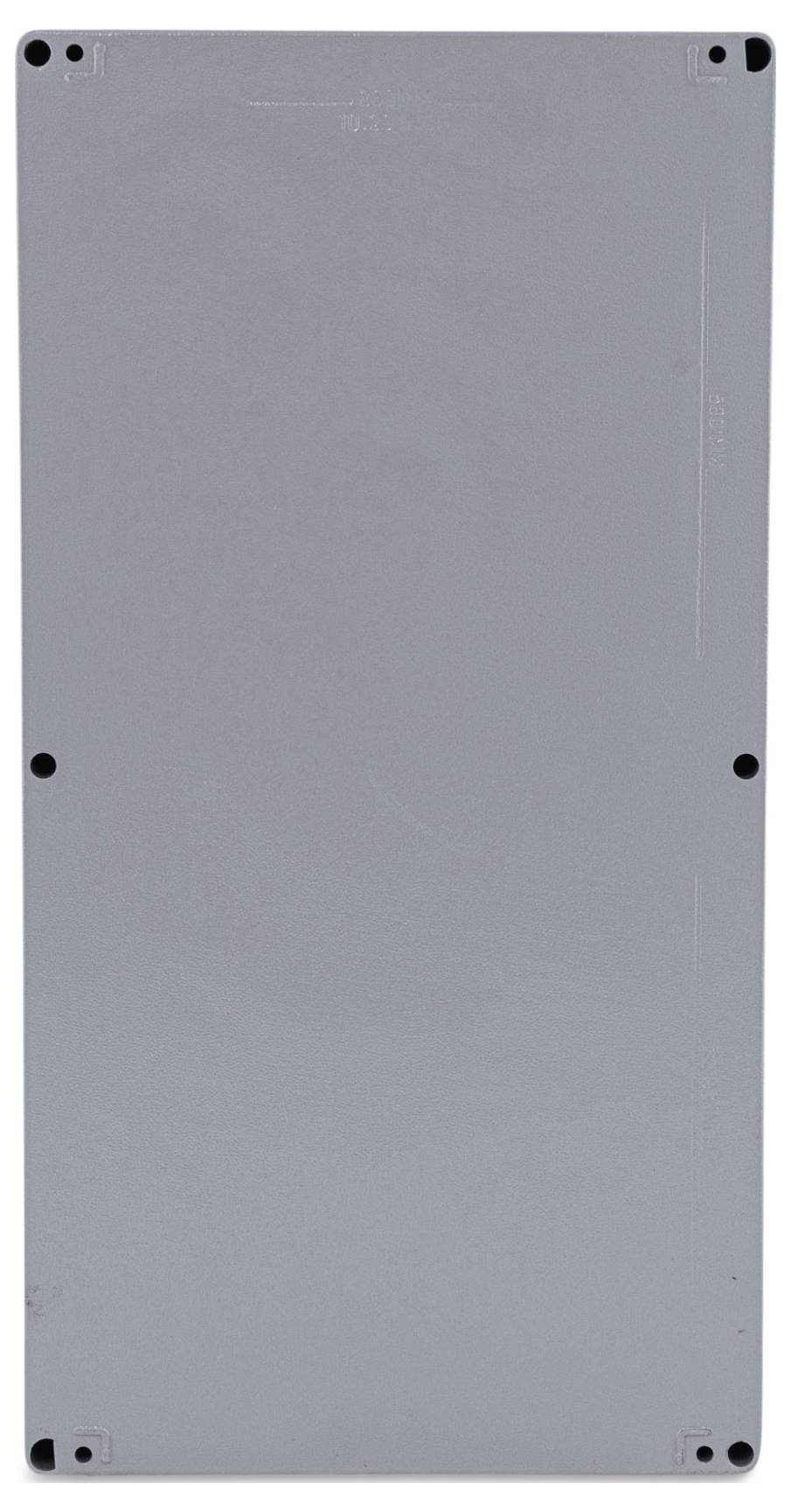

A grey, rectangular metal plate with eight black screws distributed along the edges.

1/5

Packaging type

Piece

Product type

Casing

Material

Aluminium

IP rating

IP66

Width

600 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Colour RAL 7001
Coating: No.
Material: Cover / door: Aluminium
Material: Lower part: Aluminium
Sealing material: Polyurethane foam
Resistance: Alkaline, oils, salts, etc.
Cover - transparent: No.
Inner dimensions (mm): 582 x 292 x 99.5
UL approval: No.
Impact strength: IK09

Packaging type: Piece

Product type: Casing

Features: waterproof

Material: Aluminium

: IP66

Factory colour: Silver-grey

Length: 310 mm

Width: 600 mm

Height: 180 mm

Dimensions: 310 x 600 x 180 mm

Weight: 10.85 kg

Content: 1 pc(s)

Type: Alster 600310180

Dim: (L x W x H) 310 x 600 x 180 mm

RoHS-compliant: Yes

Manufacturer part #: BXPBAL600310180-A01

Depth: 180 mm

Halogen-free: Yes

Max. ambient temperature: 100 °C

Min. ambient temperature: -40 °C

Documents & Downloads

Datasheet

Datasheet 3404623 Boxexpert Alster 600310180 Casing 310 x 600 x 180 x 180 Aluminium Silver-grey 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 3404623 Boxexpert Alster 600310180 Casing 310 x 600 x 180 x 180 Aluminium Silver-grey 1 pc(s) Piece

Description

The aluminum housing of the Alster series of BOXEXPERT are Ideal for industrial applications. They offer a robust solution for electrical and electromechanical components such as relays, terminals and PCBs. Built-in threaded holes make it easy to mount the mounting plates and mounting rails. A powder coating provides corrosion protection, while the PU seal with protection class IP 66 ensures high resistance against external influences. The housing also withstands alcohol, petrol and mineral oils. The cover is fixed with non-detachable stainless steel screws.

This text is machine translated.
