Name: Boxexpert Alster 986434 Casing 64 x 98 x 34 Aluminium Silver-grey 1 pc(s) Piece
Brand: Boxexpert
SKU: 3404808

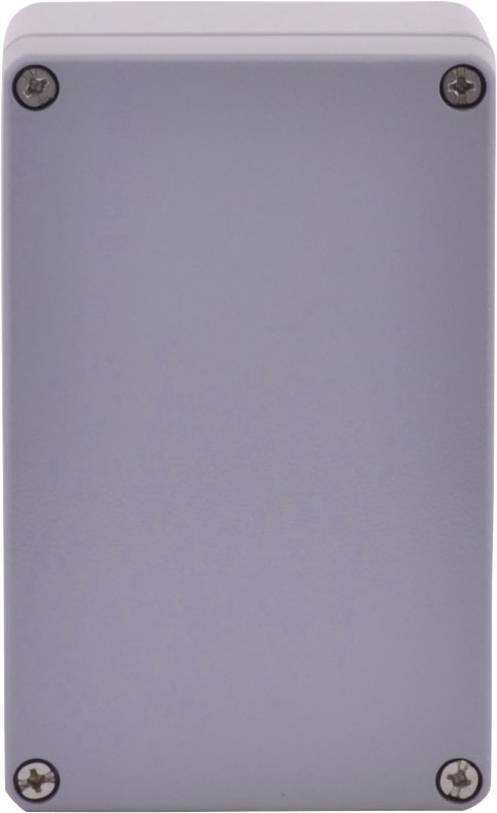

Electrical distribution board with four visible screws at the corners against a grey background.

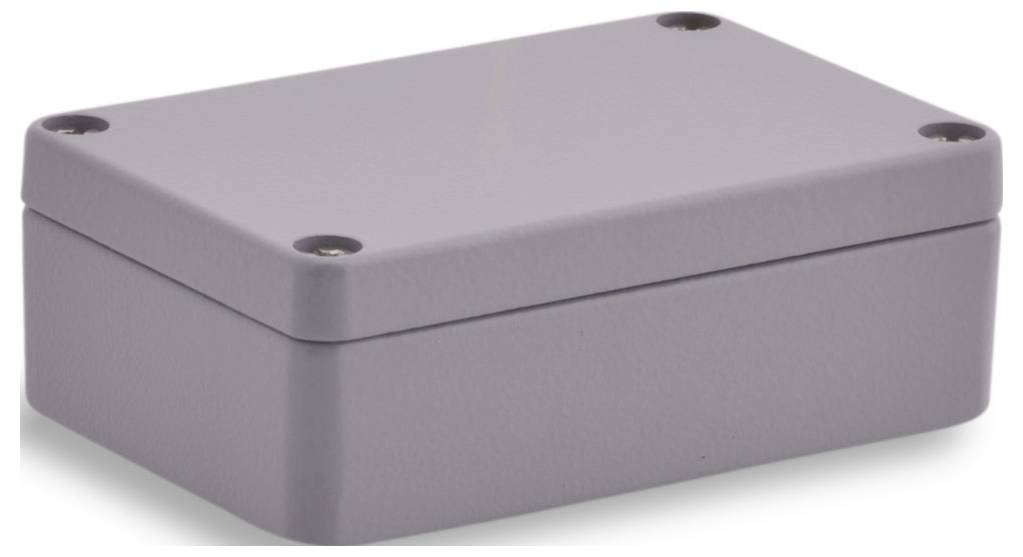

Rectangular, grey enclosure with rounded corners and screws in each corner. Suitable for electronic components.<br><br>Correction: Rectangular, grey casing with rounded corners and screws at each corner. Suitable for electronic components.

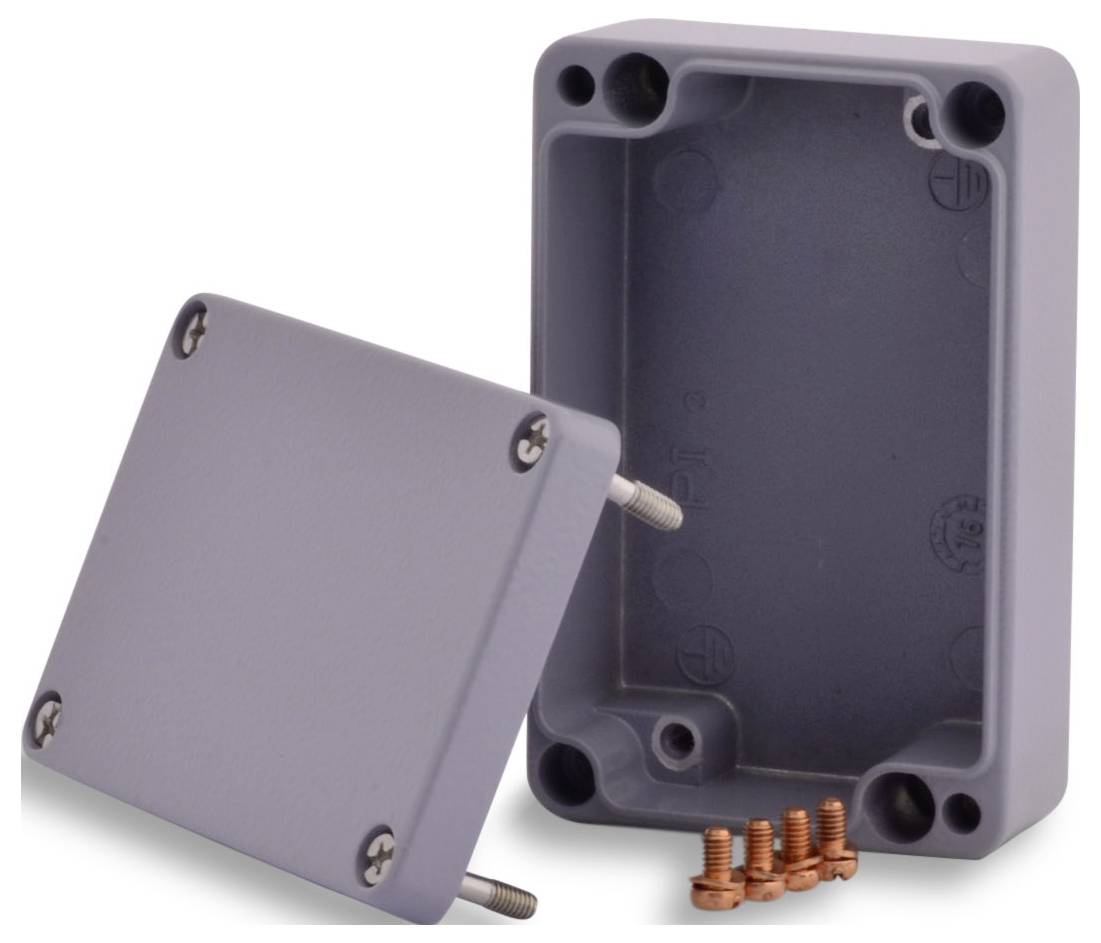

Electronics enclosure with removed lid, screws visible. Robust, suitable for secure storage of electronic components.

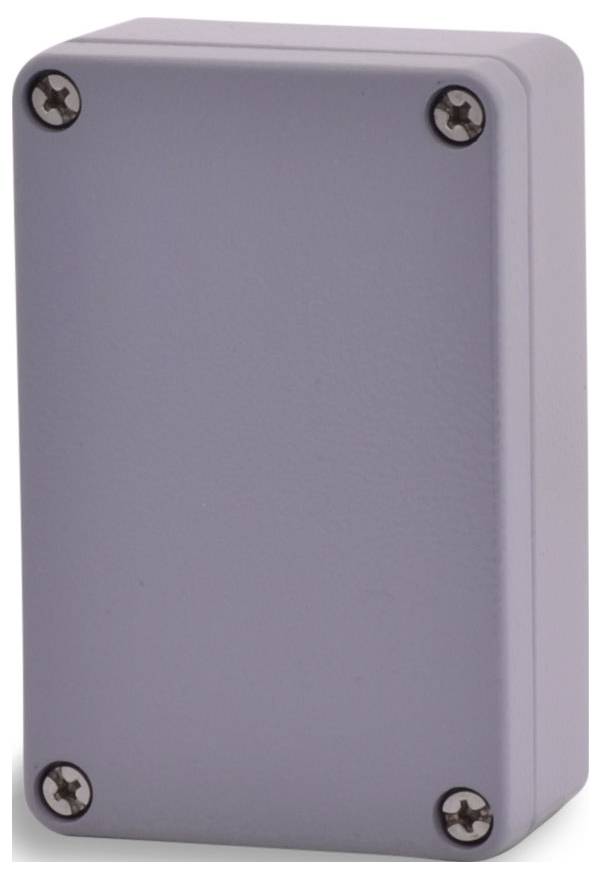

Grey rectangular enclosure with four screws at the corners, suitable for housing electronic components or circuits.

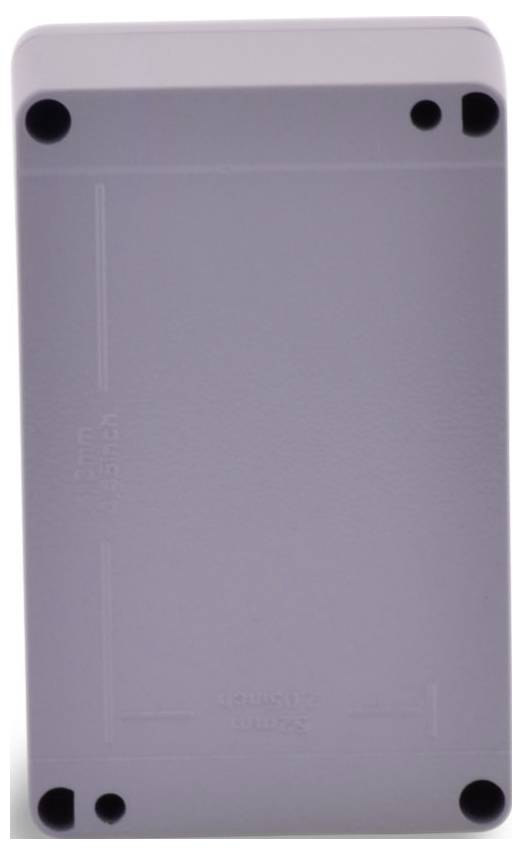

Back of a grey electronic device with four black rubber feet at the corners. The design is minimalist and functional.

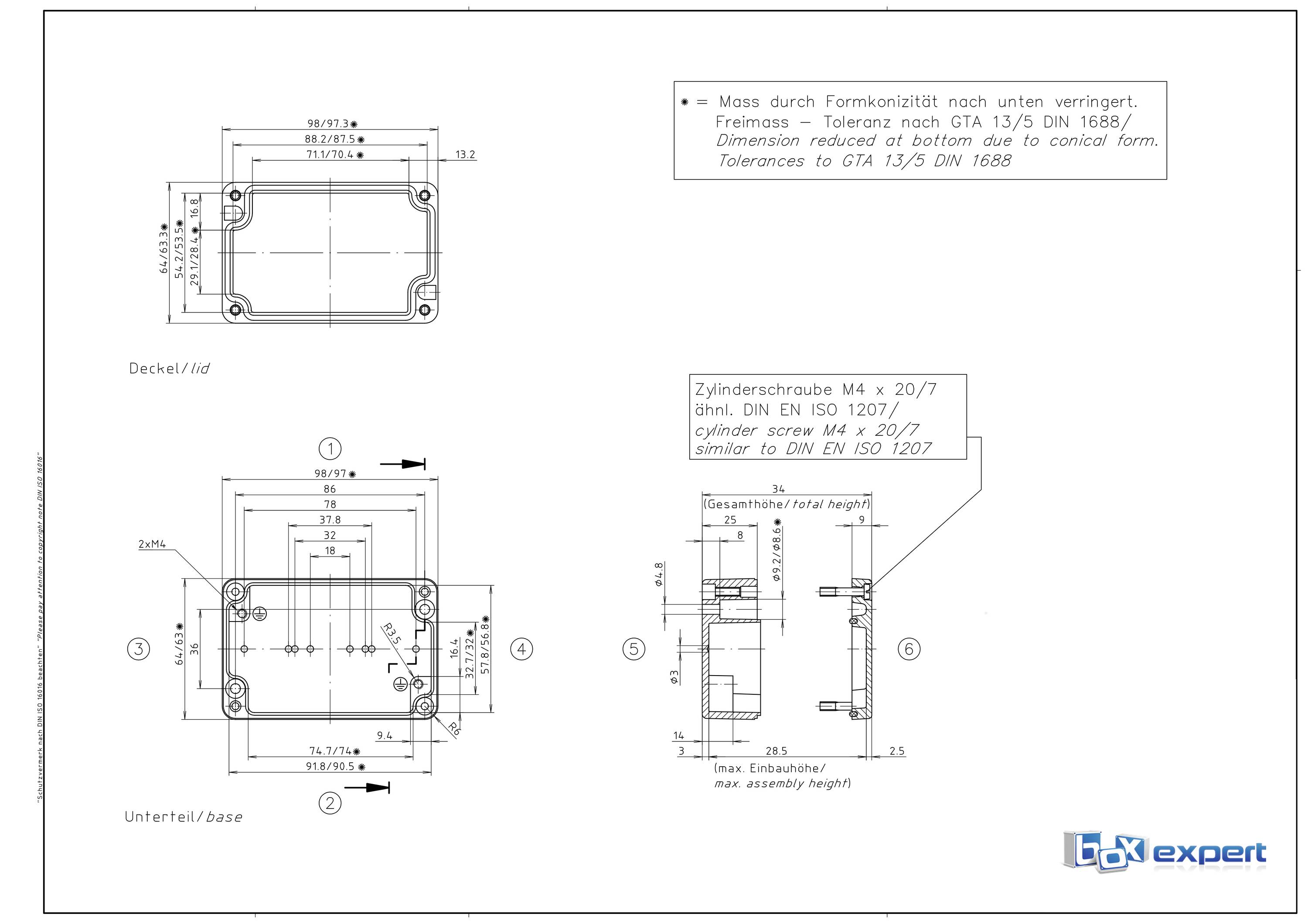

'Technical drawing of a component with dimensions and screw specifications. Details of tolerances, material, and standards are included.'<br><br>Note: This translation is already in a form of British English, so no significant changes were needed.

1/6

Packaging type

Piece

Product type

Casing

Material

Aluminium

IP rating

IP66

Width

98 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Colour RAL 7001
Coating: No.
Material: Cover / door: Aluminium
Material: Lower part: Aluminium
Sealing material: Polyurethane foam
Resistance: Alkaline, oils, salts, etc.
Cover - transparent: No.
Inner dimensions (mm): 91.8 x 58.8 x 28.5
UL approval: No.
Impact strength: IK09

Packaging type: Piece

Product type: Casing

Features: with mounting hole

Material: Aluminium

: IP66

Factory colour: Silver-grey

Length: 64 mm

Width: 98 mm

Height: 34 mm

Dimensions: 91.8 x 58.8 x 28.5 mm

Weight: 0.201 kg

Content: 1 pc(s)

Type: Alster 986434

Dim: (L x W x H) 64 x 98 x 34 mm

RoHS-compliant: Yes

Manufacturer part #: BXPBAL986434-A01

Halogen-free: Yes

Max. ambient temperature: 100 °C

Min. ambient temperature: -40 °C

Documents & Downloads

Datasheet

Datasheet 3404808 Boxexpert Alster 986434 Casing 64 x 98 x 34 Aluminium Silver-grey 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 3404808 Boxexpert Alster 986434 Casing 64 x 98 x 34 Aluminium Silver-grey 1 pc(s) Piece

Description

The Alster series of BOXEXPERT is a particularly robust and compact aluminum casing for industrial applications. It is suitable for Ideal for accommodating small electrical and electromechanical components like terminals, sensors, boards and relays. The built-in threaded holes make it easy to mount the components, mounting rails and mounting plates. A resistant powder coating protects against corrosion, while the PU seal provides protection class IP 66. The casing is weather-resistant and resists alcohol, petrol as well as mineral oils. The cover is fixed with non-detachable stainless steel screws.

This text is machine translated.
