Name: Boxexpert Elbe Polyester grau 12212090 Industrial-grade casing 120 x 122 x 90 x 90 Plastic (fibreglass reinforced) Grey
Brand: Boxexpert
SKU: 3404595

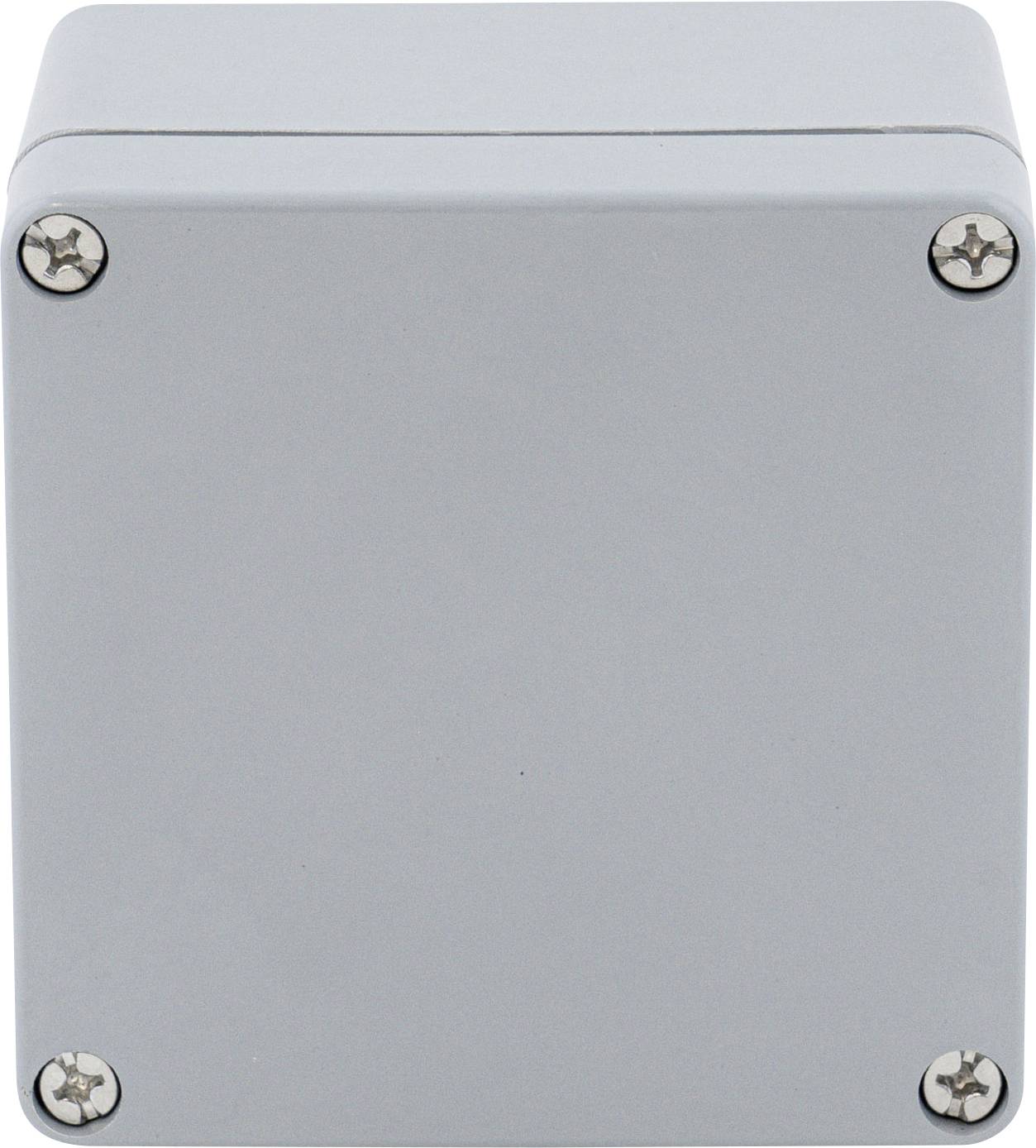

Grey metal enclosure with four visible screws in the corners.

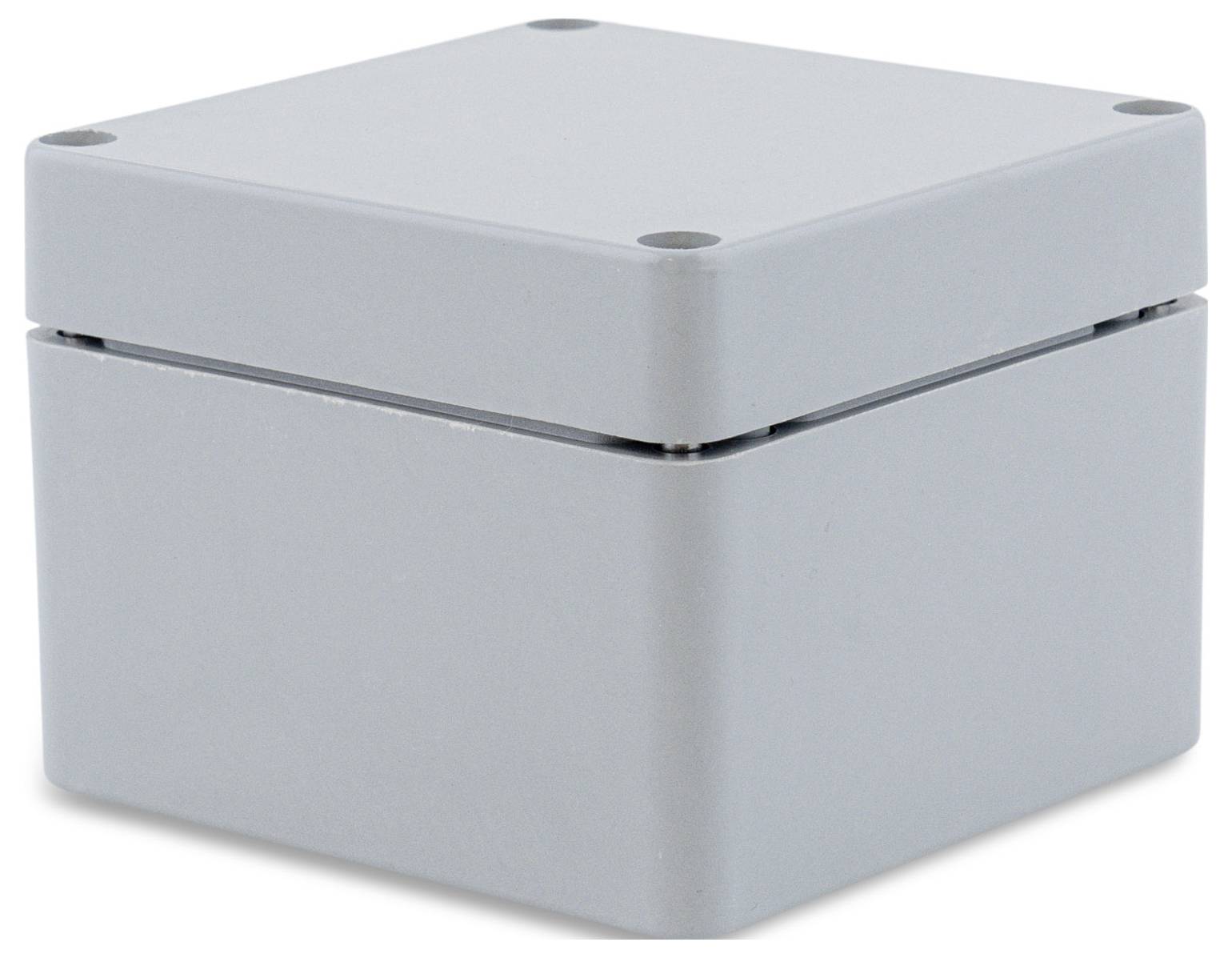

Grey, square plastic enclosure with rounded corners, suitable for electronics projects.

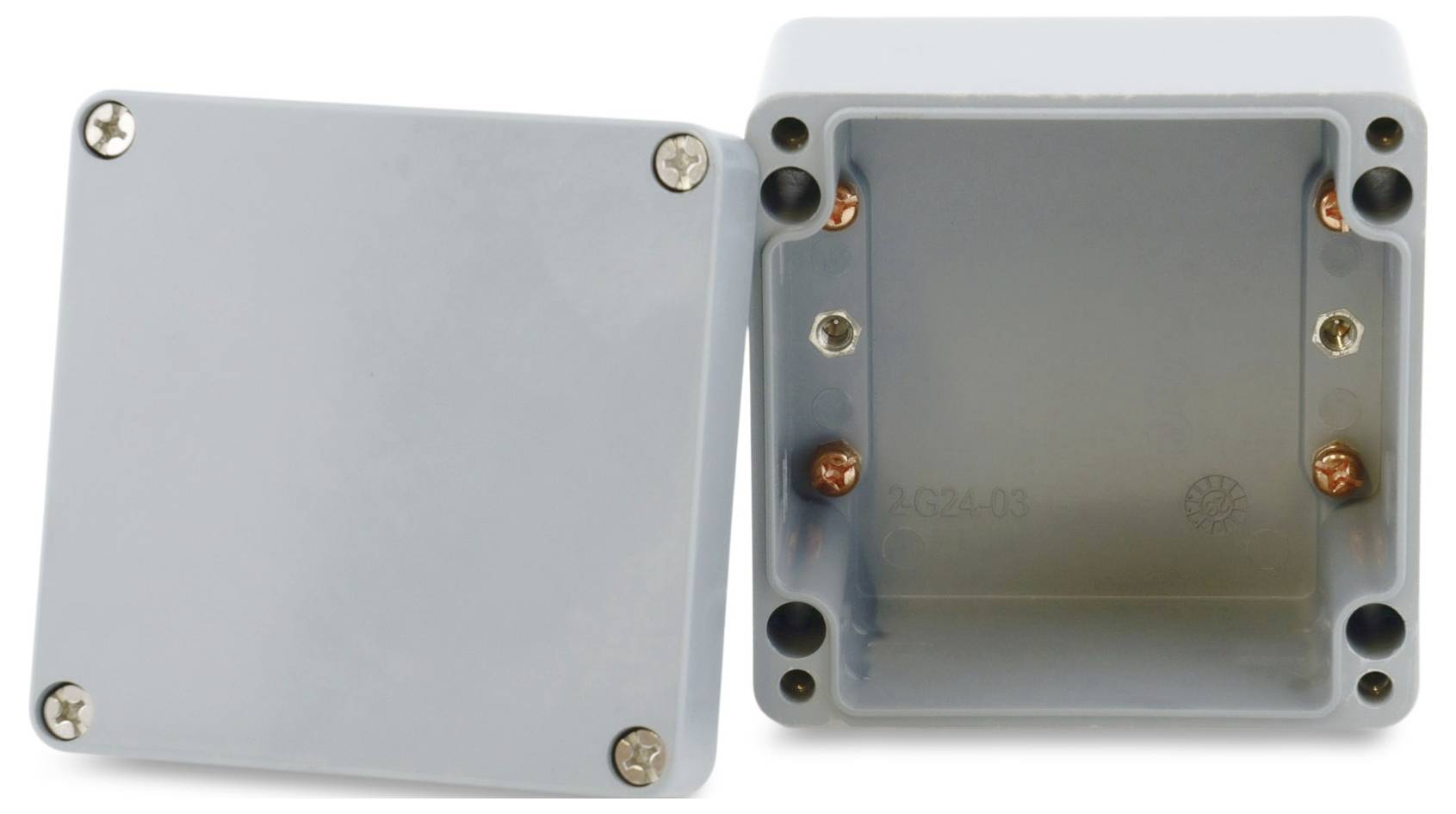

Grey, square plastic junction box with a removable cover and four screws in the corners. Opened, showing interior space.

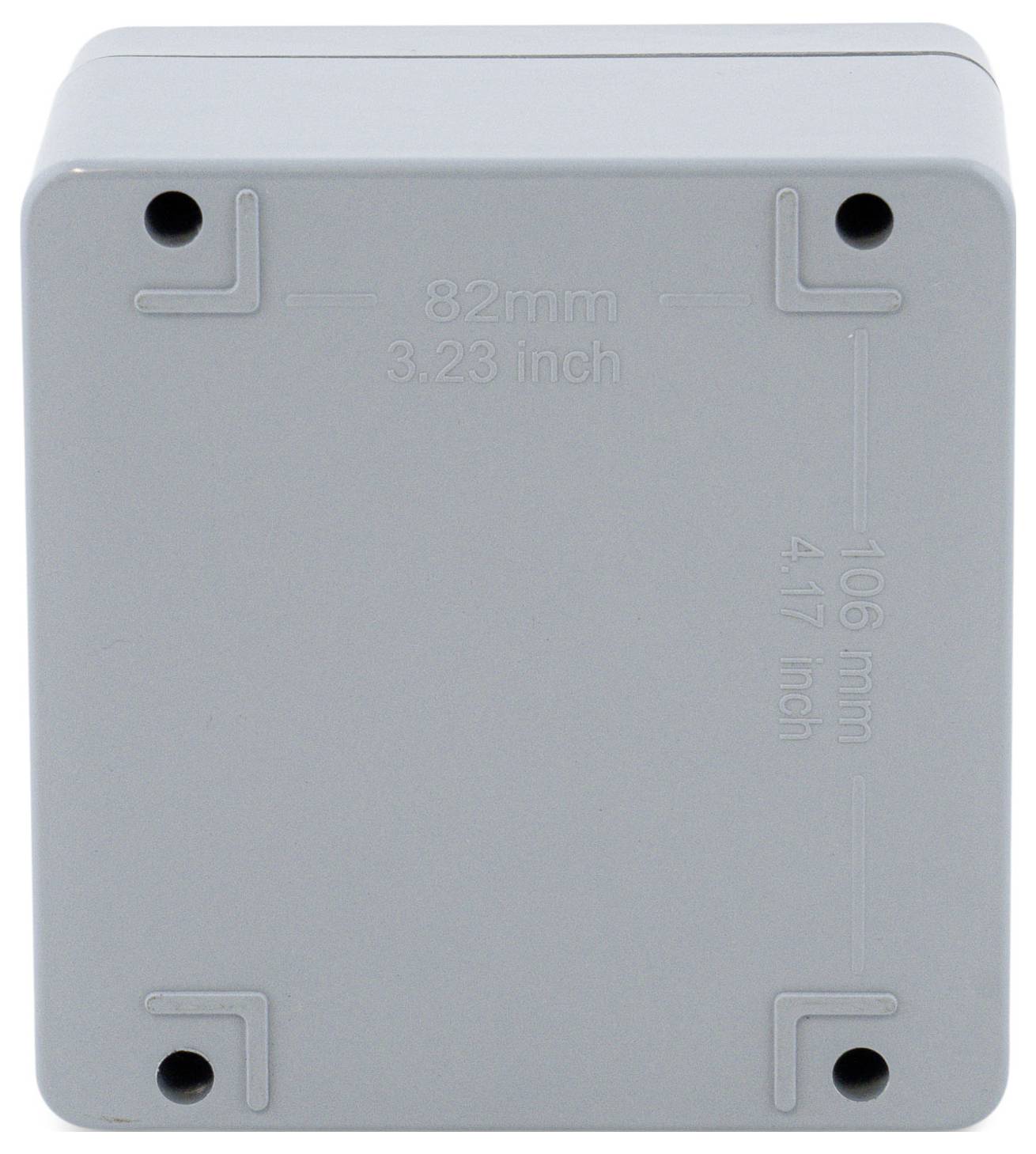

Grey rectangular plastic enclosure measuring 82mm x 106mm. Screw holes at the corners.

1/4

Packaging type

Piece

Product type

Industrial-grade casing

Material

Plastic (fibreglass reinforced)

IP rating

IP66

Width

122 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Colour in RAL: RAL7000
Coating: No.
Material: Cover / door: Glass-reinforced plastic
Material: Lower part: Glass-reinforced plastic
Resistance: Alkalis, oils, salts, bases, solvents etc.
Cover - transparent: No.
Inner dimensions (mm): 112 x 111 x 80
UL approval: Yes
Impact strength IK 08

Packaging type: Piece

Product type: Industrial-grade casing

Features: waterproof

Material: Plastic (fibreglass reinforced)

: IP66

Factory colour: Grey

Length: 120 mm

Width: 122 mm

Height: 90 mm

Dimensions: 112 x 111 x 80 mm

Weight: 0.77 kg

Content: 1 pc(s)

Type: Elbe Polyester grau 12212090

Dim: (L x W x H) 120 x 122 x 90 mm

RoHS-compliant: Yes

Manufacturer part #: BXPBPOL12212090-E02-66

Depth: 90 mm

Halogen-free: Yes

Max. ambient temperature: 80 °C

Min. ambient temperature: -40 °C

Documents & Downloads

Datasheet

Datasheet 3404595 Boxexpert Elbe Polyester grau 12212090 Industrial-grade casing 120 x 122 x 90 x 90 Plastic (fibreglass reinforced) Grey

User & Safety Instructions

User & Safety Instructions 3404595 Boxexpert Elbe Polyester grau 12212090 Industrial-grade casing 120 x 122 x 90 x 90 Plastic (fibreglass reinforced) Grey

Description

The BOXEXPERT Elbe Polyester housing series is designed for demanding applications. With IP66 they reliably protect against dust and water. Their IK08 impact strength and 18 kV/mm dielectric strength make them Ideal for high voltage ranges. Available in Fehgray and graphite black, UL94 V0 certified and temperature resistant from -40 to +80 °C.

This text is machine translated.
