Name: Boxexpert Elbe Polyester grau 36016090 Industrial-grade casing 160 x 360 x 90 x 82 Plastic (fibreglass reinforced) Grey
Brand: Boxexpert
SKU: 3404605

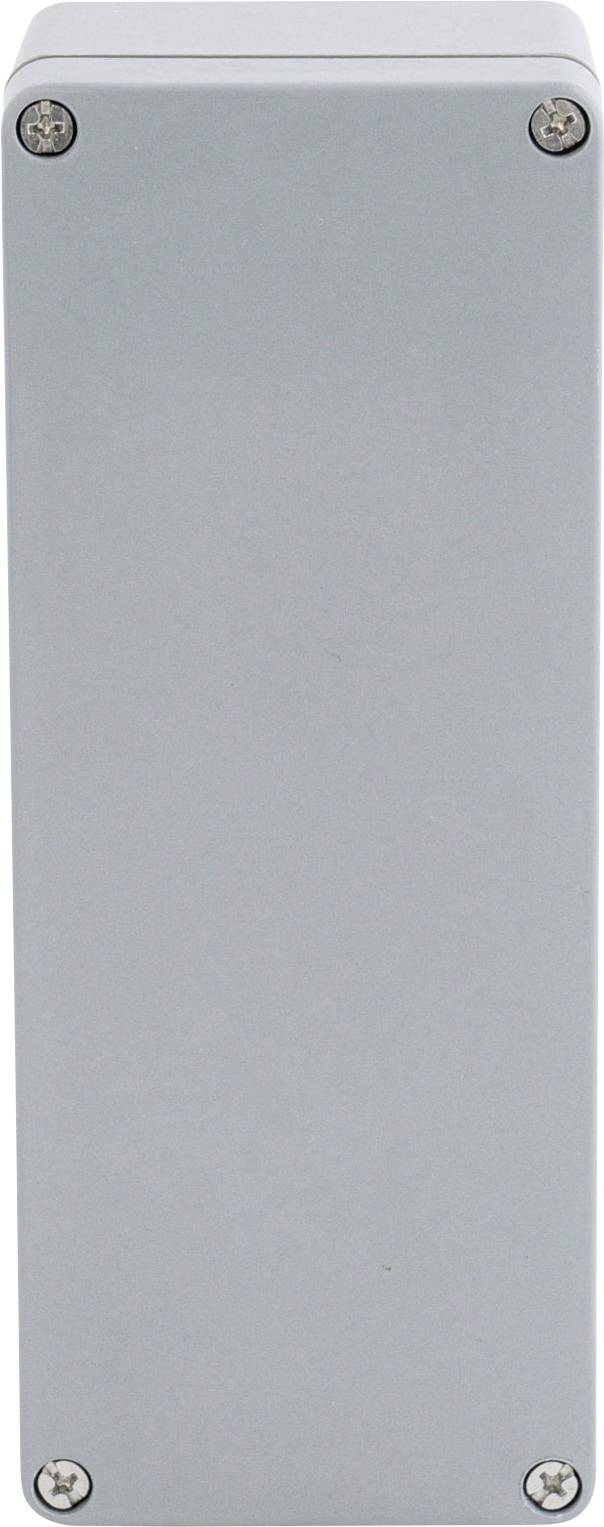

A grey, rectangular metal box with four visible screws at the corners of the top surface.

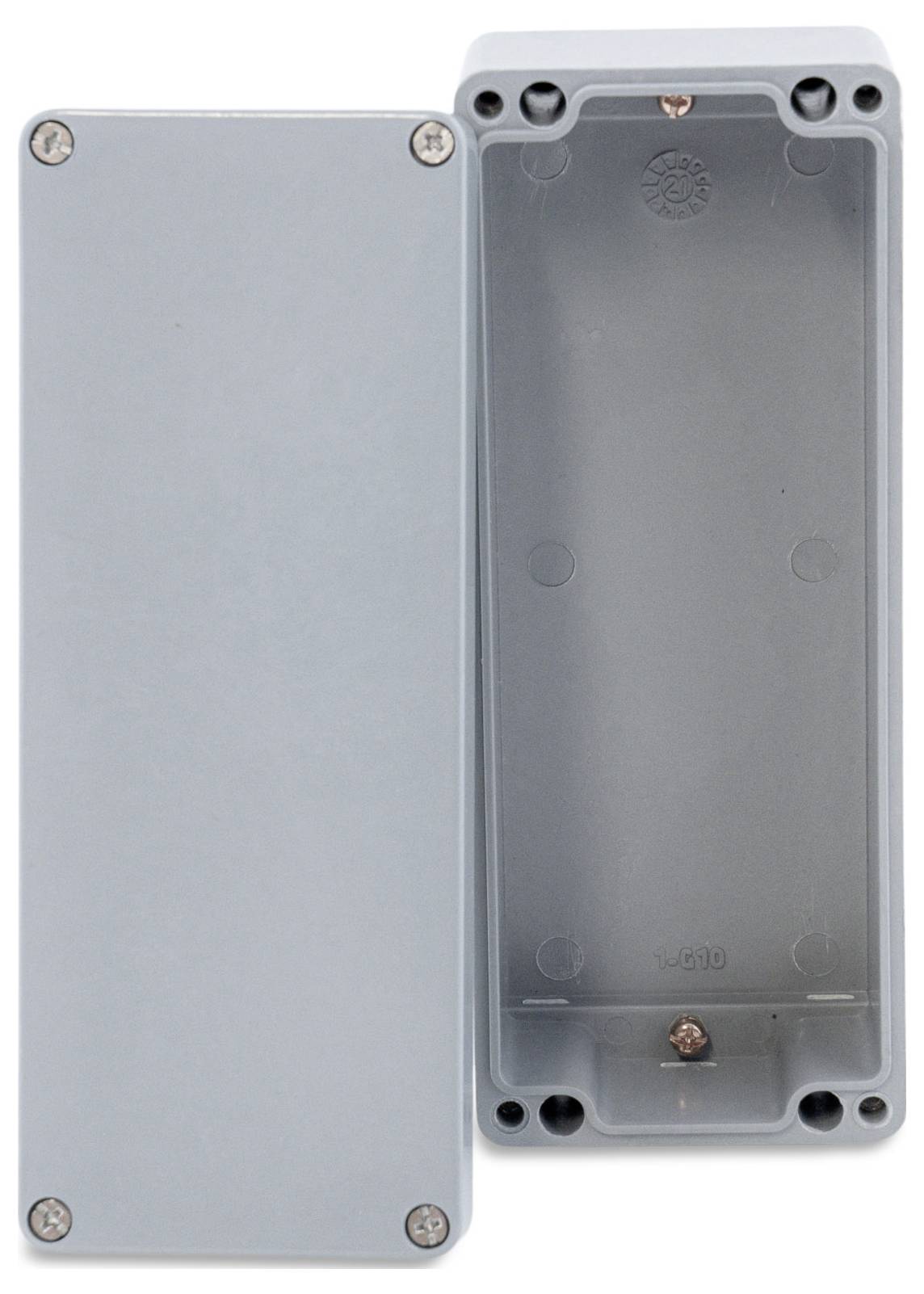

Grey rectangular plastic enclosure with a removable lid and screws. Enclosure provides protection and shielding for electronics.

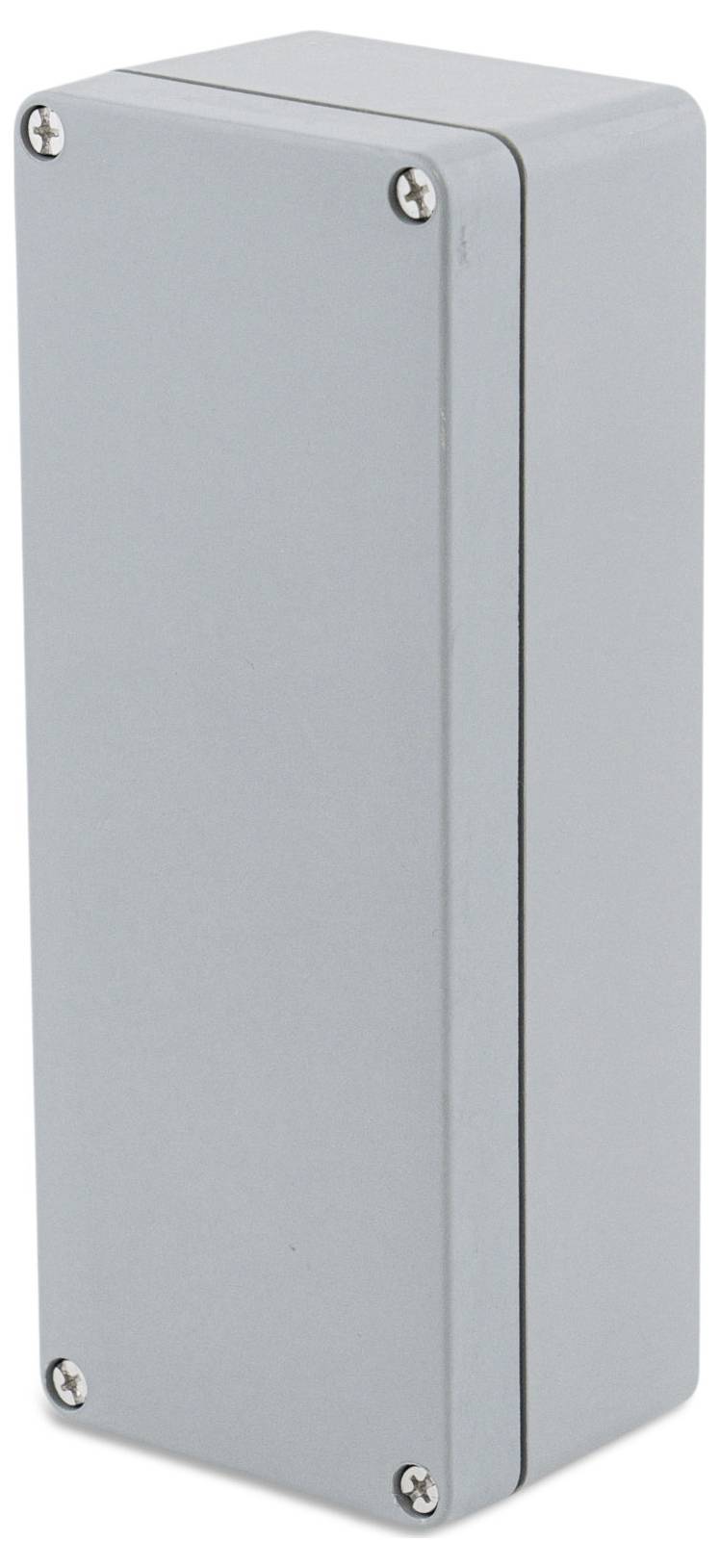

A rectangular metal enclosure with rounded corners and four visible screws in the corners. It is grey and standing upright.

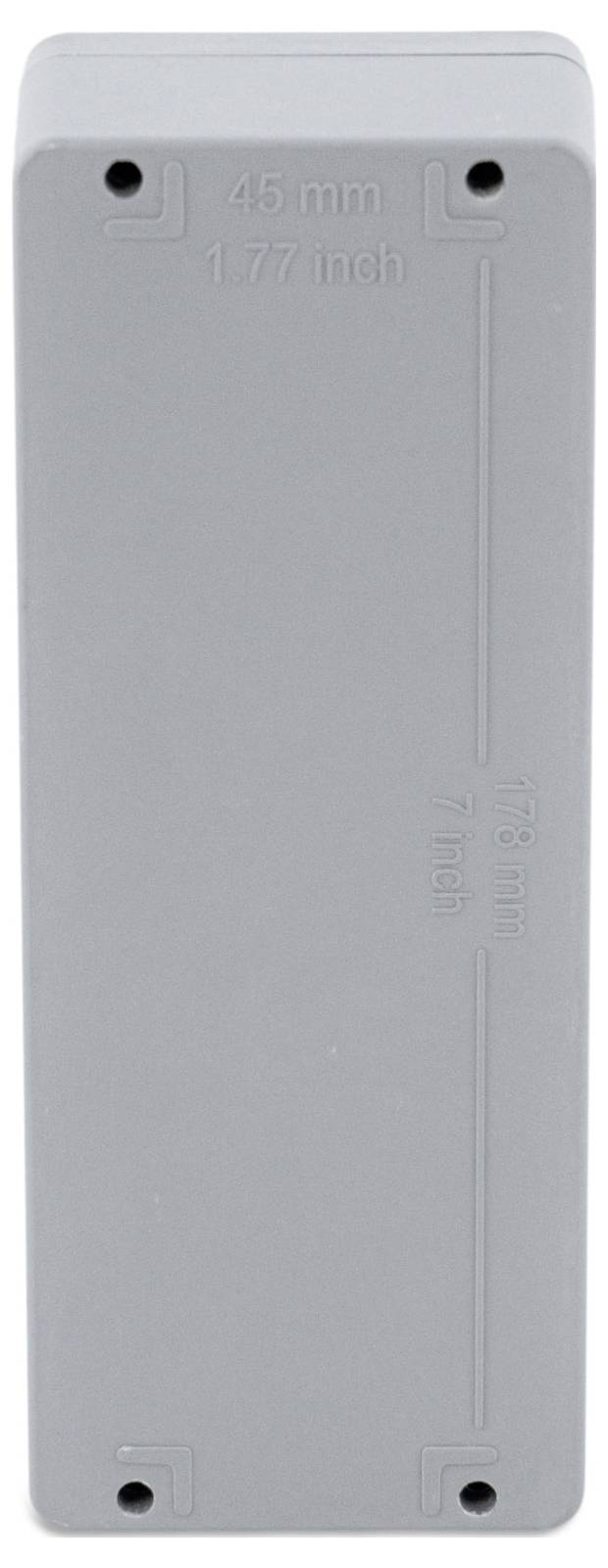

Grey, rectangular plastic enclosure with dimensions: 45 mm width, 118 mm length, 1.77 inches width, 7 inches length.

1/4

Packaging type

Piece

Product type

Industrial-grade casing

Material

Plastic (fibreglass reinforced)

IP rating

IP66

Width

360 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Colour in RAL: RAL7000
Coating: No.
Material: Cover / door: Glass-reinforced plastic
Material: Lower part: Glass-reinforced plastic
Resistance: Alkalis, oils, salts, bases, solvents etc.
Cover - transparent: No.
Inner dimensions (mm): 348 x 148 x 82
UL approval: Yes
Impact strength IK 08

Packaging type: Piece

Product type: Industrial-grade casing

Features: waterproof

Material: Plastic (fibreglass reinforced)

: IP66

Factory colour: Grey

Length: 160 mm

Width: 360 mm

Height: 90 mm

Dimensions: 348 x 148 x 82 mm

Weight: 2.536 kg

Content: 1 pc(s)

Type: Elbe Polyester grau 36016090

Dim: (L x W x H) 160 x 360 x 90 mm

RoHS-compliant: Yes

Manufacturer part #: BXPBPOL36016090-E02-66

Depth: 82 mm

Halogen-free: Yes

Max. ambient temperature: 80 °C

Min. ambient temperature: -40 °C

Documents & Downloads

Datasheet

Datasheet 3404605 Boxexpert Elbe Polyester grau 36016090 Industrial-grade casing 160 x 360 x 90 x 82 Plastic (fibreglass reinforced) Grey

User & Safety Instructions

User & Safety Instructions 3404605 Boxexpert Elbe Polyester grau 36016090 Industrial-grade casing 160 x 360 x 90 x 82 Plastic (fibreglass reinforced) Grey

Description

The Elbe polyester series by BOXEXPERT offers cases of glass fiber reinforced polyester with high resistance. They offer IP66 protection, are impact resistant to IK08, high voltage (18 kV/mm) and designed for temperatures from -40 to +80 °C. The color options Fehgray and Graphite black as well as the UL94 V0 certification underline the versatility.

This text is machine translated.
