Name: Boxexpert Elbe Polyester grau 807555 Industrial-grade casing 75 x 80 x 55 Plastic (fibreglass reinforced) Grey 1 pc(s) P
Brand: Boxexpert
SKU: 3404591

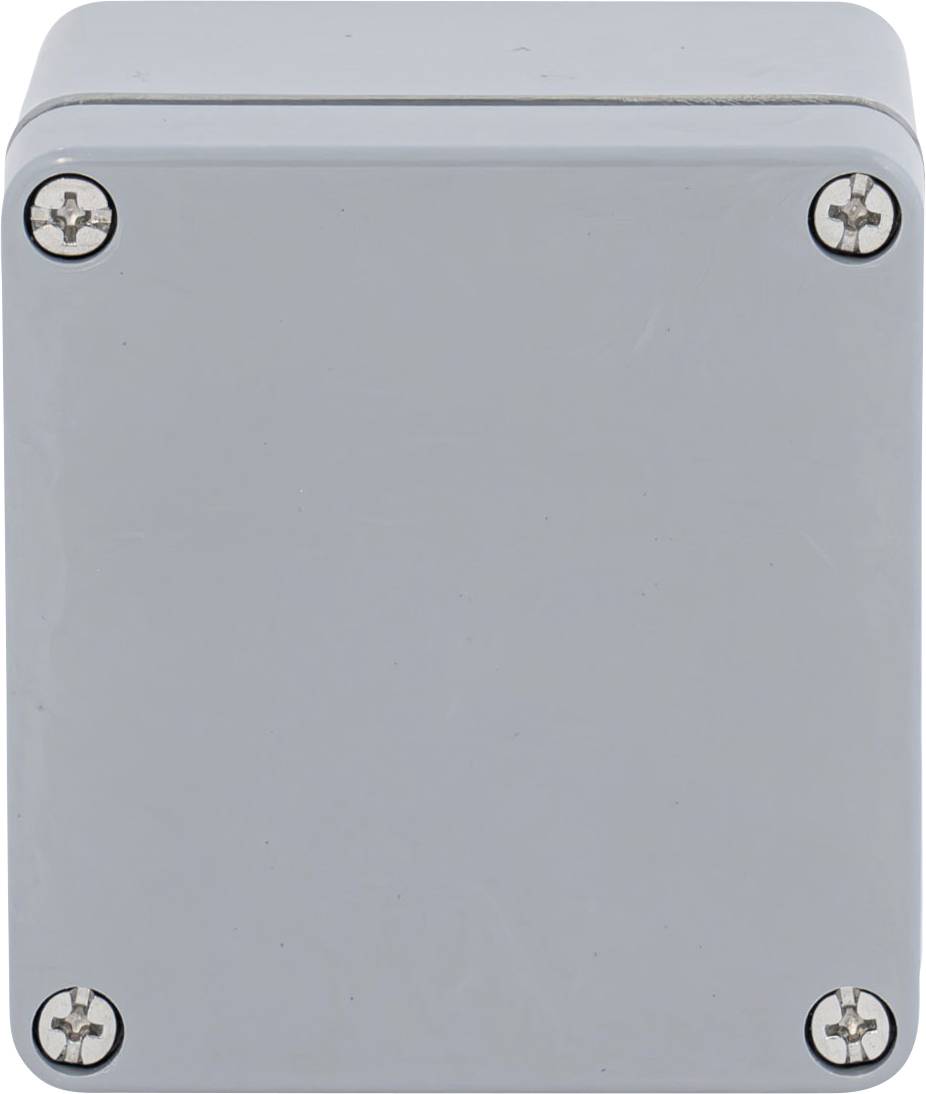

Grey, square metal box with four visible screws at the corners.<br><br>Note: The translation is already very close to the original German text, with only minor adjustments to British English spelling and phrasing.

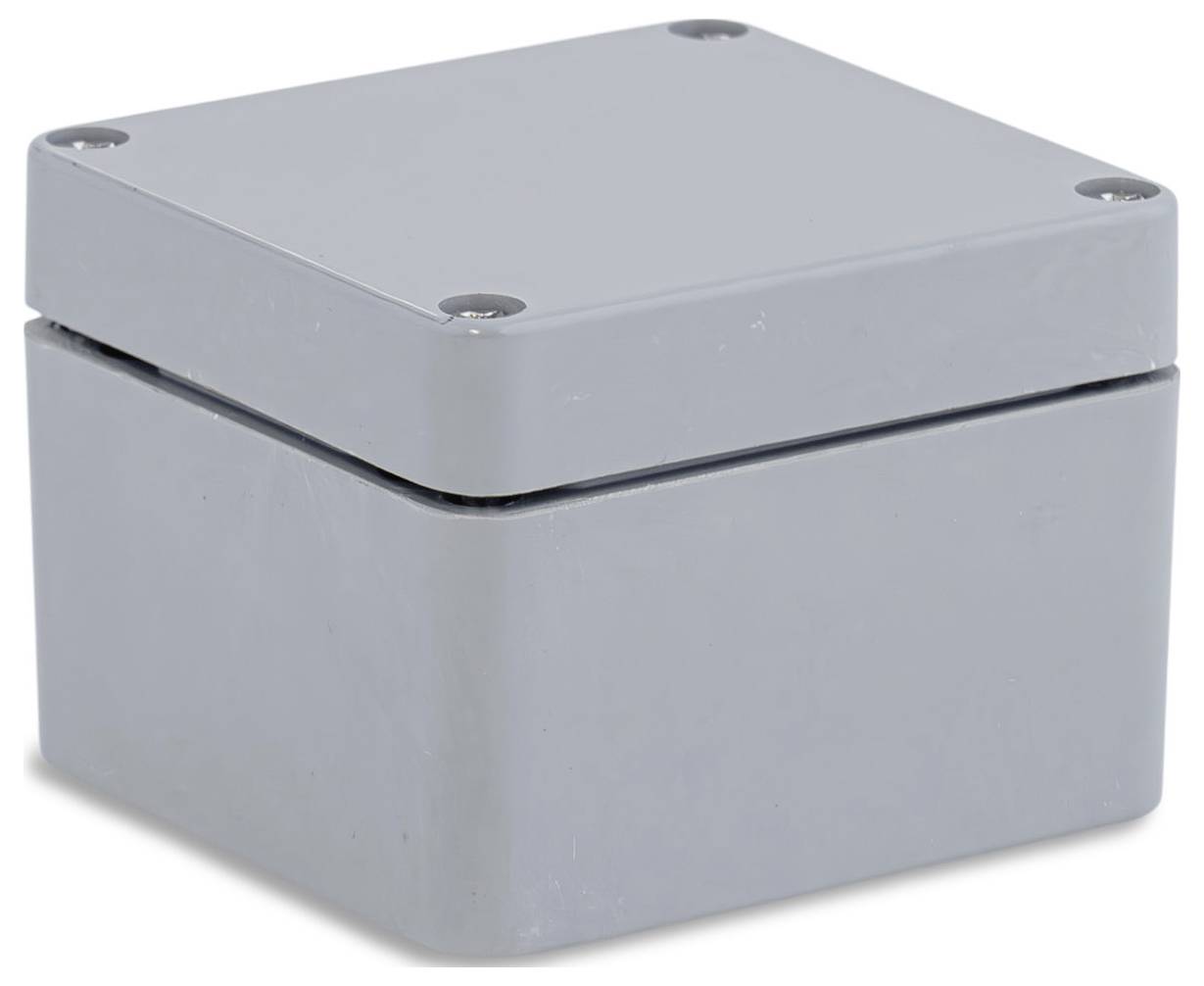

Grey, square enclosure with screws at the corners. Used for storing or protecting electronic components.

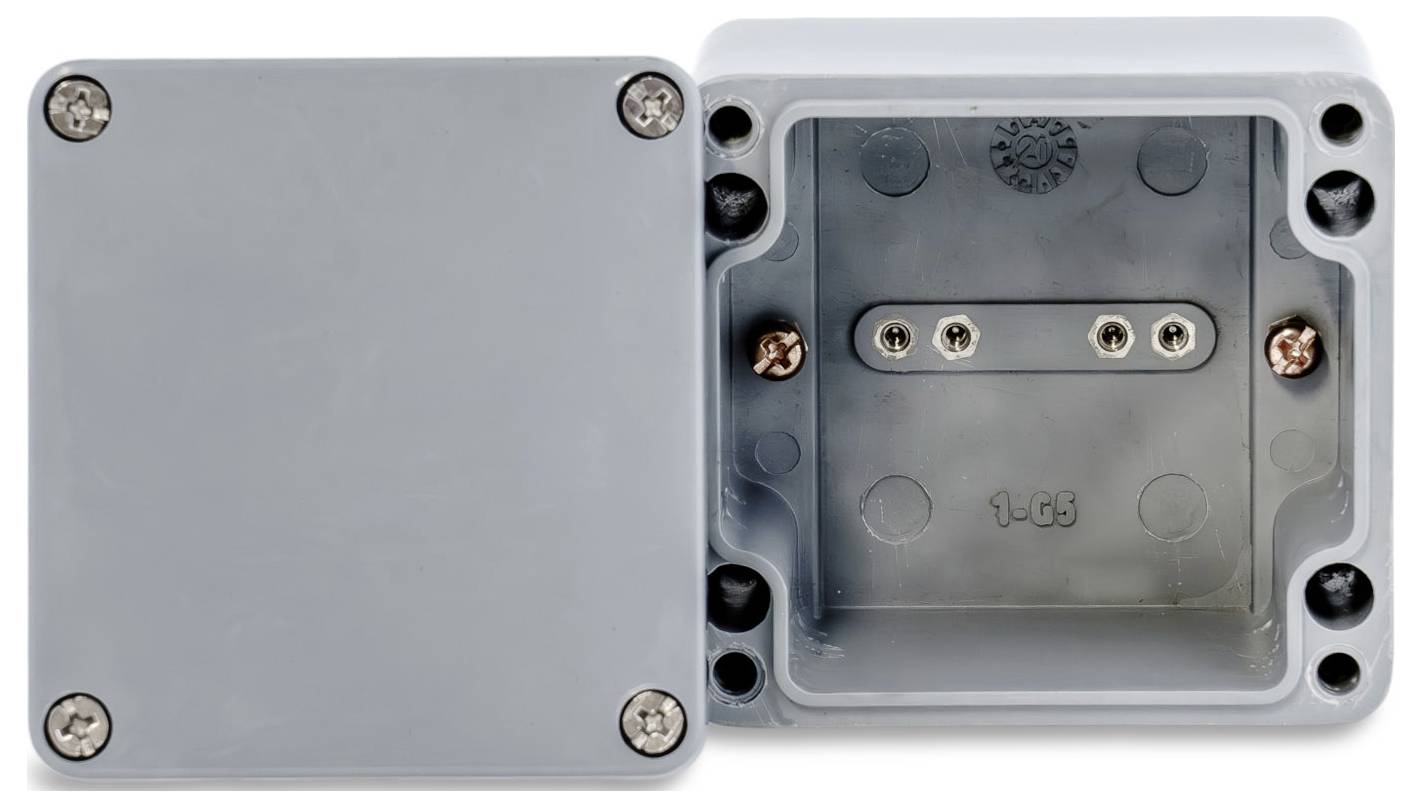

Grey plastic container with a removable lid, open. Four screw holes are visible on the inner side for mounting.

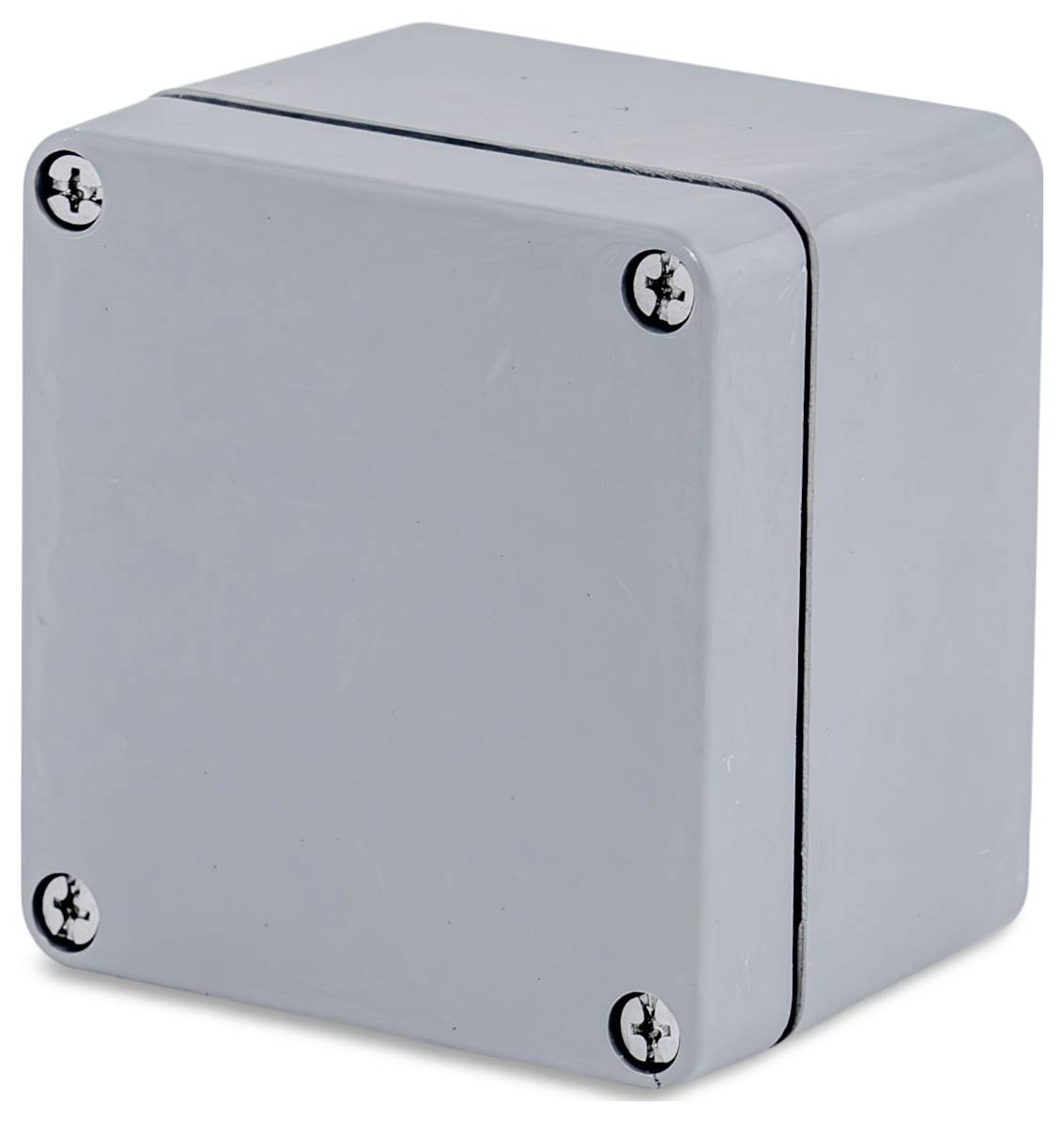

'Grey enclosure with four screws at the corners, suitable for protecting electrical components in industrial applications.'

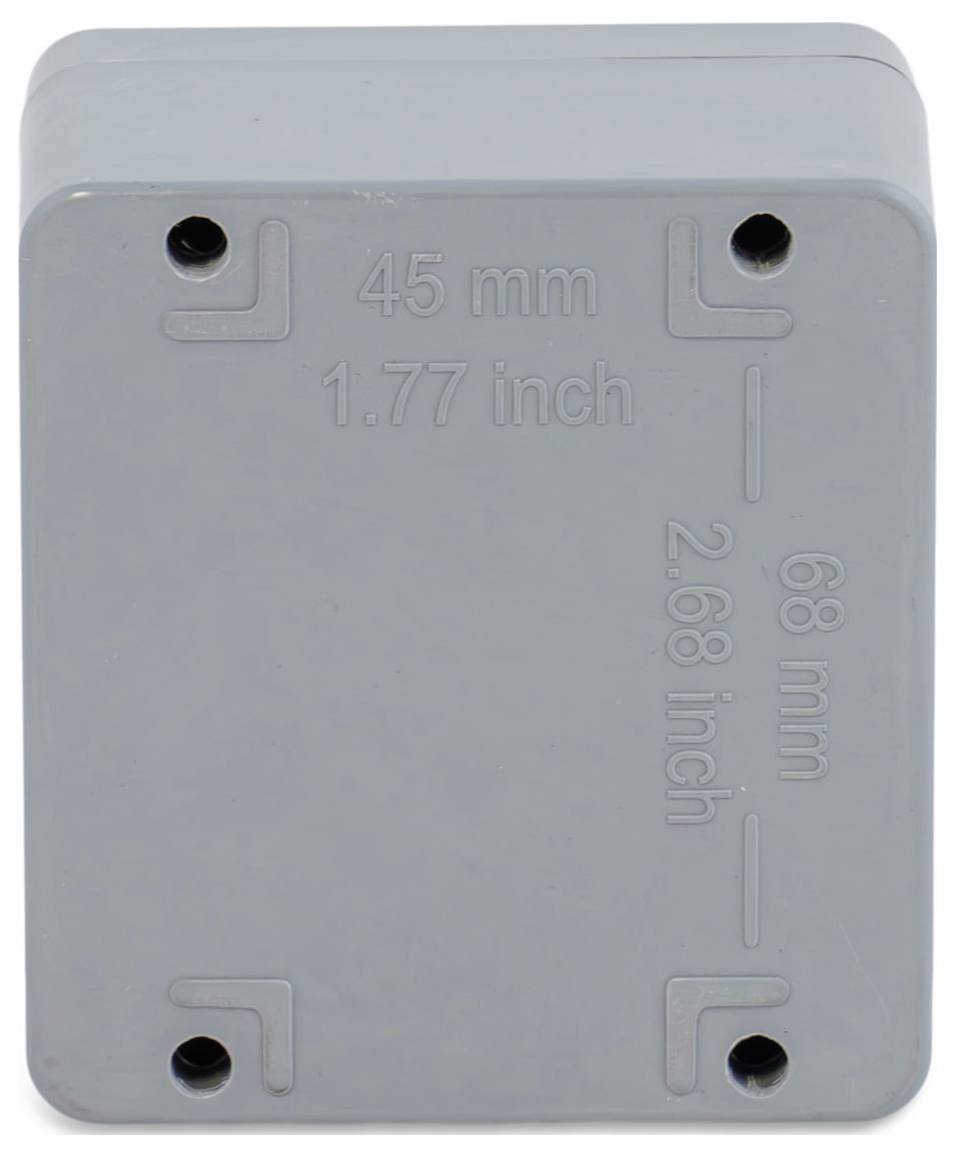

Grey rectangular plastic enclosure, dimensions in embossed text: '45 mm/1.77 inch' width, '68 mm/2.68 inch' height, four screw holes.

1/5

Packaging type

Piece

Product type

Industrial-grade casing

Material

Plastic (fibreglass reinforced)

IP rating

IP66

Width

80 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Colour in RAL: RAL7000
Coating: No.
Material: Cover / door: Glass-reinforced plastic
Material: Lower part: Glass-reinforced plastic
Resistance: Alkalis, oils, salts, bases, solvents etc.
Cover - transparent: No.
Inner dimensions (mm): 70 x 65 x 45
UL approval: Yes
Impact strength IK 08

Packaging type: Piece

Product type: Industrial-grade casing

Features: shockproof

Material: Plastic (fibreglass reinforced)

: IP66

Factory colour: Grey

Length: 75 mm

Width: 80 mm

Height: 55 mm

Dimensions: 70 x 65 x 45 mm

Weight: 0.268 kg

Content: 1 pc(s)

Type: Elbe Polyester grau 807555

Dim: (L x W x H) 75 x 80 x 55 mm

RoHS-compliant: Yes

Manufacturer part #: BXPBPOL807555-E02-66

Halogen-free: Yes

Max. ambient temperature: 80 °C

Min. ambient temperature: -40 °C

Documents & Downloads

Datasheet

Datasheet 3404591 Boxexpert Elbe Polyester grau 807555 Industrial-grade casing 75 x 80 x 55 Plastic (fibreglass reinforced) Grey 1 pc(s) P

User & Safety Instructions

User & Safety Instructions 3404591 Boxexpert Elbe Polyester grau 807555 Industrial-grade casing 75 x 80 x 55 Plastic (fibreglass reinforced) Grey 1 pc(s) P

Description

The Elbe polyester series by BOXEXPERT offers cases of glass fiber reinforced polyester with high resistance. They offer IP66 protection, are impact resistant to IK08, high voltage (18 kV/mm) and designed for temperatures from -40 to +80 °C. The color options Fehgray and Graphite black as well as the UL94 V0 certification underline the versatility.
