Name: Boxexpert Fleet Roof 400300165 Wall-mount enclosure 300 x 400 x 165 x 165 Acrylonitrile butadiene styrene Light grey 1 p
Brand: Boxexpert
SKU: 3404538

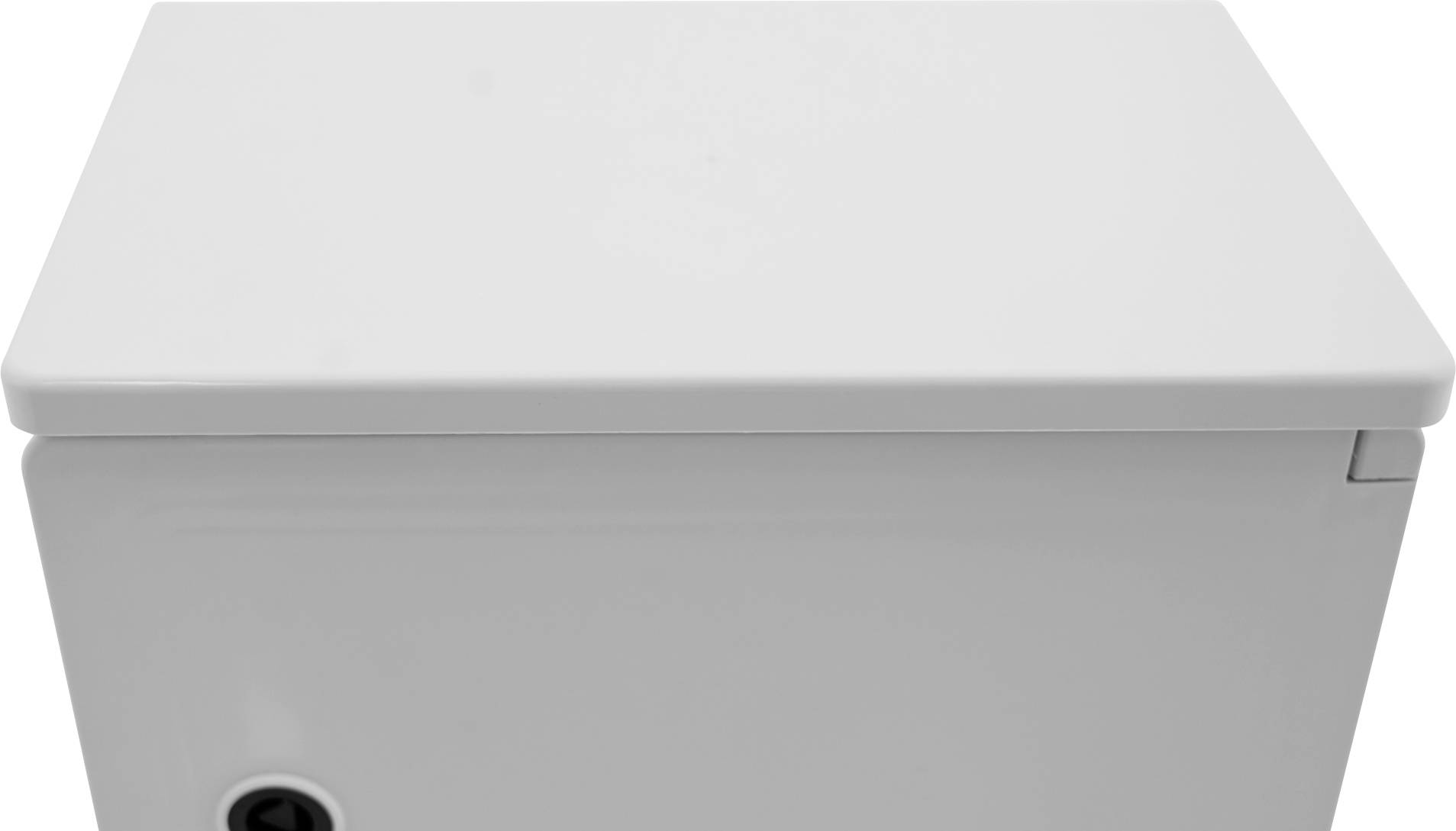

White, rectangular metal box with a flat lid. A round opening is visible in the bottom left.

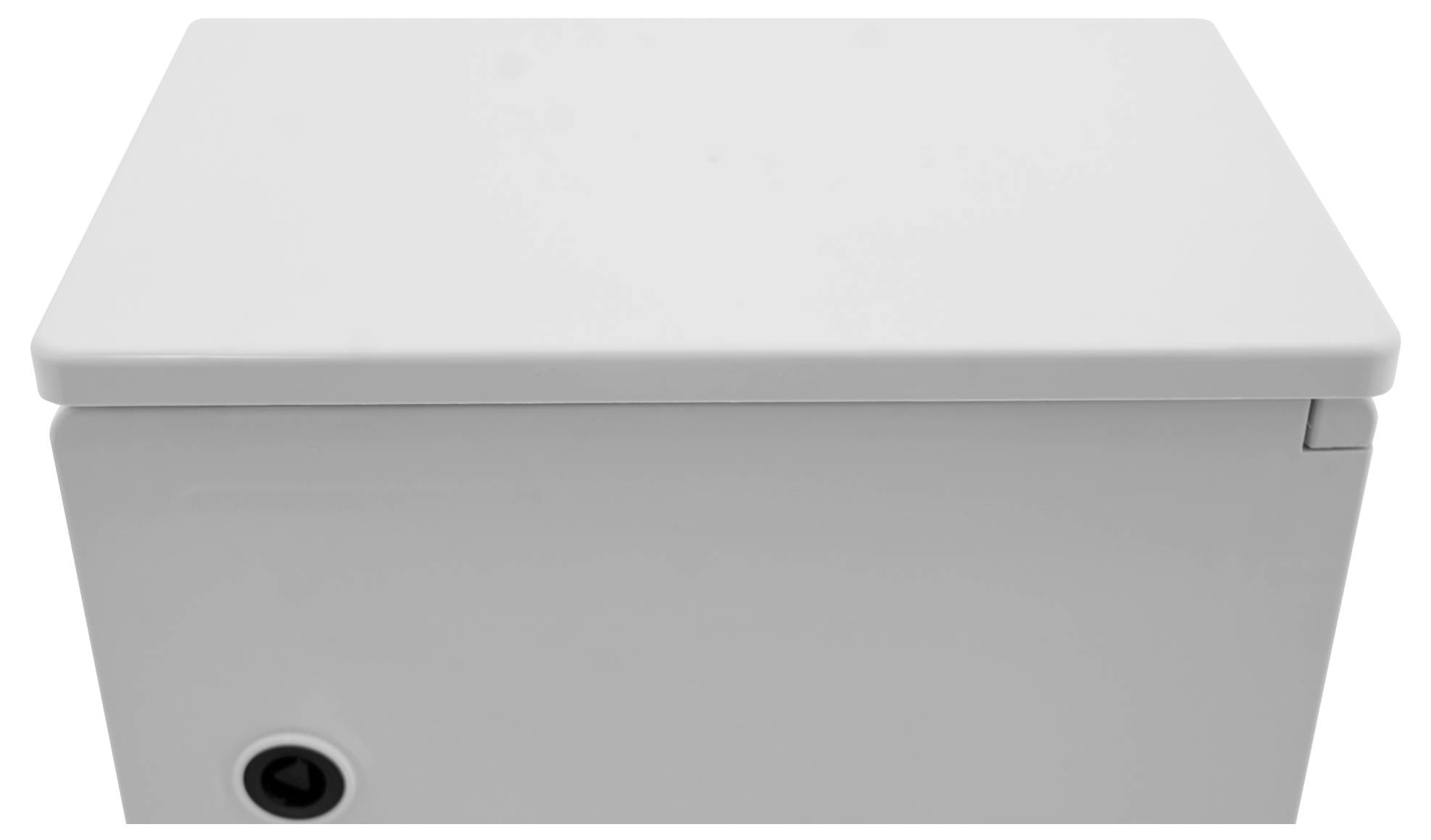

White rectangular box with a lid and a small black hole on the side, possibly an electrical device or storage container.

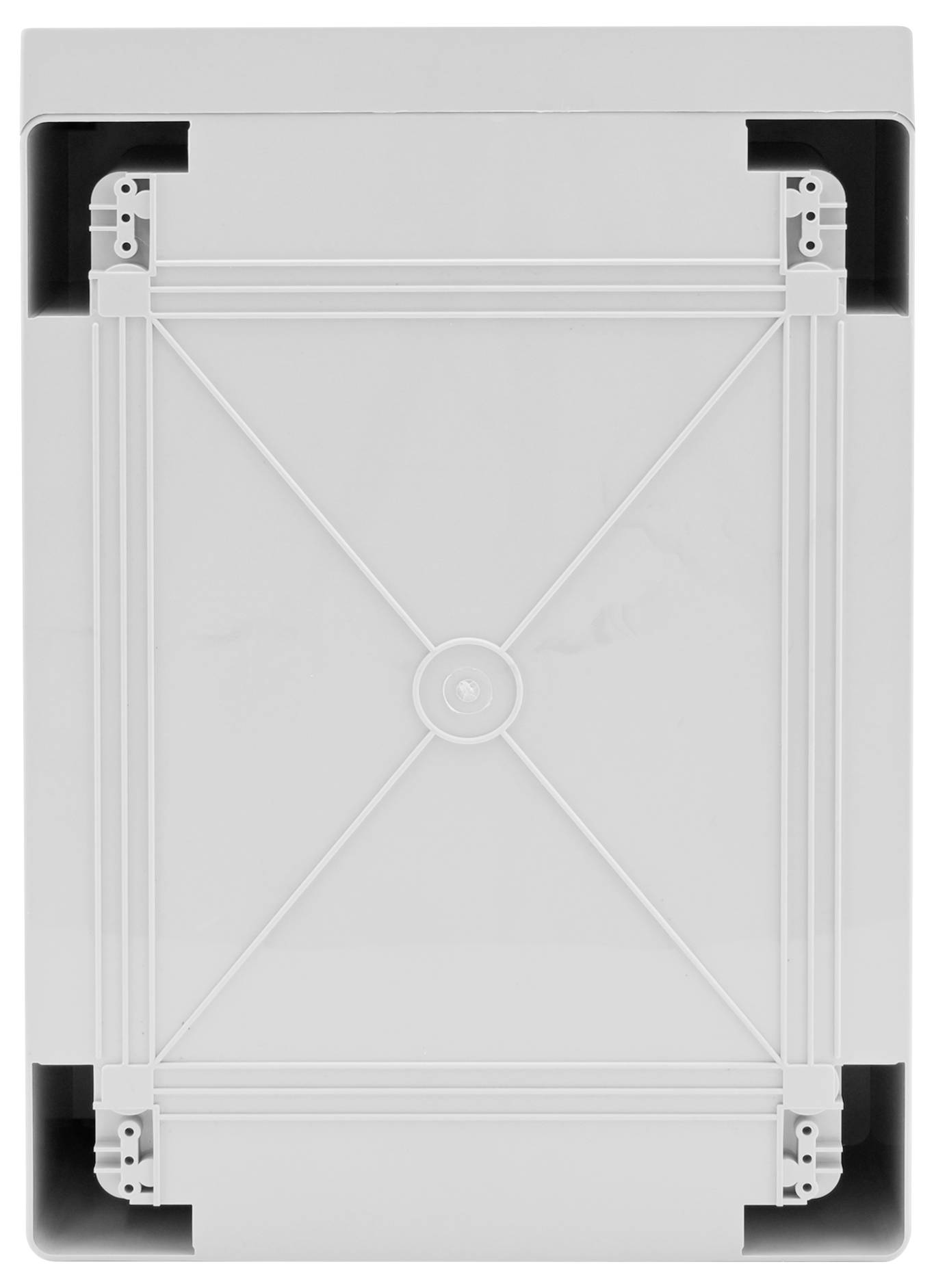

'Rear side of a white plastic casing with black corners and crossed reinforcement struts.'

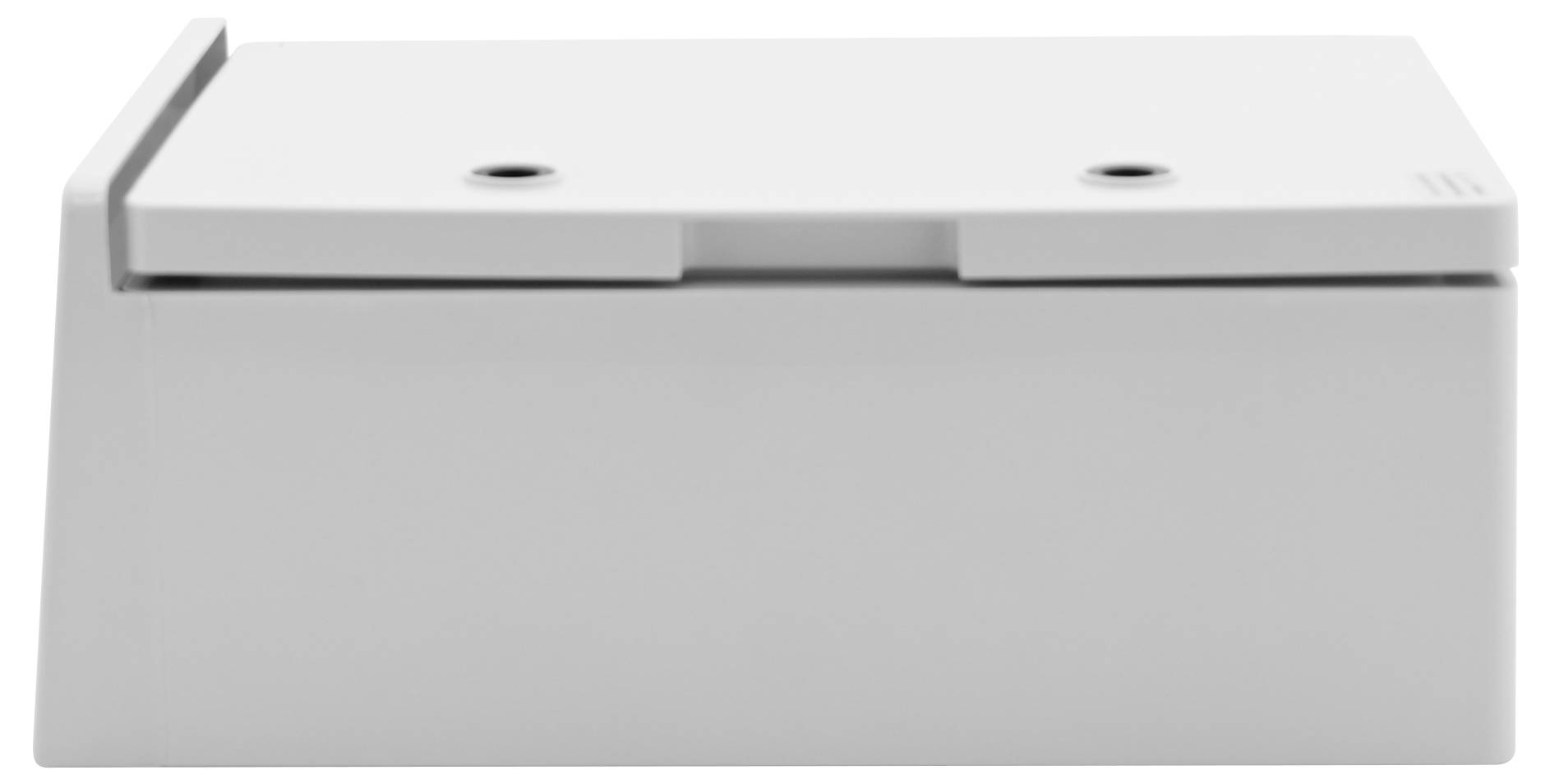

A rectangular, white container with two round openings on top.

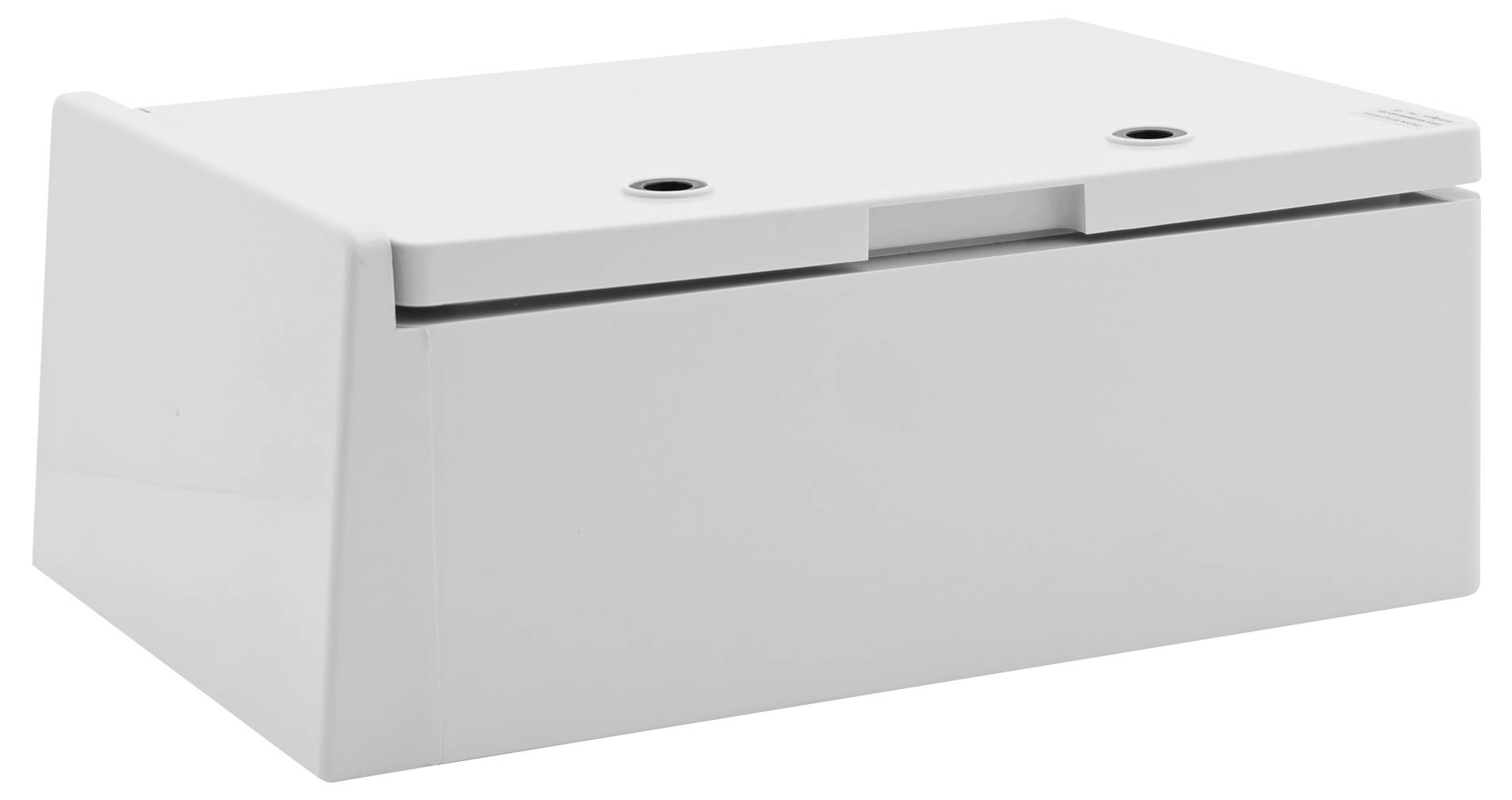

White, rectangular box with two round openings at the top, potentially for technical use. Simple, functional design.

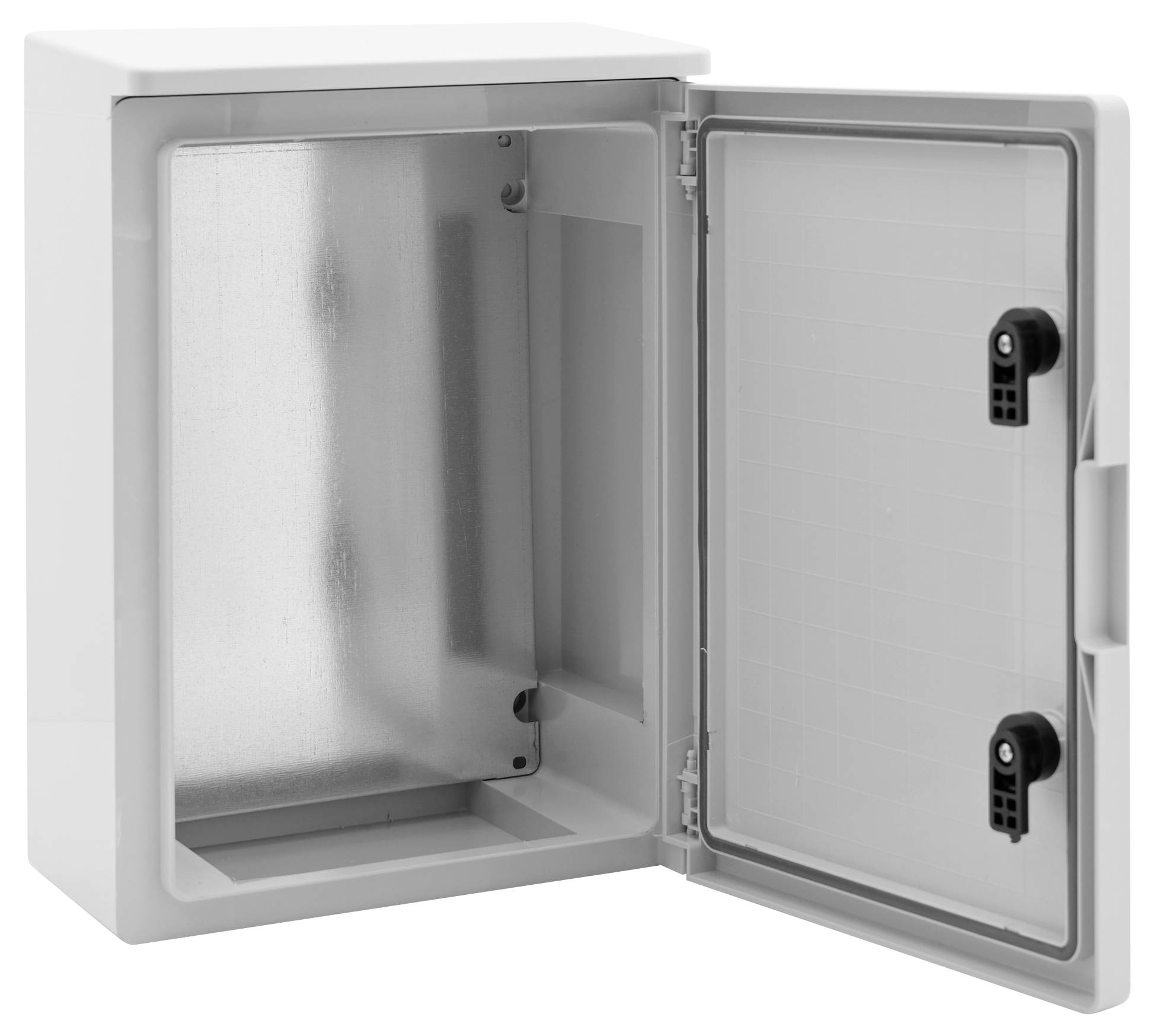

A blank, open white enclosure with a hinged door, suitable for wall mounting. Suitable for electrical or technical installations.

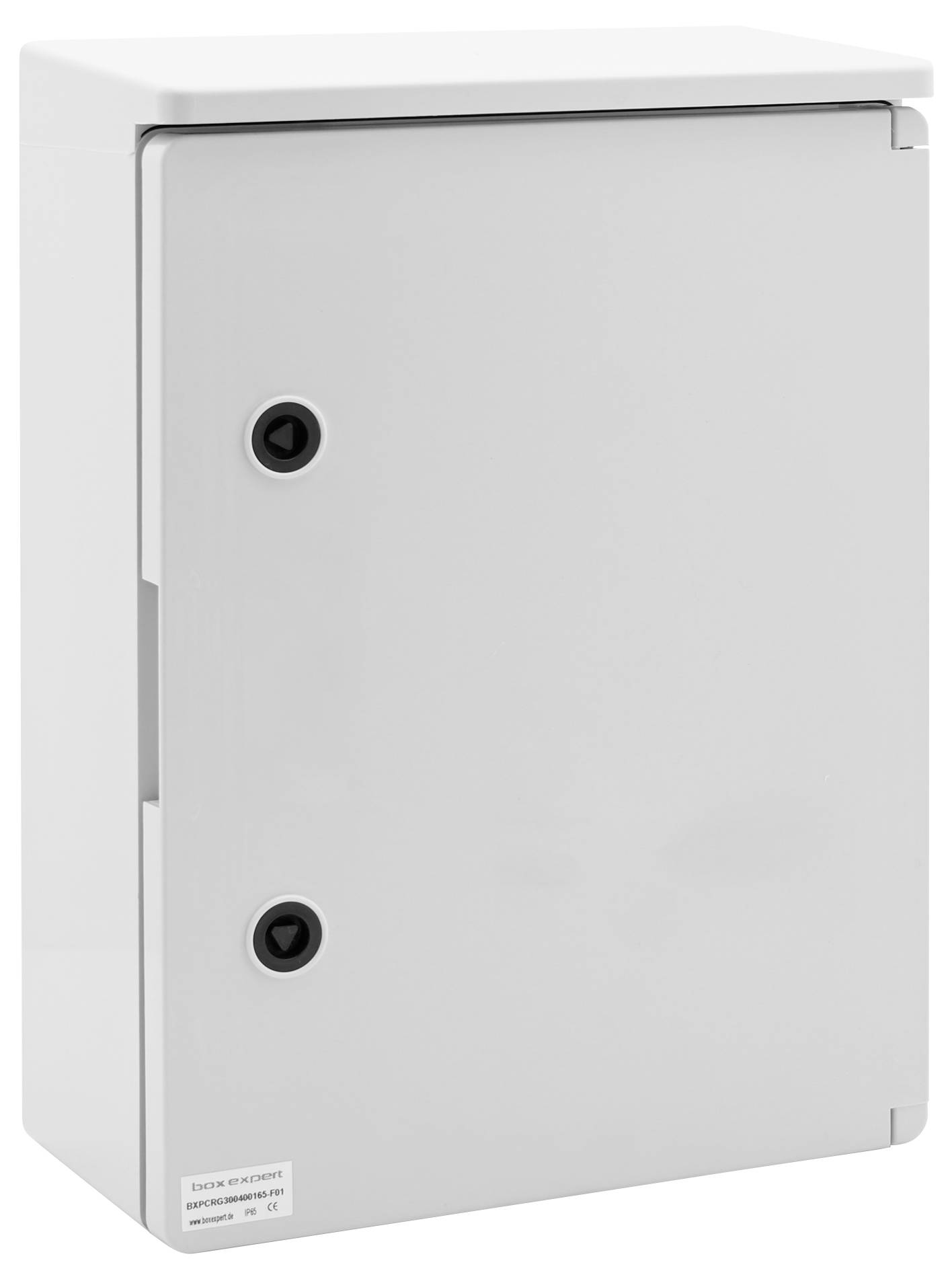

A white, rectangular fuse box with two black buttons on the front, mounted on a wall.

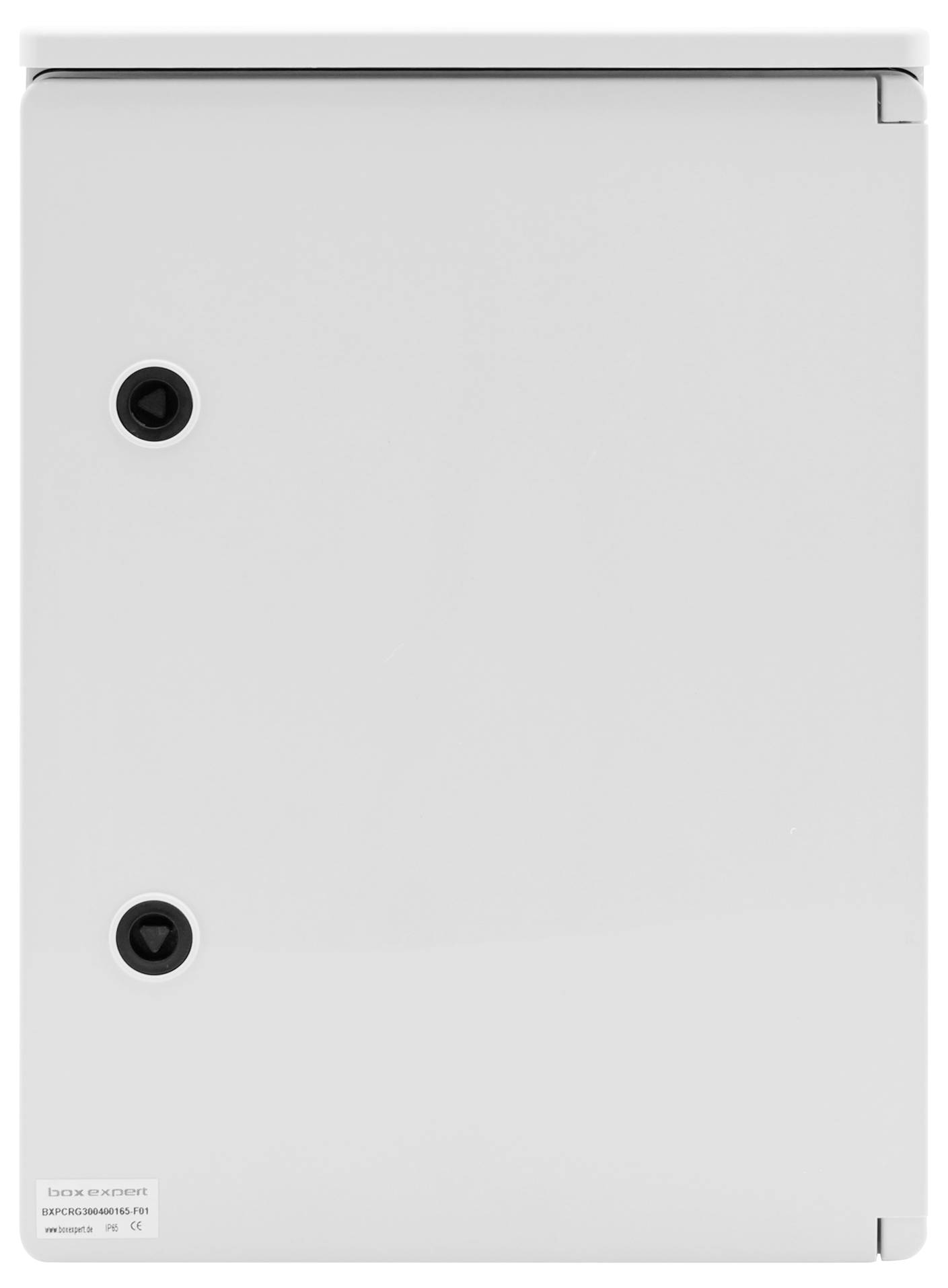

Grey rectangular electrical switch box with two black screws on the front.

1/8

Packaging type

Piece

Product type

Wall-mount enclosure

Material

Acrylonitrile butadiene styrene

IP rating

IP65

Width

400 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Colour RAL 7035
Material: Cover / door: ABS
Material: Lower part: ABS
Lock: Door with hinge on the long side and 2-point triangular locking
Maximum permitted voltage 500 V/DC
Resistance: Alkaline, oils, salts, etc.
Cover - transparent: No.
Inner dimensions (mm): 355 x 253 x 135
Impact strength IK 08

Packaging type: Piece

Product type: Wall-mount enclosure

Features: TA

Material: Acrylonitrile butadiene styrene

: IP65

Factory colour: Light grey

Length: 300 mm

Width: 400 mm

Height: 165 mm

Dimensions: 355 x 253 x 135 mm

Weight: 2.7 kg

Content: 1 pc(s)

Type: Fleet Roof 400300165

Dim: (L x W x H) 300 x 400 x 165 mm

RoHS-compliant: Yes

Manufacturer part #: BXPCRG300400165-F01

Depth: 165 mm

Max. ambient temperature: 60 °C

Min. ambient temperature: -25 °C

Documents & Downloads

Datasheet

Datasheet 3404538 Boxexpert Fleet Roof 400300165 Wall-mount enclosure 300 x 400 x 165 x 165 Acrylonitrile butadiene styrene Light grey 1 p

User & Safety Instructions

User & Safety Instructions 3404538 Boxexpert Fleet Roof 400300165 Wall-mount enclosure 300 x 400 x 165 x 165 Acrylonitrile butadiene styrene Light grey 1 p

Description

The BOXEXPERT Fleet-Roof series is an extension of the Fleet-casing series with an innovative roof, which has been designed especially for outdoor use. Made from robust ABS plastic, it offers protection in the sizes 400x300x165mm to 800x600x260mm. Models up to 700x500x245mm have a 2-point closure, while the largest version offers a 3-point closure for maximum security. The sloping roof effectively prevents water and dirt from accumulating, WAS minimizes maintenance and increases the lifetime of the housing.

This text is machine translated.
