Name: Boxexpert Fleet Roof 500350195 Wall-mount enclosure 350 x 500 x 195 x 195 Acrylonitrile butadiene styrene Light grey 1 p
Brand: Boxexpert
SKU: 3404539

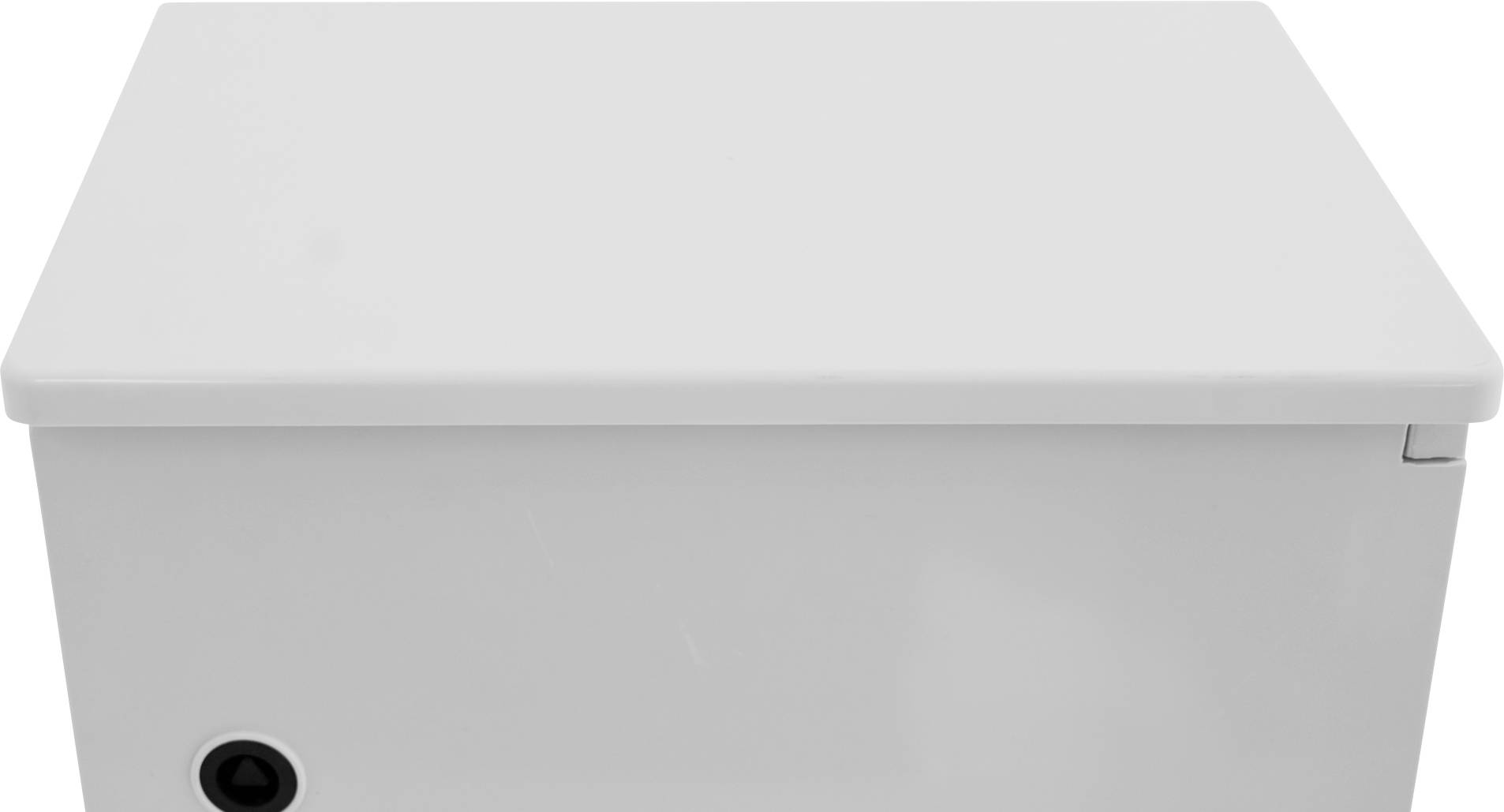

White rectangular box with a smooth surface and rounded corners. A small black hole is located in the bottom left.

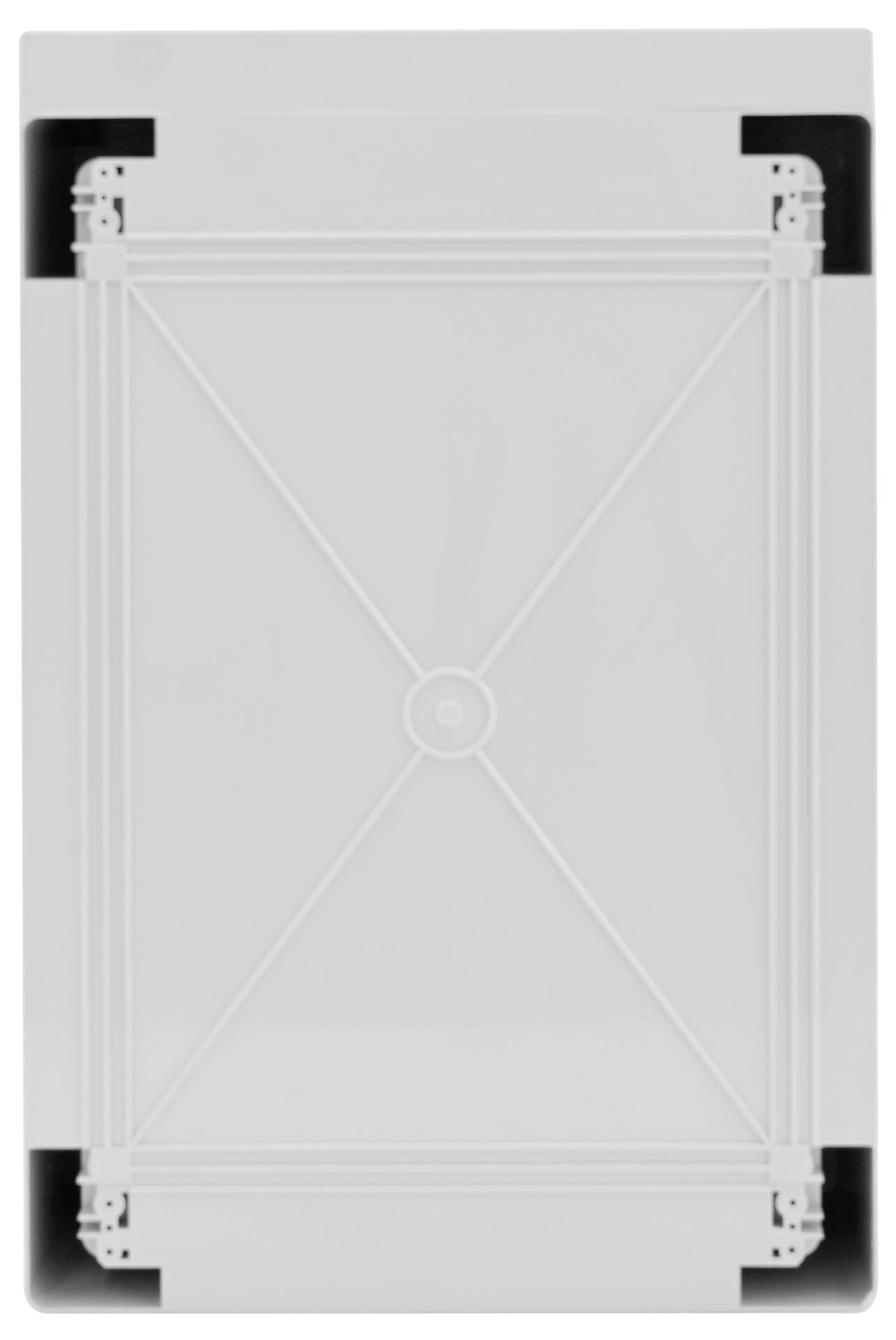

Rectangular frame with diagonal struts and a central circle placed upon it. Background in black and grey.

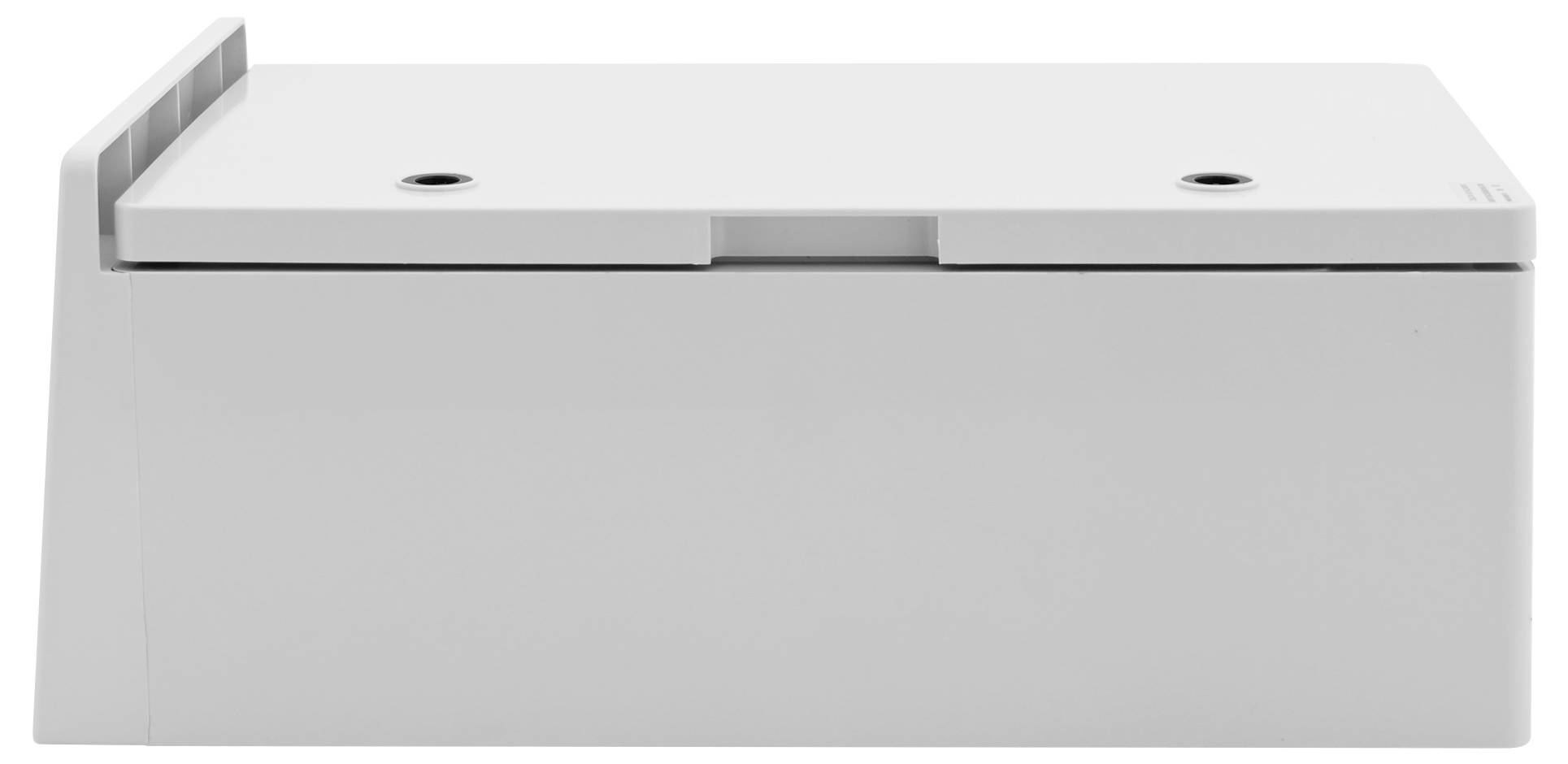

A simple, white rectangular box with rounded edges and two circular holes on the top surface.

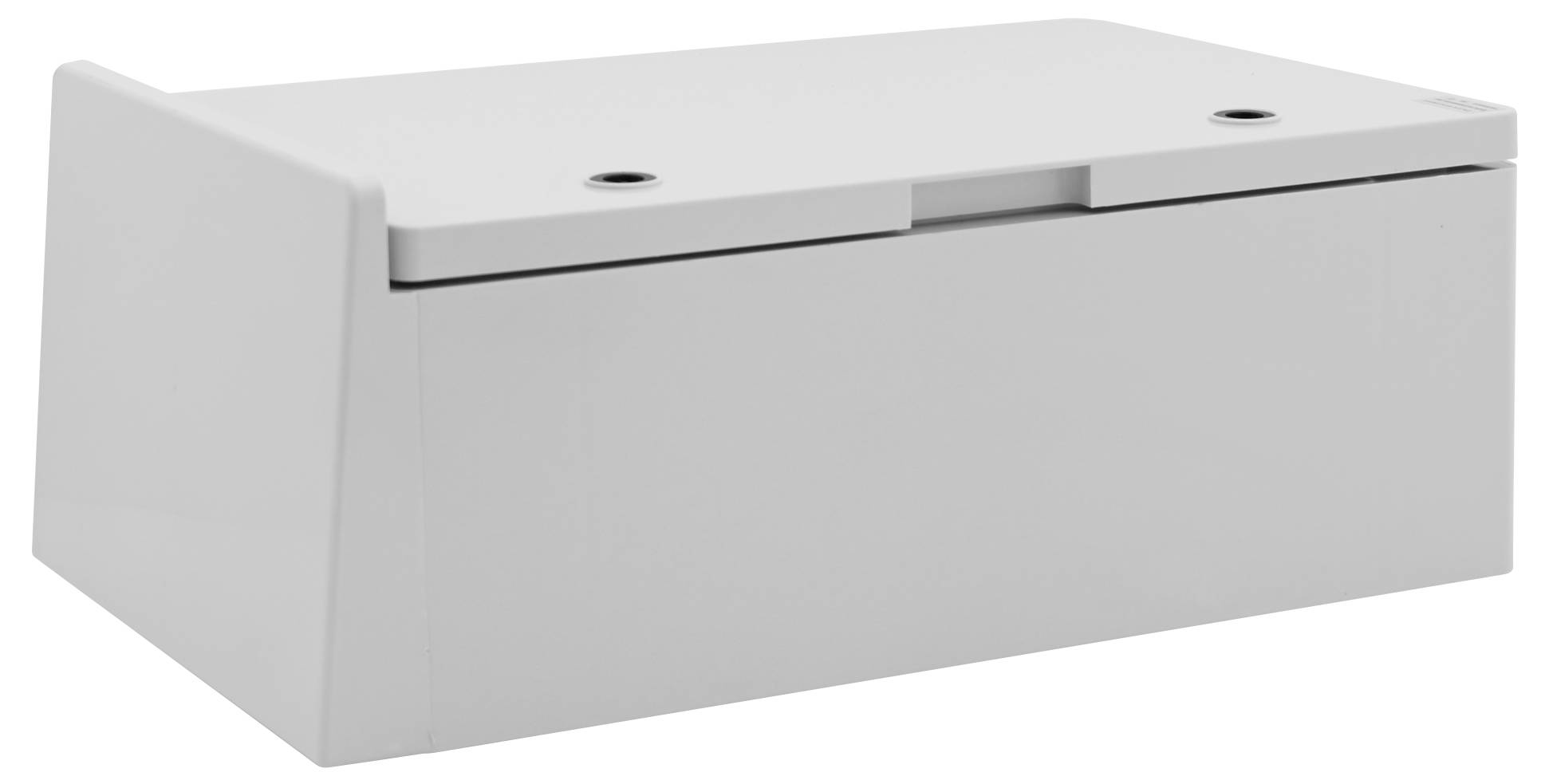

A white rectangular box with rounded corners and a lid.

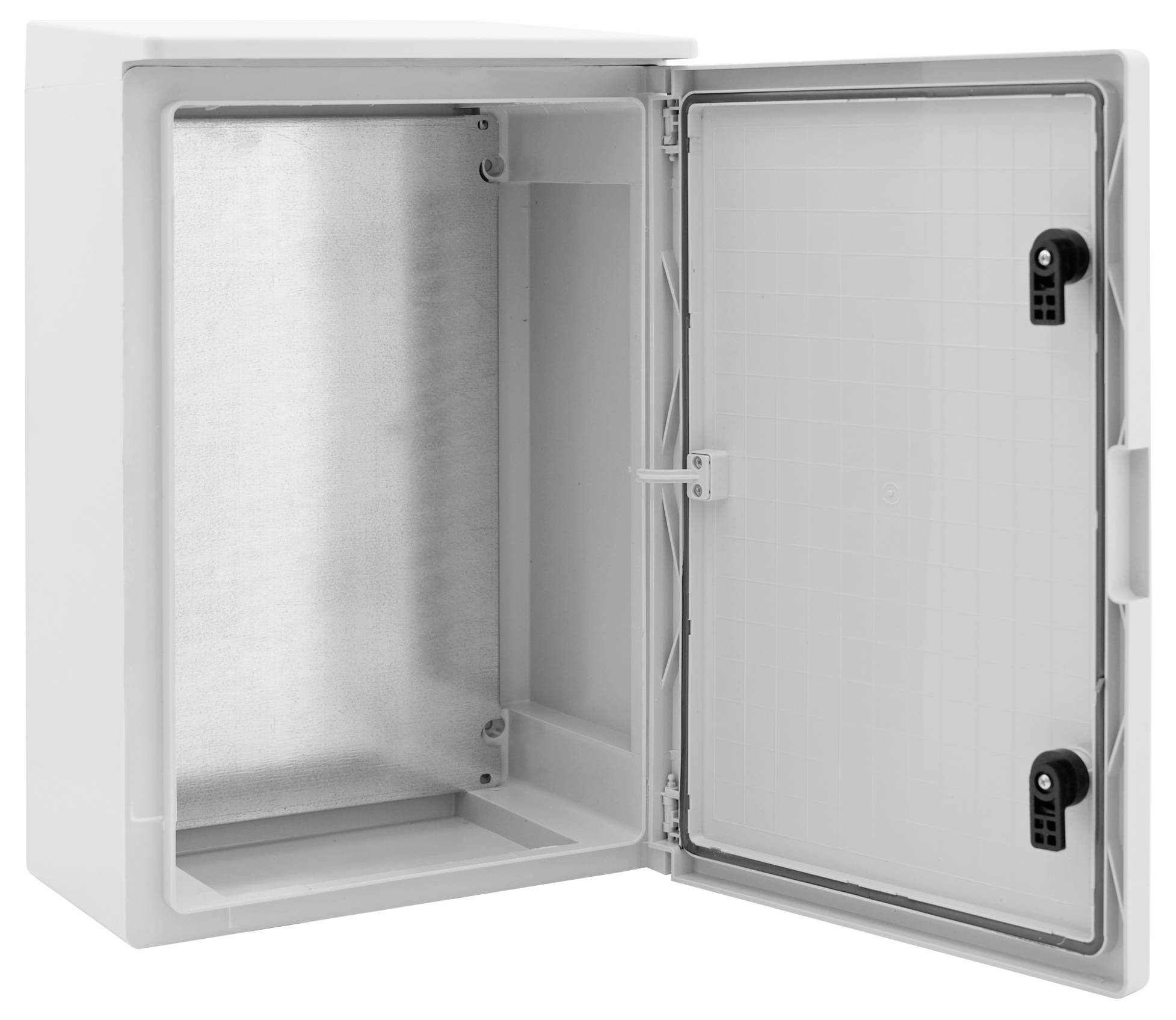

An opened white plastic enclosure with an internal metal lining, suitable for housing electronic devices or cables.

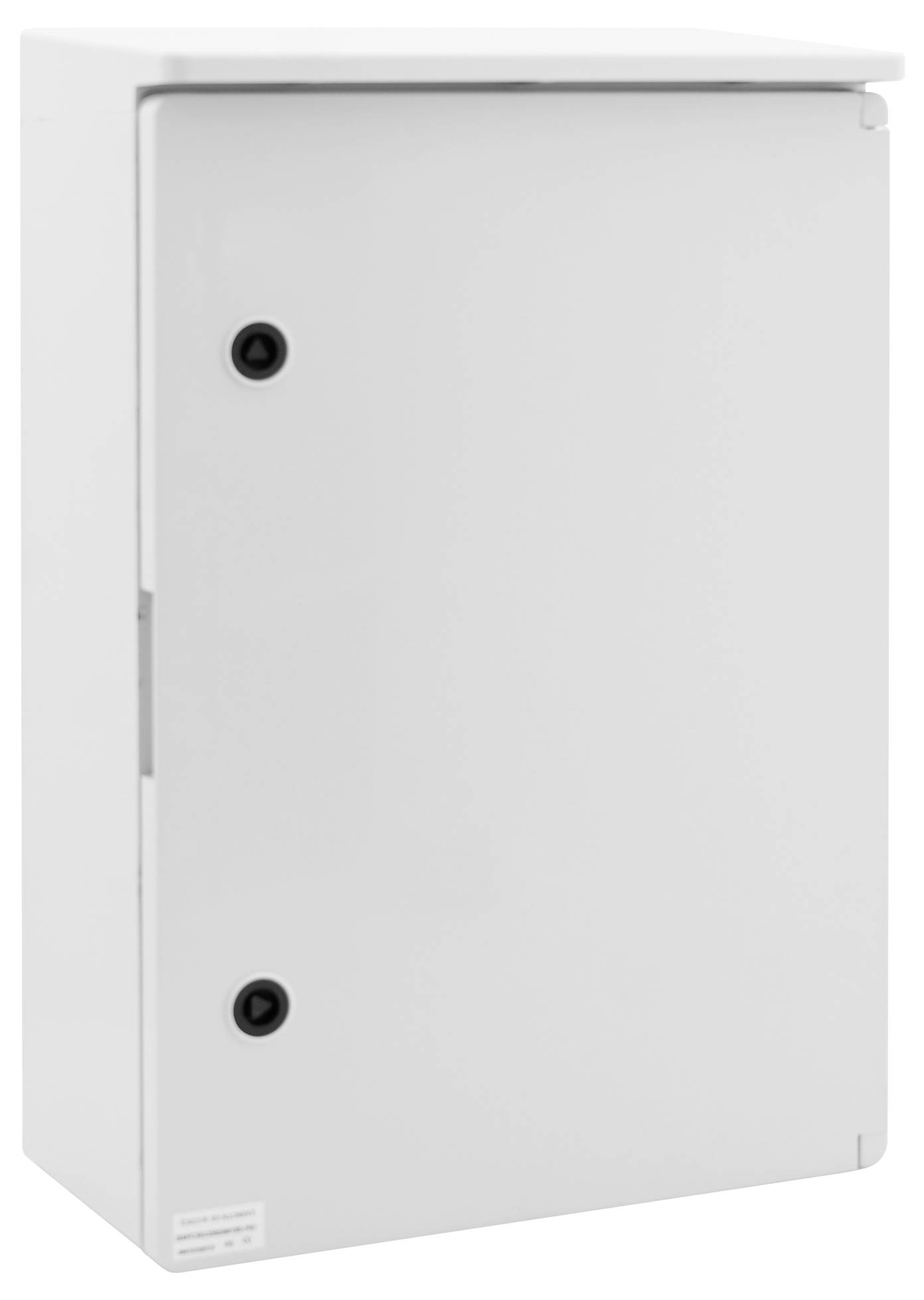

A white, rectangular fuse box with two black locks at the front, viewed from the side.

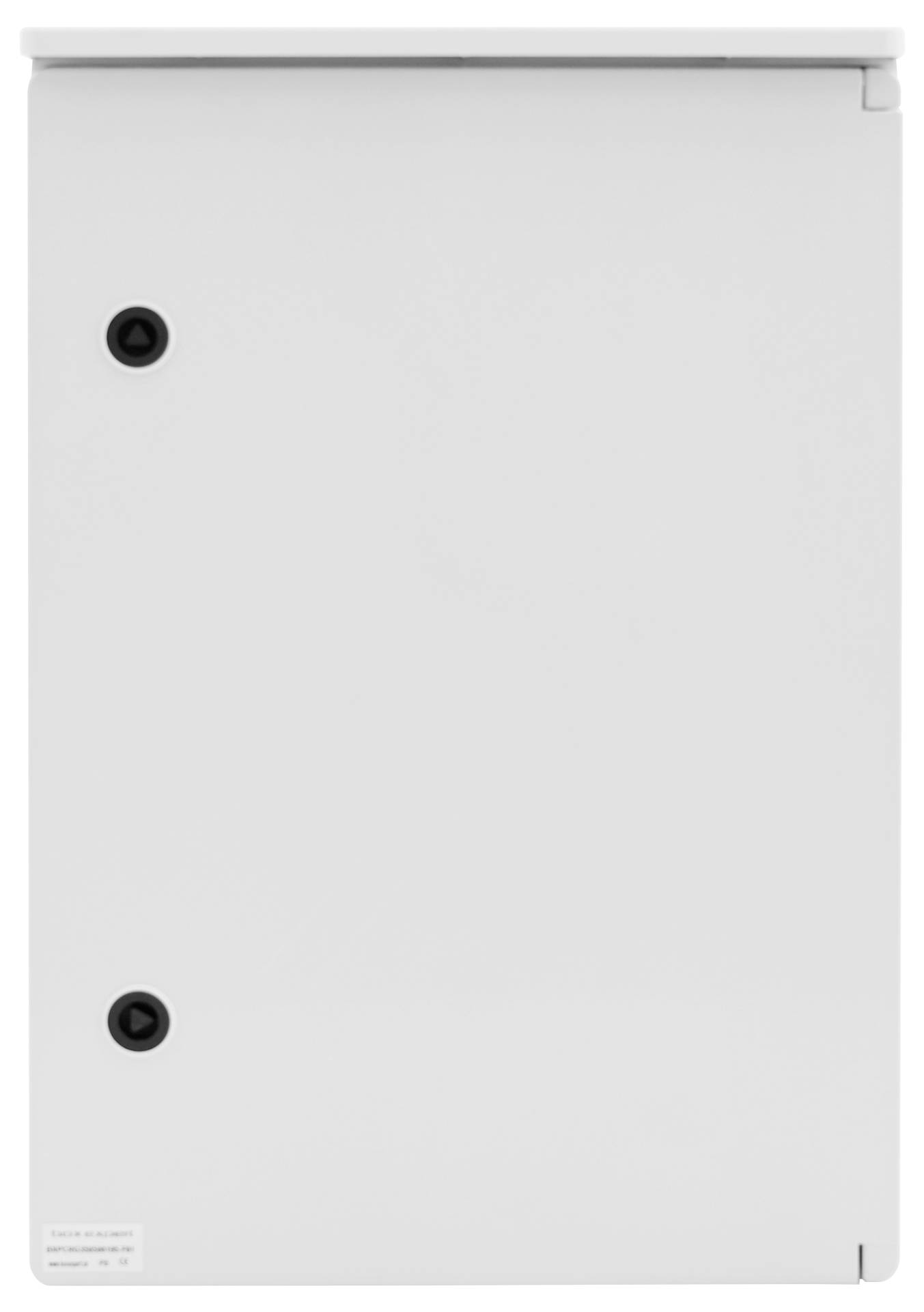

A grey distribution box with two black screws on the front.

1/7

Packaging type

Piece

Product type

Wall-mount enclosure

Material

Acrylonitrile butadiene styrene

IP rating

IP65

Width

500 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Colour RAL 7035
Material: Cover / door: ABS
Material: Lower part: ABS
Lock: Door with hinge on the long side and 2-point triangular locking
Maximum permitted voltage 500 V/DC
Resistance: Alkaline, oils, salts, etc.
Cover - transparent: No.
Inner dimensions (mm): 455 x 300 x 168
Impact strength IK 08

Packaging type: Piece

Product type: Wall-mount enclosure

Features: 2-point lock

Material: Acrylonitrile butadiene styrene

: IP65

Factory colour: Light grey

Length: 350 mm

Width: 500 mm

Height: 195 mm

Dimensions: 500x350x195 mm

Weight: 4.3 kg

Content: 1 pc(s)

Type: Fleet Roof 500350195

Dim: (L x W x H) 350 x 500 x 195 mm

RoHS-compliant: Yes

Manufacturer part #: BXPCRG350500195-F01

Depth: 195 mm

Max. ambient temperature: 60 °C

Min. ambient temperature: -25 °C

Documents & Downloads

Datasheet

Datasheet 3404539 Boxexpert Fleet Roof 500350195 Wall-mount enclosure 350 x 500 x 195 x 195 Acrylonitrile butadiene styrene Light grey 1 p

User & Safety Instructions

User & Safety Instructions 3404539 Boxexpert Fleet Roof 500350195 Wall-mount enclosure 350 x 500 x 195 x 195 Acrylonitrile butadiene styrene Light grey 1 p

Description

The Fleet Roof series from BOXEXPERT combines the tried and tested Fleet casing series with a functional rain roof and is made of durable ABS plastic. Sizes 400x300x165mm, 500x400x175mm, 500x350x195mm, 600x400x200mm, 600x500x220mm, and 700x500x245mm have a secure 2-point closure, while the largest model (800x600x260mm) is equipped with a 3-point closure to meet maximum protection requirements. The rain-roof, especially developed for outdoor use, reliably discharges water and dirt thanks to its slight inclination. This reduces maintenance work, increases the life of the housing and protects effectively against weather influences.

This text is machine translated.
