Name: Boxexpert Fleet Roof 500400175 Wall-mount enclosure 400 x 500 x 175 Acrylonitrile butadiene styrene Light grey 1 pc(s) P
Brand: Boxexpert
SKU: 3404540

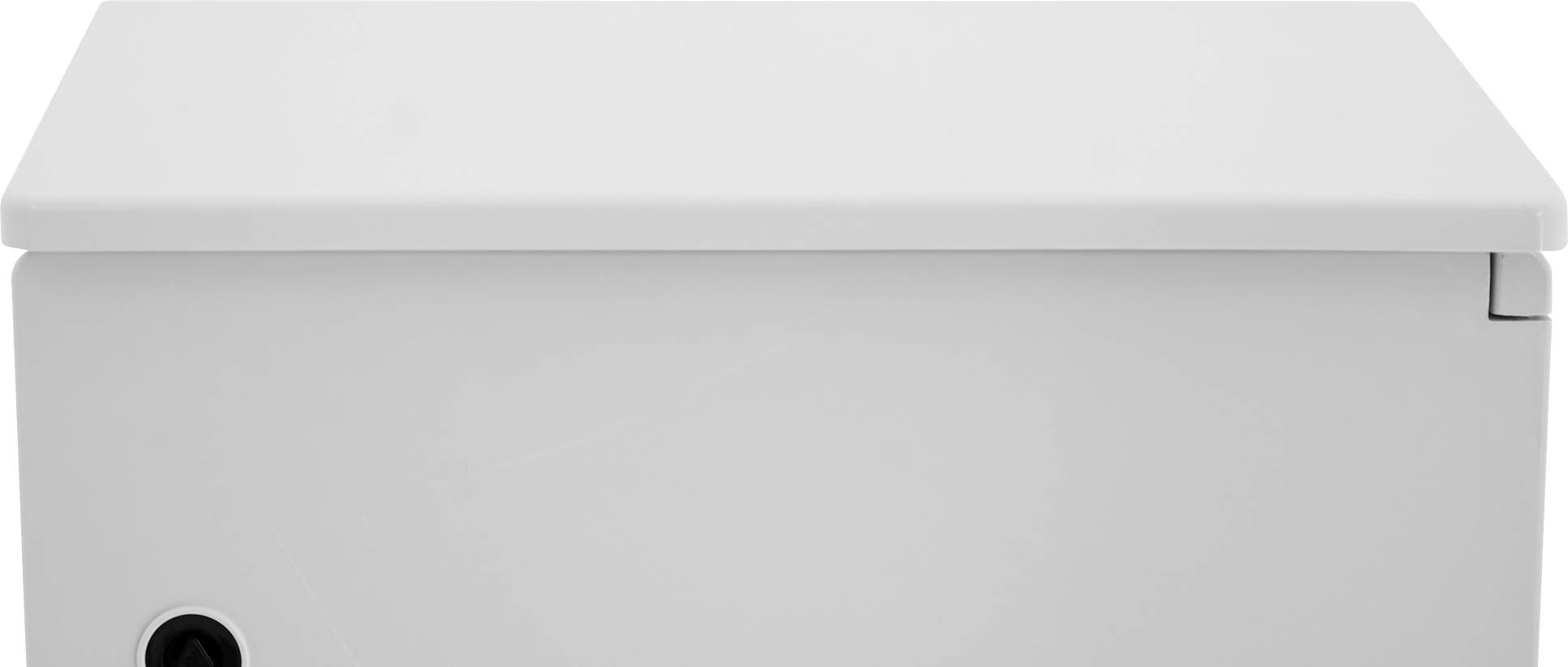

White, rectangular box with a smooth surface and rounded edges. No visible marks or inscriptions.

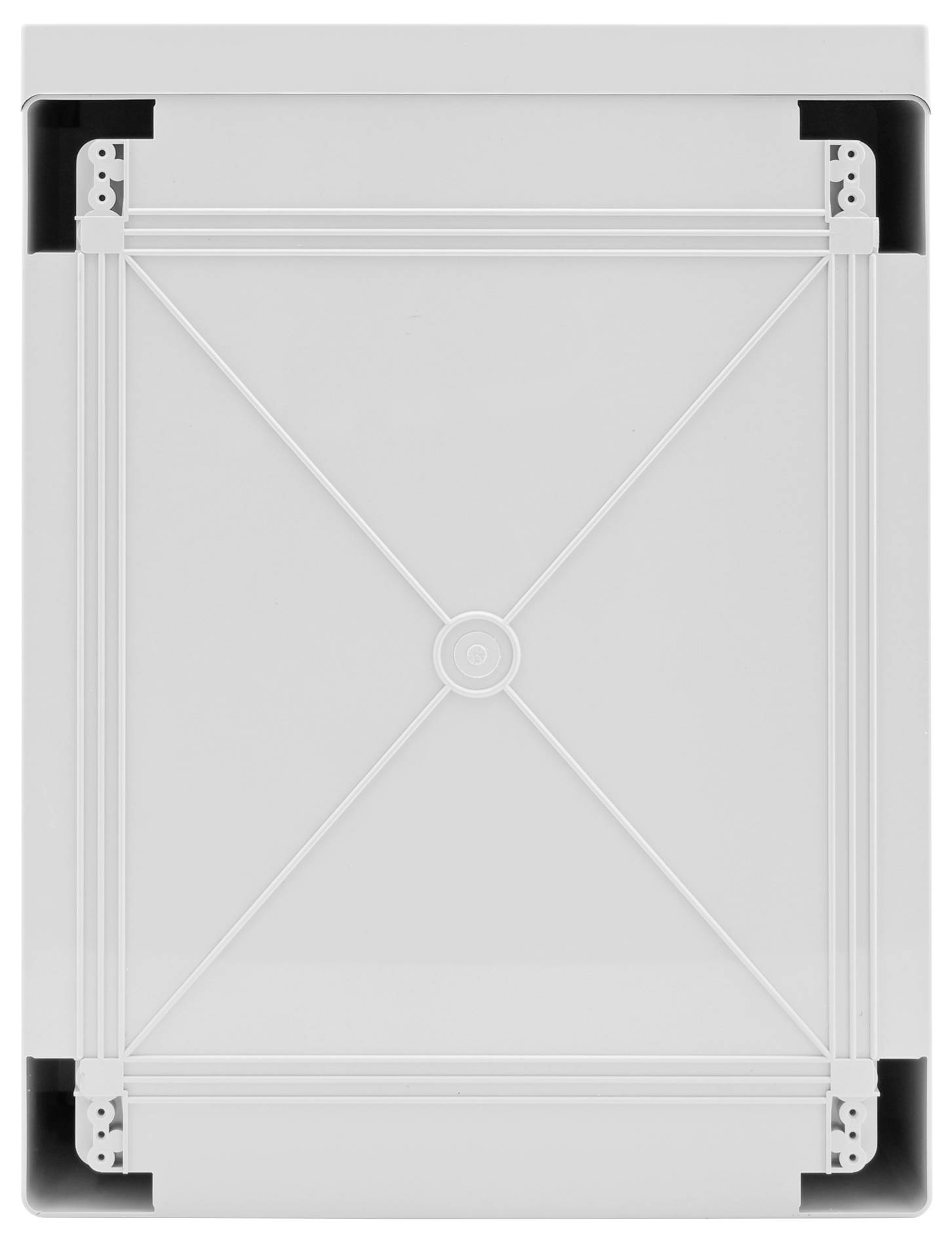

A white plastic lid with reinforcement structure and black corners, likely part of a storage or transport container.

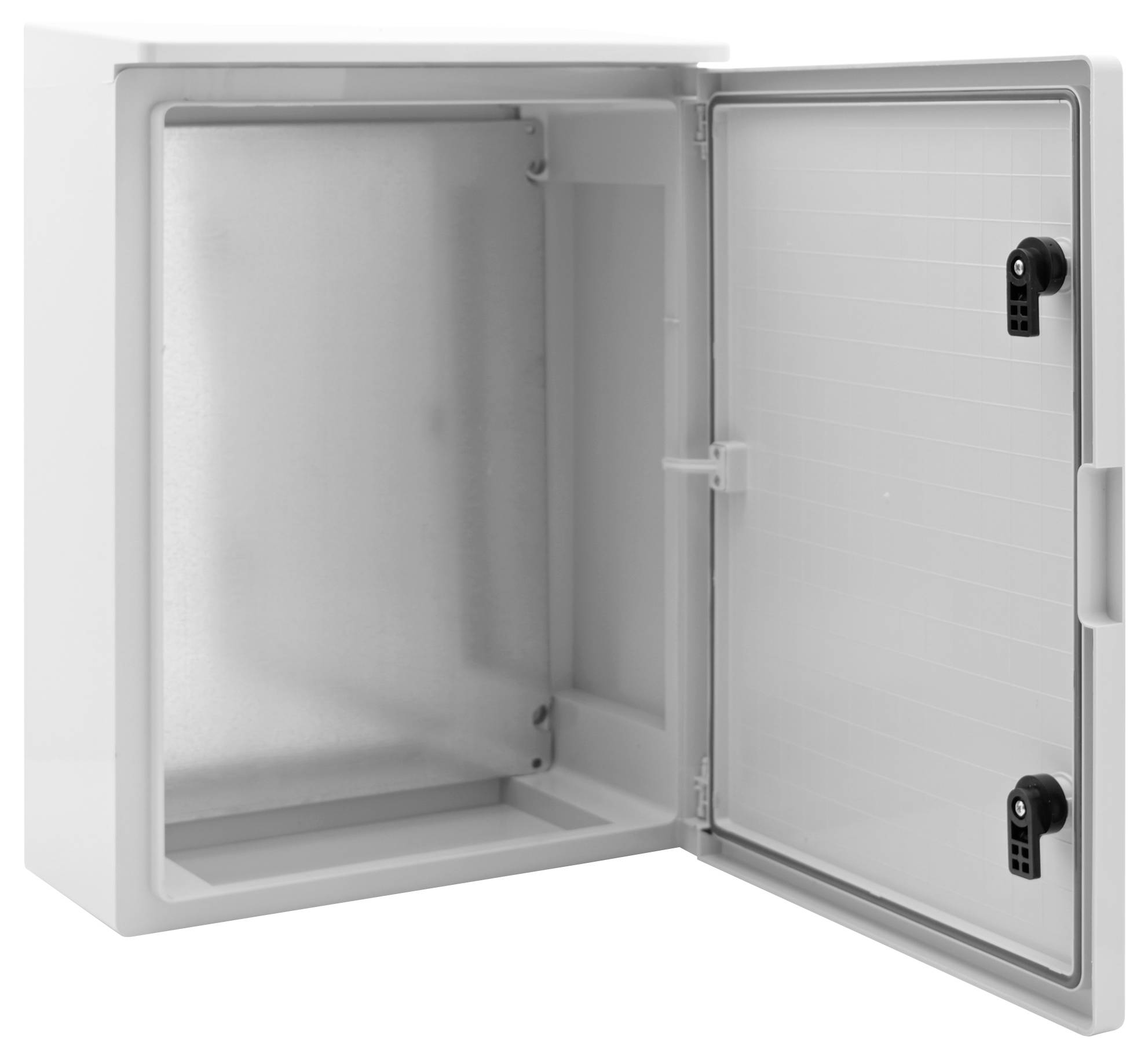

Electrical control cabinet made of grey metal, open with visible back panel and two locks mounted on the inside of the door.

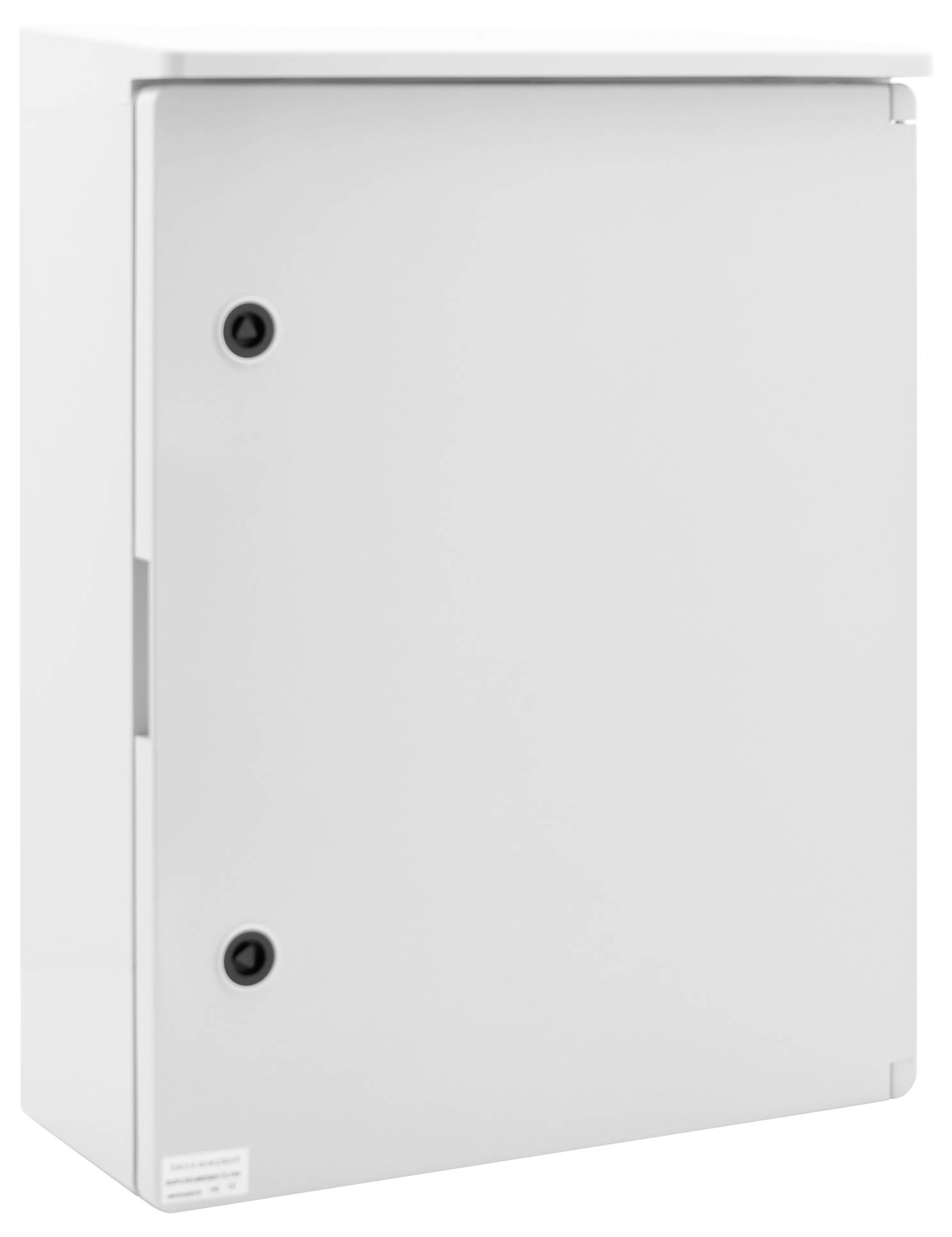

A white, rectangular metal cabinet with two black locks on the front; typical of electrical or communications enclosures.

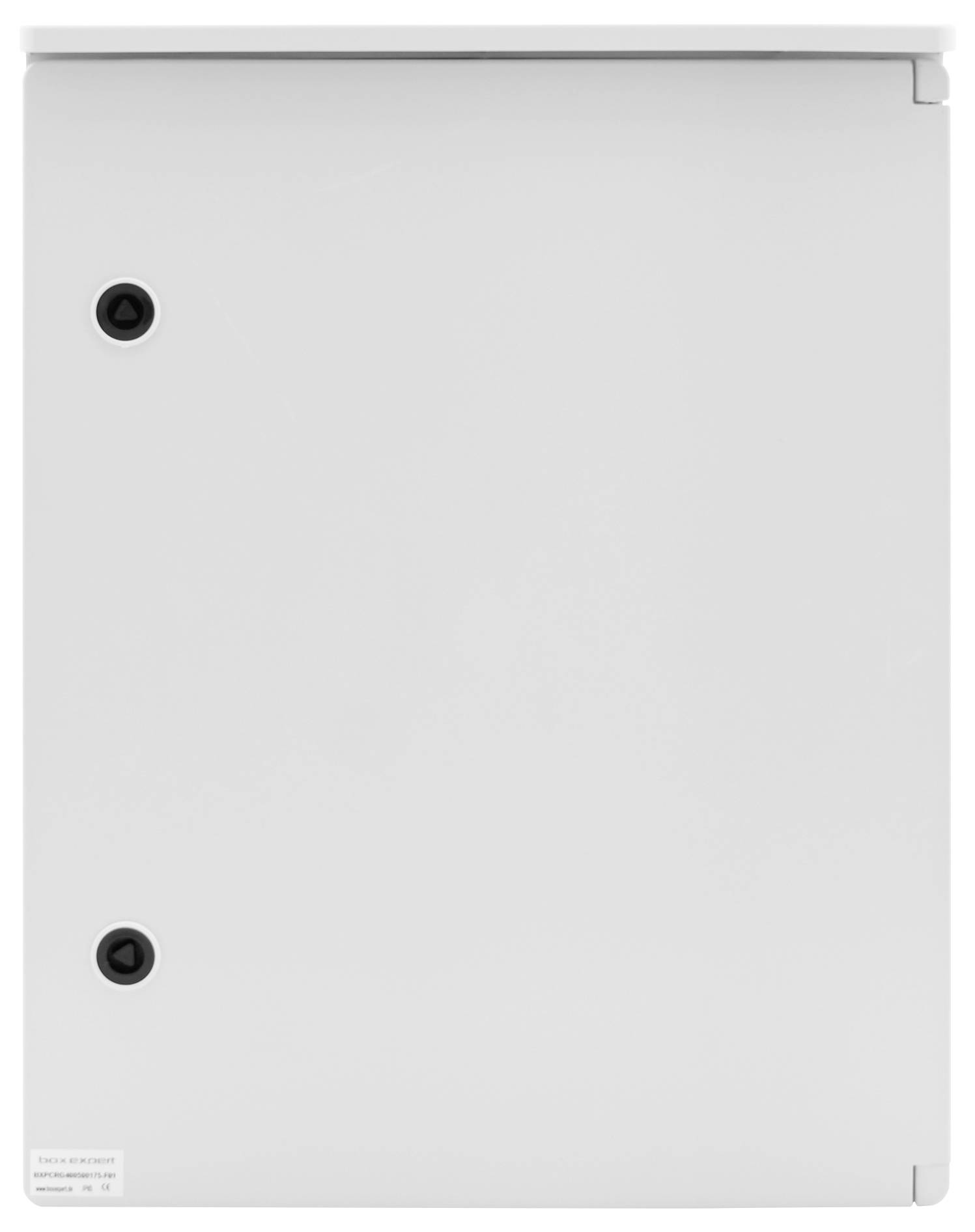

A white, rectangular electronic housing with two small, round black openings on the left side.

1/5

Packaging type

Piece

Product type

Wall-mount enclosure

Material

Acrylonitrile butadiene styrene

IP rating

IP65

Width

500 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Colour RAL 7035
Material: Cover / door: ABS
Material: Lower part: ABS
Lock: Door with hinge on the long side and 2-point triangular locking
Maximum permitted voltage 500 V/DC
Resistance: Alkaline, oils, salts, etc.
Cover - transparent: No.
Inner dimensions (mm): 455 x 355 x 145
Impact strength IK 08

Packaging type: Piece

Product type: Wall-mount enclosure

Features: 2-point lock

Material: Acrylonitrile butadiene styrene

: IP65

Factory colour: Light grey

Length: 400 mm

Width: 500 mm

Height: 175 mm

Weight: 4.1 kg

Content: 1 pc(s)

Type: Fleet Roof 500400175

Dim: (L x W x H) 400 x 500 x 175 mm

RoHS-compliant: Yes

Manufacturer part #: BXPCRG400500175-F01

Max. ambient temperature: 60 °C

Min. ambient temperature: -25 °C

Documents & Downloads

Datasheet

Datasheet 3404540 Boxexpert Fleet Roof 500400175 Wall-mount enclosure 400 x 500 x 175 Acrylonitrile butadiene styrene Light grey 1 pc(s) P

User & Safety Instructions

User & Safety Instructions 3404540 Boxexpert Fleet Roof 500400175 Wall-mount enclosure 400 x 500 x 175 Acrylonitrile butadiene styrene Light grey 1 pc(s) P

Description

With the Fleet-Roof series from BOXEXPERT, the proven Fleet-wall cabinet housing is extended by a practical rain roof. Made from robust ABS plastic, the series is available in sizes 400x300x165mm to 800x600x260mm. The smaller versions have a 2-point lock, while the largest version with a 3-point lock provides even more security. The rain-roof was designed especially for outdoor use and prevents the accumulation of water and dirt through its angled design. This means that the housing remains durable, low-maintenance and optimally protected against weather.

This text is machine translated.
