Name: Boxexpert Fleet Roof 700500245 Wall-mount enclosure 500 x 700 x 245 x 245 Acrylonitrile butadiene styrene Light grey 1 p
Brand: Boxexpert
SKU: 3404543

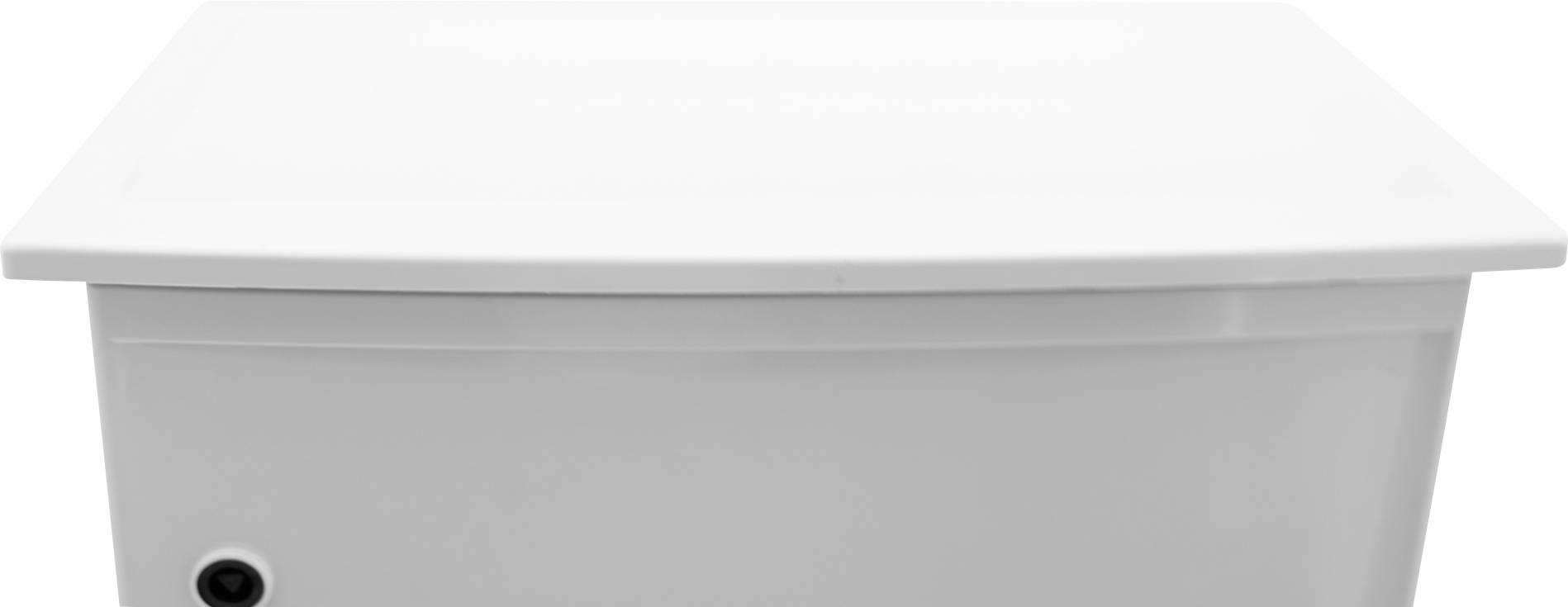

Large white plastic storage box with lid, suitable for storing items. The box is rectangular and has a black handle.

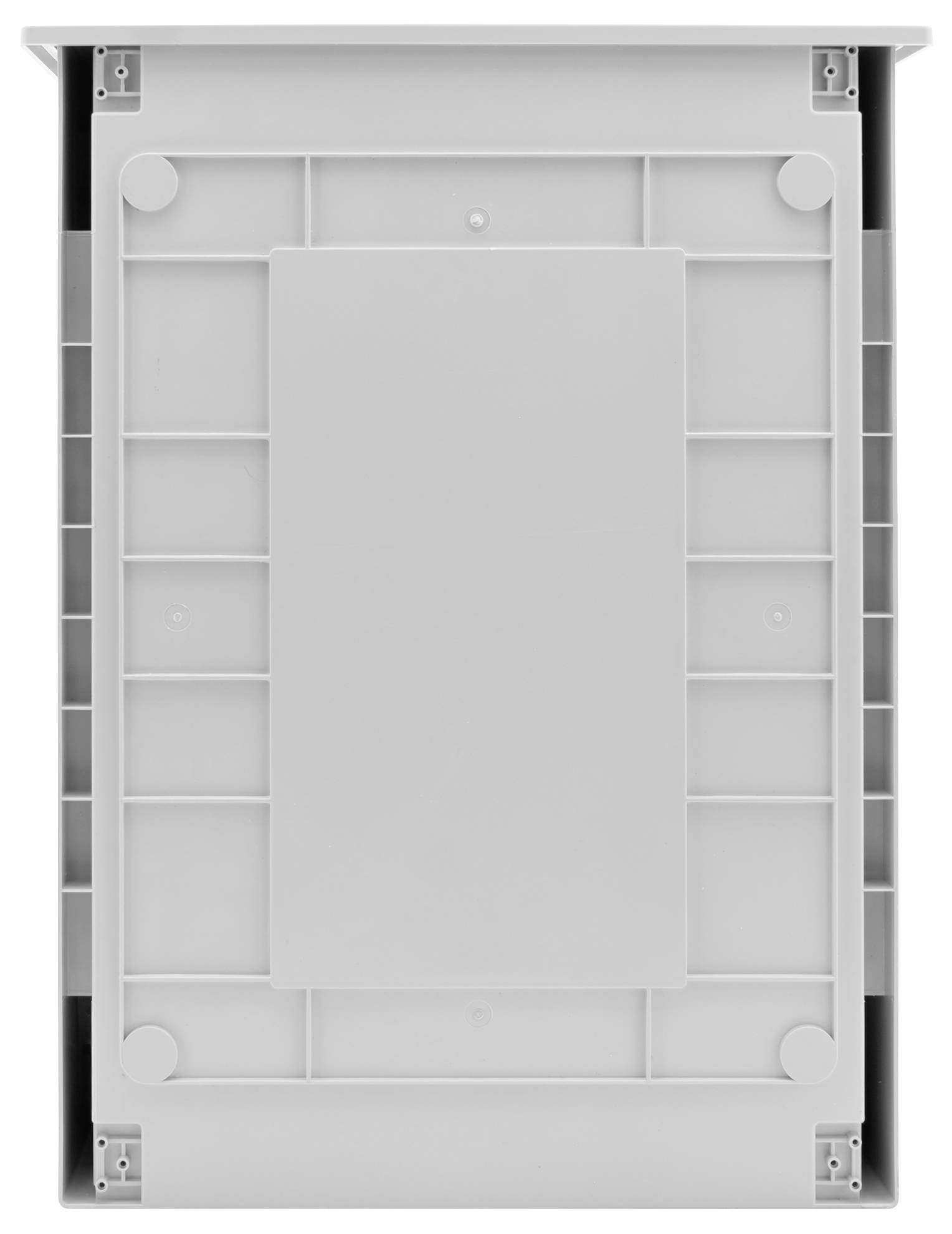

Grey plastic housing in a rectangular shape with rounded corners and a textured pattern on the front surface.

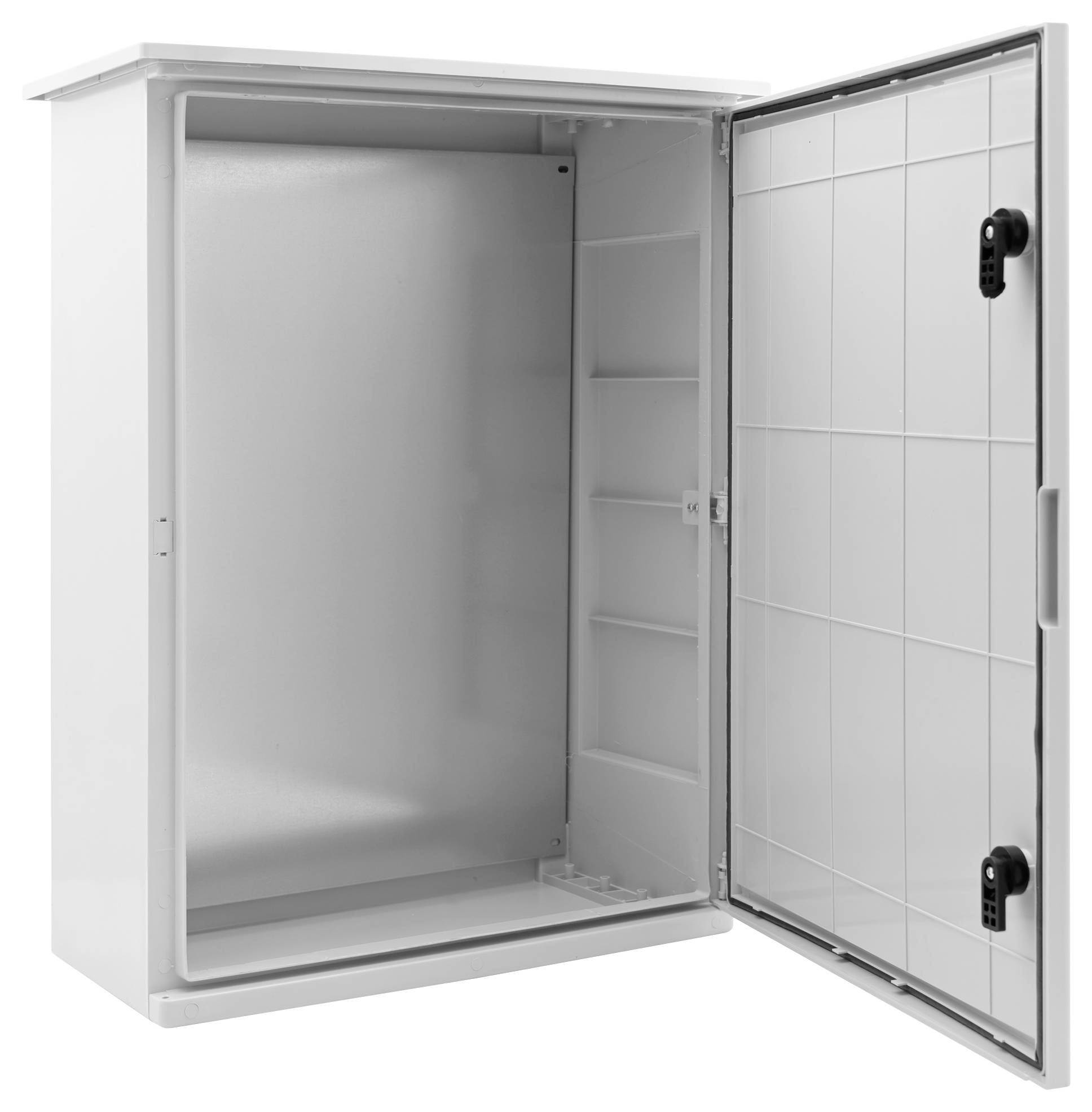

A vacant, open white metal cabinet with its door ajar, shown in an internal view. Suitable for storage or device installation.

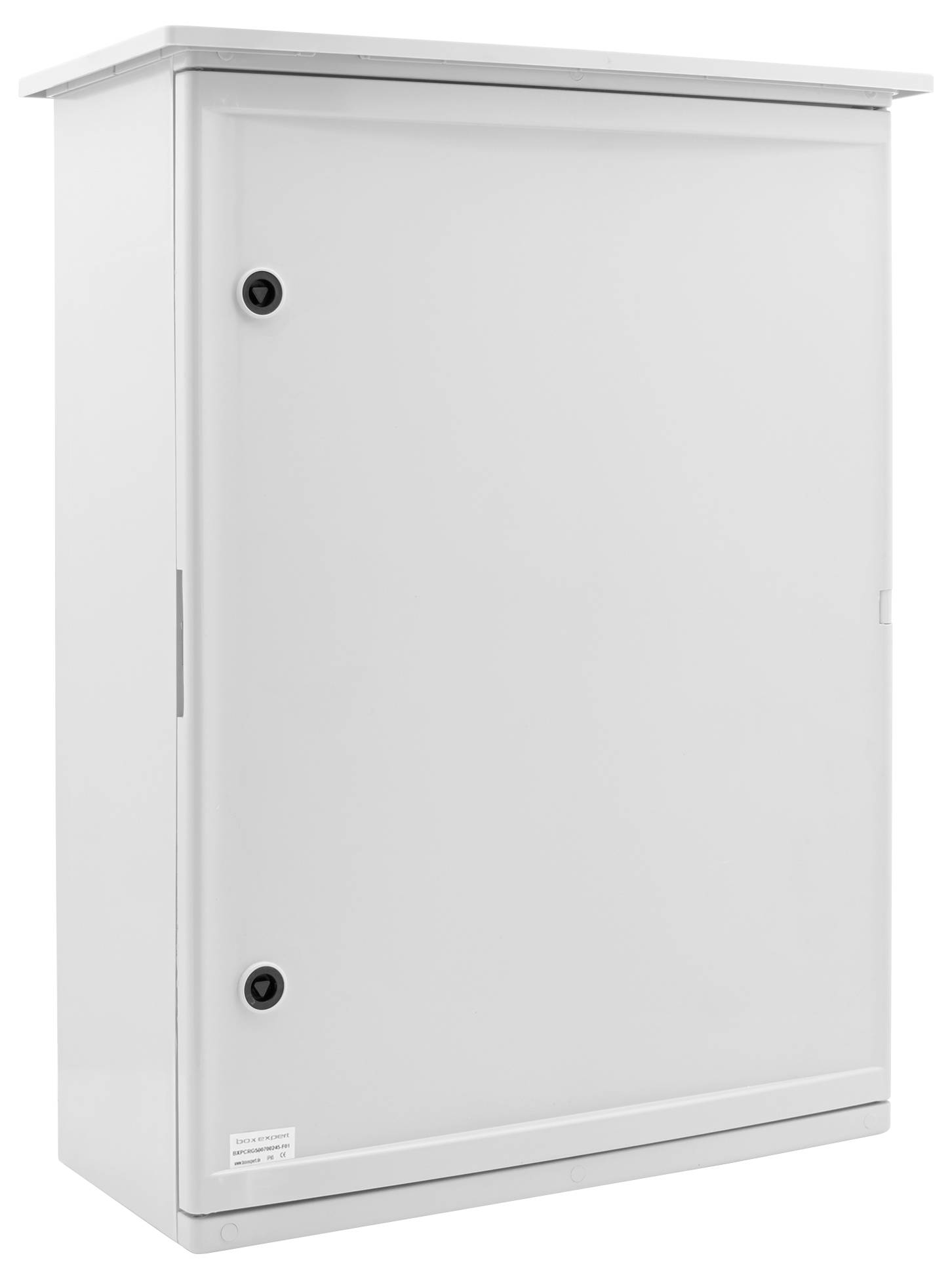

A grey metal box with two black locks, possibly an electrical or technical distribution cabinet.

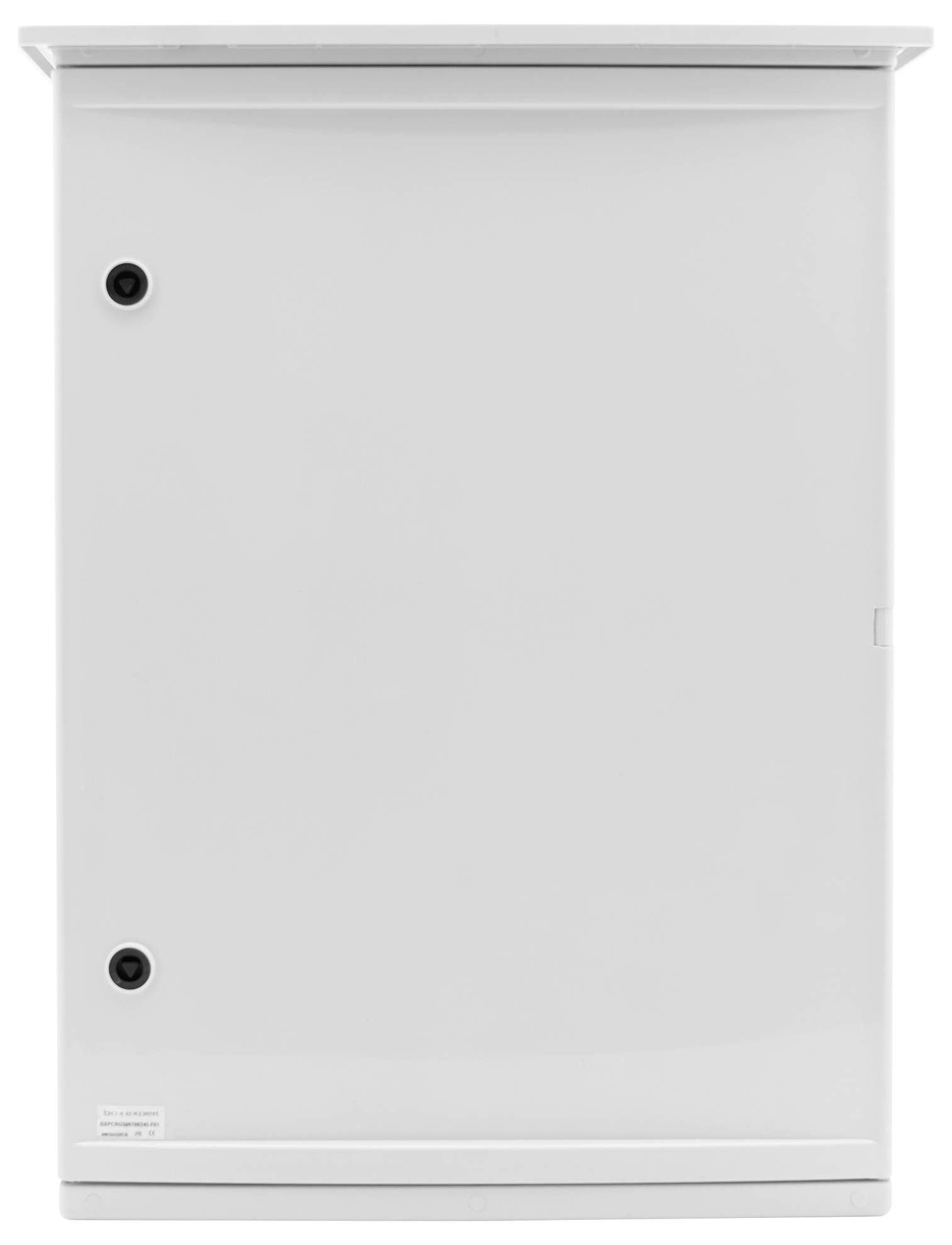

A white, rectangular external distribution box with a smooth surface and two visible screws on the left side.

1/5

Packaging type

Piece

Product type

Wall-mount enclosure

Material

Acrylonitrile butadiene styrene

IP rating

IP65

Width

700 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Colour RAL 7035
Material: Cover / door: ABS
Material: Lower part: ABS
Lock: Door with hinge on the long side and 2-point triangular locking
Maximum permitted voltage 500 V/DC
Resistance: Alkaline, oils, salts, etc.
Cover - transparent: No.
Inner dimensions (mm): 635 x 450 x 205
Impact strength IK 08

Packaging type: Piece

Product type: Wall-mount enclosure

Features: wallmount option

Material: Acrylonitrile butadiene styrene

: IP65

Factory colour: Light grey

Length: 500 mm

Width: 700 mm

Height: 245 mm

Weight: 9.2 kg

Content: 1 pc(s)

Type: Fleet Roof 700500245

Dim: (L x W x H) 500 x 700 x 245 mm

RoHS-compliant: Yes

Manufacturer part #: BXPCRG500700245-F01

Depth: 245 mm

Max. ambient temperature: 60 °C

Min. ambient temperature: -25 °C

Documents & Downloads

Datasheet

Datasheet 3404543 Boxexpert Fleet Roof 700500245 Wall-mount enclosure 500 x 700 x 245 x 245 Acrylonitrile butadiene styrene Light grey 1 p

User & Safety Instructions

User & Safety Instructions 3404543 Boxexpert Fleet Roof 700500245 Wall-mount enclosure 500 x 700 x 245 x 245 Acrylonitrile butadiene styrene Light grey 1 p

Description

With Fleet-Roof, BOXEXPERT presents a cabinet series made of robust ABS plastic, which combines the proven Fleet-casing with a practical rain roof. Available sizes range from 400x300x165mm to 800x600x260mm. While the smaller models are equipped with a 2-point lock, the largest version with a 3-point lock provides even more protection. The rain roof specially designed for outdoor use prevents water and dirt from accumulating due to its inclination, WAS makes maintenance easier and extends the life of the housing.

This text is machine translated.
