Name: Boxexpert Treva grau 250250150 Wall-mount enclosure 250 x 250 x 150 Steel plate Light grey 1 pc(s)
Brand: Boxexpert
SKU: 3404546

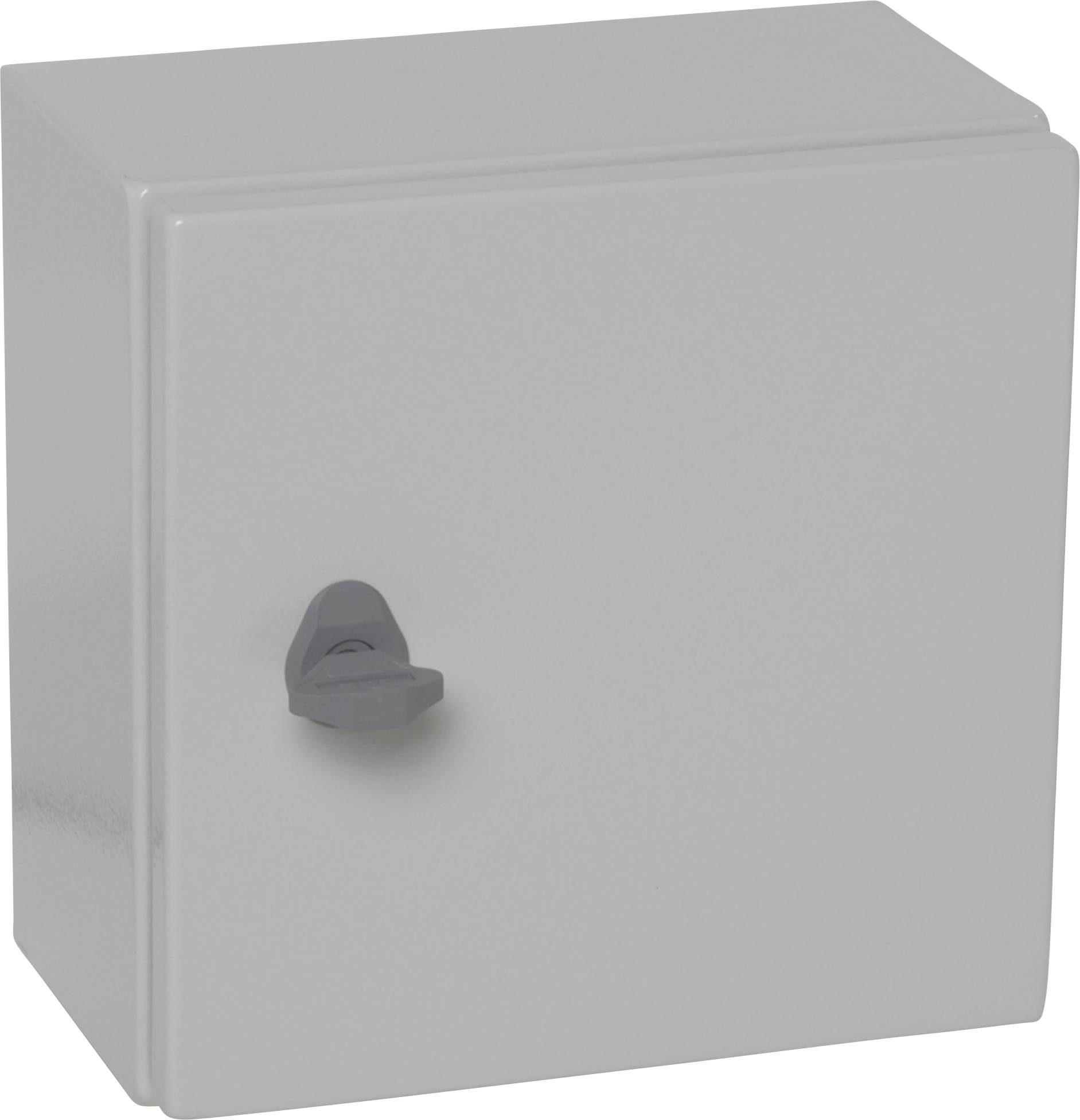

Small metal box with a small grey handle on the front.

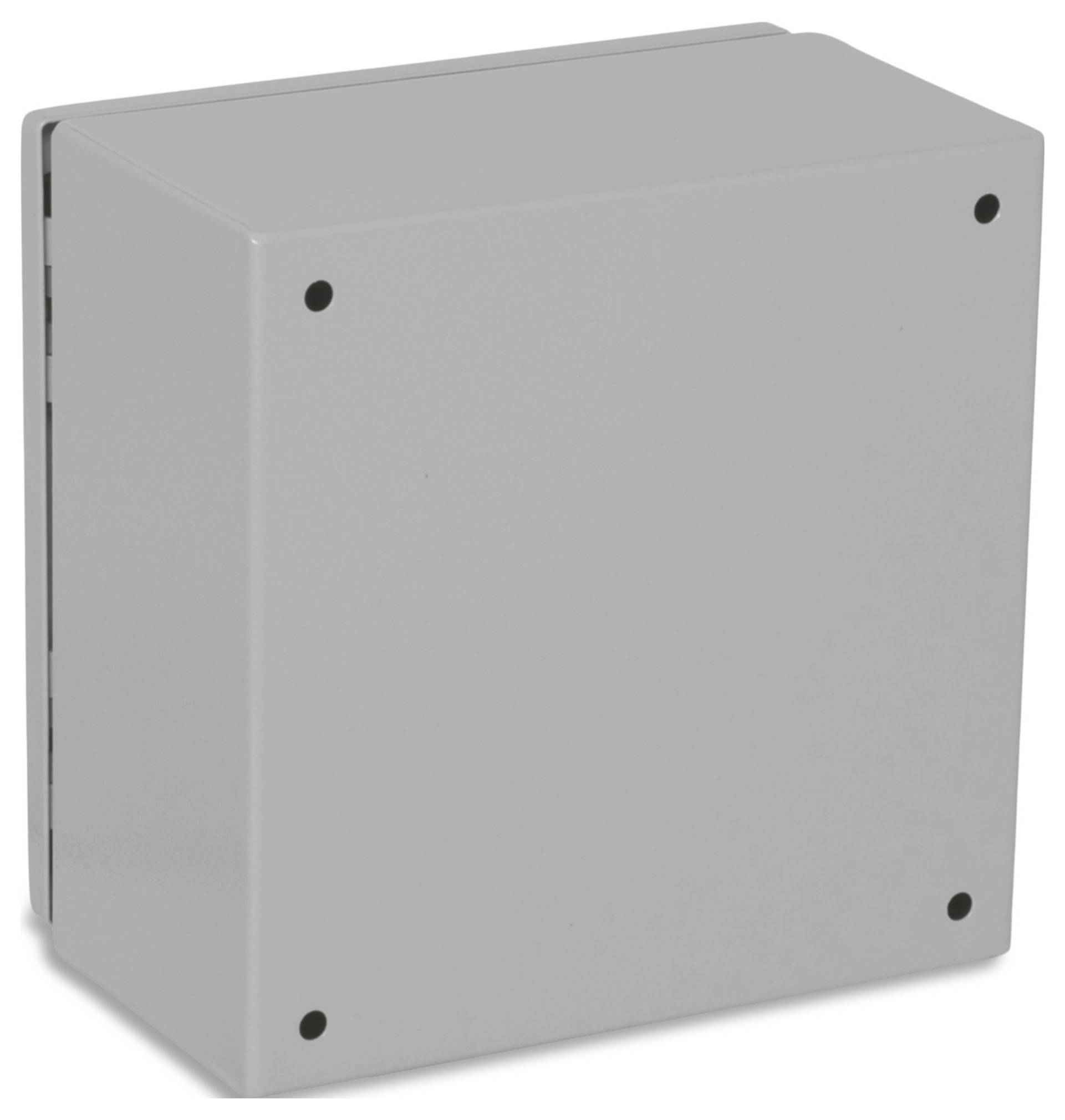

Grey, rectangular enclosure with four visible screws at the corners, used as a cover or protection for electrical connections.

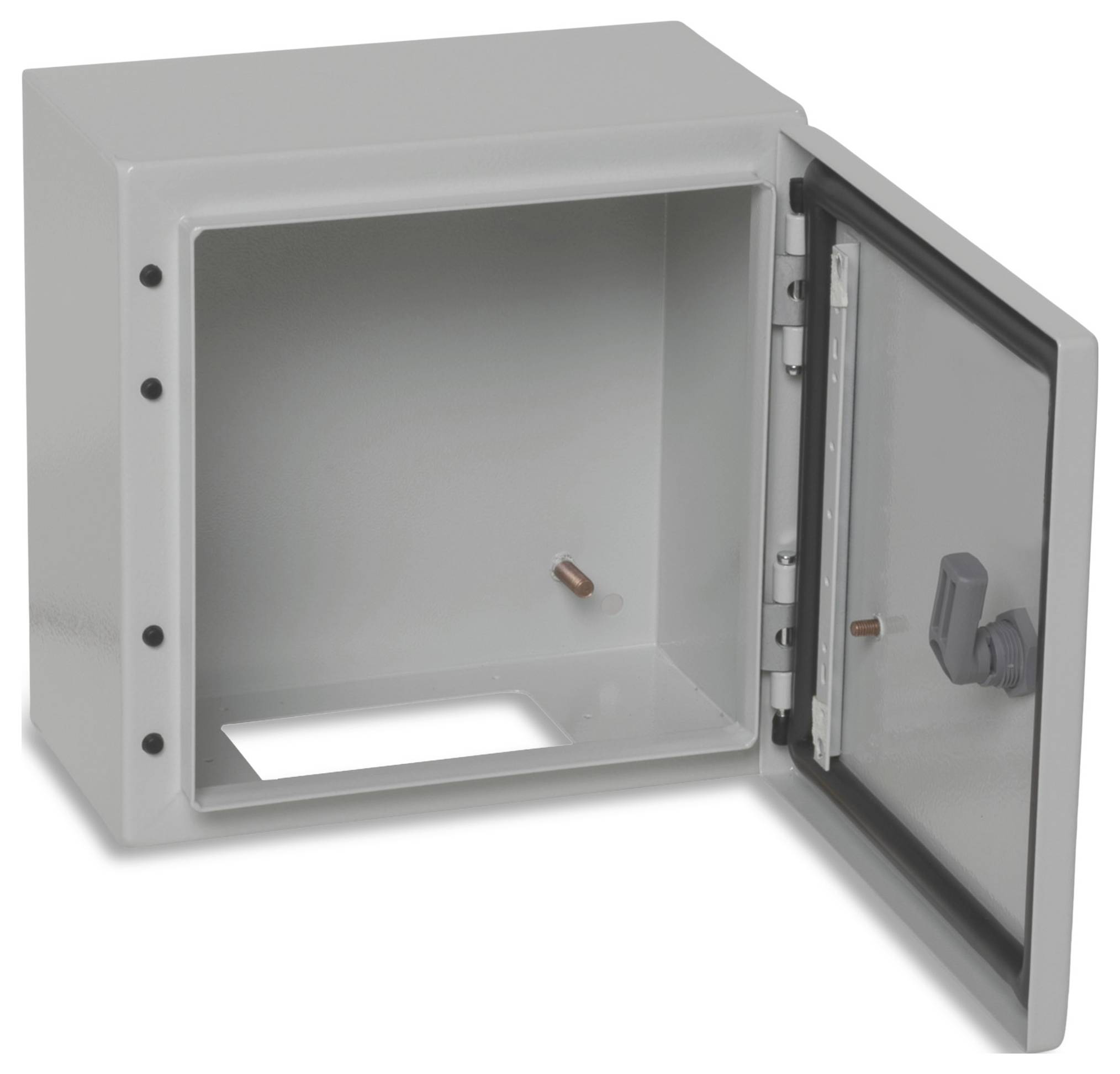

An open grey metal cabinet with a hinged door that swings to the right. The internal storage space is empty.

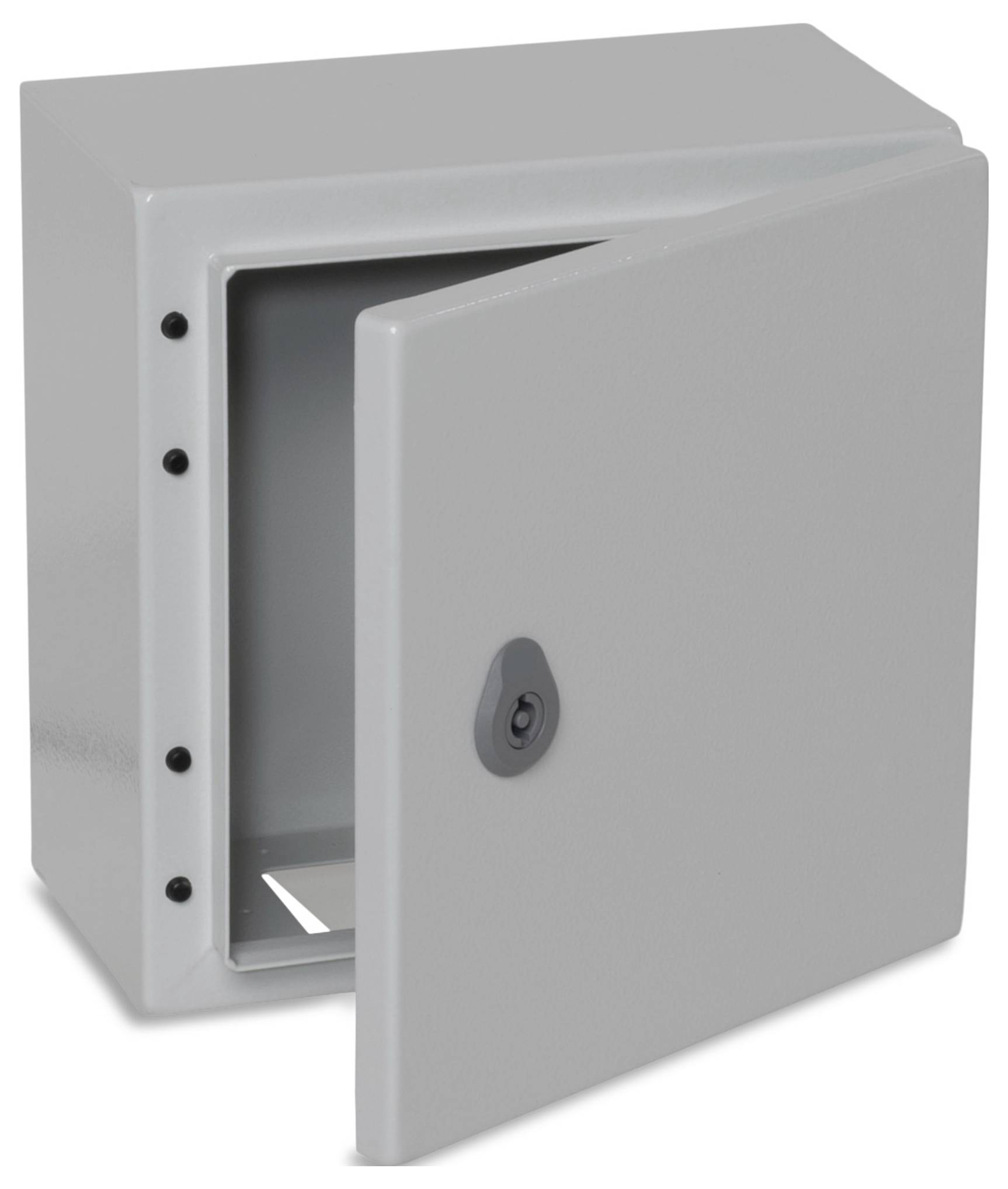

Grey wall safe with an open door, showing an empty interior. Ideal for securely storing valuables.

1/4

Product type

Wall-mount enclosure

Material

Steel plate

IP rating

IP66

Width

250 mm

Height

150 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Colour RAL 7035
Coating: Polyester paint coating
Material: Cover / door: Steel plate
Material: Lower part: Steel sheet
5 mm double bit lock, 1-point lock
Resistance: Alkaline, oils, salts, etc.
Cover - transparent: No.
Inner dimensions (mm): 204 x 204 x 129
UL approval: No.
Impact strength: IK10

Product type: Wall-mount enclosure

Material: Steel plate

: IP66

Factory colour: Light grey

Length: 250 mm

Width: 250 mm

Height: 150 mm

Weight: 4.1 kg

Content: 1 pc(s)

Type: Treva grau 250250150

Dim: (L x W x H) 250 x 250 x 150 mm

RoHS-compliant: Yes

Manufacturer part #: BXPIMB252515-T01

Halogen-free: Yes

Max. ambient temperature: 60 °C

Min. ambient temperature: -25 °C

Documents & Downloads

Datasheet

Datasheet 3404546 Boxexpert Treva grau 250250150 Wall-mount enclosure 250 x 250 x 150 Steel plate Light grey 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3404546 Boxexpert Treva grau 250250150 Wall-mount enclosure 250 x 250 x 150 Steel plate Light grey 1 pc(s)

Description

The Treva series from BOXEXPERT includes high-quality, yet cost-effective steel cabinet enclosure. Thanks to a robust polyester coating with UV protection, Ideal is suitable for outdoor use. In addition, pre-punched holes simplify the mounting, while a smooth mounting plate enables the mounting of components. The flexible design allows adaptation to individual installation requirements. The areas of application range from energy distribution to the conversion of electrical energy in the industry.
