Name: Boxexpert Treva grau 300250200 Wall-mount enclosure 250 x 300 x 200 Steel plate Light grey 1 pc(s)
Brand: Boxexpert
SKU: 3404549

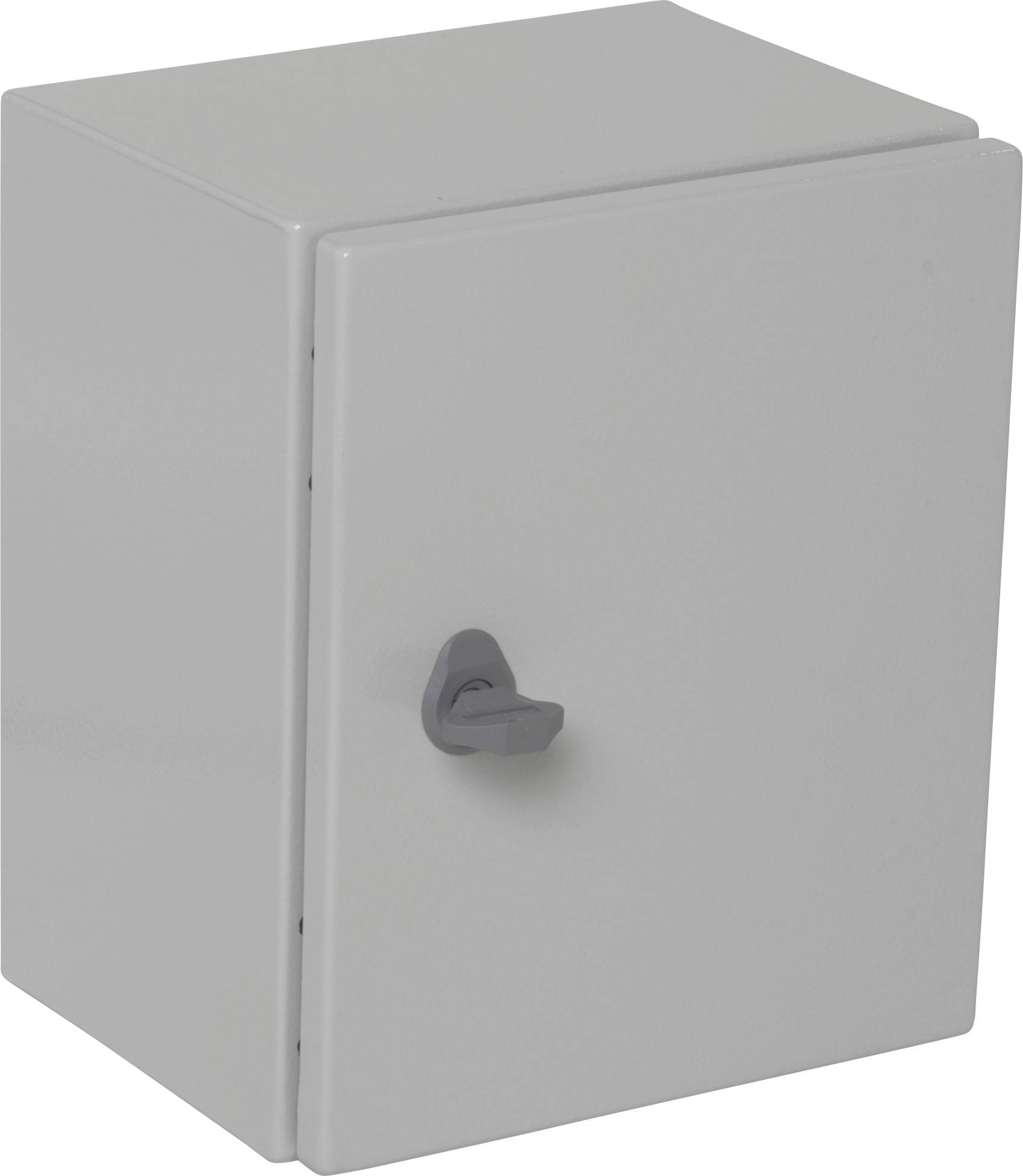

A grey metal cabinet with a handle on the front.

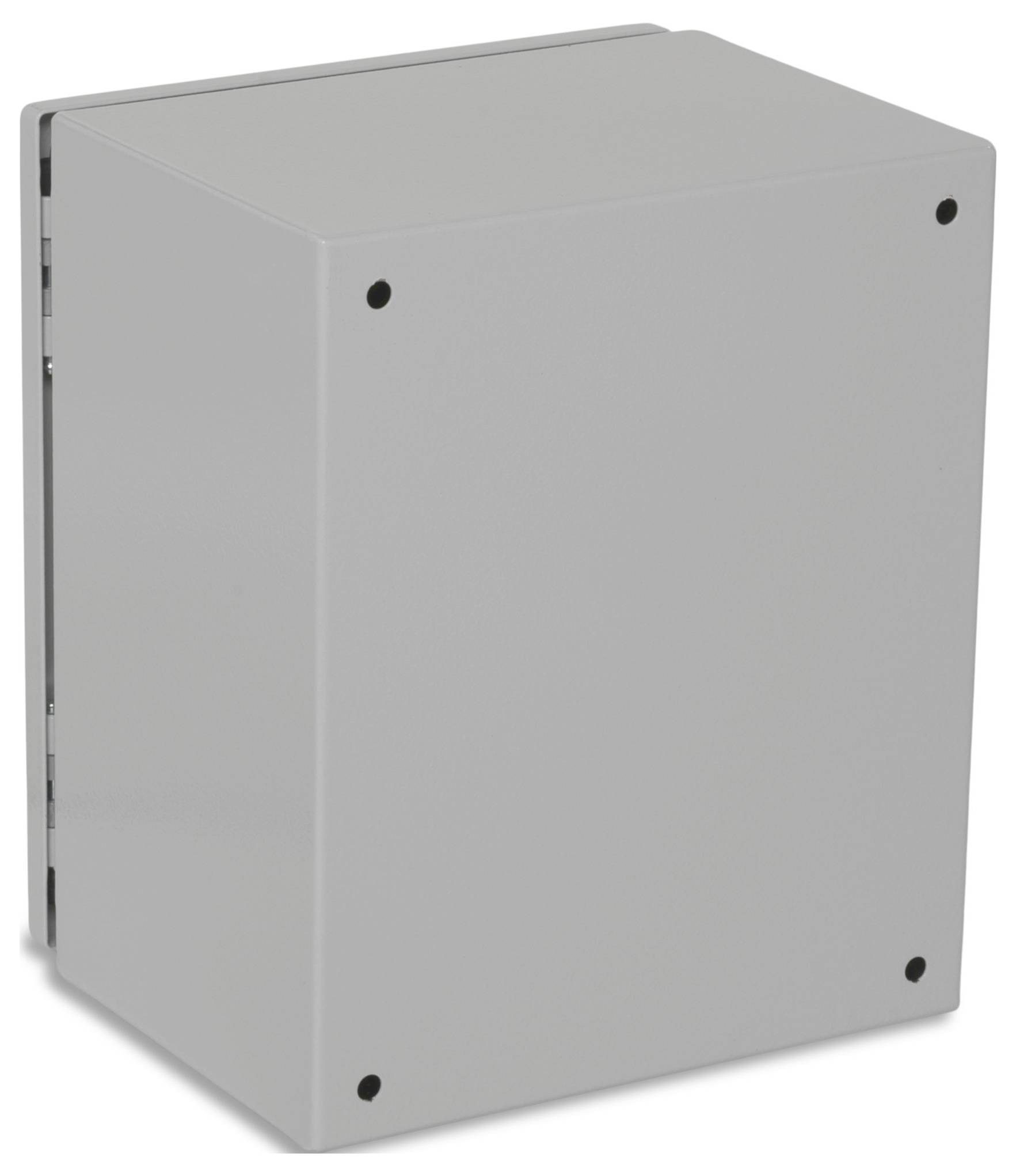

Grey rectangular enclosure with screws at the corners. Suitable for storing or protecting devices, non-transparent.

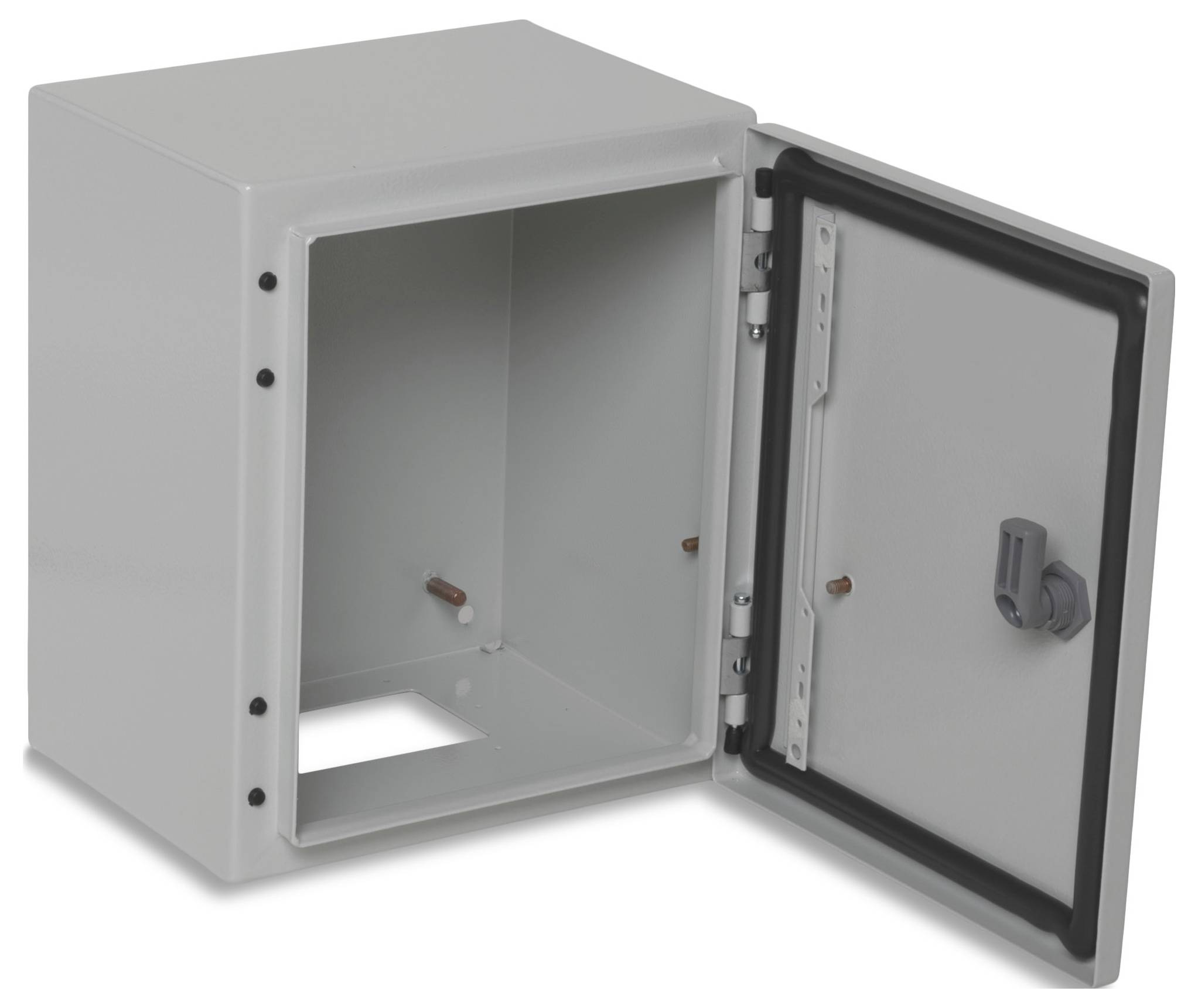

Grey metal cabinet with an open door. Suitable for electrical equipment. Rectangular shape with integrated locking mechanism.

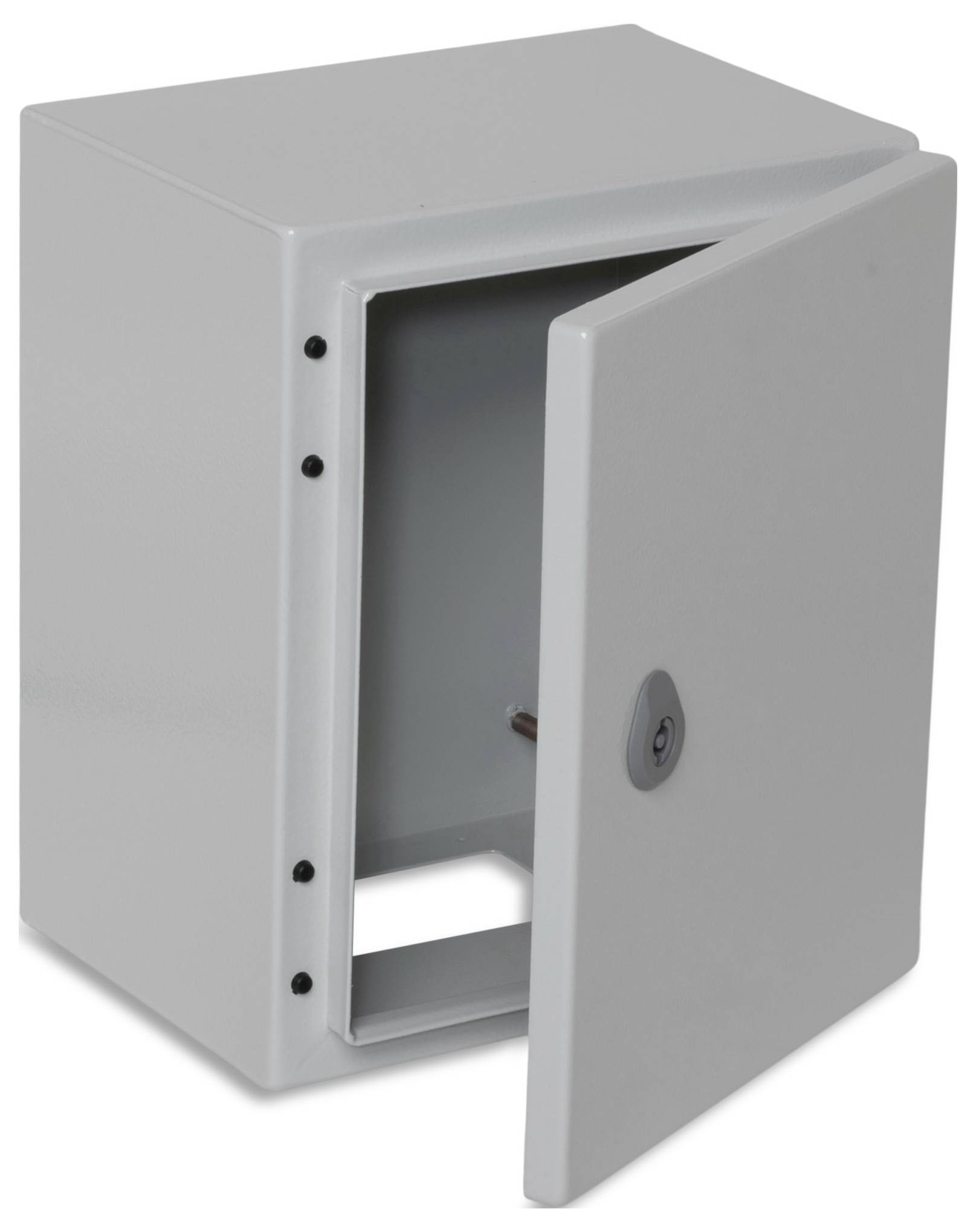

Grey metal cabinet with an open door and visibly empty interior.

1/4

Product type

Wall-mount enclosure

Material

Steel plate

IP rating

IP66

Width

300 mm

Height

200 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Colour RAL 7035
Coating: Polyester paint coating
Material: Cover / door: Steel plate
Material: Lower part: Steel sheet
5 mm double bit lock, 1-point lock
Resistance: Alkaline, oils, salts, etc.
Cover - transparent: No.
Inner dimensions (mm): 254 x 204 x 179
UL approval: No.
Impact strength: IK10

Product type: Wall-mount enclosure

Material: Steel plate

: IP66

Factory colour: Light grey

Length: 250 mm

Width: 300 mm

Height: 200 mm

Weight: 3.3 kg

Content: 1 pc(s)

Type: Treva grau 300250200

Dim: (L x W x H) 250 x 300 x 200 mm

RoHS-compliant: Yes

Manufacturer part #: BXPIMB302520-T01

Halogen-free: Yes

Max. ambient temperature: 60 °C

Min. ambient temperature: -25 °C

Documents & Downloads

Datasheet

Datasheet 3404549 Boxexpert Treva grau 300250200 Wall-mount enclosure 250 x 300 x 200 Steel plate Light grey 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3404549 Boxexpert Treva grau 300250200 Wall-mount enclosure 250 x 300 x 200 Steel plate Light grey 1 pc(s)

Description

The Treva series from BOXEXPERT combines high quality with cost efficiency and includes wall cabinet housings made of robust steel sheet. Thanks to the UV-protected polyester coating, they are ideally suited for outdoor use. The quick wall mounting is made easier by pre-punched holes, while the mounting plate enables a safe attachment of components. The well thought out design offers flexibility and adapts to the installation requirements. The main areas of application are power distribution and conversion in industrial applications.

This text is machine translated.
